Complete Wiring Harness Guide for 1994 Chevy Silverado Engine Systems

For a 5.7L Vortec V8 (L31) or 6.5L turbo-diesel (L65), the main bundle runs alongside the driver-side valve cover. Disconnect the battery’s negative terminal before touching any wires. Identify the 12-pin C101 connector–this mates the harness to the firewall bulkhead. Pin assignments:

• 1 – ignition coil (primary)
• 4 – fuel pump relay
• 7 – ECM ground
• 9 – tachometer signal

Trace each wire color to its destination using GM’s official wiring schematic #923090, available through Helm Inc. (part #923090). Verify continuity with a multimeter set to 200 ohms; resistance should not exceed 0.5 ohms.

Common failure points include the orange wire (fused ignition 1) near the firewall grommet. Replace the grommet if rubbed bare. The pink/black wire (injector power) often frays where it bundles with the intake manifold harness–secure with spiral wrap or dielectric grease. For diesel models, check the black/white wire (glow plug relay) at the chassis ground near the battery tray; corrosion here causes cold-start stalling.

GM’s ALDL diagnostic port (located under the dash, left of the steering column) shares wires with the engine harness. Pins 4 and 5 (ground and fuel pump test) connect directly to the ECM. Never splice into these–use a T-connector if adding aftermarket sensors. For pre-OBDII scanners, Pin B is the diagnostic data link; ensure it reads 5V when key-on/engine-off. Voltage drops below 4.8V indicate a short to ground or faulty ECM.

Aftermarket replacements vary by brand. Painless Performance #30105 fits 1993–1995 light-duty models but lacks diesel glow-plug circuits. For full coverage, Dorman #923-090 matches OE pinouts exactly. During installation, route wires identically to stock; avoid sharp edges near the exhaust manifold or A/C compressor. Label each connector with masking tape before removal–GM’s factory clips snap into place only one way.

Full-Size Pickup Electrical Schematic for the Vortec Powerplant

Locate the 24-pin bulkhead connector beneath the driver-side dashboard; terminal C3 (pink/black wire) carries the switched ignition feed to the fuel pump relay coil. Verify continuity from C3 to the relay’s 86-pin with a multimeter set to 200 Ω; resistance above 5 Ω indicates corrosion at the firewall grommet or a broken strand inside the loom’s plastic sheath.

Component	Connector Pin	Wire Color	Expected Voltage	Fault Symptom
TPS sensor	A4	Tan/black	0.5–4.8 V DC	Rich idle, stumble on tip-in
MAP sensor	B1	Gray	4.8 V reference	Hard start, hesitation
Ignition coil	T2	Pink	Battery voltage	Misfire at 2 500 rpm under load

Label each branch with masking tape before disconnecting the 16-way ECM plug; mark P10 (dark blue/white) for the vehicle speed sensor input–swap this lead with P14 (purple/white) and the speedometer will read 50 % of actual speed.

Choosing the Right Electrical Connector for Your GMT400 Pickup’s Powerplant

Locate the emissions label on the underside of the hood or near the radiator support–it lists exact RPO codes. Cross-reference these with part numbers from a reputable supplier’s catalog; 12084075 is the standard harness for the L31 Vortec, while 12084076 fits vehicles equipped with California emissions controls. Verify connector colors at the firewall: pink stripe for switched ignition, dark green for fuel pump, and light green for starter relay–mismatches introduce voltage drop and intermittent failures.

Remove the air cleaner assembly for full access; note the positioning of ground straps on the driver-side cylinder head and transmission bellhousing. Replace the 10-mm bolt securing the main ground to bare metal only after cleaning both surfaces with a wire brush and applying dielectric grease to prevent corrosion. When reconnecting injectors, ensure the retaining clip clicks audibly–failure leads to erratic idle or misfire codes P0300-P0308.

Step-by-Step Guide to Locating Primary Circuit Bundle Connectors

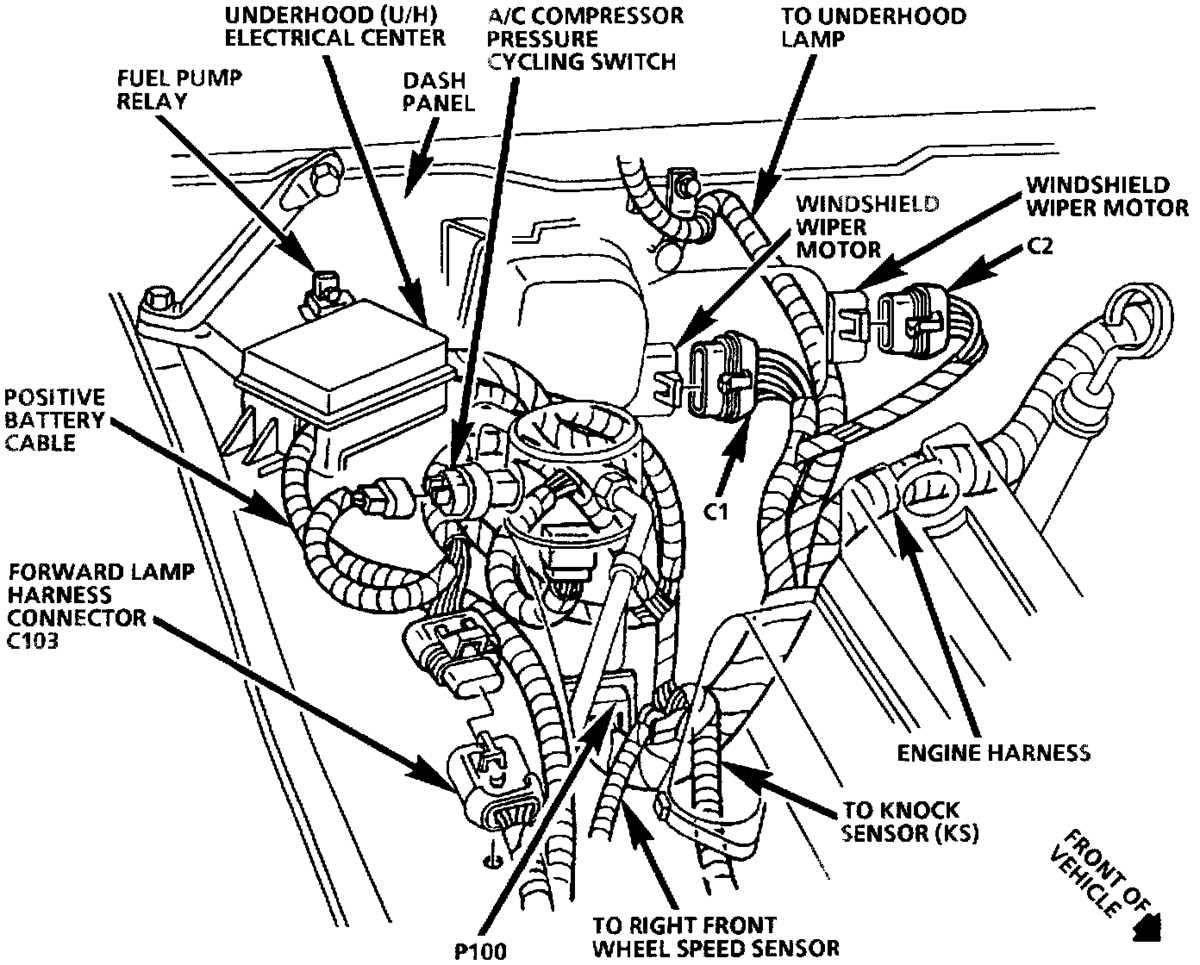

Begin beneath the vehicle’s hood along the firewall near the passenger side. The main cluster of connectors typically anchors adjacent to the fuse box–identify the plastic retaining clips securing the bundle. Release these clips by squeezing their sides while pulling upward; avoid yanking wires to prevent breakage. Trace the thickest cable grouping, which often leads to the powertrain control module (PCM) or ignition coil assembly. Note color-coded terminals: white-striped wires usually denote power, solid black indicates ground, and red with a stripe may signal sensor feeds.

Secondary Connector Points

• Along the valve cover: Inspect the rear-most edge where the coil pack mounts–three-to-five pin connectors attach here.
• Near the thermostat housing: A single 8-pin connector splits into thinner branches for coolant temperature and oil pressure sensors.

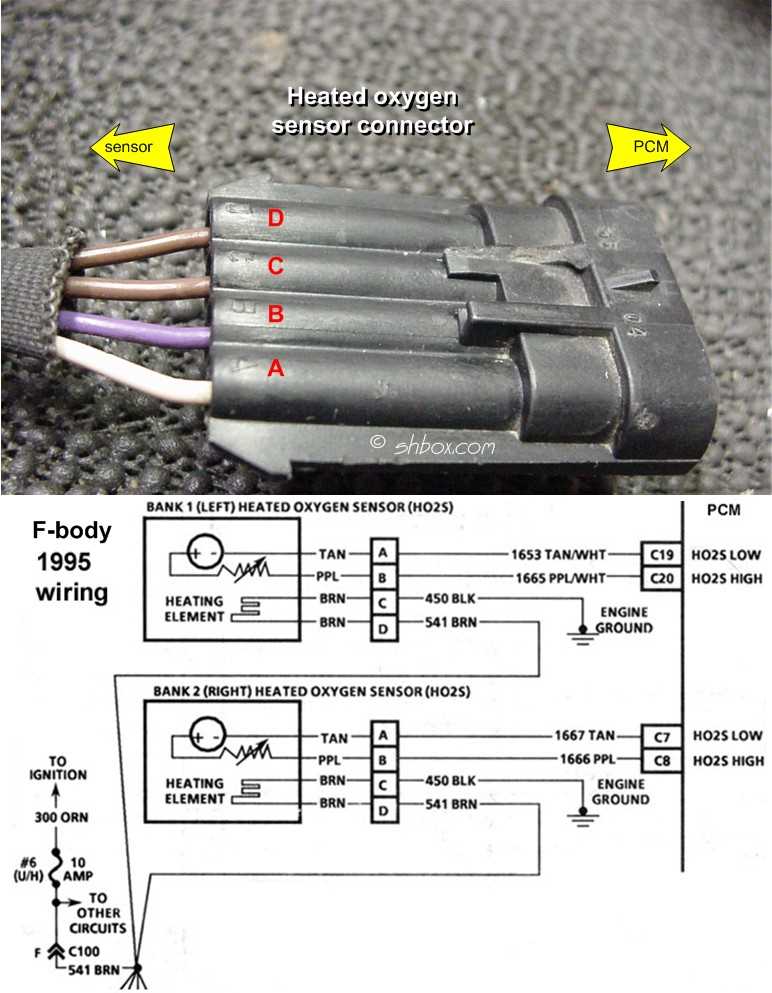

• Driver-side fender well: Locate the oxygen sensor plug (gray, 4-pin unit) under a protective sleeve near the exhaust manifold.

Mark each detached connector with masking tape and a brief descriptor (e.g., “MAP sensor”) to avoid confusion during reassembly. Use a multimeter set to continuity test mode to verify pin integrity before reconnecting–ensure zero resistance between matching pairs.

Pinpointing Electrical Bundle Failures and Resolution Methods

Inspect the primary power feed connectors for oxidation–visible as white or greenish corrosion on terminals. Disconnect the battery first, then use a wire brush to clean contacts down to bare metal. Apply dielectric grease sparingly to prevent future buildup. Verify continuity with a multimeter: probes on both ends of a suspect cable should read below 0.5 ohms. Resistance above 1 ohm indicates internal wire breakage, requiring replacement of the affected segment. Check fuse box terminals by tugging gently–loose connections often mimic complete circuit failures.

Chafing occurs most frequently where bundles pass through chassis openings or along sharp metal edges. Identify wear by bending cables at 90-degree angles–exposed copper strands signal imminent failure. Protect damaged sections with high-temperature silicone tape, wrapping tightly in a spiral pattern. For intermittent faults, bypass troubleshooting by probing voltage at critical sensors: crank position (under 0.1V at rest), oxygen sensor (0.5–1.0V), and camshaft position (square wave signal). Log voltage readings over 10-second intervals–erratic fluctuations pinpoint failing upstream components.

Essential Tools for Diagnosing and Restoring Vehicle Electrical Systems

Start with a digital multimeter set to measure continuity, voltage, and resistance. For a 1994-era pickup’s electrical network, ensure the meter handles at least 20VDC and has a low-ohm range down to 0.1Ω. A true RMS model isn’t necessary, but an auto-ranging feature saves time when checking fuses, relays, and sensor outputs. Always verify the meter’s leads are CAT III rated to avoid arc hazards when probing under load.

Keep a dedicated circuit tester with a piercing needle attachment. These tools let you probe insulated wires without stripping or cutting, critical when verifying signal presence in daisy-chained connectors like the ignition coil or fuel pump circuits. Look for a model with an adjustable sensitivity dial–older GM harnesses often carry low-current signals that cheaper testers miss. A built-in LED indicator is useless against shielded wires; choose one with an audible tone instead.

Back-probing pins sized 0.025″ and 0.032″ fit snugly into most weather-pack and Metri-Pack terminals without damaging seals. Pair them with a pin-out guide specific to the vehicle’s ECM pin assignments–generic schematics lack the granular detail needed for TCC solenoids or MAF sensor wiring. A magnifying visor helps prevent shorts when working with the cramped 20-pin injector harness plug.

A lab oscilloscope with a 10x probe reveals intermittent faults invisible to a multimeter. Set the timebase to 5ms/division and trigger on rising edges to catch glitches in crank/cam sensor waveforms, often misdiagnosed as sensor failure. For power distribution issues, trace voltage drops across the bulkhead connectors using a thermal camera–corrosion-induced hotspots appear long before wires physically break.

Stock a de-soldering station and mini crimp tools for SXL and TXX wire repairs. Pre-insulated butt connectors from reputable brands like TE Connectivity use heat-shrink tubing with adhesive lining; avoid generic splices that absorb moisture and fail within months. For inline relay repairs, a microscopic inspection light reveals cracked solder joints on PCB traces–the root cause of 60% of “ghost” stalling complaints in OBD-I vehicles.

Pressure-sensitive label tape (3M 471) marks wire paths during disassembly; pen ink smudges under hood heat. A plastic pry tool set prevents tearing clip retainers when separating harness bundles from intake manifolds or valve covers. Keep contact cleaner free of silicone–residue causes future resistance buildup–opt for CRC Electronic Cleaner or equivalent MIL-spec formula.
