Complete GY6 150cc Wiring Diagram Guide for Scooter Electrical Systems

Start by locating the CDI unit–the core of ignition control. Connect its black/yellow wire to the stator’s matching lead, ensuring no fraying or exposed strands. The red wire from the CDI should run directly to the battery’s positive terminal via a 10A fuse. Skipping this fuse risks overheating the wiring harness under load.

Grounding requires precision: the green wire from the CDI must attach to a clean, unpainted metal surface on the frame. Use a ring terminal crimped tightly–loose connections cause intermittent spark loss. Verify the stator’s output with a multimeter: AC voltage should read 18–22V at idle and 60–80V at 5000 RPM. Readings below 15V indicate a failing stator.

The regulator/rectifier stabilizes voltage. Connect its yellow wires (all three) to the stator’s corresponding outputs, then route the red wire to the battery’s positive terminal. The white wire handles AC input; miswiring here fries the unit. Always use silicone-insulated wires–standard PVC melts at sustained engine temps.

For the ignition coil, splice the blue/yellow lead to the CDI’s matching wire. The coil’s black/white wire grounds to the frame near the coil mount. Test spark by grounding the plug against the engine block: a blue-white arc confirms proper function. Weak or orange sparks signal a faulty coil or incorrect CDI timing.

Tail light wiring routes differently on models with integrated brake switches. The brown wire carries 12V constant; the brown/white activates with the brake pedal. Use dielectric grease on connectors exposed to moisture–corrosion eats through 2mm terminals in under two rainy seasons.

Troubleshooting? Check resistance values: CDI units typically read 0.2–0.8 ohms across input terminals. Stators should show 0.1–0.5 ohms between any two yellow wires. Disconnect the battery before testing–accidental shorts destroy electronic components instantly. Keep a spare fuse in the toolkit; failed starts often trace back to blown 10A circuits.

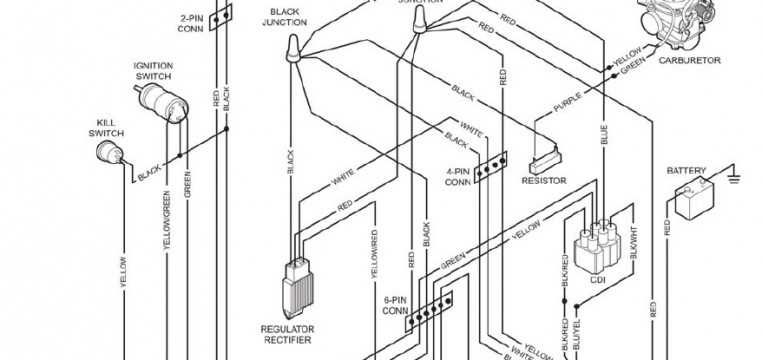

Practical Electrical Schematic Guide for 150cc Scooter Variants

Identify the ignition switch connector first–it typically splits into five wires: red (constant 12V), black/white (ground), brown (ignition feed), yellow (lighting), and green (accessory). Use a multimeter set to 20V DC to verify voltage on the red wire with the key off; absence indicates a faulty fuse or relay. For models with CVT transmissions, the brown wire often routes through the starter relay–check continuity between the ignition switch and relay coil if cranking fails.

Troubleshooting Signal Paths

When turn signals blink erratically, inspect the flasher unit’s 4-pin connector: pin 1 (black) grounds via chassis, pin 4 (yellow/red) receives 12V from the ignition, pin 2 (blue) feeds the left circuit, and pin 3 (light green) feeds the right. Corrosion on pin 2 or 3 disrupts timing; clean with electrical contact cleaner and apply dielectric grease. Replace the flasher if resistance exceeds 2.5 ohms–OEM units tolerate CVT load shifts better than generic replacements.

High-beam failures trace to the handlebar switch’s blue/white wire; splice into this line with an LED test light to isolate breaks between the switch and headlamp socket. For reverse-engineering unknown schematics, label each connector crimp with heat-shrink tubing colors matching factory standards (e.g., pink for A/C clutch, purple for fan sensor). Use a tone generator on the CDI’s blue/white pulse wire to confirm stator output–healthy readings peak at 18V AC at 4000 RPM.

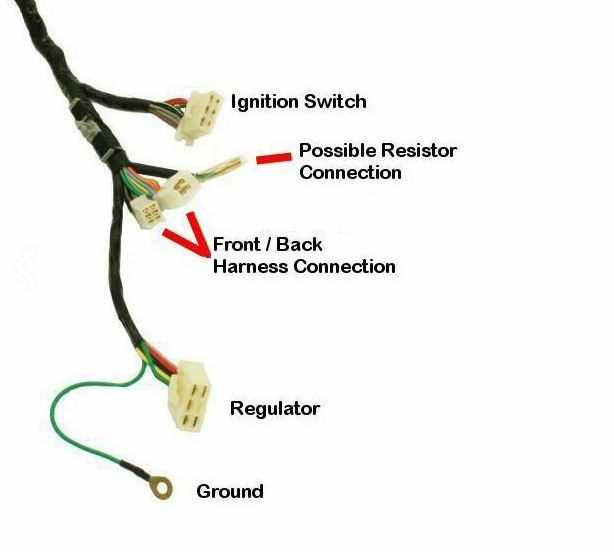

Locating Critical Parts in Your 150cc Scooter Electrical Layout

Start by pinpointing the ignition switch–it’s typically marked with a rectangular symbol connected to multiple colored leads. Trace the red wire (often +12V) from the switch to the fuse, then follow the main harness to the CDI unit. Verify the fuse rating matches the scooter’s manual (usually 10–15A); mismatches cause intermittent power loss. If the fuse blows repeatedly, inspect the regulator/rectifier for overheating or corroded connectors, a common failure point in these systems.

Examine the stator coils next–they’re arranged in a circular pattern beneath the flywheel. Check resistance values against specifications (e.g., 0.2–1.0 ohms between phases). A multimeter reading outside this range indicates burnt windings, requiring stator replacement. Observe the pickup coil (trigger coil) wires, usually thin and white/black; these should show ~200–500 ohms. No continuity here disrupts spark timing, leading to misfires or backfiring.

Connector and Sensor Inspection

• Throttle position sensor (TPS): Adjust the idle screw until the voltage reads 0.4–0.6V at closed throttle. Worn TPS units cause erratic idling.
• Oil level switch: If equipped, ensure it completes a circuit when oil is present. Bypassing this (if faulty) risks engine seizure.
• Fan motor relay: Test by bridging the relay terminals–if the fan spins, replace the relay. Overheating often stems from a failed relay.

Follow the headlight circuit: High-beam (typically blue) and low-beam (yellow) wires merge at the headlight switch before splitting to the bulbs. Voltage drops below 12.5V here suggest poor grounding or a faulty switch. Check the taillight circuit similarly–white/red wires power the brake light, while brown/white handle the running lights. Corroded bulb sockets are a frequent culprit for failure.

1. Isolate the battery terminals. Clean corrosion with a baking soda solution, then tighten connections. Loose terminals cause voltage spikes.
2. Inspect the spark plug wire. It should snap onto the plug with resistance between 5–15 kΩ. Higher resistance weakens spark.
3. Find the kill switch (red/black wire). Confirm it opens the circuit when activated–shorts here prevent engine shutdown.

Label each wire before disconnecting anything. Use a permanent marker or masking tape–colors fade or rub off on older harnesses. For non-standard color codes (e.g., purple replacing green), cross-reference with a known-good harness or aftermarket manual. Wrapping exposed connections with dielectric grease prevents moisture intrusion, a leading cause of electrical gremlins.

Electrical Conductor Guidance for 150-Class Scooter Harnesses

Start by securing the main power feed–typically a red conductor–directly to the battery’s positive terminal. Use a 20-amp fuse inline within 15 cm of the connection to prevent overheating. Connect the black conductor to the battery’s negative terminal, ensuring zero corrosion at the contact point. Verify the red wire carries 12.6V when the ignition is off, dropping to 0V when grounded through the kill switch.

The ignition circuit relies on a yellow conductor paired with a blue-striped auxiliary line. The yellow wire energizes at 12V when the key is turned to “ON,” activating the ignition coil and CDI unit. The blue-striped wire, often overlooked, triggers the starter relay–test for continuity between it and the starter motor’s trigger terminal (usually a thin purple cable) when the starter button is pressed. If voltage fluctuates below 10.5V, inspect the solenoid for worn contacts.

Signal and Lighting Circuit Decoding

Locate the brown wire–this grounds the entire lighting system. Any deviation from chassis ground (measured at

Sensor lines demand precision: the pink wire from the oil pressure switch must read 12V when oil circulates. A reading below 9V signals a clogged filter or bad sensor. The gray wire (coolant temp sender) varies resistance inversely with temperature–300Ω cold, dropping to 50Ω at operating heat. Deviations outside these values require sender replacement. Finally, splice the orange conductor with a green stripe to a 12V horn; test for a minimum 115dB output at 3 meters.

Diagnosing Power Problems in 150-Class Scooter Electrical Systems

Check the fuse first–corrosion or a blown link often mimics deeper faults. Use a multimeter to test continuity across the fuse holder before replacing it; a reading above 0.5 ohms indicates resistance from dirt or oxidation. If the replacement fuse blows immediately, inspect the main harness near the battery terminals for chafed insulation, especially where wires bend around the frame.

Voltage drops at the ignition switch reveal loose connections. Probe the input and output terminals while turning the key; a drop exceeding 0.3V signals excessive resistance. Tighten the terminal screws with a torque wrench to 1-1.2 Nm–over-torquing strips the threads, while under-torquing creates intermittent contact. If corrosion is visible, clean terminals with a brass brush and apply dielectric grease before reassembly.

Starter relay clicking without engine turnover usually traces to weak battery cells. Test the battery under load: connect a carbon pile tester set to the motorcycle’s cold cranking amperage specification (typically 120-140A). If voltage dips below 9.6V during the test, replace the battery rather than attempting a recharge–sulphated plates worsen performance unpredictably. For context, a healthy battery maintains at least 10.5V under load.

Intermittent spark often stems from magneto coil failure or poor rotor-to-stator gap. Measure the gap with feeler gauges: the correct clearance is 0.3-0.5mm. A gap wider than 0.6mm reduces magnetic flux, weakening spark output. If spark remains inconsistent after adjusting the gap, test the coil’s resistance with an ohmmeter–values below 0.2 ohms or above 0.8 ohms confirm internal shorting or open circuits, respectively.

LED brake lights flickering under load point to a faulty voltage regulator. Use a multimeter set to AC volts to test the stator’s output before the rectifier; readings above 30V AC at 5000 RPM indicate overcharging, while readings below 18V AC suggest underperformance. Replace the regulator if AC voltage exceeds 0.5V when the engine is off–this confirms diode breakdown, which allows current leakage and overheats the entire charging circuit.
