Complete 1998 Jeep Cherokee Radio Wiring Color Codes and Diagram Guide

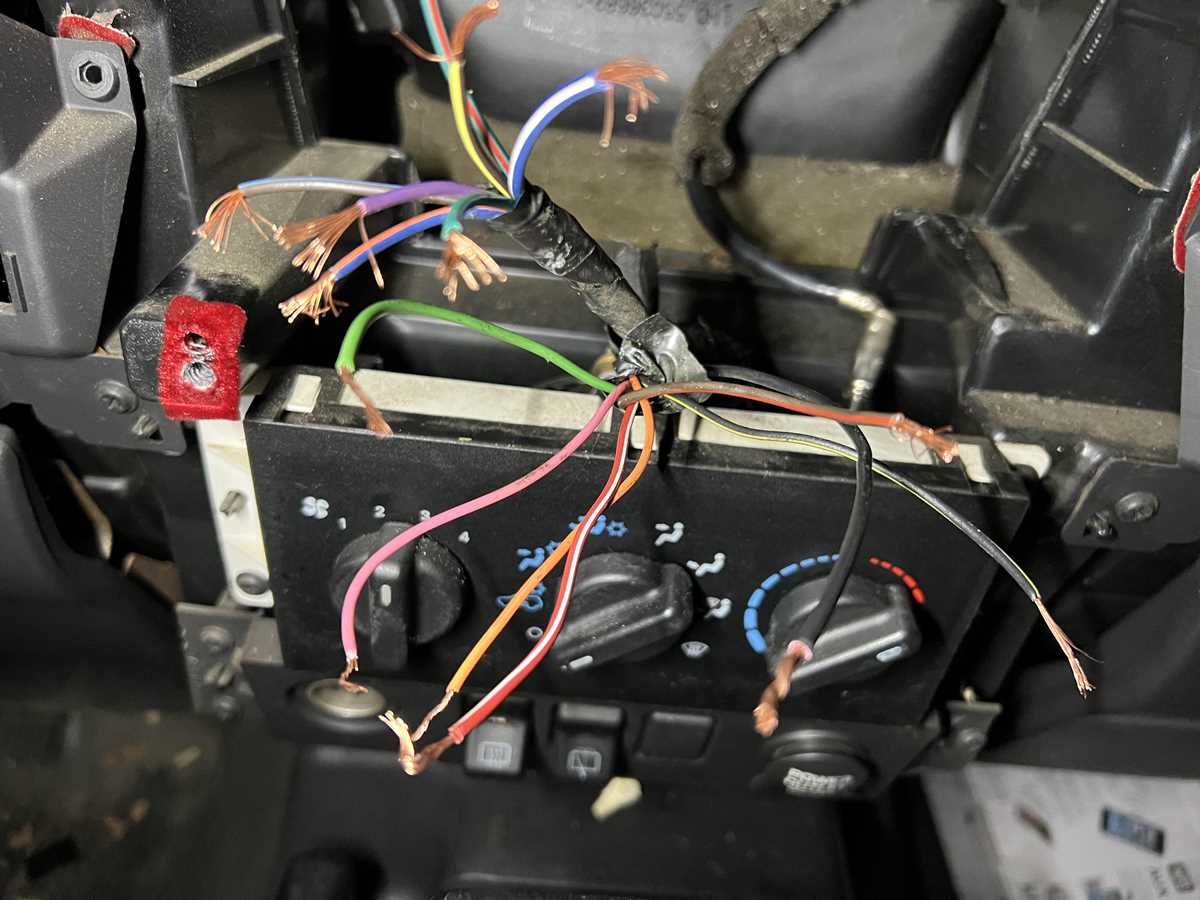

Start by locating the factory harness behind the original receiver. The color-coded wires follow this standard:
- Yellow – constant 12V (memory)
- Red – switched 12V (ignition)
- Black – ground
- Orange/White – illumination dimmer
- Blue/White – power antenna or amplifier turn-on
- Green/Orange/White – left front/right front/rear speaker (+)
- Gray/Green/Violet – corresponding speaker returns (-)
Cutting into these wires risks losing factory diagnostics; solder and heat-shrink each splice for corrosion-proof joints.
Remove the dash trim by prying the plastic clips–two above the climate controls, one beside the hazard switch. Disconnect the HVAC harness first to avoid breaking the tab. The speed-sensitive volume wire (pink) runs to the vehicle speed sensor; tap it cleanly or leave it if retaining stock chimes.
Use a multimeter to confirm the harness voltages before connecting an aftermarket head unit. Set the meter to DC 20V; probe the yellow and red wires while cycling the key. Expect 12.6V on yellow (engine off), 0V on red in accessory, and 12.6V in run. If voltages drop below 11.8V, test the battery and alternator before proceeding.
For dual-din installations, trim the mounting cage to clear the climate vents–measure twice, dremel once. The original antenna lead (coaxial) unscrews from the back of the receiver; route it directly to the new unit’s rear panel without kinks to prevent signal loss.
Reassemble in reverse order, securing all clips with dielectric grease on the contacts. If retaining steering-wheel audio controls, splice the gray/white data bus into the aftermarket harness’ SWI adapter–consult the adapter’s pinout specific to your new deck, not the vehicle manual.
Factory Audio System Wiring Guide for Late-90s SUV Models
Disconnect the negative battery terminal before handling any electrical connections to prevent short circuits or component damage. Locate the behind-dash harness bundle–typically found near the center console mount, secured with plastic clips and zip ties. The primary connector will have 16 or 20 pins, depending on whether the vehicle includes premium audio amplifiers.
Identify each wire by its color-coding and function using this reference:
| Color | Function | Polarity | Notes |
|---|---|---|---|
| Dark Green/Orange | Left Front Speaker (+) | Positive | 16-gauge, twisted with negative |
| Dark Green/White | Left Front Speaker (-) | Negative | Avoid grounding this wire |
| Dark Blue/Orange | Right Front Speaker (+) | Positive | Pulse-width modulated in premium setups |
| Dark Blue/White | Right Front Speaker (-) | Negative | Check continuity with multimeter if audio cuts out |
| Yellow | Constant 12V | Positive | Fused at 10A, powers memory |
| Red | Switched 12V | Positive | Connected to ignition relay |
| Black | Ground | Negative | Clean chassis contact point for best performance |
For vehicles equipped with amplified systems, an additional 8-pin connector (gray/brown housing) provides power to the external amp. The gray wire carries a 5V reference signal–do not splice this directly to high-current sources. Instead, verify amplifier activation by probing the gray/light blue wire during key-on cycles; voltage should rise to ~8V when the system initializes.
When replacing the head unit, use a harness adapter like Metra 70-1817 or similar to preserve factory features like chimes and steering wheel controls. Solder connections and heat-shrink tubing prevent oxidation and intermittent failures common in crimped terminals. If static or distortion occurs, inspect the antenna lead (dark blue, 18-gauge) for corrosion at the base–replace the coaxial connector if resistance exceeds 2Ω.
Aftermarket navigation units often require bypassing the dimmer wire (violet/gray). Connect this directly to a switched 12V source if dashboard illumination control isn’t needed, but confirm bulb-check functionality before finalizing connections. For vehicles with security systems, retain the factory data bus connections (light green/red and light green/black) to prevent triggering false alarms.
Test all speaker outputs individually with a 9V battery–transient pops indicate intact circuits, while silence suggests open circuits or blown fuses. Use a 12V test light to verify power delivery; the yellow constant wire should remain live even with the key off, while the red switched wire should match ignition status.
Finding the Original Audio System Plug Interface
Start by removing the center console trim panel beneath the climate controls–it’s secured with three 8mm bolts and two snap clips near the gear shifter. Once detached, tilt the panel forward; the factory harness connector sits directly behind the ashtray cavity, held by a single 10mm bolt to the firewall bracket. The plug is a 12-pin rectangular unit with a distinct white or gray housing, often obscured by a black foam insulator pad.
- Pin assignments (factory standard):
- Constant 12V (yellow, 16-gauge)
- Switched 12V (red, 18-gauge)
- Ground (black, 14-gauge braided)
- Left front speaker (+) (dark blue, 20-gauge)
- Left front speaker (-) (blue/white stripe, 20-gauge)
- Right front speaker (+) (gray, 20-gauge)
- Right front speaker (-) (gray/black stripe, 20-gauge)
- Left rear speaker (+) (tan, 20-gauge)
- Left rear speaker (-) (tan/black stripe, 20-gauge)
- Right rear speaker (+) (violet, 20-gauge)
- Right rear speaker (-) (violet/black stripe, 20-gauge)
- Antenna trigger (pink, 22-gauge)
If the connector isn’t visible, trace the loom exiting the back of the head unit enclosure–it routes downward along the transmission tunnel, merging with the main chassis loom behind the kick panel on the driver’s side. Cutting zip ties here exposes the full length of the harness; expect the plug within 18 inches of the head unit’s rear bulkhead. Avoid tugging on the wires; the factory solder joints are prone to fracturing under stress, especially the ground and constant power leads.
For verification, use a multimeter set to continuity mode: probe the pins while an assistant toggles the ignition key from OFF to ACC to RUN. Pins 1 (constant) and 2 (switched) should register 12V only in RUN; pin 3 must show 0 ohms to chassis ground. Any deviation suggests a blown fuse (20A IGN or 10A RADIO in the interior fuse box), corroded splices near the bulkhead connector, or a severed wire from prior modifications.
Matching Speaker Wire Colors to Audio System Roles
Locate the gray wire pair first–these carry the right front channel. The positive lead (gray with a colored stripe) connects to the corresponding speaker’s “+” terminal, while the solid gray wire attaches to the “-” terminal. Verify polarity with a quick 1 kHz test tone; reversed connections will produce phase cancellation, reducing midrange clarity.
Trace dark gray wires next–these feed the left front speaker. The dotted variant marks the positive conductor; swapping these with rear channels will invert stereo imaging, causing instruments to appear behind the listener rather than in front. Use a multimeter’s continuity mode to confirm each wire terminates at the correct door tweeter before securing connections.
Rear Channel Wiring Distinctions
White wires handle the right rear output, though some variants use light gray for this role–check documentation for factory deviations. The striped white wire must connect to the woofer’s positive input to prevent subwoofer cancellation. Left rear channels typically use purple, but codes vary: solid purple indicates negative, while purple with a stripe denotes positive. Test each connection with pink noise before finalizing.
Ground-related wires often confuse installers–black wires split into two types: chassis ground (solid black) and power ground (black with yellow stripe). The latter carries amplifier current and must terminate at the battery’s negative terminal, not the chassis, to avoid alternator whine. Speaker grounds (gray, white, purple) should return to the head unit’s dedicated ground point, not shared with power circuits.
For aftermarket amplifiers, splice orange/white striped wires for preamp outputs–left front (gray/orange), right front (gray/white), left rear (purple/orange), and right rear (white/orange). Avoid relying solely on color memory; cross-reference with a wiring pinout tool to prevent shorting 12V constant power (yellow) into signal lines.
Step-by-Step Guide to Installing an Upgraded Head Unit
Begin by disconnecting the negative terminal of the vehicle’s battery to prevent short circuits. Locate the factory harness behind the stock audio system–it will have color-coded wires for power, speakers, and grounding. Use a multimeter set to DC voltage (12V range) to identify the constant power wire, accessory wire, and ground. The constant power wire maintains settings, while the accessory wire activates with the ignition. Label each wire with masking tape to avoid confusion during the swap.
Match the aftermarket harness wires to the vehicle’s existing connectors using a wiring adapter harness designed for the model. If no adapter exists, strip ¼ inch of insulation from each wire and twist the corresponding leads together–constant power (yellow) to constant power, accessory (red) to accessory, and ground (black) to chassis metal. Secure connections with solder or crimp connectors, then insulate with electrical tape or heat-shrink tubing. Avoid relying on twist-and-tape alone; poor connections cause intermittent failures or electrical fires.
Testing Before Final Assembly
Reconnect the battery terminal and turn the key to accessory mode. Verify the new unit powers on and responds to volume controls. Test each speaker individually by adjusting fade/balance settings–front left, front right, rear left, rear right. If a speaker emits no sound, recheck the corresponding wire splice for continuity. Use a 12V test light to confirm voltage reaches each speaker lead; dim or distorted audio indicates reversed polarity or a short.
Once audio functions correctly, mount the new unit into the dashboard using the included mounting kit. Secure it firmly to prevent rattling. Tuck wires neatly behind the dash, avoiding sharp edges or moving components like the steering column. Reinstall any trim panels removed during disassembly. If the unit has a security feature, enable it by entering the default anti-theft code provided in the manual–failure to do so may lock the system after power loss.
Avoiding Common Pitfalls
Do not bypass the fuse in the constant power wire–use the recommended 10-15A fuse to protect against surges. If the display dims excessively when headlights are on, splice the orange dimmer wire (if present) into the vehicle’s lighting circuit. For vehicles with amplified antenna systems, connect the blue/white remote turn-on wire to the aftermarket unit’s antenna output–neglecting this step results in weak FM reception. Double-check all connections before finalizing; a single loose wire can disable climate controls or trigger airbag warning lights in integrated systems.
