Step-by-Step Guide to Designing a Cyclotron Schematic Diagram

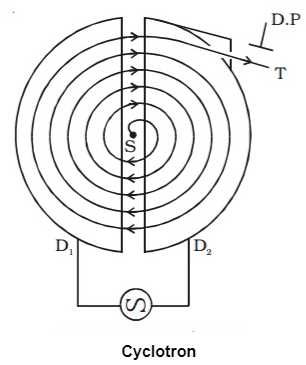

Begin by sketching two semicircular electrodes–dees–positioned symmetrically within a uniform magnetic field oriented perpendicular to the plane of the drawing. Each dee should have a radius precisely calculated based on the desired particle energy and magnetic field strength, adhering to the formula r = mv/(qB), where m is particle mass, v velocity, q charge, and B magnetic flux density. Ensure the gap between the dees is minimal to maximize electric field efficiency during acceleration phases.
Indicate a central ion source at the midpoint between the dees, emitting charged particles tangential to their curved paths. Apply an alternating high-frequency voltage across the dees, synchronized with the particles’ orbital period to maintain resonance. The frequency should match the cyclotron frequency f = qB/(2πm), ensuring continuous acceleration with each half-rotation.
Represent the magnetic field lines as evenly spaced, parallel arrows directed into or out of the page, emphasizing their uniformity across the dee surfaces. Include a kicker electrode or deflector plate near the outermost radius to extract the accelerated particles into a target or beamline. Label key components: ion source, RF oscillator, vacuum chamber, extraction system, and target, specifying operational parameters like field strength (typically 1–2 Tesla) and voltage amplitude (kilovolts range).
Use dashed lines for particle trajectories, illustrating their spiraling path from the center outward. Annotate the drawing with critical values: maximum kinetic energy (Emax = q2B2R2/(2m)), orbital period, and phase stability criteria. Verify calculations for relativistic effects if proton energies exceed 20 MeV, adjusting geometry to compensate for mass increase.
Add a cross-sectional view if structural details of the dees or cooling systems are required, noting material choices (copper for conductivity, stainless steel for structural integrity). Highlight safety mechanisms like magnetic shielding and radiation containment, particularly for high-energy applications. Optimize clarity by avoiding clutter–prioritize functional elements over aesthetic lines.
Creating a Visual Representation of a Particle Accelerator
Begin by outlining the two semicircular electrodes–often called “dees”–positioned within a vacuum chamber. Place them facing each other with a narrow gap between their straight edges. Each dee should connect to an alternating high-frequency voltage source, typically operating at several megahertz, to generate the electric field required for acceleration. Ensure the dees are enclosed within a strong, uniform magnetic field oriented perpendicular to their flat surfaces, provided by a large electromagnet or permanent magnets.
Mark the central region where the charged particles, such as protons or alpha particles, are injected. This point should lie near the gap between the dees. The particles spiral outward as they gain energy from the electric field during each crossing of the gap. The radius of their path increases with each half-cycle of the voltage, maintaining synchronicity with the alternating field. The maximum energy achievable depends on the dee radius and magnetic field strength, often calculated using the relativistic cyclotron frequency formula: f = qB / (2πm), where q is the particle charge, B the magnetic flux density, and m the particle mass.
Key Components to Highlight
Include the ion source at the center, typically a filament or plasma discharge that releases charged particles into the system. Indicate the vacuum pump system, critical for maintaining near-absolute vacuum conditions to prevent collisions with gas molecules. Label the radiofrequency (RF) system driving the dees, which must be precisely tuned to the particle’s cyclical motion. Add the deflector plate or extraction channel near the outer edge, where particles exit the chamber toward the target or beamline.
Use concentric circles to show the expanding trajectory of particles, spaced progressively farther apart to illustrate increasing velocity. Avoid drawing continuous spirals–instead, depict discrete half-circles corresponding to each acceleration phase. The distance between arcs should reflect the energy gain per turn, calculated as ΔE = qV, where V is the peak voltage across the dee gap. For a 500 keV proton cyclotron, each turn might add 50 keV, requiring roughly 10 orbits to reach maximum energy.
Clearly distinguish between the static magnetic field lines and the dynamic electric field. Represent the magnetic field with uniformly spaced parallel lines cutting through the dees, while the electric field exists only within the gap between the dees, reversing direction with each RF cycle. Add a legend explaining symbols: solid lines for magnetic field, dashed lines for electric field, and arrows indicating particle motion direction.
Verify proportions: the dee radius should dominate the visual, with the central injection point occupying no more than 5% of the total diameter. For a 1-meter diameter accelerator, the extraction point typically lies 5-10 cm from the outer edge. Annotate critical dimensions–gap width (often 1-2 cm), dee thickness (10-20 cm), and magnetic field strength (1-2 tesla)–to ensure physical plausibility.
Key Elements for Particle Accelerator Blueprint
Begin with the Dees–two hollow, D-shaped electrodes positioned opposite each other within a high-vacuum chamber. Their gap must align precisely with the particle orbit’s radius, typically ranging from 0.5 to 2 meters depending on energy requirements. Ensure the Dees are fabricated from oxygen-free copper or a comparable conductor to minimize resistive losses during radiofrequency (RF) oscillations. The RF system should operate at 10–30 MHz, synchronized with the particle’s relativistic mass gain to maintain resonance. Include a tuning circuit to compensate for variations in particle velocity, especially in machines designed for energies exceeding 20 MeV.
Integrate a magnetic field source using electromagnets with pole faces shaped to produce a uniform flux density (0.5–2 T) across the acceleration gap. The field must exhibit azimuthal symmetry to prevent beam defocus; deviations greater than 0.1% will induce radial oscillations and reduce output efficiency. Cooling channels in the magnet yoke should circulate deionized water at 15–20°C to dissipate heat generated by eddy currents. For compact designs, consider superconducting magnets, but account for cryogenic subsystem complexity and quench protection mechanisms.
Include an ion source at the center, selecting between penning, electron cyclotron resonance (ECR), or duoplasmatron types based on target particle (protons, deuterons, or heavy ions). The extraction system–comprising electrostatic deflectors or a stripping foil–should be positioned at the outermost orbit to guide particles toward the experimental target. Verify vacuum levels below 10⁻⁷ mbar to prevent collisions with residual gas; use turbomolecular pumps backed by dry scroll pumps. Add diagnostics: Faraday cups for beam current, scintillators for position monitoring, and RF phase detectors to ensure timing accuracy within ±0.1°.
Optimal Electric and Magnetic Field Positioning in Particle Accelerators
Position the electric field plates perpendicular to the particle trajectory at the center of each dee, ensuring a uniform potential difference of 10–100 kV across the gap. The gap width should not exceed 5% of the dee’s radius to maximize acceleration efficiency while maintaining field stability. Align the magnetic field coils symmetrically around the acceleration chamber, generating a flux density of 1.0–2.5 T with less than 0.1% variation across the orbital path. Misalignment above 0.5° introduces resonant frequency mismatches, reducing beam intensity by up to 30%.
To prevent eddy current heating, inset magnetic pole pieces between the coils and the vacuum chamber, spacing them no more than 10 mm from the beam path. Use laminated iron cores with a resistivity of ≥10-7 Ω·m to limit hysteresis losses to under 5 W/m3. The table below outlines critical field parameters for a 20 MeV proton accelerator:
| Parameter | Target Value | Tolerance | Failure Impact |
|---|---|---|---|
| Electric Field Strength | 25 kV/cm | ±0.5 kV/cm | Phase slip, beam defocus |
| Magnetic Flux Density | 1.8 T | ±0.02 T | Orbit deviation >2 mm |
| Dee Gap Phase Angle | 180° | ±0.1° | RF losses >10% |
| Coil Current Stability | 0.01% (rms) | ±0.002% | Beam energy spread >1% |
Install trim coils at 15° intervals along the orbital path to correct azimuthal field asymmetries, powered by 0–5 A adjustable DC supplies with
Ground all conductive surfaces within 5 cm of the beam path to suppress electrostatic deflection, using high-purity copper shields with surface resistivity -6 Pa). Position quadrupole magnets at the extraction point to compress beam divergence to
Designing the Dees: Key Structural and Functional Considerations
Position the hollow, semicircular electrodes–commonly referred to as “dees”–opposite each other with a precise gap of 2–5 cm between their straight edges to optimize particle acceleration paths. Each dee must maintain a uniform radius, typically ranging from 0.5 to 2 meters depending on target energy levels, with inner surfaces polished to
- Shape the dee lips at a 45° chamfer to reduce fringe-field distortions that degrade beam coherence.
- Integrate 3–5 mm copper or silver plating on interior surfaces to enhance conductivity and thermal dissipation.
- Embed temperature sensors (type K thermocouples) at three equidistant points along the outer rim to monitor localized heating during operation.
- Ensure the gap alignment tolerance does not exceed ±0.2 mm to prevent beam missteering.
- Use non-magnetic stainless steel (e.g., 316L) for structural components to avoid interference with the guiding magnetic field (B = 1–2 T).
Apply RF shielding by enclosing the entire assembly in a grounded Faraday cage with mesh spacing 0 = 50 Ω) terminated with water-cooled stub tuners to maintain resonance. Regularly inspect the gap spacing using laser interferometry or feeler gauges–wear beyond 0.5 mm warrants electrode replacement to sustain acceleration efficiency.
