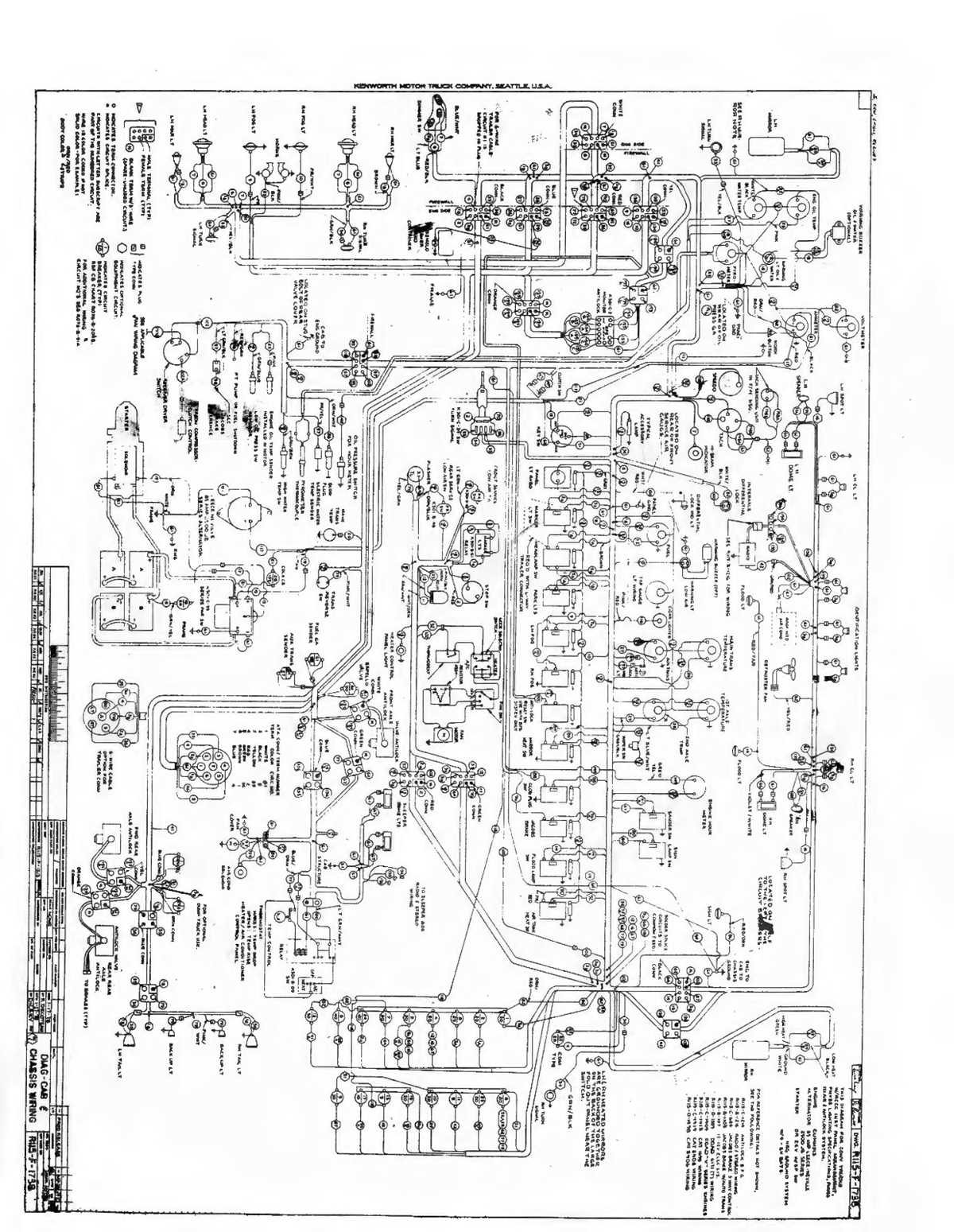

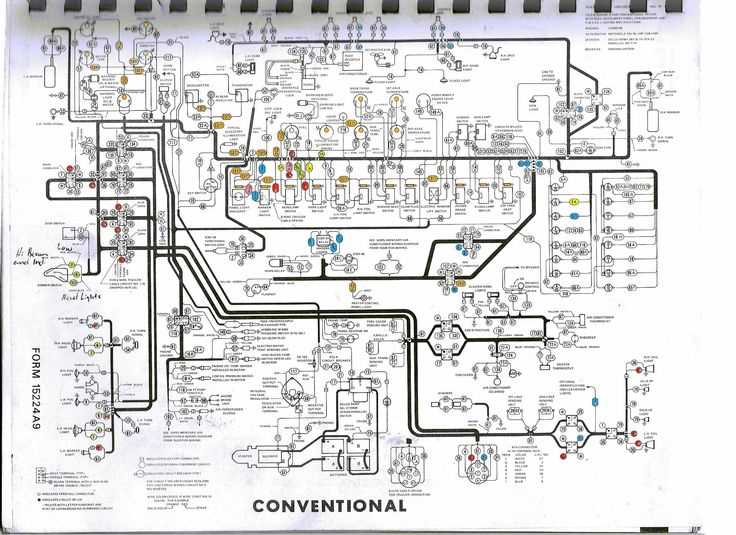

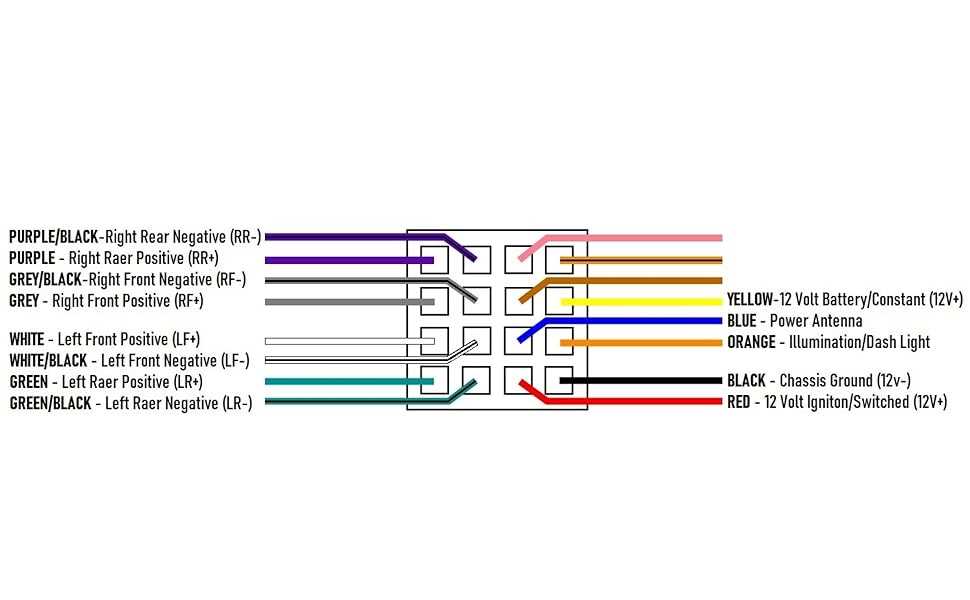

Complete 1999 Kenworth W900 Wiring Diagram Electrical Schematic Guide

Start with the main power distribution panel under the dash–trace the red 6-gauge cable from the battery relay to the ignition switch. This line feeds the entire primary circuit, and any corrosion at the terminal connections will cause intermittent failures. Use a multimeter set to 20V DC to verify voltage drops: readings below 12.4V at the switch indicate resistance in the circuit.

Focus next on the instrument cluster harness. The blue/white stripe wire carries the tachometer signal–if readings fluctuate erratically, inspect the alternator output (should hold 13.8–14.4V under load) and the ground strap connected to the frame rail near the transmission bell housing. Clean both contact points with a wire brush and apply dielectric grease to prevent future oxidation.

The yellow 14-gauge cables supply the headlight and marker circuits–these split at the front bulkhead connector, where chafing often occurs. Replace any damaged sections with TE Connectivity 14-10148 terminals, crimped with a FTZ 30-511 tool for proper strain relief. For trailer wiring, bypass the factory junction box and run a dedicated 7-way RV plug directly from the fuse block, using 12-gauge SXL wire for durability.

Air suspension systems require special attention: the black/orange wire controls the compressor relay, and shorts here will drain the battery within hours. Test for continuity between the ECU pin #3 and the compressor ground–values above 0.5 ohms necessitate replacing the entire harness segment from the firewall grommet to the rear axle module.

For ECU communication errors, swap the J1708 data link cable (located behind the glove box) with a Packard Metripack 280 connector. Ensure the CAN bus terminators (120-ohm resistors) are intact at both ends–missing termination can cause false fault codes in the ABS and transmission controllers. Use a scanner with bi-directional control (like the JPRO Commercial Vehicle Diagnostics) to verify active signals before condemning any module.

Electrical Blueprint for Classic Heavy-Duty Trucks: Hands-On Approach

Locate fuse panel under the dash on the driver’s side–remove the lower trim cover by releasing three 10 mm bolts. Each fuse slot is labeled with a small embossed identifier: A/1 controls the left marker lights, B/3 feeds the ECM, and C/5 powers the glow plugs on Cummins ISX. Use a multimeter set to 200 mA; probe both contacts of each fuse with the key in the RUN position. Readings below 0.3 A on C/5 indicate corroded pins on the 150 A starter solenoid relay.

Wire Gauge	Color Code	Max Current (A)	Terminal Type
4 AWG	Red	180	Stud, 5/16″
6 AWG	Yellow	120	Ring, #10
10 AWG	Blue	50	Spade, .25″
12 AWG	Black/Red stripe	25	Bullet, .187″

Trace orange 14 AWG wires behind the firewall bulkhead: they terminate at the ABS modulator block. Disconnect both 8 mm hex bolts securing the block, then lift the module to expose the firewall pass-through. Push a 1/8″ nylon rod through each grommet; tug wire bundles gently to release trapped moisture. Apply dielectric grease to the male pins before reconnecting–voltage drop should fall below 0.2 VDC at 12.8 V battery input.

Finding the Primary Powertrain Cable Connections on a Classic Heavy-Duty Truck

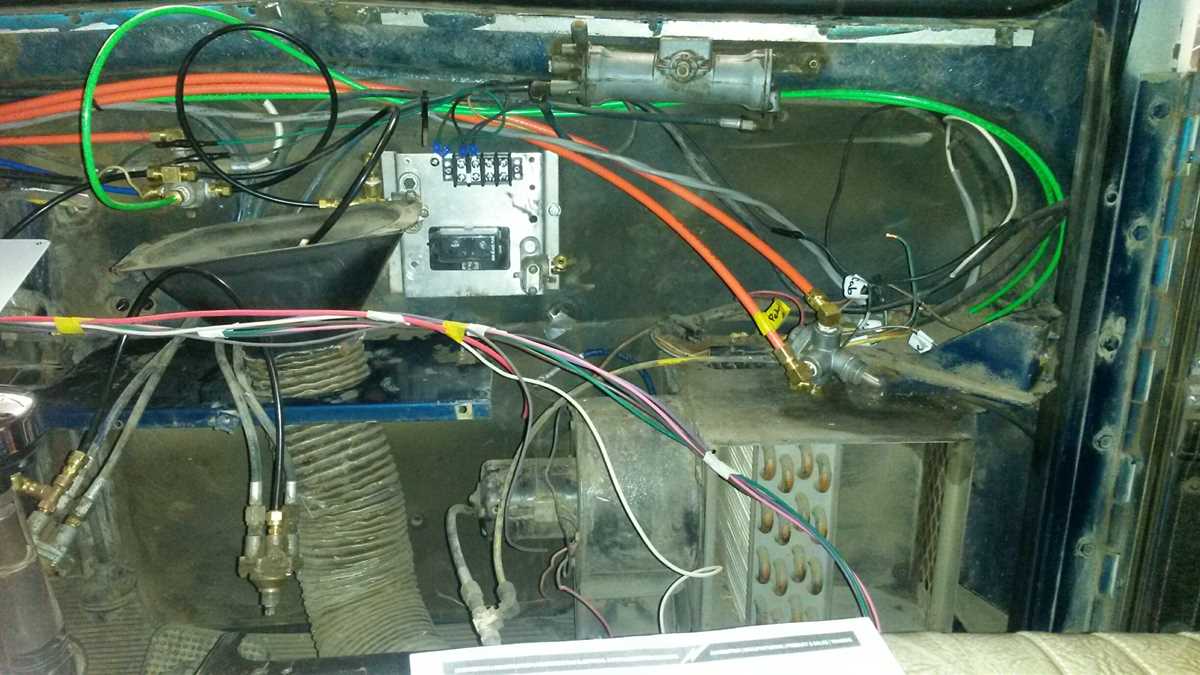

Start behind the dashboard’s lower access panel. Remove the six 8mm bolts securing the metal cover–no need to disconnect the HVAC ducts unless tracing circuits linked to the blower motor. The main engine harness emerges as a thick, corrugated loom, usually sheathed in black or dark grey insulation. Trace this bundle downward; it splits into three primary connectors near the firewall’s driver-side gasket.

Identify the largest plug first–this 52-pin Deutsch connector handles ECU, transmission solenoids, and fuel injectors. Verify pin labels on the underside: pins 3-12 (fuel injectors) align with the intake manifold’s rail, while pins 19-24 manage the J1939 CAN bus. Mark corroded contacts with a wire brush dipped in dielectric grease before reinserting.

The second critical junction is a 24-pin Weather-Pack connector adjacent to the starter relay. This feeds glow plugs, engine sensors, and the air compressor clutch. Release the red locking clip with needle-nose pliers; tugging directly can snap the housing. Inside, check for terminal spread–use a feeler gauge (0.020”) to reset any splayed blades.

For turbocharger wastegate wiring, follow the smaller 6-pin Deutsch connector branching from the central harness beneath the valve cover. Its harness shield may be brittle; secure loose sections with self-vulcanizing tape, not electrical tape. Pin 1 (turbine pressure sensor) and Pin 4 (wastegate actuator) typically require continuity checks with a multimeter if boost inconsistencies appear.

Inspect the alternator’s harness path last. The voltage regulator taps into the main loom via a 4-pin AMP connector–snip corroded wires cleanly at the crimp, strip ¼”, and solder using 60/40 rosin core. Heat-shrink sleeves must overlap the connector housing by ½” to prevent moisture intrusion. Avoid twisting wires; route parallel to existing loom pathways for strain relief.

When reassembling, thread the harness through the firewall bulkhead using the factory grommet. Ensure no abrasion occurs against the sharp metal edge–line vulnerable sections with polyethylene spiral wrap. Forgetting this risks chafing that mimics intermittent sensor failures, often misdiagnosed as ECM faults.

Label every disconnected plug with masking tape and a permanent marker noting exact location and source before removal. Photograph harness paths with a macro lens (focus on connector orientation) to avoid misalignment during reinstall. Mistakes here can trigger limp mode even if circuits test intact.

Before closing panels, tug-test each connector. A properly seated harness locks with a tactile click; loose connectors vibrate free under load. For added security, apply dielectric grease to plug shells–this prevents future corrosion and eases disassembly for future checks.

Tracing the Lighting Circuit Conductors for Front Illumination, Indicators, and Stop Lamps

Locate the primary power distribution block beneath the driver-side dashboard–labelled “Fusible Link Panel” in service manuals. Identify the 80-amp master fuse supplying the lighting subsystem; this feeds the headlamp relay, hazard flasher module, and brake lamp switch. Use a multimeter set to 20V DC: probe the incoming terminal (typically red/yellow stripe) while cycling the ignition; readings below 11.8V indicate corroded battery connections or a failing alternator diode trio.

Follow the twin 12-gauge yellow conductors from the relay socket to the headlamp bulbs. At each bulb socket, verify ground continuity–black/white stripe wire–against the frame rail; resistance above 0.5 ohms suggests loose chassis attachment or oxidized grounding eyelets. For indicator lamps, trace the six-way harness exiting the flasher module: amber wires (markers), light green (left), dark green (right), and pink/purple (tail/brake). Split the harness near the fifth-wheel pivot to inspect junction splices; liquid tape degradation here mimics bulb failure symptoms.

Key Checkpoints for Brake Lamp Circuit

• Brake pedal switch: Two-wire connector, violet (supply) and gray (output). Depress pedal; voltage should toggle from 0V to battery level. Replace switch if hysteresis exceeds 2 psi or contacts stick.
• Load equalizer at rear crossmember: Distributes brake signal to both tail lamps. Inspect for burnt solder joints–common failure in high-wattage LED retrofits.
• Lamp sockets: Twist-lock BA15S base. Check for heat-warped plastic; excessive heat melts thermoplastic retainers, causing intermittent contact.

Isolate turn signal anomalies by bypassing the flasher module with a test jumper. Clip a 12V bulb between the module output (light green/dark green wires) and ground; proper flashing confirms module failure, while steady illumination indicates downstream wiring faults. For headlamp high/low beam issues, probe the dimmer switch connector: blue (high beam), blue/white (low beam), blue/yellow (common). Switch actuation should produce nearly identical voltage swings between 11.5V and 0.3V–values exceeding 0.8V suggest worn contacts requiring switch replacement.

Locating Key Electrical Hubs in the Instrument Panel Layout

Start by disconnecting the battery’s negative terminal to prevent accidental shorts or electrical surges while probing connectors. The primary power distribution cluster in this truck’s cabin centers around the fuse block, typically positioned behind the lower dashboard panel on the driver’s side. Remove the snap-fit cover–no tools required–to reveal the central junction where thirty-six fused circuits originate. Label each fuse position numerically (1 through 36) using masking tape before testing; reference the factory manual for amp ratings, as incorrect replacements risk melting terminals or damaging downstream components.

The ignition switch cluster serves as another critical node, feeding power to accessories, starter solenoid, and ECM. Probe the following terminals with a multimeter set to 20V DC while turning the key to each position:

• Terminal 30: Constant 12V input from battery (red wire, 10-gauge)
• Terminal 15: 12V output in “RUN” and “START” positions (yellow/black stripe, 12-gauge)
• Terminal 50: 12V output only in “START” position (purple wire, 10-gauge)
• Terminal X: Accessory power (orange/black stripe, 14-gauge)

Voltage drops exceeding 0.2V between input and output terminals indicate worn contacts or loose connections–clean with electrical contact cleaner and re-tighten using a crimping tool rated for 12-10 AWG wire.

The headlight dimmer switch integrates directly into the dash harness via a rectangular 8-pin connector (part #823457). Three pins handle power routing:

1. Pin 1: Switched 12V from fuse #12 (high-beam relay)
2. Pin 3: Ground (black wire, screw terminal)
3. Pin 5: Dimmer output (gray/red stripe, 16-gauge)

Check Pin 5 for continuity in both switch positions; corrosion here mimics failed bulbs or burnt relays. Replace the switch if resistance exceeds 2 ohms across Pin 1 and Pin 5.

Behind the speedometer cluster, a 16-pin connector (color-coded) distributes signals to gauges, warning lights, and sensors. Critical pins include:

• Pin 4: Oil pressure sender (white/blue stripe, 18-gauge)–12V in normal operation
• Pin 7: Fuel level sender (pink/white stripe, 18-gauge)–variable resistance 0-90 ohms
• Pin 12: Check engine light (purple/white stripe, 20-gauge)–ground-triggered

Use a scan tool plugged into the OBD-II port (located beneath the steering column) to cross-verify voltage readings against ECM-reported values. Discrepancies often trace back to chafed wires at the firewall grommet–inspect for exposed copper and re-seal with heat-shrink tubing.

HVAC controls route through a standalone harness near the blower motor resistor. The blower motor itself draws power from a dedicated 40-amp relay (fuse #24), with a red/blue stripe wire feeding the motor through a 30-amp circuit breaker. If the blower operates only on “HI,” test the resistor block’s three terminals:

• Terminal C: Common ground
• Terminal H: Direct 12V for “HI” speed
• Terminals L/M: Switched resistances (6-10 ohms for “LOW,” 2-4 ohms for “MED”)

Burnt resistors emit a distinct odor and show charring–replace the entire block ($18 part) rather than attempting solder repairs.

The turn signal and hazard flasher unit mounts on the steering column bracket via a two-prong connector. Probe both pins while activating signals:

• Pin A: 12V input from fuse #11 (green/white stripe, 14-gauge)
• Pin B: Pulsed output to bulbs (yellow/black stripe, 14-gauge)–should alternate between 0V and 12V at 1-2 Hz

If Pin B remains constant at 12V, the flasher unit has failed–swap in a universal 3-pin electronic flasher ($12) and splice into the existing harness. Always replace both bulbs if one filament burns out; uneven draw disrupts flasher timing.
