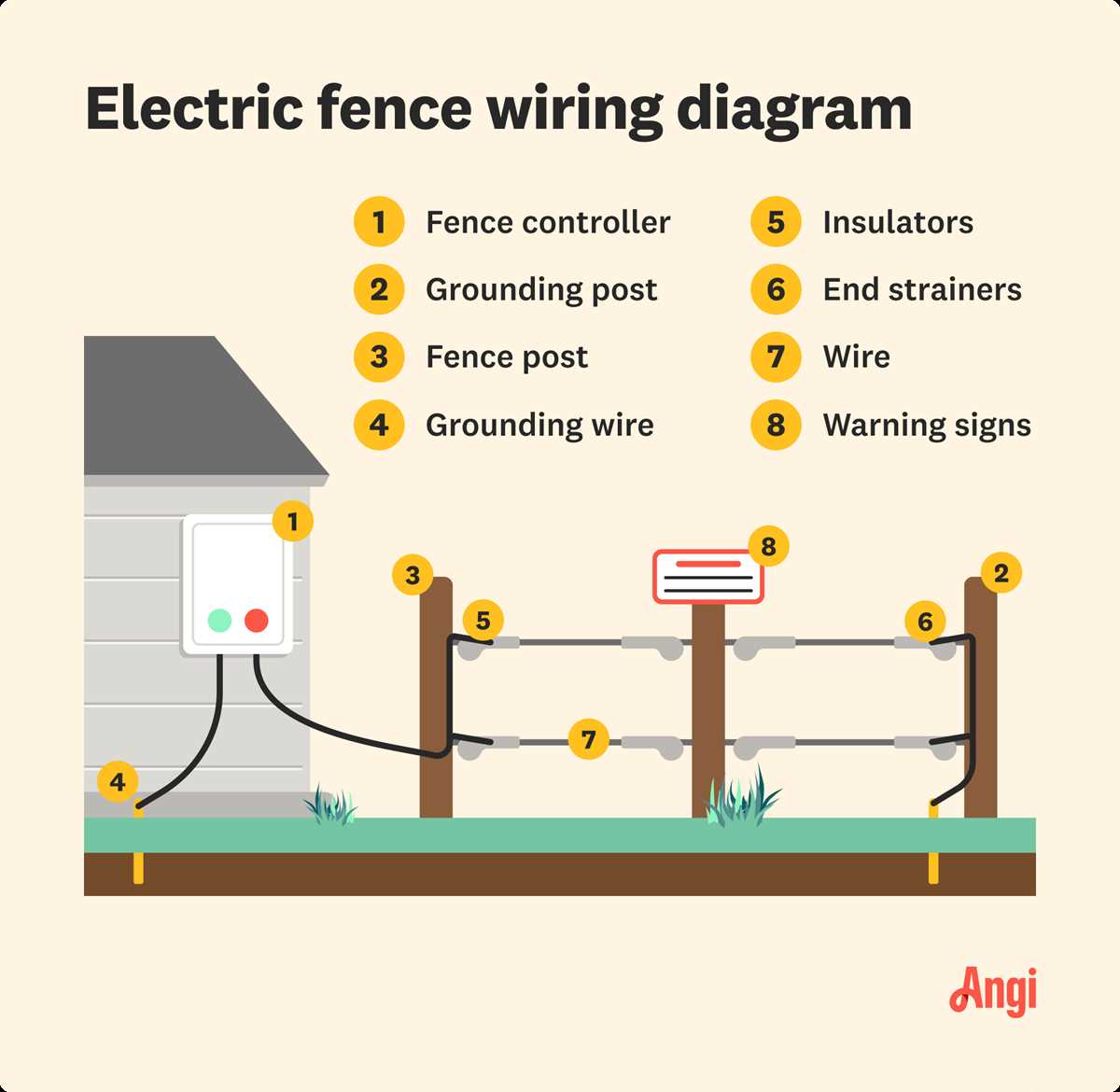

Step-by-Step Guide to Building Your Own Electric Fence Charger Diagram

For a reliable barrier pulse generator, use a flyback transformer salvaged from an old CRT monitor or television. This component delivers the necessary 10–15 kV spikes with minimal current, ensuring safety while maintaining effectiveness. Pair it with a 1N4007 diode for output rectification and a 220nF, 2kV capacitor to shape the pulse duration to 1–3 milliseconds–ideal for deterring livestock without causing injury.

Select a NE555 timer IC configured in astable mode to regulate pulse frequency. Set the timing resistors (10kΩ and 1MΩ potentiometer) and capacitor (10µF) to generate a 1–2 Hz repetition rate, balancing energy consumption with deterrent strength. A TIP122 Darlington transistor serves as the switching element, driven by the timer’s output to handle the transformer’s primary load without overheating.

Incorporate a 12V lead-acid battery as the power source, supplemented by a solar panel (10W, 18V) for off-grid applications. Add a fuse (2A, slow-blow) to protect against short circuits, and include a varistor (MOV, 275V) across the transformer’s primary to absorb voltage spikes during operation. Ground the system properly using a galvanized steel rod (2m) driven into moist soil to prevent stray current hazards.

For wire selection, use 12-gauge aluminum wire for the barrier strand–lightweight yet capable of carrying pulse currents. Connect strands in parallel for larger enclosures, spacing them 15–20 cm apart vertically. Test the system with a voltmeter set to AC mode, targeting 5–10 kV at open circuit. Adjust the potentiometer to fine-tune frequency if interference with nearby electronics occurs.

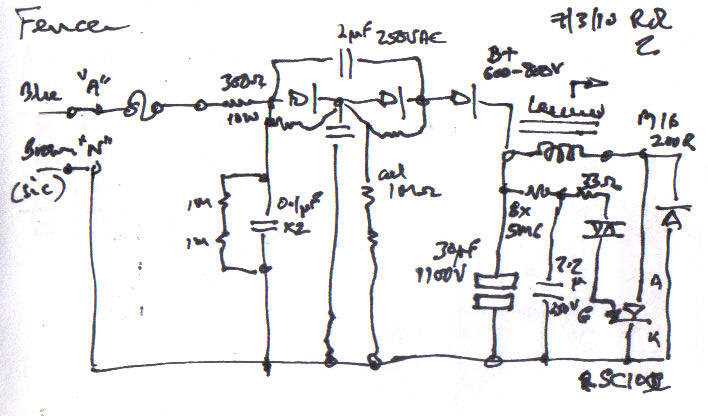

Designing a High-Voltage Pulse Generator for Livestock Barriers

Start with a flyback transformer (salvaged from an old CRT monitor or microwave oven) as the core component–its primary winding should handle 12V input while stepping up to 5–10kV in the secondary. Pair it with a NE555 timer IC configured in astable mode, setting a pulse rate of 1–2Hz to prevent continuous current, which risks harming animals or draining the battery prematurely. Use a MOSFET (IRF540 or similar) to drive the primary coil, ensuring it’s rated for at least 10A to handle inductive loads without overheating. Add a 10µF electrolytic capacitor across the timer’s output to stabilize the pulse, and include a 1N4007 diode in reverse across the MOSFET’s drain-source to clamp voltage spikes.

A proven layout combines a 12V lead-acid battery, the timer-driven MOSFET switching the flyback’s primary, and a secondary output routed through a spark gap (adjustable to 3–5mm) to the perimeter wire–this gap acts as a safety release for excess voltage, preventing insulation damage. For grounding, drive a galvanized rod at least 1.5m into damp soil, connected via 6mm² copper wire to the system’s negative terminal. Test output with an oscilloscope–pulses should measure 5–8kV with a duration under 50µs to comply with ISO 10368:2019 guidelines for humane barriers. Replace components annually, as capacitor degradation or corrosion on connectors will reduce efficiency.

Constructing a Simple Pulsed Barrier Energizer: A Practical Walkthrough

Select a 12V sealed lead-acid battery as the primary power source–its reliable output and low impedance match the demands of the pulse generator stage. Mount the battery on a non-conductive base (acrylic or fiberglass) to prevent accidental shorts during assembly. Connect the positive terminal to a high-voltage switch (IGBT or SCR rated for ≥600V/≥10A) via a 1Ω/1W current-limiting resistor; this safeguards the switch from inrush spikes while allowing sufficient pulse amplitude.

Build the pulse-forming network around a NE555 timer configured in astable mode (adjust R1=10kΩ, R2=100kΩ, C=100nF for ~1Hz repetition). Feed its output into a totem-pole driver (pair of complementary MOSFETs–IRF3205/IRF9540) to amplify the signal before the high-voltage section. For the transformer core, repurpose a flyback unit from an old CRT monitor or microwave: wind 10 turns primary (heavy-gauge wire) and 400-500 turns secondary (0.3mm enameled copper) bifilar for reduced leakage inductance. Secure windings with high-temperature epoxy to avoid corona discharge.

Component	Specification	Notes
IGBT/SCR	600V/10A min.	Heat sink mandatory; isolate with mica sheets
NE555 timing cap	100nF/X7R dielectric	±5% tolerance to maintain consistent pulse width
Transformer core	Ferrite ETD39 or salvaged CRT flyback	Verify gapping (air gap ~0.5mm) for correct inductance
Output resistor	10kΩ/25W wirewound	Bleeds residual voltage between pulses; non-flammable housing

Terminate the secondary coil with a 10kΩ/25W wirewound resistor in parallel to the barrier wires to clamp the pulse voltage below 10kV (open-circuit readings higher than 12kV risk breakdown in humid conditions). Enclose the entire assembly in a grounded metal case–drill ventilation holes but shield them with fine copper mesh to block RF interference. Test the pulse waveform with a 100:1 voltage probe and oscilloscope: target 10μs rise time, ≤50μs fall time, and ≤2Hz repetition to comply with livestock safety standards while ensuring deterrence. For outdoor use, seal all solder joints with silicone conformal coating to prevent corrosion from condensation.

Critical Elements for a Dependable Voltage Pulse Generator

Select a high-quality transformer with a minimum 6:1 step-up ratio capable of handling 10,000V outputs under load. Core materials like ferrite or silicon steel reduce energy loss by 30% compared to standard iron cores, ensuring consistent impulses. Verify the transformer’s insulation rating exceeds target voltage by 20% to prevent breakdown during moisture exposure.

Use a solid-state switching device with a peak current rating of at least 5A–MOSFETs like IRFP460 or IGBT modules outperform SCRs in efficiency, operating at 12V DC with

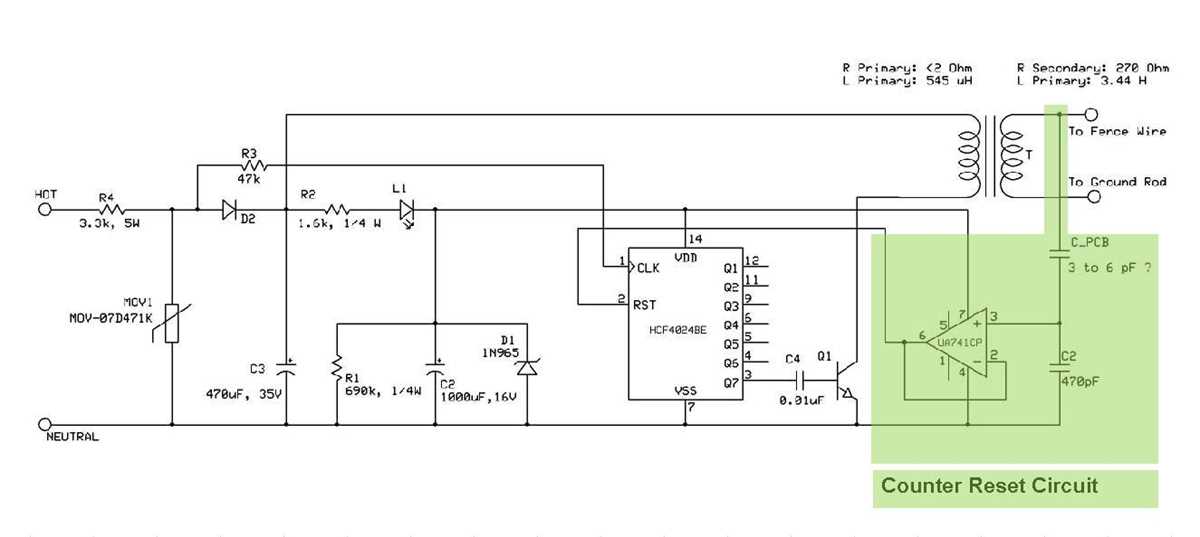

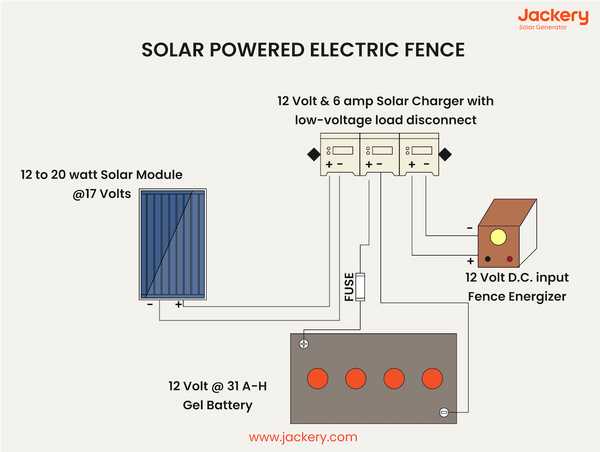

A 12V deep-cycle battery or solar panel rated for 5W minimum output sustains isolated systems for 72+ hours without recharge. AGM batteries resist sulfation under pulsed loads, unlike flooded cells. For solar setups, a 10A charge controller with MPPT optimizes energy harvest, even under partial shading–critical for off-grid deployments.

Output capacitors (47µF, 400V) must withstand repetitive surges; polypropylene film types self-heal after minor dielectric failures, unlike electrolytic varieties. Grounding rods should be copper-plated, 3ft deep, connected with 6-gauge wire–soil resistivity below 50Ω ensures 90% pulse efficiency. Test annually with a megohmmeter to detect corrosion.

Enclosure materials like polycarbonate (UL94-V0 rated) resist UV degradation and impact–thickness of 5mm prevents accidental contact. Weatherproof gaskets on joints prevent moisture ingress, which causes arcing. Include a varistor (MOV) across the output terminals to clamp transient spikes exceeding 15,000V, safeguarding livestock during lightning storms.

How to Choose an Optimal Energy Source for Barrier Pulsers

Begin by matching the output voltage to your perimeter’s length and vegetation density. For short boundaries (under 1 km) with minimal foliage, a 0.1–0.5 joule pulse generator suffices. Vegetation-heavy zones or perimeters exceeding 5 km demand 1–5 joules per pulse to maintain consistent deterrence. Verify manufacturer specs against these benchmarks–cheaper units often exaggerate coverage.

Battery type determines reliability in remote locations. Lead-acid deep-cycle options last 3–5 years but require regular equalization charges to prevent sulfation. Lithium iron phosphate (LiFePO4) alternatives offer 10+ years of service with 20–30% more usable capacity per cycle, though initial cost is 3–4× higher. For solar integration, calculate panel wattage based on daily insolation: 5W per joule-hour of output in temperate climates, doubling for cloudy regions.

AC-powered units eliminate maintenance but tether effectiveness to grid stability. Opt for models with built-in surge protection rated at least 10 kA–lightning strikes are the primary failure point. DC-only setups avoid this vulnerability but need weekly voltage checks. Replace batteries at 70% retained capacity: sulfated lead-acid plates or swollen lithium cells introduce unpredictable pulse decay.

Avoid underrated transformers–core saturation causes voltage drop during peak loads. Toroidal coils outperform E-I laminates in energy transfer efficiency by 15–20%, critical for high-impedance perimeters. Test surge duration: pulses shorter than 0.1 ms are ineffective against thick pelts or wet vegetation. Oscilloscope validation reveals ringing artifacts that mislead built-in test lights.

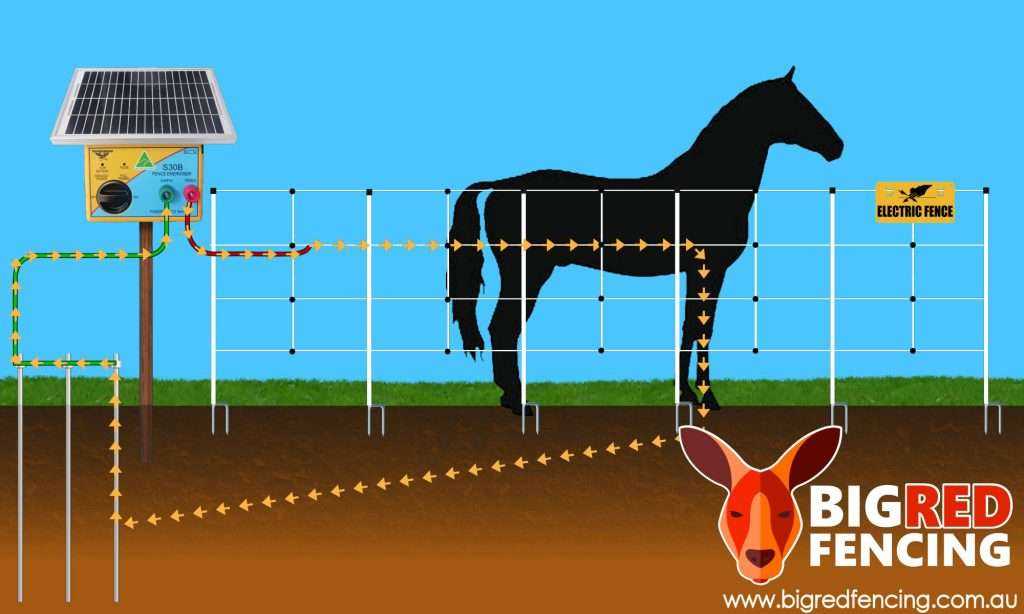

Grounding must sink at least 1 amp without exceeding 100 ohms. Copper-clad steel rods resist corrosion in acidic soils; bury at 2.5m intervals for perimeters over 2 km. Saltwater treatments (magnesium sulfate) lower resistance by 40% but dissolve within 12–18 months. Monitor ground rod potential drift: ideal readings stay within ±0.3V of neutral.

Compliance labels matter: UL-listed devices tolerate ±10% line variation, while uncertified imports fail at ±5%. Check pulse repetition rates–anything above 60 pulses per minute indicates substandard capacitors, reducing lifespan. For multi-zone setups, use isolated outputs to prevent cross-talk: shared circuits degrade voltage by 1.5V per parallel branch.

Wiring and Soldering Techniques for Durable High-Voltage Installations

Begin by stripping insulation exactly 3–5 mm from wire ends–excess bare metal increases corrosion risk, while insufficient length weakens joint strength. Use precision wire strippers with gauge-specific notches to prevent nicking conductors; a single microscopic cut reduces tensile strength by up to 40%. For multi-strand wires, twist strands clockwise before soldering to prevent fraying during thermal contraction.

Solder Selection and Application

Choose 60/40 rosin-core solder for balanced flow and strength; avoid acid-core variants that corrode copper within 72 hours. Heat the joint with a 60W iron at 350°C, applying solder to the heated wire rather than the iron tip–this ensures capillary action pulls solder into the strands. For copper-clad steel wires, increase temperature to 400°C but limit exposure to 3 seconds to prevent embrittlement.

• Use polyimide tape (not PVC) for insulation sleeves–it withstands 200°C and resists ozone degradation, critical for outdoor applications.
• Flux pen residue must be cleaned with isopropyl alcohol (
• For joints exposed to vibration, apply flexible silicone conformal coating–it remains elastic for 10+ years without cracking.

For stranded-to-solid connections, crimp first using a hexagonal die set at 220 psi to cold-weld the metals, then solder only the crimp’s open end–this prevents solder wicking into strands, which increases fracture risk. Verify crimp integrity with a pull tester; a proper joint should withstand 95% of the wire’s rated tensile strength without slippage.

Terminal Block and Heat-Shrink Considerations

Select terminal blocks with tin-plated brass contacts–these resist oxidation 5x longer than bare copper under UV exposure. Secure wires with torque-limiting drivers to 0.5 Nm for #14 AWG; overtightening deforms terminals, reducing contact area by 30%. Before attaching heat-shrink tubing, slide a dual-wall adhesive-lined sleeve over the joint–standard tubing fails under prolonged solar radiation, while adhesive versions maintain seal integrity during thermal cycling (-40°C to 85°C).

1. Heat-shrink tubing must overlap bare metal by at least 10 mm to prevent moisture ingress–even 1% relative humidity seepage degrades connections by 25% over 12 months.
2. For outdoor junctions, use nickel-plated copper lugs with a serrated interior–these prevent wire pull-out under wind-induced oscillations up to 50 Hz.
3. After soldering, cool joints at room temperature for 1 minute before applying shrink tube–thermal shock causes micro-fractures in the solder matrix.

Ground connections demand special attention: bury tinned copper rods at least 1.2m deep to reach stable soil resistivity zones, and connect using exothermic welding–not mechanical clamps, which loosen over time. Apply anti-seize compound to threaded bolts; aluminum-to-copper junctions in moist soil develop 1.2V galvanic potential within 3 months, sufficient to exceed UL corrosion limits. Test ground resistance quarterly with a 3-point fall-of-potential meter; readings above 10Ω indicate compromised integrity requiring immediate remediation.
