How to Get Free Mobile Charger Circuit Diagrams for Any Device

Start with a LM2596-ADJ switching regulator for efficiency–handling up to 3A with minimal heat loss. Pair it with a USB Type-C PD trigger board (e.g., FUSB302B) to enable 5V/9V/12V/20V output negotiation. Use 10µF ceramic capacitors at input/output to stabilize voltage and reduce ripple. A 4.7kΩ resistor tied to the CC pin ensures proper protocol detection.

Avoid linear regulators like 7805–power dissipation becomes excessive above 500mA. Instead, opt for MP2307DN or XL6009 for step-up conversions if boosting from a single lithium cell. For battery-powered setups, add a TP4056 module with 1N5817 diode to prevent backflow while charging. Test impedance with a 2W 0.1Ω current-sense resistor to verify stability under load.

For AC input, use a MIC5018 flyback converter with EE16 core for isolation. Primary windings: 45 turns of 0.3mm enameled wire; secondary: 5 turns of 0.8mm. Add a P6KE6.8A TVS diode across the primary to clamp transients. Output regulation requires TL431 with 2.5kΩ/10kΩ feedback resistors for precise 5V ±2%.

Revise trace widths for copper weight: 1oz/ft² needs ≥2mm per amp on PCB. Use via stitching near high-current paths to improve thermal dissipation. For enclosure shielding, ground the metal case to the negative rail through a 10nF X7R capacitor to suppress EMI.

Secure Power Adapter Schematics for Instant Access

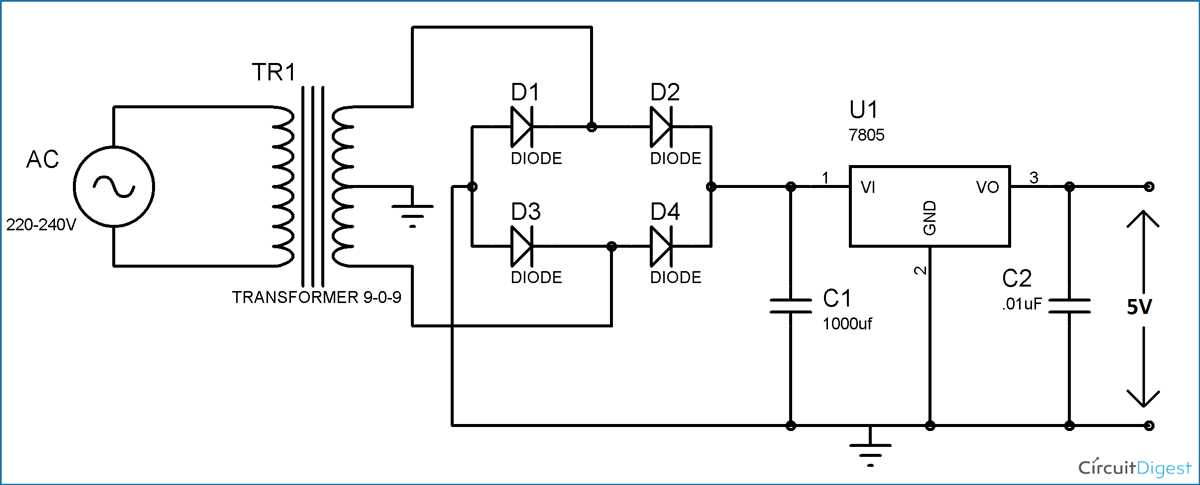

For a reliable 5V 2A USB adapter blueprint, All About Circuits’ worksheet repository provides vetted designs with transformer-based AC-DC conversion, smoothing capacitors (typically 470μF for 25V ratings), and linear regulators like the LM7805. These schematics include safety components: a fuse (1A), MOV (Metal Oxide Varistor) for surge protection (e.g., V250LA4P), and a flyback diode (1N4007) to prevent reverse voltage. Always verify component footprints against your PCB layout–most designs fit 5×7cm single-sided boards. For efficiency testing, ensure ripple voltage stays below 50mV peak-to-peak at full load; use a 10μF output capacitor to stabilize.

Component	Typical Value	Tolerance/Note
Bridge Rectifier (DB107)	1A 1000V	±5%, replace with KBU4J for compact builds
Switching IC (e.g., MC34063)	1.5A	Requires 0.33Ω sense resistor
Inductor (L)	100μH	Saturation current >2A
Feedback Resistors	R1: 1kΩ, R2: 470Ω	Adjust for 5V ±0.1V output

For buck-converter alternatives, prioritize schematics using the MP2307 (2A, 23V input) or XL6009 (4A, 40V input). These require fewer external components–key parts include a Schottky diode (SS34), 33μH inductor (shielded to minimize EMI), and a 22μF output capacitor (X5R/X7R dielectric). When sourcing gerber files, Electronics Lab’s GitHub hosts open-source projects with tested layouts. For DIY troubleshooting, a 1kHz oscilloscope probe on the feedback pin should show a clean PWM signal (20–100kHz for most ICs); noise here often indicates poor grounding or missing snubber network (

Where to Locate Trusted No-Cost Power Adapter Schematics

GitHub repositories stand as the most dependable source for verified schematics. Projects like electronics-lab (github.com/electronics-lab) and OpenCircuits (github.com/OpenCircuits) host curated collections with PCB layouts, component lists, and test data. Filter results using keywords such as “USB PD board,” “5V regulator layout,” or “flyback converter” to bypass generic projects. Check the repository’s star count and last commit date–active ones typically exceed 50 stars and update within the past 6 months.

• ElectroSchematics (electroschematics.com) archives production-ready blueprints for common designs like buck converters using LM2596 or MP2307 regulators. Each post includes oscilloscope waveforms and failure-mode analysis. Use the search bar with terms like “portable voltage step-down” or “lithium-ion protection board.”
• CircuitDigest (circuitdigest.com) provides layer-by-layer Gerber files alongside Eagle/KiCad project files. Categories like “Power Supplies” segregate designs by output current (1A vs 2.4A) and input voltage range (90-264VAC). Verify comment sections for component substitutions.
• All About Circuits’s Downloads section (forum.allaboutcircuits.com/downloads) hosts user-uploaded designs validated through forum discussions. Look for threads tagged “[SOLVED]” or pinned posts from moderators.

Manufacturer datasheets from TI (ti.com/lit/ds), STMicroelectronics, and Onsemi often embed reference designs for evaluation kits (e.g., TPS62743, VIPER22A). Append “EVM” or “PMP” to the part number in searches–Texas Instruments’ PMP40550 demos a 98% efficiency high-side switcher. For offline access, download ST’s eDesignSuite (st.com/en/design-tool/edesignsuite.html), which generates verified layouts from user inputs.

DIY Power Adapter Assembly: A Hands-On Walkthrough

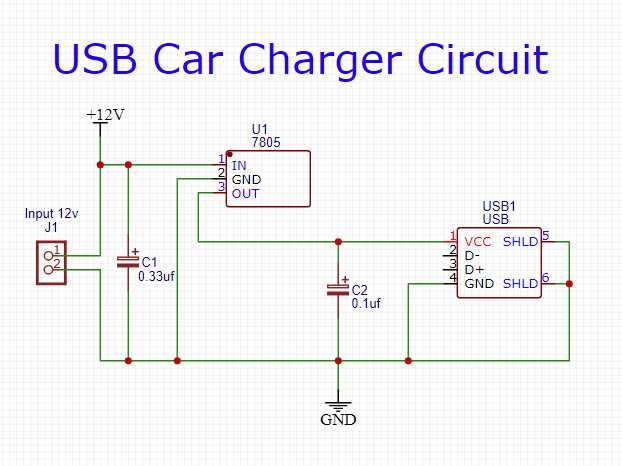

Gather a 5V voltage regulator (LM7805), a 220μF electrolytic capacitor, a 0.1μF ceramic capacitor, a 1N4007 diode, a USB-A female port, and AWG 22 hookup wires before starting. Cut a 3x5cm perfboard to size–pre-tinned copper pads speed soldering.

Solder the LM7805 regulator first, orienting its flat face toward the perfboard’s edge. Use a heatsink if input voltage exceeds 12V; thermal paste ensures conductivity. Attach the 220μF capacitor on the regulator’s input side, observing polarity–long leg to positive. The 0.1μF capacitor mounts close to the output terminal, mitigating voltage spikes.

The diode bridges input and ground, cathode facing the regulator’s input. This prevents backflow if polarity reverses. Solder the USB port’s power pins to the regulator’s output; check datasheets for pinouts–confusing VCC and GND risks damage. Add a 220Ω resistor in series with the data lines to signal 500mA charging (optional, improves compatibility).

Trim excess leads after soldering to avoid shorts. Test connectivity with a multimeter–resistance between +5V and GND should read infinite, not zero. Apply input (7-18V DC) from a wall adapter or 9V battery; output must stabilize at 5V ±5%. Current draw above 1A requires thicker wires to prevent overheating.

Insulate exposed joints with heat-shrink tubing or electrical tape. For durability, encase the board in a 3D-printed shell or repurpose a plastic mint tin. Drill ventilation holes if using a sealed enclosure–LM7805 dissipates heat even at idle. Label input/output terminals to avoid misconnection.

Troubleshooting Common Issues

Output voltage drifts? Check capacitor polarity–reversed electrolytics bulge and fail. No power? Measure input voltage at the diode; if present, the regulator may be faulty. USB devices not detecting? Verify data line connections or add a 1kΩ pull-up resistor to D+ if needed. Safety: fuse the input (1A) to prevent overload.

Optimize for compactness by stacking components vertically–use right-angle headers for the USB port. For higher efficiency, replace the LM7805 with a buck converter (MP1584), but adjust output voltage via its onboard potentiometer (typically 1.25V reference). Log ripple with an oscilloscope if powering sensitive electronics; add a ferrite bead to filter noise.

Extend runtime by adding a 9V lithium battery via a charging circuit (e.g., TP4056 module). Parallel batteries double capacity but require balancing–use a BMS or serial diodes to prevent imbalanced discharge. Document modifications; improvised designs often skip revision notes, complicating repairs.

Frequent Errors When Applying Off-the-Shelf Power Adapter Blueprints

Neglecting voltage-current ratings mismatch leads to immediate component failure. A 5V output schematic paired with a 12V transformer will fry capacitors and ICs before first test. Always cross-check the input/output specs against physical parts–label discrepancies often go unnoticed until irreversible damage occurs. Use a multimeter to verify expected readings before first power-up.

Overlooking trace width calculations causes overheating or open circuits. Standard 1-oz copper handles ~1A per 1mm (35μm) width; exceeding this without adjustment melts solder masks during prolonged use. Online calculators exist–input your planned current, ambient temperature, and board thickness to determine minimum safe trace dimensions before finalizing layouts.

Assuming downloaded plans include thermal relief pads triggers thermal runaway in high-current paths. Most shared templates omit this detail, leaving MOSFETs or rectifiers with insufficient heat dissipation. Manually add 4-6 thermal spokes per pad, each 0.2-0.3mm wide, to prevent board delamination during sustained loads above 800mA.

Ignoring parasitic inductance in switching converters destabilizes output waveforms. A 1μH unaccounted loop between coils and capacitors introduces voltage spikes exceeding 20% of nominal, tripping protection circuits or damaging connected devices. Simulate layouts in SPICE tools (LTspice, Qucs) to identify resonant frequencies before prototyping.

Skipping EMI filtering invites RF interference corrupting nearby electronics. Shared designs commonly omit common-mode chokes or ferrite beads, allowing switching noise to radiate at 150-300kHz. Add a 10μH choke in series with input power and a 1nF Y-capacitor to ground to meet FCC Part 15 limits without redesigning entire sections.

Essential Gear and Parts for Building a Portable Power Adapter

Start with an efficient 5V DC adapter rated for 1-2A current capacity–choose one with a regulated output to prevent voltage fluctuations that damage devices. Pair it with a USB-A or Type-C connector board, ensuring the latter includes overcurrent protection to handle quick charging protocols like QC3.0 or PD. For enclosure options, pick a compact ABS plastic case with pre-drilled slots for heat dissipation if using higher-wattage components.

Soldering iron with a fine tip (30-40W) and lead-free solder (0.5mm diameter) are mandatory for secure joints on PCB traces. Include a multimeter with continuity and voltage testing modes to verify connections before powering up. Heat shrink tubing (2-3mm diameter) in assorted colors helps insulate exposed wires, while a pair of wire strippers (20-24 AWG) speeds up cable prep. For DIY PCB work, opt for single-sided copper boards; etchant solution (ferric chloride) removes unwanted copper, but always work in a ventilated area due to toxic fumes.

Add a 1N4007 diode to prevent reverse polarity damage, especially if repurposing salvaged components. For noise filtering, use a 220μF/16V electrolytic capacitor and a 0.1μF ceramic one near the output. Keep spare micro-USB or USB-C cables for testing–ensure the data lines match your target device’s specs. A small handheld drill (1-2mm bits) simplifies hole alignment for LED indicators or switches. Store components in anti-static bags to avoid ESD damage during assembly.
