StepByStep Guide to Wiring a 50 Amp RV Plug Safely and Correctly
Install a 14-50R receptacle using 6 AWG copper conductors for both hot wires, a 6 AWG copper neutral, and an 8 AWG copper grounding wire. This setup complies with the National Electrical Code’s 70% derating rule for continuous loads, ensuring safe operation at 40 amperes sustained. Verify torque specifications–30 inch-pounds for terminal screws–to prevent overheating at connections. Position the outlet 18 inches above grade to meet NEC accessibility standards.
Load balancing matters: Split 50-ampere service into two 50-ampere branches by connecting each hot conductor to separate poles of a 240-volt panel. Dedicate one 50-ampere breaker per pole to avoid overloading a single phase. Test pole assignment with a multimeter–aim for 240 volts across hot conductors and 120 volts from each hot to neutral. Any deviation signals incorrect breaker pairing.
Grounding essentials: Bond the 8 AWG grounding wire directly to the service panel’s grounding busbar. Never splice it or connect it to a neutral bar. Use green insulation or bare copper wire exclusively for grounding conductors. For outdoor installations, bury the wire 24 inches deep or enclose it in 1.25-inch rigid conduit to shield against physical damage.
Check voltage drop with a calculator–limit it to 3% for the combined length of conductors. For runs exceeding 100 feet, upgrade copper gauge to 4 AWG to maintain efficiency. Confirm tightness of all connections with a torque screwdriver; loose terminals cause arcing and fire risks.
Connecting a 50-Ampere Recreational Vehicle Outlet: Step-by-Step Circuit Layout
Begin by ensuring the main breaker panel is switched off before handling any conductors. A 50-ampere recreational vehicle service requires a four-prong receptacle with two 120-volt hot legs, one neutral, and one grounding terminal. Use 6 AWG copper wire for all connections–this gauge handles the 50-ampere load safely under NEC guidelines. Never substitute thinner conductors, as overheating risks increase exponentially.
Terminal Connections and Color Coding
- Terminal X (Hot Leg 1): Connect the red conductor to the brass-colored screw. Verify tightness with a torque screwdriver–NEC 110.14(D) mandates precise tightening to avoid arcing.
- Neutral Terminal: Attach the white conductor to the silver-colored screw. Ensure the neutral bar in the breaker panel is isolated from the grounding bar to prevent parallel paths.
- Grounding Terminal: Fasten the green (or bare) conductor to the green screw. Ground rods or Ufer systems must supplement panel grounding per NEC 250.50–250.52.
Terminal Y (Hot Leg 2): Secure the black conductor to the second brass terminal. Both hot legs must originate from separate breaker poles; crossover connections violate code and create hazards.
Route all conductors through rigid metallic conduit (RMC) or schedule 80 PVC if exposed to physical stress. Secure cables every 4.5 feet inside conduit and within 12 inches of boxes or terminations–loose wires invite vibration-induced failures. Mark circuit breakers clearly: dual-pole 50-ampere breakers labeled “RV Service” eliminate confusion during emergencies.
Test the installation with a multimeter before energizing. Set the meter to AC voltage mode; between hot legs, 240 volts should register. Readings between either hot leg and neutral must show 120 volts. Between hot legs and ground, 120 volts confirms proper isolation. Deviations signal reversed conductors or faulty connections–reinspect immediately. Use a megohmmeter to check insulation resistance; values below 1 megaohm indicate compromised conductors requiring replacement.
Load Balancing and Safety Precautions
- Distribute appliance loads evenly across both hot legs. A 50-ampere service supports up to 12,000 watts; exceeding this trips breakers or damages conductors.
- Avoid daisy-chaining additional outlets from the RV circuit. Dedicate this service exclusively to the recreational vehicle–shared circuits violate NEC 551.73.
- Install a surge protector rated for 50 amperes at the meter base. Transient voltages from utility poles frequently damage RV electronics; suppressors mitigate this risk.
- Label the duct cover: “50A RV Circuit–Do Not Modify.” Include date of installation and inspector’s initials if local code requires permit documentation.
Inspect the connection quarterly for corrosion, especially in humid climates. Aluminum oxide forms rapidly on copper terminals; clean with a wire brush and apply antioxidant paste if discoloration appears. Retorque all screws annually–thermal cycling loosens fasteners over time. Replace the receptacle if cracks or burn marks emerge; compromised housings fail catastrophically during inrush currents from large appliances like air conditioners.
Essential Equipment and Supplies for Installing a Heavy-Duty Recreational Vehicle Connection
Select a UL-listed 50-ampere service panel breaker rated for outdoor use, ensuring compatibility with your main electrical distribution box. A double-pole, 240-volt model with a trip rating matching your NEMA 14-50 receptacle is non-negotiable–substitutes risk overheating or circuit failure. Verify the breaker’s interrupting capacity (typically 10,000 AIC) aligns with your utility’s fault current specifications. Avoid generic brands; Schneider Electric, Siemens, or Eaton offer proven reliability.
For cable selection, 6 AWG copper conductors (or 4 AWG aluminum) meet NEC requirements for a 50-socket setup, balancing flexibility and current-carrying capacity. Use Type SER cable for direct burial or THHN/THWN-2 individual wires in conduit–both must be rated for 90°C in wet locations. Polyvinyl chloride (PVC) or rigid metal conduit (RMC) with a minimum 1-inch diameter ensures proper bend radius and pull-through ease. Seal all outdoor conduit entries with watertight duct sealant to prevent moisture ingress.
Critical hand tools include:
| Tool | Specifications/Special Notes |
|---|---|
| Torque screwdriver | Adjustable to 10–22 lb-in; confirm against receptacle/breaker manufacturer specs |
| Wire strippers (ratcheting) | Precision cutting for 6–4 AWG conductors; avoid nicks |
| Crimping tool | Hex crimp dies for 1/4″ terminals; validate crimp integrity with pull test |
| Conduit reamer | Deburr both cut ends to prevent insulation chafing |
| Non-contact voltage tester | Detects 50–1000V AC; verify absence of charge before touching terminals |
Grounding components demand equal attention. Install an 8 AWG copper grounding rod (minimum 8 feet) at least 6 feet from the outlet, bonded with a irreversible compression grounding clamp. For the neutral-to-ground bond in subpanels, use a #10-32 stainless steel screw and green grounding pigtail. Never rely on conduit alone–run a separate green-insulated grounding conductor back to the service panel, terminating at the main ground bus.
Secure mounting hardware must withstand dynamic loads. Use 3/8-inch stainless steel lag bolts for attaching the outlet box to studs or masonry, supplemented with plastic expansion anchors for concrete surfaces. Pre-drill holes 1/16 inch smaller than bolt diameter to prevent wood splitting. Apply dielectric grease to all terminal connections to inhibit corrosion, particularly for outdoor installations exposed to salt spray or road chemicals. Store spare NEMA 14-50R receptacle cover plates (weatherproof, flip-lid style) to replace damaged seals promptly.
Step-by-Step Color Guide for 50-A Service Recreational Vehicle Connector Cables

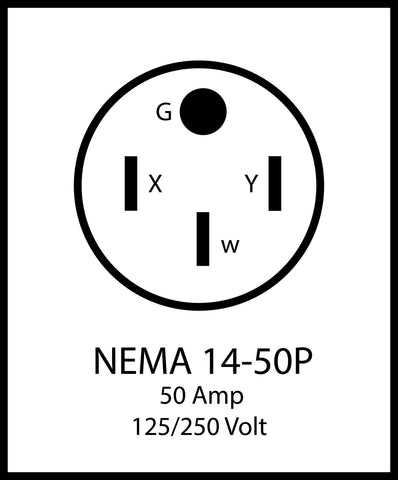

Identify the four conductors inside the 125/250-volt outlet: two hot legs, one neutral, and one ground. The hot wires must be terminated to the brass-colored screws marked X and Y; the neutral connects to the silver screw (W), while the ground attaches to the green screw (G). Verify each strand’s gauge–minimum 6 AWG copper–before stripping insulation.
L1 (brass terminal X) carries the first 120-volt circuit; its standard color is black. L2 (brass terminal Y), delivering the second 120-volt line, is coded red. Neutral (silver terminal W) remains white or gray; never swap it with ground. Confirm these hues match the inlets on both the pedestal and the RV inlet socket to prevent polarity errors.
Ground First, Then Loads
Attach the green or bare ground conductor first. Crimp it with a copper lug or wrap it clockwise under the green screw, tightening to 15–20 lb-in torque. Inadequate grounding risks neutral shift under load, tripping breakers or damaging on-board electronics. After securing ground, proceed to the hot and neutral leads.
Strip exactly ¾ inch of insulation from each conductor. Twist strands tightly, insert under screws fully clockwise, and torque to 20 lb-in–over-tightening distorts terminal threads; under-tightening invites arcing. Use a calibrated torque screwdriver to eliminate guesswork. Double-check each connection with a continuity tester before energizing.
Label cables inside the inlet box with heat-shrink tubing: black → X, red → Y, white → W, green → G. This visual cue accelerates troubleshooting during seasonal storage or generator swaps. Store spare labels alongside the owner’s manual for quick reference on future service calls.
Validate Before Power-Up
Test for proper polarity using a receptacle analyzer: plug it into the pedestal outlet; verify both 120-volt legs read between X–W and Y–W, 240 volts across X–Y, and zero volts from X or Y to ground. Any deviation signals reversed neutral or hot–reopen the inlet box and recheck connections before proceeding.
