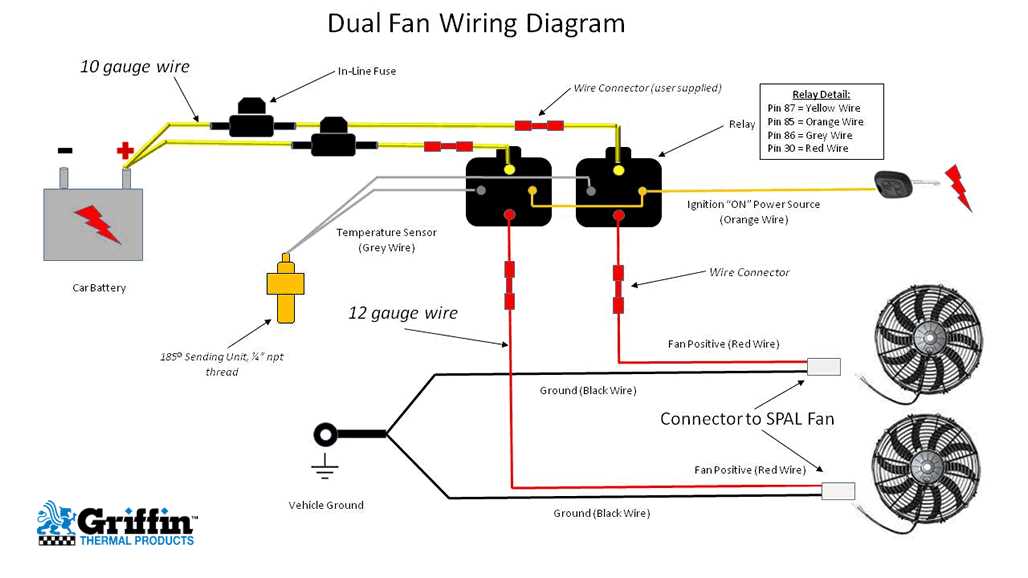

Step-by-Step Guide to Wiring a Dual Speed Radiator Fan with Diagram
For reliable thermal regulation in forced-air systems, connect the primary and secondary circuits through a dedicated relay configuration. Use a 30A SPST relay for the high-tempo mode, triggered by a 12V signal from the thermal switch at 95°C (±2°). Route the ground terminal directly to the chassis, bypassing the fuse box–corrosion at the contact point causes intermittent failures. For low-tempo operation, wire a 5Ω ballast resistor in series with the motor to reduce amperage draw; ignore factory suggestions to tap into the A/C compressor relay, as it introduces voltage drop under load.
Critical connections: Solder the relay coil input to the thermal sender wire (typically green/white) and ground the opposite terminal with 14-gauge cable–16-gauge overheats within 400 hours of continuous duty. Install a 20A fuse within 150mm of the positive battery terminal; longer runs increase resistive losses. For variable-tempo systems, substitute a pulse-width modulated controller calibrated to 110Hz switching frequency–lower frequencies induce audible whine, higher ones degrade brush life. Test both circuits with a multimeter at 13.8V: high-tempo should read 8-10A, low-tempo 3-4A.
Isolate the control module from RF interference by separating signal wires from power leads by 100mm minimum–braided shielding is unnecessary if using twisted-pair configuration with 5mm pitch. Avoid crimp connectors for ground paths; solder and heat-shrink all joints exposed to engine vibrations. For troubleshooting, probe the relay socket: pin 87 should show 0V when off, 12V when activated. If voltage at the motor fluctuates, check the alternator diode trio–failed units cause erratic engagement. Replace thermal switches tested above 100°C; marginal units fail within 8 months.

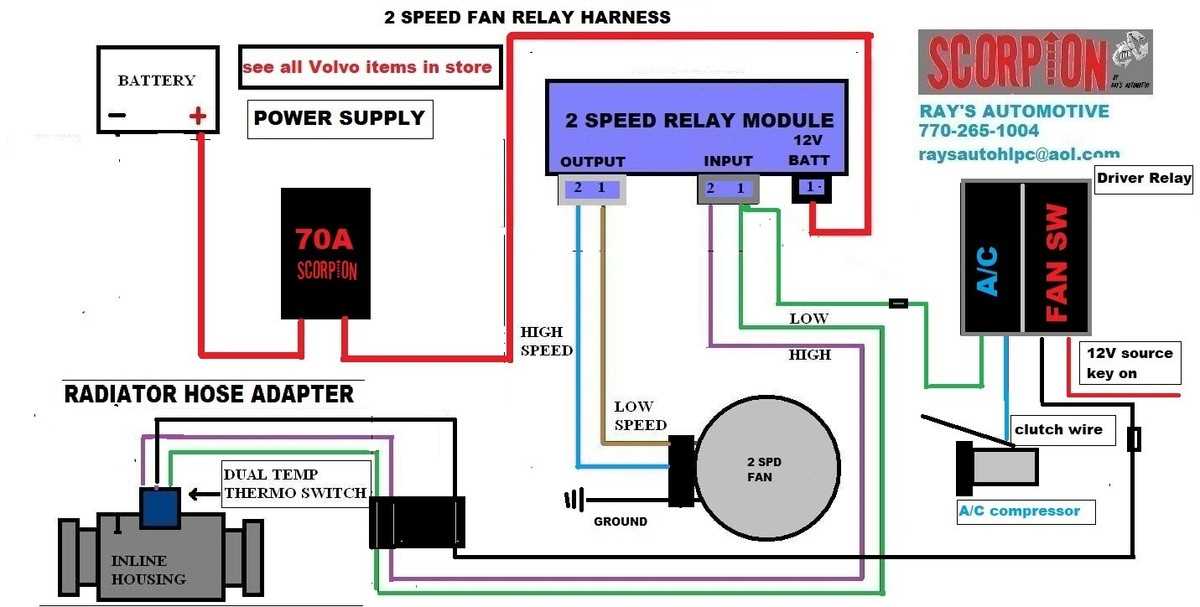

Dual-Velocity Cooling System Electrical Layout
Connect the low-stage relay coil terminal (85) directly to the engine temperature sender’s signal wire to trigger activation at 90°C (194°F). Ensure the high-stage relay engages at 105°C (221°F) by linking terminal 86 to a secondary circuit controlled by a dedicated thermal switch or ECU output. Ground both relay coils (terminal 86) to a clean, unpainted chassis point near the fuse box to prevent voltage drop.
Use 10-gauge wire for the main power feed from the battery through a 30A fuse to the relays’ common terminal (30). Split this feed into two 12-gauge branches–one to the low-stage relay’s switched terminal (87) and another to the high-stage relay’s equivalent contact. Route these branches to the air-moving unit, splicing at the motor’s dual-resistance terminal block to match resistance values: 2.0Ω for gentle airflow and 1.2Ω for aggressive cooling.
Insert a 20A fuse in-line with each branch between the relays and the blower to protect against motor stall currents. Test relay logic with a multimeter before final connections: low-stage should activate at 20% below the high-stage threshold. Secure all splices with adhesive-lined heat shrink tubing, avoiding electrical tape to prevent moisture ingress in high-vibration engine bays.
Validate operation by monitoring current draw: low-stage should peak at 12A, high-stage at 22A. If readings exceed these, recheck relay contacts for corrosion or improper calibration of thermal switches. Label all wires with heat-resistant sleeves marking voltage paths to simplify future diagnostics.
Core Elements of a Dual-Stage Cooling Blade Control System
Install a robust two-position thermal relay as the primary switching device. Select a model rated for 30–40A continuous load with a 12V DC coil to handle peak currents during startup surges. Mount it within 30 cm of the motor to minimize voltage drop and ensure rapid response. Pair it with a snap-action bimetallic switch calibrated to trigger at two distinct temperature thresholds–typically 90°C (low stage) and 102°C (high stage)–for precise thermal management.
- High-capacity electrical conductors: Use 10 AWG copper wire for power feeds and 12 AWG for signal circuits. Tin all terminals to prevent oxidation, especially in humid engine compartments. Route harnesses away from moving parts and sharp edges, securing with zip ties at 15 cm intervals to prevent chafing.
- Diode suppression network: Insert a flyback diode (1N4007) across each relay coil to protect sensitive ECU outputs from inductive voltage spikes. Position diodes within 10 cm of the relay to maximize effectiveness.
- Voltage regulation module: Integrate a 5W linear regulator (e.g., LM7812) if the primary supply exceeds 14.2V to prevent overheating of low-stage coils during alternator charging peaks.
Embed a 20A fuse holder directly inline with the battery positive lead, using a slow-blow fuse sized 125% of the highest sustained current draw. Place it within 7 cm of the battery terminal to isolate faults before they reach downstream components. For pulsed loads, add a 100nF ceramic capacitor across the relay contacts to suppress electromagnetic interference that could disrupt adjacent vehicle electronics.
Making Reliable Dual-Coil Cooling Circuit Hookups
Prepare a 30-amp relay for primary cooling and a 20-amp for secondary activation. Connect the common lead from the temperature trigger to terminal 85 on both relays, ensuring the switch closes circuits at 92°C and 102°C respectively. Route a fused ignition-sourced feed (14-gauge wire) to terminal 30 on each relay–use distinct 25-amp fuses to isolate potential overloads.
Attach terminal 87 on the first relay to the slower coil via 16-gauge wire; the second relay’s terminal 87 goes to the faster coil using 14-gauge wire. Ground both coils through terminal 86 with 12-gauge wire to a chassis point no more than 30 cm from the motor housing. Verify resistance: slow coil 2.3–2.7 ohms, fast coil 1.8–2.1 ohms. Deviations indicate internal corrosion–replace unit if out of spec.
| Coil mode | Trigger (°C) | Current draw (A) | Recommended fuse (A) |
|---|---|---|---|
| Base circulation | 92 | 8.5 | 25 |
| Forced peak | 102 | 14.2 | 30 |
Test the setup with an infrared thermometer and multimeter. Activate ignition, monitor voltage at terminal 87–should drop below 0.5 V within 3 seconds of sensor closure. If delays exceed 5 seconds, inspect the relay contacts or sensor hysteresis settings. Secure all joints with heat-shrink tubing; avoid electrical tape, which degrades under 85°C ambient temperatures.
Choosing the Right Relay and Fuse Ratings for Safe Operation
Select a 30-amp relay for most cooling module circuits handling 10–20 amperes continuous draw. Automotive-grade relays with coils rated at 85–125 ohms ensure minimal voltage drop and reliable switching under 14VDC. Verify the contacts support the load’s inrush current–typically 2–3 times the steady-state value–by consulting the datasheet’s resistive or inductive load ratings.
Fuse selection must account for both steady-state and peak demands. For a 15-amp continuous current, install a 20-amp fuse to prevent nuisance blows while protecting against shorts. Blade-style fuses (ATC/ATO) offer faster response than glass types, reacting within milliseconds to overloads. Place fuses within 7 inches of the power source to safeguard the entire circuit path.
Use a dual-relay setup if the system switches between high and low modes. Wire the relays in parallel with separate 20-amp fuses for each path. This isolates faults; a failure in one branch won’t disable the entire assembly. Ensure the ground return path has a cross-sectional area of at least 2 AWG for copper or 1 AWG for aluminum to prevent voltage drop exceeding 0.1V under load.
Thermal protection requires a fuse rating 25–30% above the component’s maximum operating current. For example, a 12-amp motor pulling 18 amps at startup needs a 25-amp fuse. Avoid slow-blow fuses unless explicitly specified by the OEM–they tolerate brief surges but delay response to sustained overcurrent, risking wire overheating at 120°C.
Test relay and fuse performance with a multimeter before final installation. Measure voltage across relay coils to confirm full battery voltage (13.8–14.4V) when activated. Check for coil resistance deviations ±10% from the rated value–values outside this range indicate wear or incorrect specifications. Replace any relay showing arcing, chatter, or inconsistent contact resistance above 0.1 ohms.
Document all ratings on a label affixed to the fuse box cover. Include the relay’s coil voltage, contact capacity (e.g., “30A @ 14VDC”), and fuse amperage (e.g., “20A ATC”). This expedites troubleshooting and ensures subsequent repairs adhere to the original design parameters, preventing overloaded circuits or inadequate protection.
Measuring Electrical Parameters Across Cooling System Modes
Connect a multimeter in parallel between the power lead and ground terminal while the thermal regulator operates in low-demand mode. Typical readings should stabilize at 6-7V for most OEM setups, though aftermarket controllers may vary ±0.5V. Anything below 5.5V suggests either a voltage drop in the harness or failing activation relay. Use a 10A fused lead probe for current assessment–expect 3-4A consumption at this stage.
Switch the climate control unit to high-output mode and recheck both parameters. Voltage should jump to 11.5-12.5V, correlating with charging system health. Current draw will spike to 8-12A depending on blade diameter and motor efficiency. If readings lag behind these ranges by more than 10%, inspect the wiring loom for compromised insulation or loose terminations–degraded contact resistance often masks itself as erratic fluctuations during sequential measurements.
For aftermarket dual-stage controllers, validate the transition threshold by monitoring the control module’s signal wire with an oscilloscope. A clean 12V square wave at 3-5Hz confirms proper pulse-width modulation. Irregular waveforms or dc offset over 0.3V indicate faulty transistors or corroded connector pins. Replace any suspect terminals with gold-plated variants to prevent future oxidation.
Critical troubleshooting step: Test under load by manually triggering both stages with the ignition off. Low-demand mode should maintain consistent 6-7V at ambient room temperature (
Record all findings at 30-second intervals across a 5-minute cycle to identify thermal saturation patterns. Most electric impellers exhibit linear current increase–deviation suggests bearing wear or blade imbalance. Clean the intake grille and verify motor housing integrity if anomalous readings persist; trapped debris often mimics electrical faults by disrupting airflow efficiency.
