How to Wire a Plug Outlet Step-by-Step Electrical Diagram Guide

Before handling any electrical fixture installation, turn off the circuit breaker supplying power to the target connection point. Use a non-contact voltage detector to confirm all wires are de-energized–never rely solely on the breaker’s switch position. Standard residential sockets in North America operate on 120 volts AC; miswiring can create fire hazards or damage appliances.

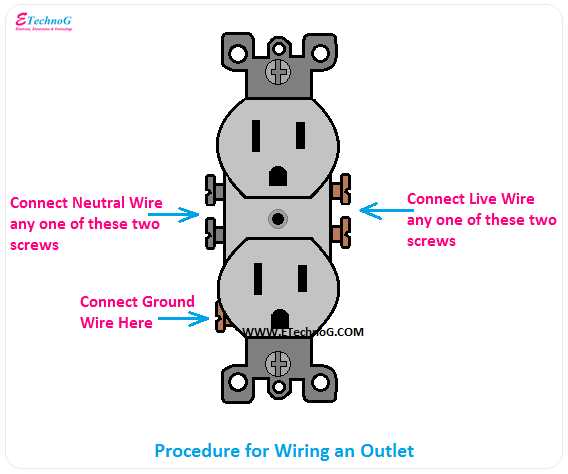

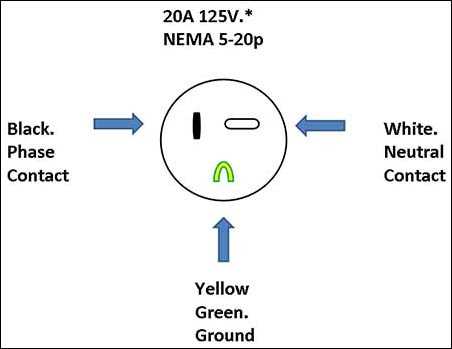

Polarity matters: Attach the hot (black or red) wire to the brass terminal, the neutral (white) wire to the silver terminal, and the ground (bare/green) wire to the green grounding screw. Reverse polarity–swapping hot and neutral–compromises safety mechanisms in modern devices, risking shocks or equipment failure. Always wrap wires clockwise around terminal screws to prevent loosening under tension.

For split-circuit duplex sockets (common in kitchens), connect unbroken hot wires to both brass terminals using a short bridging conductor. The tab between terminals on the hot side must remain intact unless separating circuits; breaking this tab incorrectly disrupts functionality. Test continuity after installation with a multimeter–open circuits on neutral or ground paths signal faulty connections that require prompt correction.

Double-check screw tightness: loose terminals generate heat, increasing fire risk. Snug fit is critical, but overtightening can strip threads or damage screw heads. Use UL-listed receptacles rated for 15 or 20 amps based on circuit breaker capacity–using mismatched components violates safety codes.

When replacing aged installations, inspect wire insulation for brittleness or cracking. Solid-core copper conductors are standard in modern builds; aluminum wiring (pre-1970s) requires specialized connectors to prevent oxidation-related failures. Secure all connections with approved wire nuts or terminal blocks–twisting wires alone is insufficient for long-term reliability.

Electrical Socket Connection Guide for Safe Installation

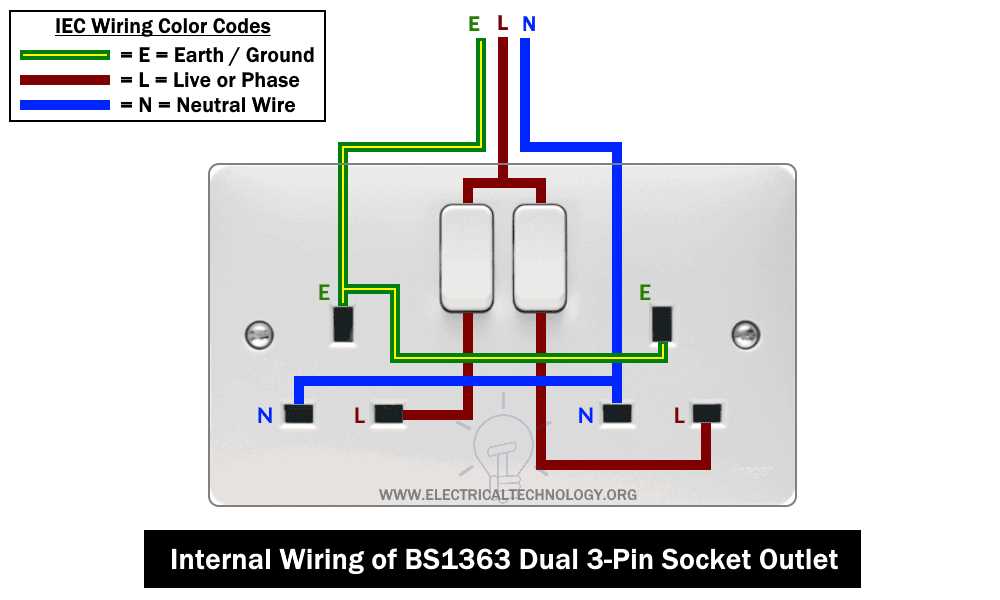

First, confirm the circuit breaker is switched off before handling any connections to prevent electric shock. Use a voltage tester to double-check–no reading should appear between the live wire and neutral or ground. If wiring a new installation, match the conductor colors to local standards: typically, brown (active), blue (neutral), and green/yellow (earth) in Europe; black (live), white (neutral), and bare or green (ground) in North America.

Strip 10–12 mm of insulation from each conductor using wire strippers, ensuring no copper strands are nicked or twisted. For screw-terminal sockets, loop the wire clockwise around the terminal before tightening to prevent loosening over time. For push-in terminals, insert the stripped end fully until it clicks–pull gently to confirm it’s secure. Never combine two wires under a single terminal; use a pigtail splice and wire nut if joining multiple conductors.

Critical Safety Checks Before Energizing

• Verify the socket’s backstab holes (if present) are unused–these connections fail more often than screw terminals.
• Ensure the earth conductor is connected to both the socket’s metal frame and the upstream ground busbar.
• Check for exposed copper between the insulation and terminal–even 1–2 mm can cause arcing.
• For GFCI/AFCI sockets, press the “Test” button after installation to confirm protection trips correctly.

When mounting the socket, align it vertically in the box to prevent misalignment that strains the wiring. For metal boxes, attach a grounding pigtail from the socket to the box’s grounding screw. Plastic boxes require no additional grounding beyond the earth conductor. Secure the socket with the provided screws, tightening just enough to hold firmly–over-tightening can crack the device.

For split-circuit sockets (e.g., top and bottom controlled separately), identify the brass tab between the active terminals–if intact, both halves share the same circuit; if broken, each half requires its own live conductor. Use the same principle for neutral tabs if applicable. Label the breaker panel clearly to indicate which circuit powers the new socket.

Troubleshooting Common Issues

1. No power: Check for tripped breakers, loose screws, or disconnected wires. Test continuity from the breaker to the socket with a multimeter.
2. Tripping breaker: Look for short circuits (e.g., active touching neutral) or ground faults (e.g., active touching the metal box).
3. Buzzing or warmth: A loose connection causes arcing–power off immediately and inspect terminals.
4. Outlets working in pairs: Likely a shared neutral in a multi-wire branch circuit. Verify the neutral isn’t overloaded (total current ≤ 15A for 14 AWG wire).

For outdoor or damp locations, install a weather-resistant socket with a protective cover. Use silicone sealant around the box edges to prevent moisture entry. In kitchens and bathrooms, maintain a minimum 90 cm distance from sinks or tubs (per NEC/CEC) unless using GFCI protection. Replace any socket showing scorch marks, melted plastic, or discoloration–these are fire hazards.

When extending an existing circuit, calculate the load: 1.5 mm² (14 AWG) wire handles 15A; 2.5 mm² (12 AWG) handles 20A. Avoid daisy-chaining more than two sockets on a single circuit in high-draw areas (e.g., living rooms, workshops). For dedicated appliances (refrigerators, microwaves), use a separate circuit to prevent nuisance tripping. After completing the installation, take a photo of the wiring before closing the box for future reference.

Essential Equipment and Supplies for Electrical Socket Installation

Start with a voltage tester (non-contact type preferred) to verify power absence before touching any conductors. A multimeter with 600V AC range ensures precise voltage readings–critical for identifying live wires accidentally left energized. Insulated screwdrivers (flathead #2 and Phillips #2) rated for 1000V must be used exclusively; avoid standard tools as they risk lethal shorts when handling copper cores. Additionally, wire strippers with 14-12 AWG notches prevent nicking conductors, a common cause of overheating joints over time.

Core Installation Hardware

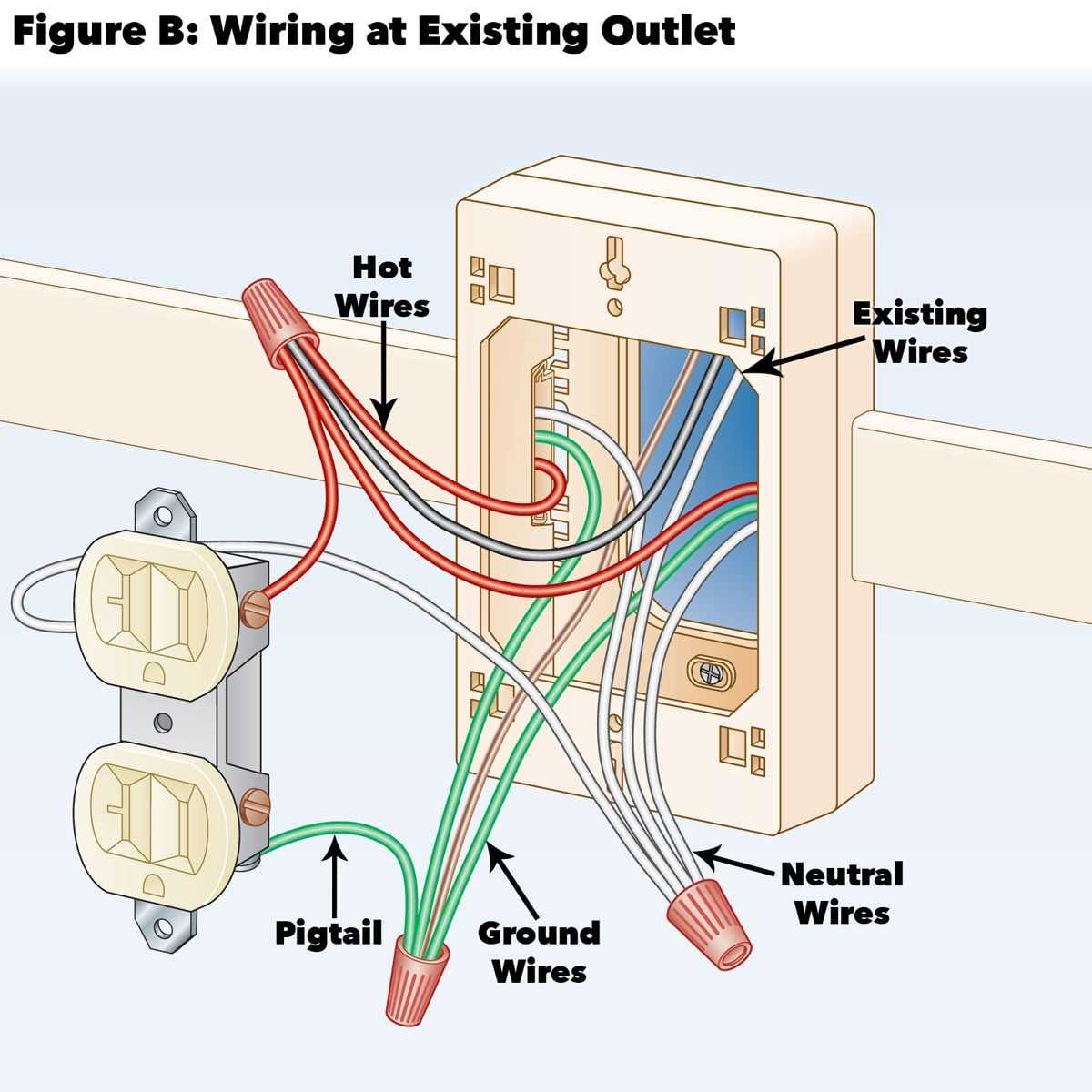

Select UL-listed duplex receptacles matching circuit amperage: 15A for 14-gauge circuits, 20A for 12-gauge. For grounding, use bare or green-insulated copper wire (minimum 14 AWG) connected directly to the box ground screw or a listed grounding clip. Secure all connections with twist-on wire connectors (red or tan size for 2-3 #14 wires); never use electrical tape alone–it degrades under heat cycles. Steel outlet boxes require a grounding pigtail (6-inch length, 14 AWG) bonded to the box with a listed grounding screw (green with hexagonal head).

Keep fiberglass fish tape (1/8-inch width) on hand for pulling conductors through conduit or wall cavities; lubricate with wire-pulling compound to reduce friction by up to 40%. For final anchoring, use 1-inch #6-32 device screws (steel, zinc-plated) to secure the receptacle–longer screws risk piercing conductor insulation. Always confirm local amendments to NEC Article 406 before proceeding; some jurisdictions mandate arc-fault circuit interrupters (AFCIs) or ground-fault circuit interrupters (GFCIs) even for standard 120V circuits.

Step-by-Step Guide to Identifying Live, Return, and Earth Conductors

Start by examining the color coding of the cables. In North American residential installations, the live conductor (carrying current) is typically insulated in black or red, while the return conductor (neutral) is white or light gray. The earth conductor is bare copper, green, or green with a yellow stripe. European standards differ: live is brown, return is blue, and earth is green-yellow striped. Always verify local regulations, as some regions adopt hybrid systems.

Use a non-contact voltage tester to confirm the live conductor before touching any cable. Hold the tester near each insulated wire (without contact)–it will beep or light up when close to the live one. Test twice: once with the circuit powered and again after switching it off to ensure no residual charge remains. If the tester reacts inconsistently, replace its batteries or recalibrate it per the manufacturer’s instructions.

For direct verification, employ a multimeter set to AC voltage (200V+ range). Probe the live conductor against the return: expect 110–125V (North America) or 220–240V (Europe). Touching the earth should yield near-zero voltage, confirming its safety role. If readings deviate significantly, inspect for miswired connections or damaged insulation.

Observe cable gauge and sheathing. Live/return conductors often share identical thickness (e.g., 14 AWG for 15A circuits), while the earth may be slightly thinner (16 AWG). In older installations, cloth-wrapped wires may lack modern markings–trace them back to the fuse box to distinguish their function based on terminal connections.

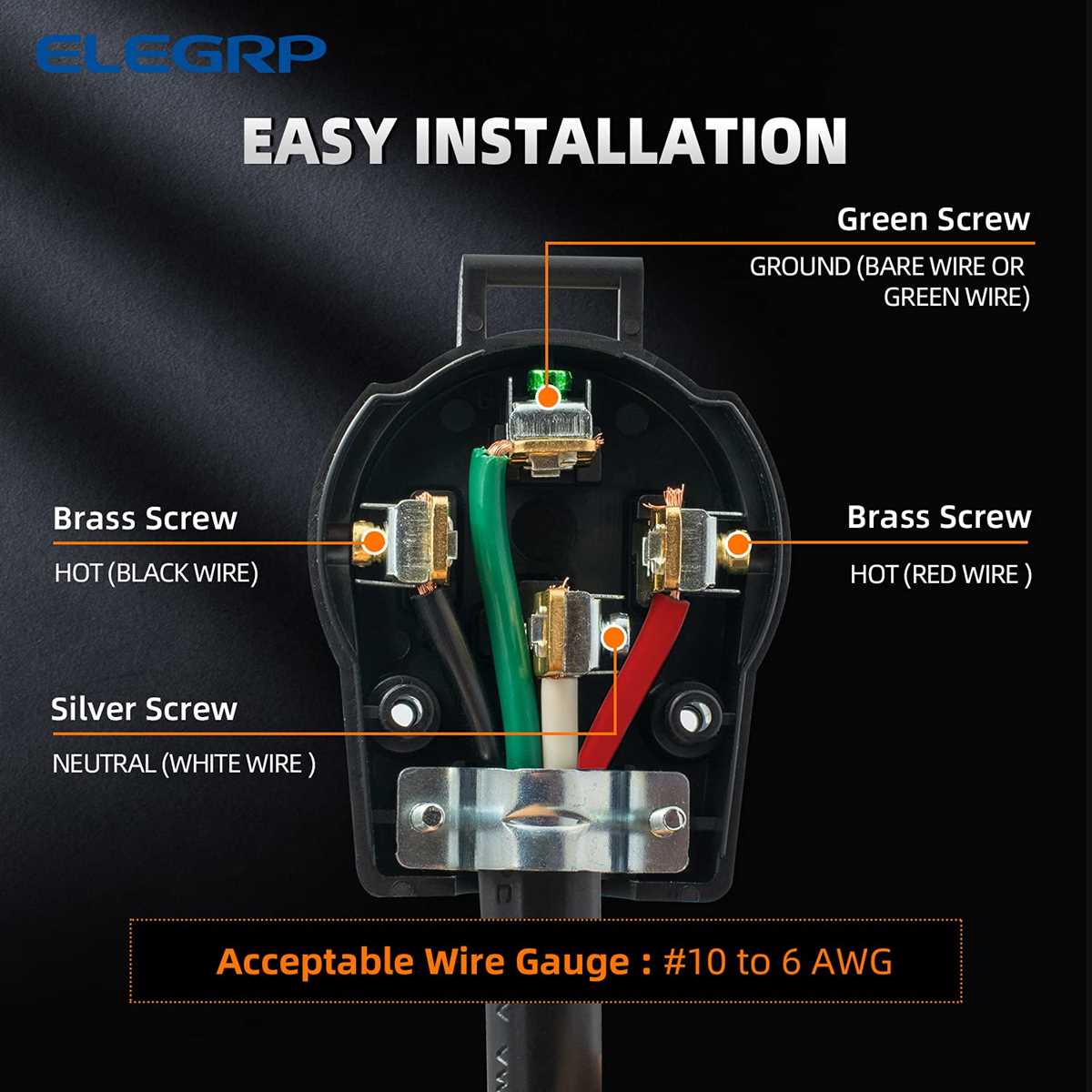

Check terminal screw colors on receptacles or fixtures. Brass screws secure the live conductor; silver screws the return. Green screws attach the earth. If retrofitting, note that some devices use push-in slots–avoid these as they’re less reliable than screw terminals. Trim and reshape wire ends before securing them to ensure proper conductivity.

Region	Live Color	Return Color	Earth Color	Voltage (AC)
North America	Black/Red	White/Gray	Green/Bare	110–125V
Europe	Brown	Blue	Green-Yellow	220–240V
UK (Post-2004)	Brown	Blue	Green-Yellow	230V
Australia	Red/Active	Black/Neutral	Green/Yellow	230V

Examine wire striations or ridges. Some live conductors feature fine ridges along the insulation, while return wires may be smooth. Earth wires, if insulated, often have a distinctive ridged texture. This subtle cue helps differentiate wires when color coding is ambiguous, such as in mixed-use cabinets.

Label each wire immediately after identification using durable, heat-resistant tags. Note down measurements, colors, and terminal placements in a pocket notebook or phone memo. Cross-reference this data with appliance manuals or distribution panel diagrams to troubleshoot future issues. Store labels near the circuit for quick access during maintenance.

Safety Considerations

Avoid assuming wire functions based solely on connector types. Some three-pronged appliance cords swap return and earth internally–always verify with a tester. For split-phase systems (common in the U.S.), the second live wire (red) carries 240V when measured against its twin but 120V against return. Never disconnect the earth wire; it provides critical fault protection.

Troubleshooting Anomalies

If voltage readings are unstable, suspect loose connections. Tighten all terminal screws to torques specified in local codes (typically 12–15 in-lbs for residential fixtures). Corrosion or oxidation on copper can mimic a dead circuit–clean terminals with fine-grit sandpaper and apply anti-oxidant paste before reconnecting.
