Step-by-Step Guide to Wiring a 2-Wire Heat Detector Correctly
Connect the positive terminal directly to the power supply’s hot line–polarity matters in low-voltage loops, especially with addressable systems. Use 18 AWG solid copper wire for runs under 100 meters; for longer distances, switch to 16 AWG to prevent voltage drop. Avoid splices in concealed spaces–pressure connectors introduce resistance that can trigger false alarms.
Install a 470-ohm end-of-line resistor across the circuit terminals. This maintains proper supervision current (typically 2–5 mA) and differentiates between open-circuit faults and normal operation. For zones with multiple sensors, wire devices in parallel–series connections cause cumulative voltage drops that may exceed device sensitivity thresholds.
Polarity-sensitive modules require strict adherence to wiring color codes: red (+) to power, black (−) to return. Non-polar models tolerate reversed connections but lose diagnostic capabilities like drift detection. Shielded cable isn’t necessary indoors but reduces EMI interference in industrial environments–ground the shield only at the control panel.
Avoid mixing device types (rate-of-rise with fixed-temperature) in the same loop–differing thermal response curves create unpredictable activation lags. Test each sensor post-installation with a heat gun: target 57°C for fixed units, 8°C/min for rate-of-rise variants, holding for 30 seconds. Log test results; repeat quarterly to catch thermal lag degradation.
For hybrid systems integrating smoke detection, isolate thermal zones on dedicated circuit segments–shared loops dilute fault localization accuracy. Mount sensors within 3 meters of ceilings or the apex of pitched roofs; avoid placement above openings where thermal currents disrupt heat buildup. Document every connection with labels noting loop identifier, device type, and exact coordinates–maintenance crews waste 40% less time troubleshooting labeled systems.
Connecting Thermal Sensors with Dual-Conductor Cabling
Begin by stripping 8–10 mm of insulation from each end of the conductor pair, ensuring no strands are nicked. Use a calibrated wire stripper set to 0.8 mm² cross-section–thicker gauges introduce resistance that can falsely trigger alarms. For loop resistance calculations, assume 0.017 Ω/m for copper at 20°C; multiply this value by the total run length to verify compliance with the 50 Ω maximum specified in EN 54-5 Class A.
Attach the red conductor to the positive terminal marked “+In” or “L,” and the blue (or black) conductor to “-Out” or “N.” Polarity is critical; reverse connections will activate a fault indication on the control panel within 120 seconds. Most addressable modules provide a visual LED blink code–three short pulses followed by a pause–to confirm correct polarity. If absent, consult the panel’s LED diagnosis chart before proceeding.
The table below lists permissible conductor lengths and cross-sections for common alarm circuits operating at 24 VDC, assuming 2 % voltage drop:
| Loop Current (mA) | Maximum Length (m) | Copper Cross-Section (mm²) | Minimum Insulation Thickness (mm) |
|---|---|---|---|
| 15 | 550 | 0.75 | 0.6 |
| 25 | 380 | 1.0 | 0.6 |
| 40 | 250 | 1.5 | 0.8 |
Twin conductors must be twisted at no less than 20 turns per metre; untwisted pairs increase susceptibility to electromagnetic interference, particularly from fluorescent lighting ballasts and variable-speed drives. If untwisting is unavoidable, shield the run with braided copper tape grounded at a single point nearest the control unit.
Install end-of-line resistors (EOL) rated 4.7 kΩ ±5 % for conventional circuits; addressable loops typically require 6.8 kΩ ±1 %. Mount the resistor directly across the final device terminals–do not place it inside the junction box. A simple multimeter continuity check across the open loop should display the EOL resistance value; readings above 10 % indicate poor termination or broken conductor.
For ceiling-mounted units, route the conductor pair along support channels or conduit, maintaining 50 mm separation from mains wiring. In explosion-prone zones, employ IP67-rated glands and seal unused conduit entries with intumescent compound. Mark each termination with heat-shrink sleeves bearing the device’s unique identifier–consistent labelling reduces commissioning errors by up to 40 %.
Test each segment by simulating rising temperature with a calibrated heat gun; set the threshold 5 °C below the device’s rated alarm point (typically 58 °C fixed). Observe the panel display: a green steady LED indicates normal supervision, while rapid flashing confirms the loop integrity. Record the response time in the commissioning log–values exceeding 10 seconds suggest excessive loop capacitance or poor connection quality.
Terminate unused outlets with blanking plates equipped with EOL resistors identical to those on active loops. This ensures the supervisory current remains constant, preventing false tamper alarms. Update the system documentation immediately after any reconfiguration; accurate records shorten fault diagnosis from hours to minutes during periodic inspections.
Core Elements of a Dual-Conductor Thermal Alarm Loop
Start with a power supply providing 12–24 VDC or 24 VAC–voltage levels approved for fire protection panels. Verify the supply’s current capacity matches the total load of connected alarms plus a 20 % safety margin; undersized supplies cause nuisance tripping. Terminate the positive lead to the input terminal of the first sensor in the loop, ensuring a secure crimp or solder joint with heat-shrink insulation.
- First sensor connects directly to the supply; subsequent units daisy-chain via a dedicated loop terminal, not the alarm output.
- Loop resistance must remain below 50 Ω per IEC 60079; exceeding this triggers panel supervisory faults.
- Use shielded twisted pair for lengths over 100 m or in electrically noisy environments–ground the shield only at the panel to prevent ground loops.
Each sensing device contains a fixed-temperature micro-switch (57 °C ±2 °C) or a rate-of-rise thermistor (8.3 °C per minute threshold). The fixed unit employs a fusible alloy link that melts at threshold, closing the circuit; the rate-of-rise variant uses NTC elements whose resistance drop triggers the panel within 30 seconds. Code requires both response modes in high-hazard zones like kitchens or engine rooms.
Panel connection demands a supervised end-of-line resistor–typically 4.7 kΩ–connected across the last unit’s loop terminals. This resistor allows the control unit to detect opens, shorts, and tampering by measuring loop impedance every 4–5 seconds. If the measured value drifts beyond ±15 % of expected, the panel enters trouble state and displays the zone; ignore this setting and risk undetected faults during pre-alarm conditions.
How to Connect a Dual-Line Thermal Sensor to Your Alarm System
Disconnect power at the main circuit breaker before handling any cables. Verify the panel’s compatibility with Class B initiating circuits–most modern units support this, but check documentation for exceptions.
Strip 6mm of insulation from both leads of the sensor. Twist exposed copper strands tightly to prevent fraying, then tin the ends with a low-wattage soldering iron if oxidation is likely in the installation environment.
Identify the zone terminals on the control box–typically marked “+” and “-” or “Z+” and “Z-.” Attach the red lead to the positive terminal first, ensuring no stray strands touch adjacent connections. Secure with a screwdriver, applying 0.4Nm torque for reliable contact.
Route the remaining wire to the negative terminal, avoiding sharp edges or pinch points. Maintain a minimum 10cm separation from 120VAC lines to prevent interference. If conduit is used, pull both cables simultaneously to equalize tension.
Label the circuit with heat-shrink tubing or self-laminating tags. Note the zone number and device location–future troubleshooting becomes faster when paths are clearly documented.
Reapply power and enter programming mode. Follow the panel’s keypad sequence to assign the new loop as a supervised, normally open input. Test with a hairdryer set to 55°C–verify the panel registers the activation within 10 seconds.
Adjust sensitivity if false alarms occur. Some units allow threshold tweaking via dip switches or software menus; others require resistor swaps–consult the device’s technical sheet for exact values.
Seal unused knockouts with UL-listed bushings if the enclosure sits in a damp area. Finish by covering terminals with a non-conductive guard to comply with NEC 760.41(B).
Common Pitfalls in Dual-Line Thermal Sensor Integration
Reversing polarity during installation disrupts signaling continuity and triggers false alarms or complete device failure. Confirm pin assignments before securing connections–most units label power input with “+” and “-” markers, though some manufacturers invert these codes. Use a multimeter to verify terminal voltage: expected output ranges from 12V to 24VDC, depending on panel specifications. Incorrect polarities often void warranties and require full rewiring.
Splicing conductors improperly creates resistance points that degrade performance. Avoid twisting wires alone; always crimp using insulated butt connectors or solder joints sealed with heat-shrink tubing. Single-point failures at junctions cause intermittent errors, particularly in temperature fluctuation zones where expansion/contraction stresses connections. Test splices with a 1A current load to detect micro-resistance–values above 0.5 ohms indicate compromised integrity.

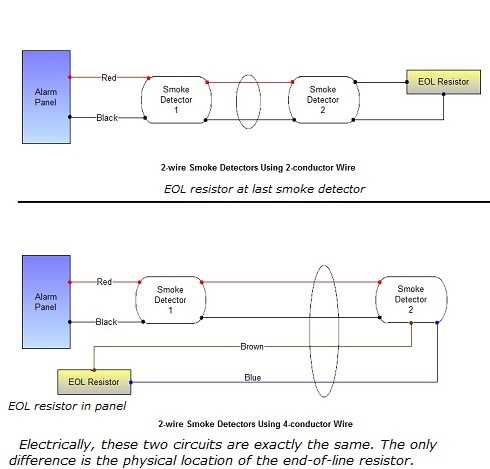

Overlooking end-of-line resistor placement leads to supervisory faults. Panels expect a 4.7kΩ resistor across the final device’s terminals to maintain loop integrity; omitting this triggers “open circuit” alerts even when all units function. Place the resistor within 100mm of the last sensor’s terminals–installing it at the control panel instead forces the system to monitor excess cable length, skewing detection thresholds.
Mixing cable types introduces impedance mismatches. Solid-core wires suit fixed installations, while stranded variants endure vibration-prone areas. Never combine 18AWG with thicker gauges; voltage drops across inconsistent diameters falsify alarm thresholds. For runs exceeding 300m, upsize to 16AWG to compensate for line losses–manufacturers’ published ranges assume uniform 20°C ambient conditions, and deviations require recalibration.
Ignoring environmental conflicts accelerates corrosion. Mount units at least 1m from steam sources, chemicals, or conductive dust–contamination shorts contacts and triggers nuisance trips. Use IP65-rated enclosures for outdoor placement; even “sealed” variants fail under prolonged moisture exposure. Regularly inspect for white/green oxidation on terminals–clean with isopropyl alcohol and reapply dielectric grease to prevent recurrence.
