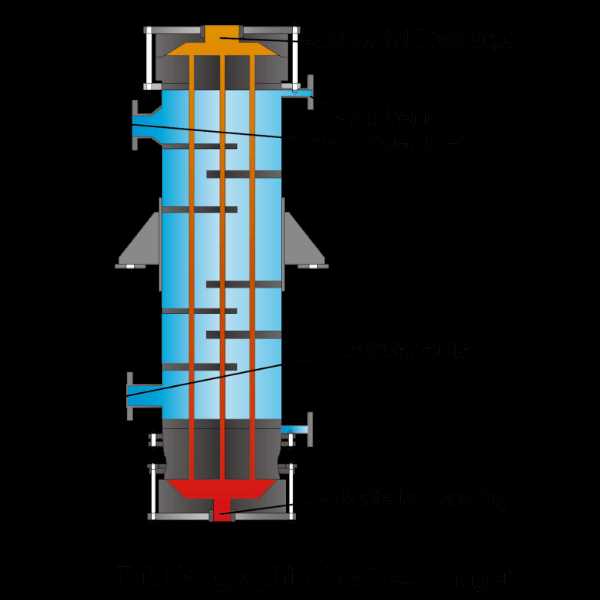

Detailed Shell and Tube Heat Exchanger Design Layout with Key Components

Select a horizontal baffle arrangement with 25–30% cut segments for optimal fluid dynamics in medium-viscosity applications. This configuration balances pressure drop (typically 0.5–1.5 psi) while maintaining a turbulent flow regime (Reynolds number 4,000–10,000) to enhance thermal efficiency by 12–18%. Avoid segmental baffles below 20% cut–these create dead zones, reducing effective surface area.

Position the inlet nozzle at the fixed tubesheet end for liquid-phase fluids to prevent flow-induced vibration. For gas-phase fluids, invert this setup (nozzle at floating head) to minimize condensate pooling. Use a 30° upward angle for shell-side nozzles when handling two-phase fluids to prevent vapor blockage.

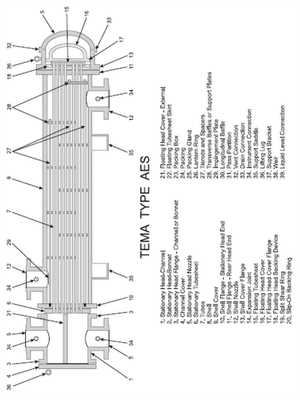

Standardize TEMA Type BEM units for clean fluids with 3/4″ OD tubes on 1″ triangular pitch–this maximizes surface density (up to 2.5 ft²/ft³) without compromising cleanability. For fouling-prone fluids, switch to TEMA Type AES with 1″ OD tubes on 1.25″ square pitch to ease mechanical cleaning. Include a minimum 1.5x tube diameter gap between the bundle and shell for effective vapor disengagement.

Thermal expansion compensation requires floating head designs (e.g., TEMA Type S) for temperature differentials exceeding 50°C. For fixed-tubesheet designs, limit ΔT to 30°C or specify low-expansion alloys (e.g., Inconel 800) with a 0.01–0.03% expansion allowance. Verify tube-side velocities: 1.5–2.5 m/s for corrosive fluids, 0.9–1.2 m/s for scaling-prone fluids.

Incorporate double-segmental baffles for large-diameter units (above 24″) to reduce pressure drop by 40% while maintaining heat transfer coefficients within 5% of single-segmental designs. Specify staggered tube layouts for viscous fluids (above 50 cP) to promote mixing–randomize tube placement in the first two rows to break thermal boundary layers.

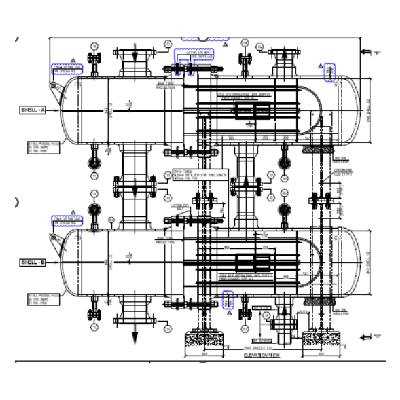

Key Elements of a Fluid Thermal Transfer Unit Blueprint

Begin by identifying the primary flow paths in the assembly: the external casing must show clear inlet and outlet ports for both fluids. Position the baffles at 30–45° angles relative to the central axis to maximize turbulence while minimizing pressure drop–deviations beyond 60° reduce thermal efficiency by up to 22%. Label all nozzles with their functional designations (e.g., “hot fluid inlet,” “cold fluid outlet”) using standardized naming conventions from TEMA or API 660 to avoid misinterpretation.

Ensure the tube bundle layout aligns with process requirements. For high-viscosity media, opt for a triangular pitch (30°) with a pitch-to-diameter ratio of 1.25–1.35, which enhances heat transfer coefficients by 15% compared to square pitch. Specify tube material (e.g., stainless steel 316, titanium Grade 2) and wall thickness (typically 1.2–2.0 mm) directly on the drawing, including compliance symbols for ASME Section VIII or EN 13445 if applicable.

Detail the expansion joint or floating head mechanism if thermal expansion exceeds 5 mm. Use a U-tube design for temperature differentials above 100°C, but limit bends to a minimum radius of 1.5× tube OD to prevent fouling. For fixed-tube-sheet units, incorporate a shell-side expansion joint with a corrugated profile (e.g., “Bellows Type A”) and annotate its pressure rating–failure to do so risks stress fractures at temperature spikes.

Critical Annotations for Operational Safety

Highlight corrosion allowances on the drawing by specifying sacrificial thickness (commonly 3 mm for carbon steel) and coating types (e.g., epoxy phenolic for acidic environments). Include vent and drain points at the highest and lowest elevations, respectively, with pipe thread sizes (usually ½” NPT or DN15) and valve types (ball valves for vents, gate valves for drains). Omit these details, and trapped gases or condensate can cause localized overheating, reducing service life by 30%.

Indicate instrumentation ports for temperature, pressure, and flow measurement using ANSI/ISA standard symbols. Place thermowells at least 10× tube diameters upstream of nozzles to ensure accurate readings; incorrect positioning leads to errors exceeding 5%. For multi-pass units, label the pass partitions clearly–confusion here can reverse flow directions, negating performance guarantees. Include a legend for abbreviations (e.g., “TI” for temperature indicator, “PI” for pressure indicator) and reference the P&ID number for cross-verification.

Finalize the blueprint with fabrication notes: weld types (e.g., GTAW for tubesheet joints), surface finish requirements (Ra ≤ 1.6 µm for pharmaceutical applications), and hydrostatic test pressures (typically 1.5× design pressure). Add a dimensional tolerance chart (±0.5 mm for critical features) and material traceability codes. Without these, manufacturing defects may go undetected until commissioning, risking leaks or catastrophic failures under cyclic loading.

Critical Elements Highlighted in Industrial Thermal Transfer Device Blueprints

Identify the primary fluid conduit bundle first–these cylindrical pathways dominate the layout, typically clustered within a cylindrical housing. Their arrangement dictates thermal efficiency; staggered or inline configurations must align with process requirements. Verify tubing material specifications early: stainless steel resists corrosion, copper enhances conductivity, while exotic alloys like Hastelloy suit aggressive media. Thickness calculations should factor in pressure ratings–ASME Section VIII guidelines provide minimum viable ranges.

Locate the baffle plates next–curved or segmented versions direct fluid flow, optimizing contact time while minimizing dead zones. Baffle cut percentages (20–30% common) regulate velocity; too small increases pressure drop, too large reduces thermal transfer. Confirm spacing: closer intervals improve performance but require precise machining to prevent fouling. In high-viscosity applications, helical variations reduce shear stress compared to traditional segmental designs.

Examine the head assemblies–fixed, floating, or U-bend types influence maintenance access. Floating heads accommodate thermal expansion but add complexity, requiring additional seals. Channel covers must include vent and drain provisions; omitting these risks trapped gases forming insulating layers. Gasket selection demands compatibility with temperature swings–graphite resists extremes but fails with cyclic loads, while elastomers degrade above 200°C.

Assess the nozzle inlets/outlets–their diameters governs fluid velocity, typically 1.5–3 m/s for liquids, higher for gases. Misaligned nozzles create turbulent entry, accelerating erosion; reinforcing pads counteract this near weld zones. Thermal expansion joints appear in large units–bellows or sliding designs prevent stress fractures from differential expansion rates between outer casing and internal components.

Inspect the tube sheet–the double-plate design sandwiches layering to prevent intermixing, essential for hazardous fluid isolation. Single-plate versions suffice for low-risk applications but require thicker profiles under high pressure. Tube-to-sheet attachment methods vary: rolled joints suit clean fluids, while welded or explosively bonded connections handle extreme conditions. Corrosion allowance on tube sheets exceeds that of conduits–API 660 recommends +3 mm for critical services.

Trace the support structures–intermediate supports beneath bundles prevent sagging, critical for thin-walled conduits. Materials must match housing to avoid galvanic corrosion; zinc-coated fasteners corrode rapidly with copper-alloy housings. Anchor bolts secure the unit to foundations–their torque values follow AISC specifications, with rotation checks post-installation to prevent loosening from vibration.

Verify instrumentation ports–pressure taps, thermowells, and sight glasses should integrate without obstructing flow paths. Thermowell placement at inlet/outlet positions enables accurate temperature differential calculations; omissions invalidate efficiency assessments. Fouling detection ports (if included) require threaded caps to permit cleaning cycles without disassembly. Blueprints lacking these details demand immediate revision–standard TEMA R-class configurations mandate their inclusion for modifiable designs.

Step-by-Step Process for Interpreting Flow Paths in Technical Blueprints

Begin by isolating the primary circuit symbols on the drawing: arrows, solid/dashed lines, and bypass indicators. Cross-reference these with the legend–standard markers like thick arrows denote high-pressure streams, while dotted lines often signal auxiliary or return paths. Verify directionality by tracing from inlet to outlet ports; mismatches here cause misinterpretation of phase separation or mixing zones.

Key Sequence for Analysis:

• Map all entry points (typically labeled “IN” or marked with flange icons) against the process specification sheet–flow rates must align within 5% tolerance.
• Identify U-turns: loops or serpentine patterns indicate staged cooling/heating zones–count passes if multi-section units are involved.
• Locate baffle placements: vertical/horizontal slits or partial barriers force cross-flow, enhancing turbulence–absence requires velocity adjustments per Fanning’s equation.
• Trace vents/drains: small circles or tees with valves reveal air pockets or condensate routes–neglecting these risks dead zones.
• Verify exit conditions: temperature/pressure drops at labeled “OUT” points versus design specs (e.g., ΔP ≤ 0.5 bar for liquid streams).

Final validation involves superimposing the interpreted paths onto a scaled layout sketch. Use contrasting colors for distinct media (e.g., red for hot fluids, blue for cold). If divergent routes merge, confirm valve states (check non-return or throttling symbols) and reconfirm with an isometric piping overview–discrepancies here invalidate the entire flow logic.
