Complete 2000 Buick Century Radio Wiring Diagram Guide with Color Codes
Locate the fuse box under the dashboard on the driver’s side–it houses labeled circuits, including the one powering the sound unit. Trace the red (constant power) and yellow (switched power) wires from the harness to the back of the head unit; these are critical for proper functionality. A missing or frayed orange wire indicates the factory amplifier may not be receiving the necessary signal for full-range audio.
Use a multimeter to verify voltage between key positions–12V should register on the red wire when the ignition is off, dropping to 0V when disconnected. If readings deviate, inspect the fuse labeled RADIO or AUDIO (typically a 10A or 15A fuse) for continuity. Replace corroded or blown fuses with the exact amperage to avoid damaging the system’s microelectronics.
Ground connections often fail–check the black wire leading to a solid chassis point, ideally near the original mounting location. Scrape away paint or rust to ensure a clean metal-to-metal contact. For aftermarket installations, bypass the factory wiring harness entirely by splicing into the vehicle’s main power distribution block, reducing interference from poorly shielded OEM circuits.
If the antenna signal weakens, follow the coaxial cable from the rear of the unit to the mast assembly. The blue antenna trigger wire should carry 5V when activated; a failed relay or broken connection here will mute AM/FM reception. Test resistance across the antenna’s base–expect –higher readings indicate a short requiring replacement of the cable or motor mechanism.
For vehicles equipped with a CD changer integration, the purple and gray wires carry data signals. These must be connected directly to the factory harness or routed through a bypass module to prevent error codes. Avoid using generic wiring diagrams–they omit revisions from model year variances that can disable certain functions (e.g., automatic sound leveling, theft-deterrent features).
Wiring Guide for 2001 General Motors Sedan Audio System
Locate the factory harness behind the dashboard’s lower left panel. The 12-pin connector includes these key wires:
- Yellow (constant 12V) – Always live, powers memory functions
- Red (switched 12V) – Activates with ignition (ACC/ON)
- Black (ground) – Bolt directly to chassis near the steering column
- Orange/white (illumination) – Dimmer control, connects to dash lights
Use crimp connectors rated for 20-gauge wire. Avoid twisting wires–heat-shrink butt connectors provide better corrosion resistance than electrical tape.
Aftermarket Unit Integration
Match the color codes with the new head unit’s harness adapter:
- Pink – Front right speaker (+)
- Light blue/white – Front left speaker (+)
- Dark green/white – Rear right speaker (+)
- Gray – Rear left speaker (+)
- Each (+) wire has a corresponding striped (-) wire at half gauge
Test speakers individually before securing the dashboard. Subwoofers may require an amplifier–tap into the red (switched) and yellow (constant) wires with an inline fuse (15A).
For steering wheel controls, purchase an ASWC-1 adapter. Connect it between the factory 6-pin data plug (behind glovebox) and the aftermarket harness. The vehicle’s theft-deterrent system will disable audio if the yellow or red wires are cut without the ignition on–disarm by keying the ignition to ACC within 10 seconds of reconnecting.
Finding the Audio System Connector in Your Vehicle
Begin by removing the trim panel around the stereo unit – it’s secured with plastic clips, not screws. Insert a thin plastic pry tool beneath the lower edge of the center dash bezel, near the ashtray or coin holder slot, and gently pop it outward. Work along both sides moving upward until the entire bezel releases; avoid forcing the clips to prevent breaking them. Behind the bezel, two 7mm bolts hold the head unit–remove them with a socket wrench before sliding the device forward.
Identifying the Main Wire Bundle
The primary electrical connector attaches directly at the rear of the head unit, featuring a 12-pin plug on models with premium sound and an 8-pin plug on base configurations. Trace the bundle downward along the back of the climate control duct; it routes beneath the dashboard, secured by a single 10mm bolt near the fuse box. Disconnecting the negative battery terminal prevents accidental shorts while handling exposed wires. Label each harness wire with tape noting color codes–orange receives power, pink carries illumination, and purple with a stripe sends the antenna signal.
For vehicles equipped with an external amplifier behind the glovebox, an additional 6-pin harness splits from the main bundle. Follow the thicker orange feed wire up toward the firewall junction where it merges with the vehicle’s main loom. Check the owner’s repair manual section 8B-45 for exact splice locations – critical when bypassing factory modules for aftermarket upgrades.
Decoding Factory Audio System Cable Colors and Purposes
Locate the 12V constant power lead–typically an orange or yellow-striped cable–which maintains memory functions for presets and settings even when the ignition is off. Confirm its function with a multimeter (12V reading) before splicing; mistaken connections here drain the battery within hours. The ignition-switched 12V source appears as a red or pink wire, active only during accessory or run positions–test with the key in both states to avoid powering components unnecessarily. Ground wires are nearly always black or striped black; secure them directly to bare metal chassis points with star washers to prevent intermittent signal loss.
Signal and Speaker Connections
Front left speaker outputs are coded by light green (positive) and dark green/white (negative), while right front uses gray (positive) and gray/black (negative). Rear channels follow suit with purple (rear left positive), purple/black (negative) and light blue (rear right positive), light blue/black (negative)–verify polarity using a 1.5V AA battery for temporary audio pop before finalizing connections. Dimmer/illumination wires appear as brown or brown-striped cables; these adjust display brightness in sync with dashboard lighting–omit if aftermarket units lack this feature. Antenna triggers (pink or striped pink) activate motorized antennas when powered–ensure continuity with the ignition on; static retractable antennas require only ground and 12V. Shielded twisted pairs (often wrapped gray/white or beige) carry low-level signals–avoid routing near power cables to minimize interference.
Step-by-Step Guide to Safely Extracting the OEM Audio Unit
Begin by disconnecting the vehicle’s negative battery terminal to prevent electrical shorts or accidental airbag deployment. Use a 10mm socket wrench to loosen the clamp–this ensures no residual power affects the system during removal. Wait at least 10 minutes before proceeding to allow capacitors in the head unit to discharge fully.
Locate the trim panel surrounding the audio system–it’s secured by hidden clips and may require gentle prying with a plastic trim removal tool. Start at a bottom corner, inserting the tool between the panel and dashboard, then work your way around systematically. Avoid excessive force to prevent cracking the plastic housing, which is brittle in older models.
Once the trim is free, identify the screws or bolts holding the head unit in place. Most setups use four 7mm screws or Torx T20 bolts; check the corners of the unit for these fasteners. Keep them in a labeled container–loose hardware can fall into dashboard cavities, complicating reinstallation or causing rattles later.
With screws removed, slide the audio system forward carefully. Disconnect the wiring harness at the rear by pressing the release tab and pulling straight out–never yank the wires. If equipped, detach the antenna cable by twisting the collar counterclockwise until it unlocks. Label each connector immediately to avoid confusion during reassembly.
For units with integrated climate controls, an additional ribbon cable may be present. Handle this component with care–its pins are fragile and prone to bending. If reinstalling a different head unit, ensure the new harness adapter matches the factory connector layout; mismatched adapters can fry the vehicle’s computer or disable accessory functions.
Inspect the mounting cage for debris or obstructions before reinserting hardware. Dust, leaves, or small objects often accumulate behind the unit and can interfere with wiring or new installations. Use a flashlight to verify no wires have been pinched or displaced during extraction–this prevents malfunctions or speaker distortion later.
When reconnecting the battery, verify all functions–turn signals, gauges, and onboard diagnostics–operate normally. Test the new head unit only after confirming the vehicle’s electrical system is stable. If static or erratic behavior occurs, revisit wiring connections; corrosion or loose terminals are common culprits in legacy installations.
Integrating Third-Party Audio System Cables with Your Vehicle’s Native Connector

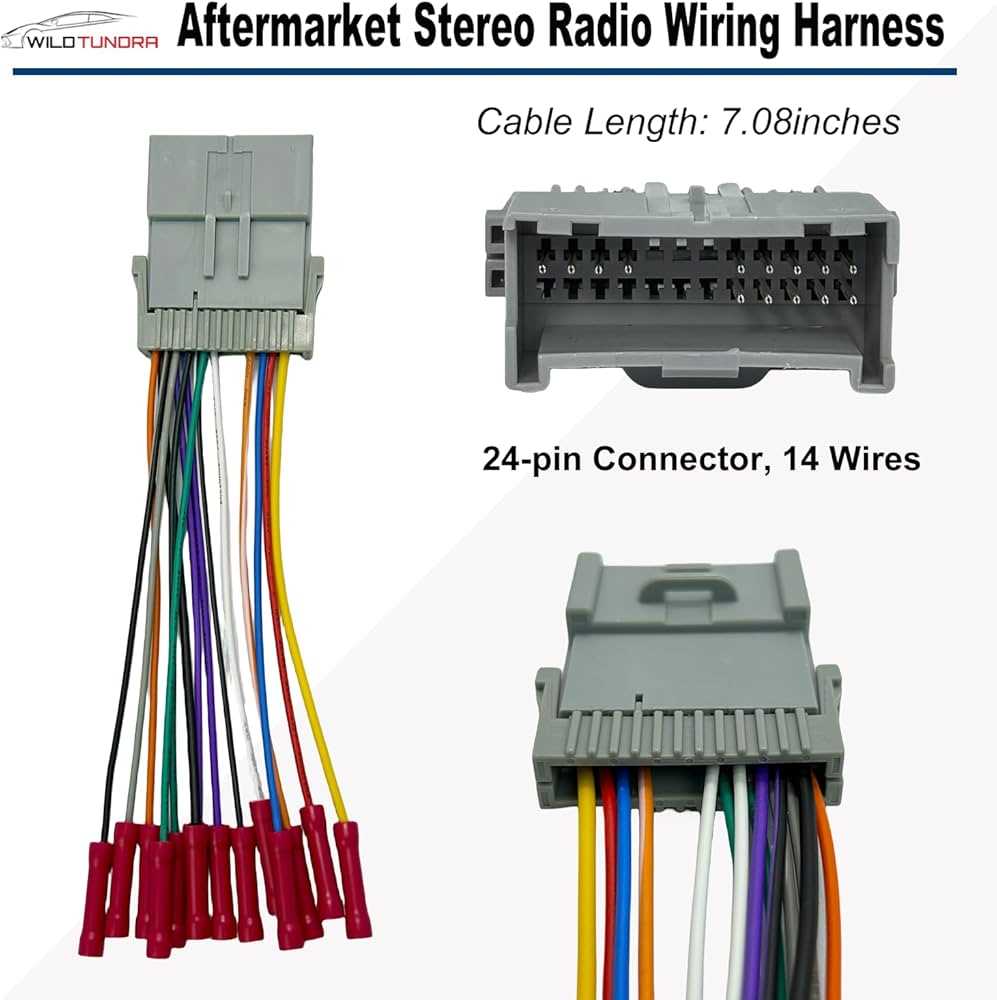

Identify the factory harness color codes before cutting or splicing–matching connections incorrectly risks shorting the amplifier or blowing fuses. Use a multimeter set to continuity mode to verify each wire’s function against the aftermarket unit’s documentation. Pinouts for the 24-pin OEM plug follow this standard: yellow (constant 12V), red (switched 12V), black (ground), orange/white (illumination), gray (front left +), gray/black (front left –), white (front right +), white/black (front right –), green (rear left +), green/black (rear left –), purple (rear right +), purple/black (rear right –), blue (antenna trigger), blue/white (amplifier turn-on), and brown (mute).
| Aftermarket Wire | Factory Wire | Function |
|---|---|---|
| Red | Red | Switched power |
| Yellow | Yellow | Battery |
| Black | Black | Chassis ground |
| Orange/white | Orange/white | Dimmer input |
| Blue | Blue | Power antenna |
| Blue/white | Blue/white | Remote amp turn-on |
Strip no more than 6mm of insulation–excess copper invites corrosion or accidental bridging. Crimp connectors rated for 20-18 AWG; solder joints must flow completely around the strand bundle without cold spots. Heat-shrink tubing should overlap both ends of the splice by at least 10mm to block moisture. Route all cables away from sharp edges and moving parts; secure with nylon zip ties every 15cm.
Recheck connections with the multimeter: 12V at red with ignition on, continuity between yellow and red when switched off, zero ohms between ground and chassis. If the new head unit displays a dim screen or emits no sound, verify the orange/white wire–it must not be connected to a constant source or grounded. Enable factory theft-deterrent mode only after confirming all speakers operate: press and hold the original radio’s power button for ten seconds until a chime confirms reset.
