Build Your Own 4 Channel Audio Mixer Step by Step Schematic Guide

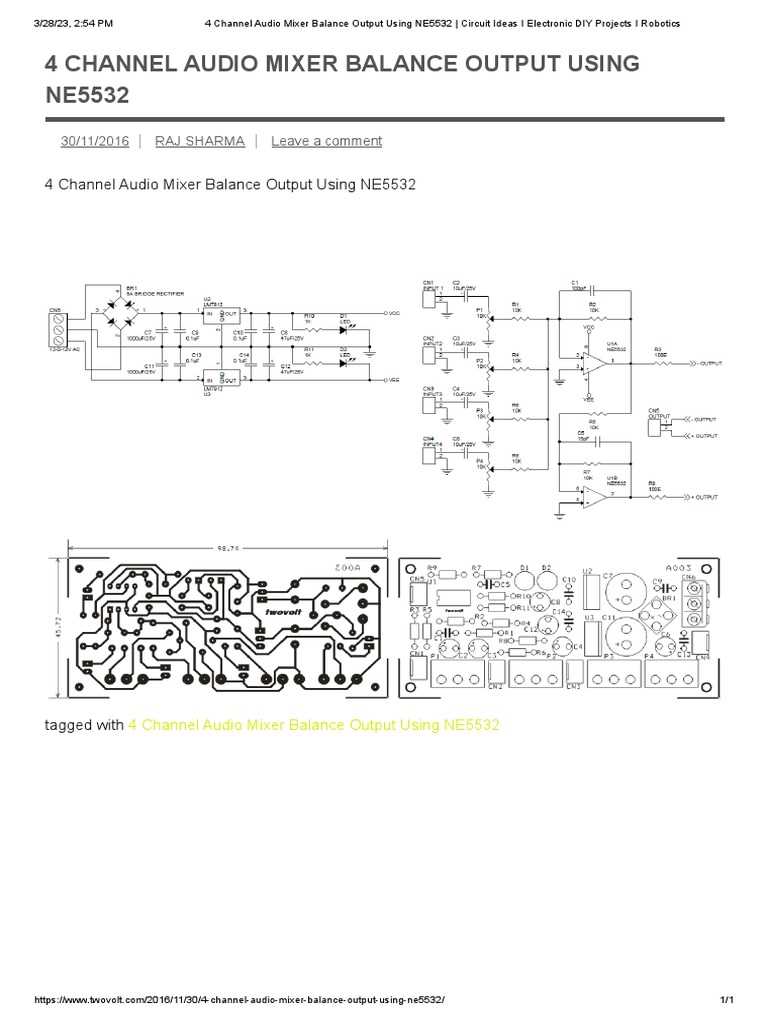

Start with an operational amplifier (op-amp) like the TL072 or NE5532 for each input line. These ICs handle low-noise signal amplification with minimal distortion–critical for preserving dynamic range. Assign 10kΩ resistors to each input for impedance matching, followed by a 1µF capacitor to block DC offset. Use linear potentiometers (10kΩ) as volume controls before merging signals into a summing node.

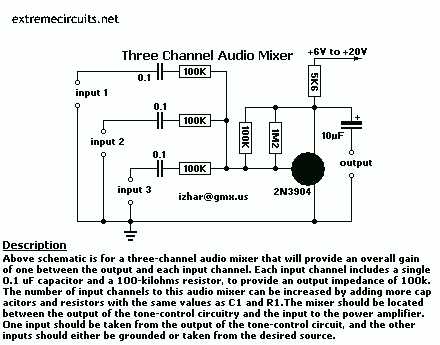

For the summing stage, combine outputs through a 4.7kΩ resistor per path into a single op-amp configured as a non-inverting amplifier. This configuration ensures +6dB gain while maintaining stability. Add a master level control using a 50kΩ potentiometer after the summing op-amp to adjust overall output without phase issues. Ground references should employ a star topology to prevent signal loops.

Power requirements demand a dual-rail supply (±15V), regulated via LM7815/LM7915 ICs from a center-tapped transformer. Include decoupling capacitors (0.1µF ceramic + 10µF electrolytic) near each op-amp’s power pins to suppress high-frequency noise. Output stages benefit from a 10µF coupling capacitor to eliminate DC bias before reaching the final jack.

AUX sends for effects or monitor feeds can branch off before the summing resistors–use 22kΩ resistors for each aux path to avoid loading the main signal. For LED metering, tap the output with an LM3915 IC driven by a rectifier diode (1N4148) and smoothing capacitor (1µF). Test impedance compatibility: inputs should handle 10kΩ-50kΩ sources, while outputs must drive 600Ω loads without clipping.

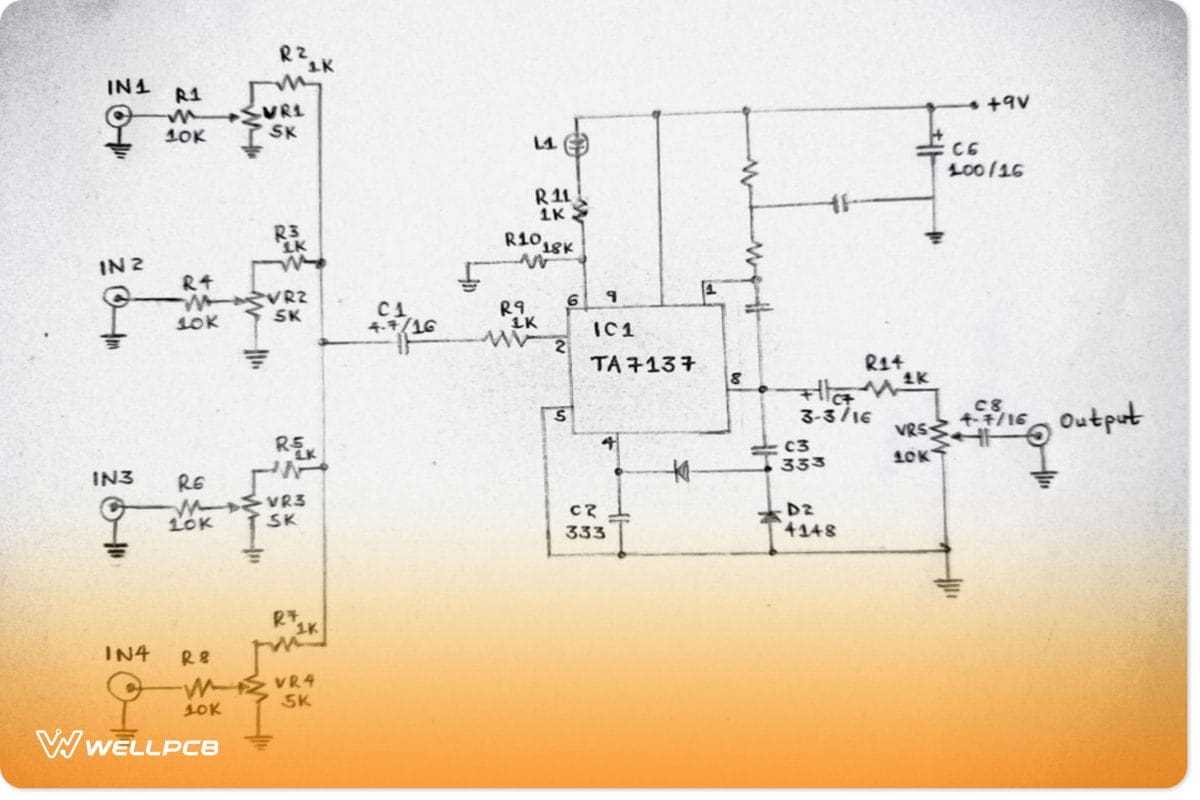

Building a Compact 4-Input Sound Blending Unit

Use a TL074 op-amp array to handle four discrete line feeds. Each path should include a 10 kΩ input potentiometer wired as a variable attenuator, decoupled by a 1 µF film capacitor to block DC offsets. Feed the op-amp outputs into a summing stage via 4.7 kΩ resistors, ensuring a precise 1:1 mix ratio without signal degradation. Power the circuit with dual ±9 V rails to avoid clipping when combining full-scale sources.

A 3 mm LED with a 2.2 kΩ series resistor serves as a simple overload indicator; connect it directly to the summing node via a 1N4148 diode to flash when aggregate voltage exceeds ±6 V. Ground the reference point through a 10 kΩ resistor to eliminate hum from floating ground loops. Keep input and output traces under 5 cm on the PCB to prevent stray RF pickup, and place a 100 nF ceramic capacitor across each op-amp’s power pins for stable operation.

Route the summed output through a final 47 µF electrolytic capacitor and a 1 kΩ resistor to drive headphones or powered monitors without loading the mixer. Test each path individually with a 1 kHz sine wave at 0.775 V RMS; verify no more than 0.3 dB variation across all paths before final assembly.

Key Parts for Assembling a 4-Input Sound Blender

Select operational amplifiers (op-amps) with low noise figures–TL072 or NE5532 are reliable choices. Each input stage requires at least one op-amp to handle signal buffering and preliminary shaping. For a budget-sensitive build, TL072 offers a 15 nV/√Hz noise density, while NE5532 cuts that to 5 nV/√Hz with slightly higher current draw. Include a dual op-amp per every two entry points to minimize PCB footprint.

Passive Elements That Define Signal Integrity

• Resistors: 1% metal film rated ¼ W across gain stages, 10 kΩ common in summing nodes. Input resistors should match within 1% to prevent phantom imbalances between entries. Potentiometers must be linear taper (B10K or B50K) for predictable fader response.
• Capacitors: Film types (polypropylene, polyester) preferred for coupling and tone shaping–values ranging 100 nF to 1 µF. electrolytics are acceptable at power supply decoupling but keep ESR below 0.5 Ω.
• Inductors: Ferrite beads or small axial chokes (10 µH) at power entry point suppress high-frequency noise without adding phase shift.

Use 1/8″ TRS connectors for every signal entry; these maintain compatibility with consumer line-level devices while allowing balanced operation when needed. Power input should be a barrel jack (2.1 mm, center-positive) fed from a linear regulated supply–switching supplies inject broadband noise that defeats low-noise design goals. A center-tap transformer with dual secondaries (12–0–12 V) delivers clean ±12 V rails; include 1N4007 diodes for rectification and 1000 µF electrolytics (low ESR) for smoothing.

Include a main volume potentiometer (linear 100 kΩ) before the output buffer. The buffer stage benefits from a discrete emitter-follower pair (2N3904/2N3906) if higher current drive into low-impedance loads (600 Ω) is required. Keep ground paths star-routed; a central ground plane reduces loop-area hum. Optional: add a switchable global EQ (12 dB shelving at 100 Hz and 10 kHz) using 0.1 µF film caps and 10 kΩ resistors for simple tone shaping.

Step-by-Step Wiring Guide for Each Signal Path

Begin by connecting the input jack to a 10kΩ logarithmic potentiometer for precise level control. Solder the ground lug of the jack directly to the main ground bus, ensuring minimal noise interference. The hot lug should feed into the center terminal of the potentiometer, while the outer terminal links to the preamplifier stage.

Preamp Stage Construction

• Op-Amp Selection: Use a TL072 or NE5532 for low-noise performance. Mount the IC in a DIP socket for easy replacement.
• Gain Setting: Wire a 10kΩ resistor from the op-amp’s inverting input to ground. Connect a 100kΩ feedback resistor between the output and inverting input to achieve ~11x gain.
• Power Supply: Decouple ±12V rails with 100nF ceramic capacitors within 5mm of the IC’s power pins.

Route the preamp output to a 1µF coupling capacitor to block DC offset. Follow this with a 1kΩ series resistor before merging with other signal paths at the summing stage. Verify each connection with a multimeter in continuity mode–resistance should read

Summing and Output Stage

1. Combine all four preprocessed lines at a single 10kΩ summing resistor per path. Connect the resistor’s free end to the inverting input of a summing amplifier (TL074 or similar).
2. Attach a 1kΩ resistor from the amplifier’s output to its inverting input to set unity gain for the mix bus.
3. Terminate the output with a 470µF electrolytic capacitor (observe polarity) to drive low-impedance loads without distortion.

Test each path individually with a 1kHz sine wave at -10dBV. Scope the summing node–ripple should not exceed 5mV peak-to-peak. If crosstalk occurs, recheck ground connections and isolate input cables using shielded twisted pairs.

Label all wiring with heat-shrink tubing or colored tape:

• Red: +12V rail
• Black: Ground
• Green: Input A
• Blue: Input B
• Yellow: Input C
• White: Input D

Enclose the assembly in a metal chassis, bonding the chassis to the ground bus via a 10Ω resistor for safety.

Adjusting Gain Levels Without Signal Distortion

Set input preamp gain first–begin at −18 dBFS for optimal headroom, then fine-tune using the VU meters in your processing path. If the signal peaks exceed −6 dBFS, reduce the fader by 3 dB increments until transients sit below this threshold. Avoid cascading multiple amplifications; each stage should contribute ≤6 dB of gain to prevent cumulative clipping. For dynamic sources, enable a soft-knee limiter at −3 dB with a 10 ms release time to tame unexpected spikes without audible artifacts.

Engage high-pass filters at 80 Hz for low-frequency content to eliminate subsonic rumble before gain staging–this preserves clean amplification headroom. For critical adjustments, use a spectrum analyzer to identify frequency buildup; attenuate problem bands with a parametric EQ centered at the dominant peak, applying −2 dB cuts with a Q of 2.5. Test gain changes with white noise at −20 dBFS; distortion onset should align with the THD+N specifications of your operational amplifiers–typically 0.005% or lower for premium circuits.

Grounding Techniques to Minimize Noise Interference

Use a star grounding topology to connect all signal paths to a single central ground point. This prevents ground loops by eliminating potential differences between multiple return paths. For low-impedance systems, ensure the central ground connects to chassis ground at one location only, typically near the power supply. Keep high-current paths (e.g., power rails) physically separate from sensitive traces to reduce induced noise.

Implement differential signaling for critical lines where feasible. Pair each input with its dedicated return trace, routed adjacent to the signal line with consistent spacing. Maintain a 1:1 width ratio between signal and return traces for controlled impedance. The table below summarizes optimal trace dimensions for common impedance targets:

Target Impedance (Ω)	Trace Width (mm)	Spacing to Return (mm)	PCB Layer Thickness (mm)
50	0.20	0.20	1.6
75	0.12	0.35	1.6
100	0.08	0.45	1.6

Decouple all active components with capacitors placed as close to their power pins as possible. Use 0.1µF ceramics for high-frequency suppression and 10µF tantalums for mid-band stability. Route ground vias directly under each capacitor’s ground pad to minimize loop area. For mixed-signal designs, split analog and digital grounds but connect them at one point near the ADC or DAC to prevent digital noise from polluting analog sections.
