Step-by-Step Wiring Guide for 2000 Ford F150 Starter Solenoid
Begin by locating the control wire from the ignition switch–on this model, it’s a purple (VIO) conductor with a white stripe (WHT/VIO), typically terminating at the solenoid’s smaller S-terminal. Verify this connection first: corrosion or a loose crimp here disrupts signal transfer, mimicking failed components. Use a multimeter set to continuity mode; resistance above 0.5 ohms between the switch and terminal indicates a break requiring splice repair or replacement.

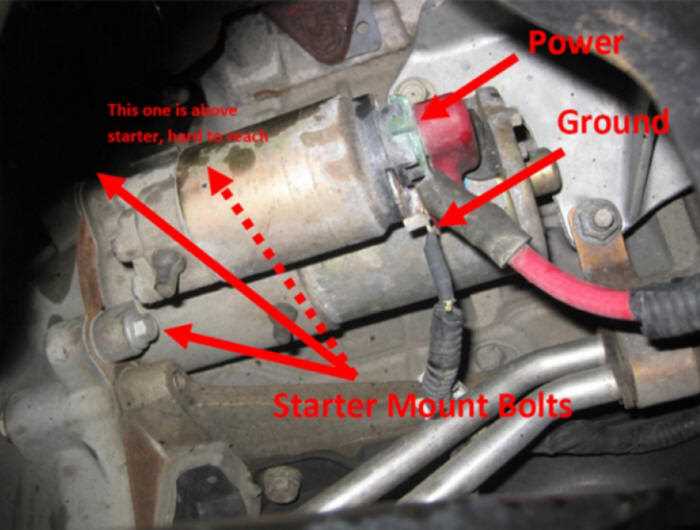

The thicker red (RED) battery cable links directly to the M-terminal, while the adjacent I-terminal often carries a yellow (YEL) fusible link with 14-gauge wire protecting the circuit. Measure voltage at the M-terminal during cranking–expect 10.5V minimum with a healthy battery; drops below this threshold point to internal damage in the engagement coil. Replace the entire unit if resistance readings exceed 0.2 ohms between M and S terminals.
Ground path runs through the housing, secured by a single #10 SAE bolt into the engine block. Remove, clean, and re-torque this fastener to 15 ft-lbs if cranking produces clicks but no rotation–common with paint or gasket interference. Bypass testing confirms solenoid function: jump a screwdriver from M to S terminal; smooth engine rotation without dash dimming indicates a faulty trigger wire or switch.
Electrical Connection Guide for Truck Ignition Relay
Check the main power cable from the battery to the relay–it should be a thick red wire, typically 4-gauge, connected to the upper terminal. A corroded or loose connection here causes intermittent engagement failures. Clean both ends with a wire brush and apply dielectric grease before reattaching.
Locate the smaller control wire from the ignition switch; it’s usually purple with a white stripe and attaches to the relay’s side post. Test for voltage (12V) when turning the key to “start.” If absent, inspect the ignition switch and fusible link. Replace the switch if resistance exceeds 0.5 ohms at the connector.
Verify the ground path: the relay’s mounting bolt must secure directly to the chassis or engine block. Paint, rust, or oil residue creates high resistance. Sand the surface until bare metal appears, then tighten the bolt to 15-18 ft-lbs. A weak ground mimics solenoid failure–clicking without cranking.
Key components to inspect:
- Battery terminals: corrosion or loose clamps drop voltage below 10V during cranking.
- Starter motor plunger: worn teeth prevent full engagement (replace if visible damage).
- Relay contacts: internal pitting causes heat–replace every 50k miles or at first signs of sluggish start.
- Fusible link: melts if overloaded; use a multimeter to confirm continuity.
For bypass testing, use a screwdriver to briefly bridge the main power terminal to the side post control terminal. Never hold this longer than 3 seconds–it delivers 100+ amps directly to the motor. If the engine turns over, the relay or ignition circuit is faulty. If not, the motor itself needs service.
Troubleshooting Voltage Drop
- Set multimeter to 20V DC.
- Connect red probe to battery positive, black probe to relay input.
- Crank engine: drop >0.5V indicates corroded cables or bad connections.
- Move probes to relay output and starter motor terminal; repeat test.
- Drop >0.2V requires cleaning or replacing the cable.
Replacement relays must match OEM specs: 30-amp continuous current rating and 5-pin configuration. Aftermarket units with lower ratings overheat and fail prematurely. Secure all connections with star washers to prevent loosening from vibration.

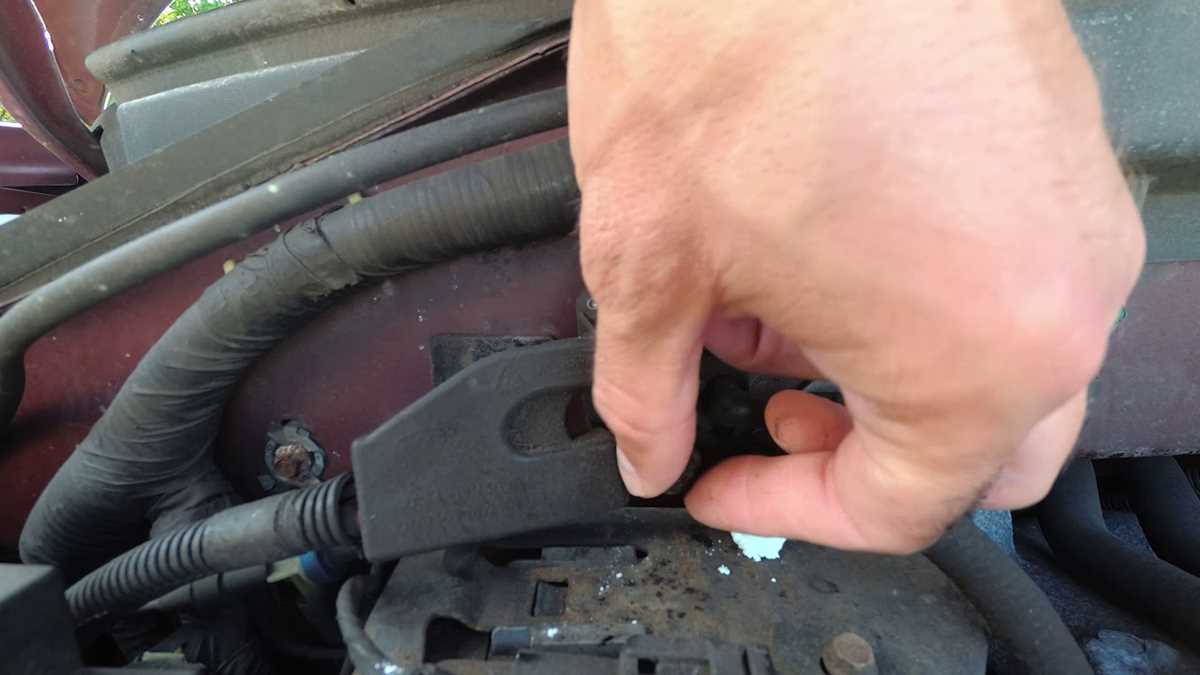

Finding the Relay Mechanism on a Vintage Pickup Truck
Begin by lifting the hood and securing it with the prop rod on the driver’s side. The relay cluster mounts directly to the fender well, adjacent to the battery tray. Look for a black plastic box roughly the size of a deck of cards–this houses the engagement coil.
The assembly attaches with two bolts and a single electrical connector. Trace the thick red cable from the positive terminal; it terminates at the top stud of the relay. A thinner wire, often purple or yellow, feeds the ignition signal–this triggers the contacts to close.
Identifying Specific Marks
On the relay cover, a label stamped “I” and “S” denotes the ignition and starter posts. The “I” stud accepts the control wire, while the “S” stud connects the motor’s heavy-gauge lead. Misalignment here causes intermittent engagement or no crank at all.
If corrosion is present, clean both studs with a wire brush–oxide buildup disrupts conductivity. Verify the relay’s ground strap bolts to the chassis; a loose connection generates heat and premature failure. Check torque specs: 8-10 Nm for mounting bolts, 12-14 Nm for cable nuts.
For trucks equipped with an automatic transmission, ensure the neutral safety switch wire routes correctly–it shares the same purple lead. Jumpering the relay terminals briefly tests operation, bypassing the ignition circuit. Never hold the jumper longer than three seconds to prevent overheating.
Key Electrical Connector Points on the Ignition Relay Switch
Locate the S-terminal first–it’s marked with a single letter on most OEM assemblies and links directly to the ignition switch via a thin purple or violet cable. This connection initiates relay activation when the key turns, bridging the circuit between the battery and motor activator. Verify continuity here before proceeding; corrosion or a loose crimp often mimics failure symptoms elsewhere in the system.
The main power lug sits opposite the S-point, typically a copper bolt accepting a thick red cable from the battery’s positive post. Always disconnect the ground strap before testing: a multimeter should register near 12.6V here with the ignition off. If voltage drops below 10.5V under load, check the relay’s internal contacts for pitting or welded surfaces–these can arc silently, draining power without audible clicks.
Between these two lies the horn contact–smaller than the others and often overlooked. This post diverts a yellow or light green lead from the relay coil to the motor’s armature. Trace this path if the engine cranks weakly; a fractured wire here starves the windings of current, reducing torque by up to 40%. Use a wriggle test while monitoring voltage: fluctuations pinpoint intermittent breaks buried under harness tape.
Ground posts appear on the relay base’s underside, usually two: one threads into the engine block, the other secures the relay housing itself. Scrape paint or oxidation off mounting surfaces; even minor resistance here elevates circuit temperature, shortening contact life. A thermal camera or infrared thermometer quickly flags overheated grounds–normal operating temps should stay below 50°C during sustained activation.
Label each terminal before disconnecting any assembly–masking tape and permanent marker suffice. Cross-threading or misaligned bolts can strip the relay’s aluminum housing, leaving threads vulnerable to future loosening. Torque specifications vary: 8–10 lb-ft for power lugs, 5–7 lb-ft for ground studs. Over-tightening risks cracking the casing, while under-tightening invites vibration-induced loosening.
Step-by-Step Guide to Testing Electromagnetic Switch Circuits
Begin by disconnecting the battery’s negative terminal to prevent accidental shorts. Use a multimeter set to continuity mode to verify the integrity of the trigger cable between the ignition switch and the relay. Probe the wire at both ends–if resistance exceeds 0.5 ohms or no continuity exists, replace the cable.
Locate the relay’s mounting bracket near the engine bay fuse box. Remove the relay and inspect its terminals for corrosion or deformation. Apply 12V directly to the relay’s coil contacts (typically 85 and 86) using a jumper wire–listen for an audible click. If absent, the relay requires replacement.
Voltage Drop Verification
With the battery reconnected, crank the engine while measuring voltage at the relay’s load output (terminal 30). A drop below 9.6V indicates excessive resistance in the power path. Check the following connections in sequence:
| Component | Acceptable Voltage Drop (mV) |
|---|---|
| Battery to relay input | <100 |
| Relay output to switch input | <200 |
| Switch output to motor terminal | <300 |
Exceeding these thresholds necessitates cleaning or replacing corroded connectors. Concentrate on the ground-side circuit–the frame-to-motor path often accumulates resistance-inducing oxidation.
Test the activation switch by bridging its input and output terminals with a screwdriver. If the motor engages, the switch has failed. For precision, measure its resistance in the “on” position–any reading above 0.2 ohms confirms internal degradation.
Ground Circuit Diagnostics
Attach the multimeter’s positive lead to the motor’s ground terminal and the negative lead to the battery’s negative post. An open circuit or voltage above 0.1V indicates a faulty ground. Clean the mounting surface with a wire brush and reapply dielectric grease to prevent future oxidation.
Reassemble the circuit incrementally, verifying functionality at each stage. Crank the engine after reconnecting each component–if failure recurs, isolate the newly added part as the fault source. Replace any suspect cables with 10-gauge wire to ensure adequate current capacity.
For intermittent failures, monitor voltage during operation using a graphing multimeter. Voltage spikes or erratic drops pinpoint loose connections or worn contacts. Secure all fasteners with thread locker to maintain consistent electrical flow.
