Understanding How Internet Network Diagrams Work and Build Connections

Begin by mapping core elements: Tier 1 providers (ASNs like Level 3, NTT, Cogent), IXPs (DE-CIX, AMS-IX, LINX), and undersea cables (MAREA, AAE-1, Pacific Light). Use color-coded lines–blue for fiber optics, red for satellite links, green for edge nodes–to distinguish layers. Prioritize geographic accuracy: plot cable landing stations (Virginia Beach, Marseille, Changi) and major PoPs (Ashburn, Amsterdam, Tokyo) with precise coordinates.

Incorporate metadata directly into the layout: annotate links with latency (ms), bandwidth (Tbps), and ownership (e.g., “Google’s Dunant: 250 Tbps”). Avoid simplified icons–represent routers (Cisco CRS, Juniper PTX), switches (Arista 7800), and content delivery nodes (Akamai, Cloudflare) with scaled symbols reflecting real capacity. For redundancy paths, use dashed lines labeled with alternate routes (e.g., “NAP of the Americas bypass”).

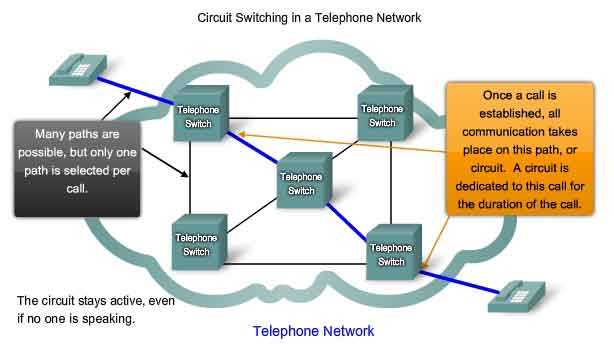

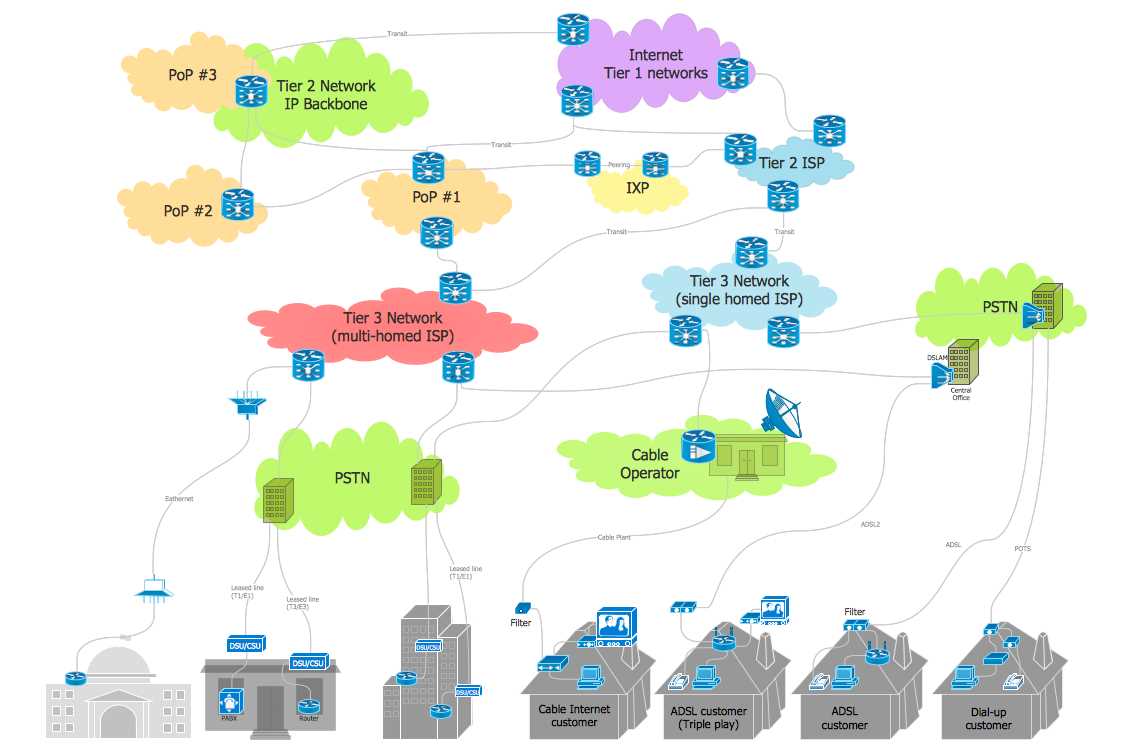

Structure the hierarchy: backbone (Tier 1) at the top, mid-tier ISPs (Comcast, BT) below, and last-mile connections (FTTH, 5G towers) at the base. Highlight chokepoints–Suez Canal, Strait of Malacca–with warning triangles and notes on geopolitical risks. Include failure scenarios: simulate cable cuts (e.g., “2022 North Sea outage”) with red overlays showing affected regions.

For clarity, group related elements: data centers (Equinix, Digital Realty) in clusters, with power grids (backup generators, UPS) as sub-layers. Label peering agreements (settlement-free vs. paid) and CDN cache locations (Netflix Open Connect). Use interactive tooltips (even in static form) to display AS path lengths, routing policies (BGP communities), and historical outages (e.g., “2021 Fastly CDN failure: 85% uptime drop”).

Validate with traceroute data: cross-reference your model against RIPE Atlas or Looking Glass servers to confirm latency between nodes. For dynamic updates, embed API hooks (if digital) to pull real-time traffic load (e.g., “AWS Global Accelerator: 12.4 Tbps peak”). Discard aesthetic templates–focus on functional precision.

Visualizing Network Topologies: Practical Blueprint Design

Begin with a hierarchical model: represent core service providers (Tier 1) as horizontal bars at the diagram’s top, regional ISPs (Tier 2) as connecting branches below, and local networks (Tier 3) as endpoints with labeled latency metrics in milliseconds. Use standardized symbols: circles for routers, squares for switches, triangles for firewalls, and dashed lines for wireless links. Assign color codes: red (#FF3333) for critical paths (backup routes), blue (#3366FF) for primary uplinks, green (#33CC33) for peering exchanges, and gray (#999999) for inactive segments.

Component	Symbol	Layer	Example Metrics
Core Router	●	IPv4/IPv6 Dual Stack	95% utilization, 20 μs jitter
Edge Switch	■	Layer 2/MPLS	1 Gbps throughput, 120 VLANs
DNS Cache	▲	Application	12 ms response, 99.9% hit rate
CDN Node	△	Content Delivery	5 TB/day, 30% cache fill

Label every connection with real-time thresholds: document QoS policies (e.g., VoIP traffic tagged DSCP 46), bandwidth caps (e.g., 10 Gbps uplink), and geographic coordinates (latitude/longitude of PoPs). For redundancy plans, overlay secondary paths with ZigZag lines and annotate failover triggers (e.g., “BGP AS 65000 down >30s”). Limit diagram scope to five subnets per A4 page to avoid clutter; split large infrastructures into modular blueprints linked via hyperlinked icons.

Protocols and Security Layers

Map protocol stacks vertically per device: align TCP/IP layers (physical→data→network→transport→application) alongside security controls (IPSec tunnels, TLS 1.3, MACsec). Group encryption policies by color: purple for end-to-end, orange for hop-by-hop, yellow for opportunistic. Include a legend box documenting cipher suites (e.g., “AES-256-GCM + ECDHE”) and key rotation intervals (e.g., “90 days”).

Key Components of a Network Connectivity Blueprint

Start by integrating a modem as the primary interface between local infrastructure and upstream providers. Select DOCSIS 3.1 for cable connections (up to 10 Gbps downstream) or GPON for fiber (2.5 Gbps symmetrical) based on available infrastructure. Ensure the modem supports QoS settings to prioritize traffic like VoIP or video conferencing–latency-sensitive applications should never exceed 150ms. For enterprise setups, deploy redundant modems with failover; consumer-grade devices often lack this critical feature.

Core Devices and Configuration

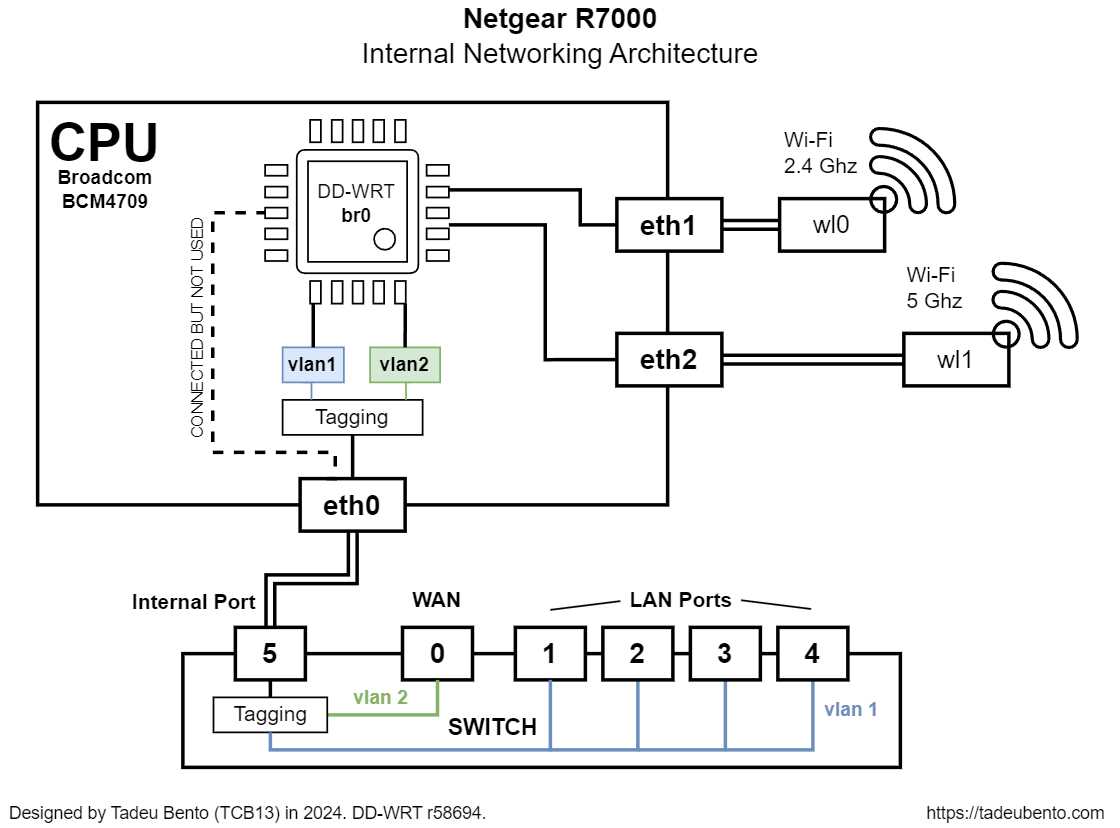

Deploy a router with dual-band or tri-band capabilities (e.g., Wi-Fi 6E) to segment traffic across 2.4 GHz, 5 GHz, and 6 GHz bands. Use VLANs to isolate guest networks (tagged ports) from internal traffic–assign separate subnets like 192.168.1.x for staff and 10.0.1.x for IoT devices. Prioritize routers with MU-MIMO (Multi-User Multiple Input Multiple Output) to handle concurrent high-bandwidth streams (e.g., 4×4 antennas for 1.2 Gbps per client). For wired connections, Cat6a cables (10 Gbps up to 100m) outperform Cat5e (1 Gbps) but require proper grounding to avoid interference.

A firewall should be the next layer–avoid consumer-grade firewalls like basic Netgear or TP-Link models. Opt for hardware appliances (e.g., FortiGate, Cisco ASA) or software solutions (pfSense, OPNsense) with deep packet inspection and geo-blocking. Configure rules to drop inbound traffic from known malicious ASNs (e.g., AS12389 for Rostelecom) and whitelist only essential ports (e.g., TCP 443 for HTTPS, UDP 1194 for VPNs). Regularly update firmware; vulnerabilities like CVE-2023-20010 in older firewalls remain unpatched for months in budget devices. For redundancy, pair the firewall with a load balancer splitting traffic across two ISPs (e.g., failover from primary 1 Gbps fiber to 500 Mbps LTE).

How to Draw a Physical Network Layout for Home vs. Office

Start with a floor plan or sketch of the space. For a home setup, trace walls, doors, and furniture placement on graph paper or digital tools like LibreOffice Draw, Visio, or Draw.io. Mark all outlets, including power and Ethernet ports–home networks often rely on existing electrical or coaxial wiring for extenders. Office spaces require noting structured cabling paths, patch panels, and server rack locations. Label each connection point with port numbers or switch identifiers to avoid confusion during installation.

Use symbols universally: a rectangle for switches (label ports if >8), a tower for servers, a laptop icon for workstations, and a router with antenna symbols for wireless access points (WAPs). Home layouts frequently merge router, switch, and WAP into a single device, while offices separate them. Indicate fiber optic runs with dashed lines (yellow for single-mode, orange for multimode) and copper cables with solid lines (blue for Cat6, green for Cat5e). Add distance markers between devices–keep patch cables under 10m, horizontal runs under 90m, and backbone links under 500m for Gigabit Ethernet.

Document power sources. Home diagrams should highlight surge-protected outlets near network hardware. Offices must include UPS battery backup capacities (e.g., “1500VA for rack A”) and PDU configurations. Label PoE requirements (e.g., “WAP1: 802.3at, 25W”) to ensure switches support power demands. For PoE-powered devices like IP cameras or VoIP phones, specify voltage drop calculations if cable length exceeds 70m–use thicker gauge wire (e.g., 23 AWG) or midspan injectors.

Home networks often integrate ISP-provided gateways. Place these near entry points where coaxial or fiber terminates. Offices require demarcation points (DMARC) labeled with circuit IDs and ISP contact info. Draw demilitarized zone (DMZ) setups if hosting internal services (e.g., mail servers) behind dual firewalls–color-code trust zones (red for untrusted, yellow for DMZ, green for LAN). Note VLAN IDs on trunk links (e.g., “Switch1: Trunk Port 24, VLANs 10,20,30”).

Include redundancy paths for offices. Sketch failover links between core switches using stack cables or LACP trunks. Home diagrams rarely need this, but document mesh Wi-Fi backhaul routes if using multiple access points. For both environments, add legend boxes defining symbols and cable types, including color-coding standards (e.g., “TIA-568: Blue=Workstation, White/Blue=VoIP”). List all devices with MAC addresses and management IPs in an appendix–home setups may have 10-15 nodes, offices often exceed 100.

Validate the layout by tracing each path physically. In offices, confirm rack elevations match port assignments on patch panels. Home setups should verify cable lengths don’t exceed standards (e.g., HDMI over Cat6 has a 50m limit). Update the diagram post-installation with “as-built” changes–home users often relocate devices, while offices adjust for new hires or equipment. Save editable files in proprietary formats (e.g., .vsdx) and export PDFs with layers for non-technical stakeholders.

Step-by-Step Guide to Mapping ISP-Level Network Topology

Begin by identifying the core autonomous systems (AS) your target provider operates. Query public routing databases like RIPE Stat or Hurricane Electric’s BGP Toolkit for AS numbers tied to the ISP. Cross-reference these with their advertised IPv4/IPv6 prefixes–look for inconsistencies between registry data and actual route propagation, which often reveal misconfigurations or outdated records.

Use traceroute with ICMP probes to eavesdrop on the path packets take from your vantage point to critical nodes (e.g., DNS resolvers, CDN endpoints). Leverage multipath-aware tools like Scamper or Paris Traceroute to detect load-balanced links that split traffic across multiple physical routes. Record round-trip times (RTT) and hop latencies–spikes beyond 20ms between adjacent hops typically indicate congestion or suboptimal peering agreements.

• For edge routers, target BGP neighbors visible in show ip bgp summary (Cisco) or show bgp neighbors (Juniper). Exploit SNMP if community strings are exposed (e.g., public or private), polling .1.3.6.1.2.1.31.1.1.1.6 (ifHCInOctets) and .1.3.6.1.2.1.31.1.1.1.10 (ifHCOutOctets) to quantify ingress/egress traffic per interface.
• Decode MPLS labels in transit networks by capturing LDP or RSVP traffic with Wireshark. Filter for packets containing TCP port 646 (LDP) or IP protocol 46 (RSVP)–label mappings (e.g., Label=299776) reveal how traffic is tunneled between provider edge (PE) routers.
• Infer OSPF/IS-IS areas by analyzing TTL values in ping responses. A consistent TTL of 255 suggests direct adjacency, while lower values (e.g., 254 or 253) hint at inter-area hops.

Map submarine cables via submarinecablemap.com and overlay these paths with the ISP’s peering locations (IXPs). Cross-check with PeeringDB for port capacities (e.g., 10G/100G) and colocation partners. Focus on backbone links–concentrate probes on /24 or /32 prefixes tied to transit ASes, not residential prefixes (/29 or smaller), to avoid rate-limiting or filtering.

Deploy lightweight sensors at strategic vantage points (e.g., VPS in different regions) to measure path stability. Use RIPE Atlas probes if available–their 10k+ global nodes can detect routing anomalies (e.g., prefix hijacks) by comparing BGP announcements against historical baselines. For dark fiber or leased wavelength networks, use fcping (Fibre Channel) or otdr (Optical Time-Domain Reflectometer) tools to measure signal attenuation.

Reverse-engineer traffic engineering (TE) policies by analyzing NetFlow/sFlow exports if accessible. Focus on ToS/DSCP markings:

1. EF (Expedited Forwarding, DSCP 46): VoIP or real-time traffic–expect low jitter (
2. AF4x (Assured Forwarding, DSCP 34-38): Video streaming–medium priority, may drop during congestion.
3. CS1 (Class Selector 1, DSCP 8): Bulk transfers–aggressively shaped to defer to higher priorities.

Correlate these with observed QoS classes in show policy-map interface outputs.

Validate mappings by stress-testing links. Use iperf3 to saturate a link and monitor BGP updates–peers may adjust MED (Multi-Exit Discriminator) attributes under load, revealing path preference changes. For DDoS mitigation layers, query show ip bgp paths during attacks–Null0 routes or /32 blackholing (e.g., 192.0.2.1/32) confirm RTBH (Remotely Triggered Black Hole) deployments. Document discrepancies between static configurations and dynamic rerouting events to refine the topology graph.
