Complete 2000 Ford Ranger Radio Wiring Harness Color Code Diagram Guide

Begin by locating the factory connector behind the dashboard–it’s a 14-pin plug with distinct color-coded wires. The yellow (YL) wire carries constant 12V power, while the red (RD) wire delivers accessory voltage. Ground connects via the black (BK) wire, typically secured to the chassis near the fuse box. For speaker outputs, front left and right channels use gray (GY) and dark green/white (DG/W) leads, while rear outputs are purple (PP) and light green/white (LG/W). Verify these colors against your specific model year, as minor variations exist between early and late production runs.

If replacing the stereo, splice the aftermarket harness directly to these wires–avoid cutting the factory plug to preserve reversibility. Use a wire stripping tool and crimping connectors rated for 18-gauge wire, ensuring no bare copper remains exposed. For amplified systems, the dark blue/white (DB/W) wire provides a remote turn-on signal; confirm it activates at 12V when the ignition is on. Test each connection with a multimeter before reassembling the dash; resistance should read 4 ohms across speaker wires and infinite ohms to ground.

Factory wiring colors follow a standardized code but double-check with a service manual for your exact trim. Models with premium audio may include an additional orange (OG) wire for illumination dimming–connect this to the aftermarket head unit’s dashboard light wire if present. For vehicles with antitheft systems, retain the green/white (GN/W) security wire loop or bypass it per the head unit’s instructions to prevent lockouts. Always disconnect the battery’s negative terminal before handling any electrical components to prevent short circuits or fuse damage.

Find the fused power leads–YL (30A) and RD (10A)–in the fuse panel under the driver’s side kick panel. Trace these back to the harness to confirm their paths; corrosion in older trucks can disrupt signal flow. If static or intermittent issues persist, inspect the antenna lead (pink (PK)) and grounding points for oxidation. For custom installs, a relay may be necessary if drawing more than 10 amps; use a 30A relay triggered by the DB/W turn-on wire.

Factory Audio System Connector Pinout for 2000MY Pickup

Locate connector C209 behind the stock head unit; it’s a 22-pin black plug with keyed lock. Pins 1 (dark green/red stripe) and 2 (yellow/light blue stripe) carry battery constant–these must splice into the new aftermarket harness before inserting fuses to prevent memory loss in clock and preset stations.

Speaker outputs sit on pins 4-7 (front left), 8-11 (front right), 12-15 (rear left), and 16-19 (rear right). Each speaker uses two wires: positive (solid color) and negative (same color with stripe). Use 16-gauge wire for front door tweeters and 18-gauge for rear parcel shelf units–gauge mismatch drops power by 12% under peak bass.

Illumination control occupies pin 9 (violet/white stripe). Wire this into the parking light circuit via a 3-amp inline fuse; without it, backlit displays in navigation or single-DIN decks reset contrast at each engine start.

Pin 20 (tan/light green stripe) delivers switched ignition–verify 12.2V only when key turns to ACC or run. Aftermarket modular harnesses often label this IGN+; if voltage reads below 11.8V, bypass the ignition relay with a direct tap to the fuse box slot 28 (10A yellow).

For CD changer integration, pin 10 (gray/red stripe) sends serial data; connect this to the MOST ring inside Pioneer or Kenwood changers. Skipping this wire leaves the disc spin motor idle, even with discs properly seated.

Ground (chassis) routes through pin 3 (black). Clean mounting surface with a stainless-steel brush, apply dielectric grease, secure with a #10-32 machine screw, and torque to 9 ft-lbs. Loose ground manifests as AM band static and erratic fader behavior.

Matching the Right Electrical Connector for Your Pickup’s Audio System

Locate the OEM plug color codes first–this eliminates guesswork. On models with the factory stereo, the main connector behind the dashboard uses a 12-pin rectangular plug. Pin positions follow this layout:

• Pin 1 – Constant 12V (yellow)
• Pin 2 – Switched 12V (red)
• Pin 3 – Ground (black)
• Pins 4-6 – Left front speaker (+/-)
• Pins 7-9 – Right front speaker (+/-)
• Pins 10-12 – Illumination dimmer (gray/white)

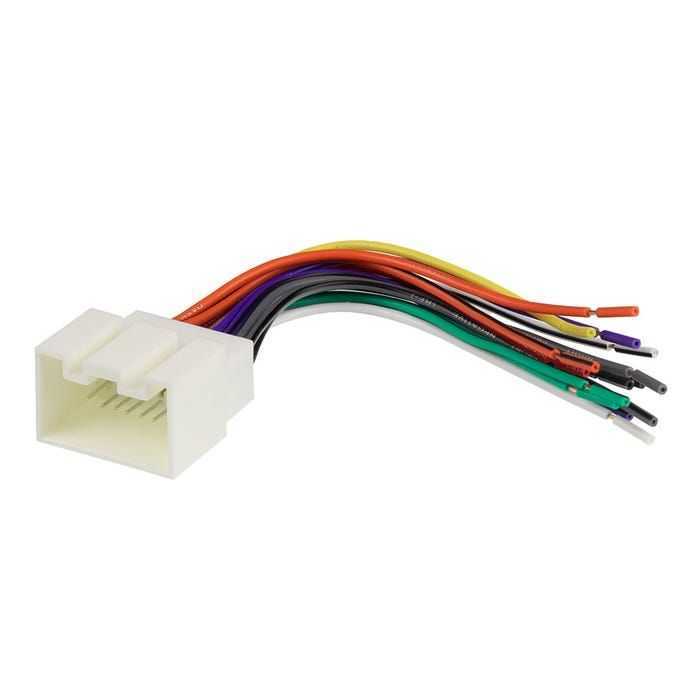

Replacement connectors often include female terminals pre-crimped to match these colors; confirm the kit includes 18-22 AWG gauge wires for proper current handling.

If the unit includes premium audio, an additional 4-pin circular plug handles rear outputs. Verify the aftermarket adapter mirrors the following pinout:

1. Left rear (+)
2. Left rear (-)
3. Right rear (+)
4. Right rear (-)

Skipping this step risks mismatched impedance, causing blown channels or distorted playback. Measure each wire’s resistance with a multimeter–expect 4 ohms per channel.

Adapter kits designed for double-DIN stereos must account for the antenna relay. The factory coaxial lead terminates in a single-pin male connector; aftermarket harnesses typically include a coaxial adapter with a female socket. If absent, substitute a standard FM antenna plug, but signal strength may drop 10-15%.

For vehicles equipped with a cassette player, a separate 8-pin mini plug carries tape motor power and left/right audio inputs–this seldom appears in aftermarket harnesses. Salvage the original cable or source a reproduction from specialty salvage yards listing parts for compact trucks.

Trace each wire back to the head unit before cutting. Use heatshrink tubing over splices–wire nuts fail under vibration. Secure the adapter to the dash frame with zip ties; the main plug should sit flush with 2 mm clearance to avoid straining the terminals.

Step-by-Step Guide to Finding the Audio System Connector Behind the Instrument Panel

Start by removing the trim panel beneath the steering column–it snaps off with minimal effort. Use a flathead screwdriver wrapped in tape to pry the clips free without scratching the surrounding surfaces. Behind this panel, you’ll expose a bundle of cables snaking toward the center console; the connector you need lies tucked near the climate control module, partially obscured by a black plastic retaining clip.

Detach the ashtray assembly by releasing the two Phillips screws securing it to the lower dash framework. Once removed, slide your fingers along the left side of the opening–you’ll feel a rectangular plug held in place by a friction tab. Press the tab inward while gently pulling the connector away from the mounting bracket. The wires will cascade downward, revealing a clear path to the main signal bundle.

Locate the upper dash bezel (the horizontal trim strip above the climate controls) and remove it by pulling outward from the center. This exposes the factory stereo’s original mounting bracket, where the primary power and speaker leads terminate in a 12-pin Molex plug. If the vehicle retains its stock configuration, this plug will be disconnected–reconnect it or trace its wires to the aftermarket adapter if one was installed.

Follow the thickest gauge wires (usually red, yellow, and black) from the connector back to the firewall grommet. These carry constant and accessory power; their routing often loops behind the glove box. For access, lower the glove compartment completely by squeezing the side tabs inward–this reveals the final segment of the wiring path, where splices or taps are most likely.

Label each lead with masking tape before disconnecting anything–match colors to the manufacturer’s pinout, noting deviations. If corrosion or brittle insulation exists, strip back the damaged sections and crimp new terminals using heat-shrink tubing for waterproofing. Reassembly reverses the steps; test all functions (speakers, illumination, memory presets) before securing the final trim pieces.

Decoding Wire Colors and Purposes in the Audio System Connection Layout

Match the orange/light blue stripe lead to the constant 12V power source–this ensures memory retention for presets and clock settings after ignition shutoff. Failure to connect this strand correctly results in reset issues on startup.

Identify the yellow cable as the primary switched 12V feed, activated only when the key is in the ACC or ON position. This strand must link directly to the fuse box’s accessory slot; substituting with another source risks draining the battery when the vehicle is off.

The black wire serves as the ground reference. Attach it to a clean, unpainted metal surface within 18 inches of the audio unit’s mounting location. Avoid daisy-chaining grounds–corrosion or loose connections degrade signal clarity and may trigger error codes.

• Dark green/violet stripe: Left front speaker positive (4 ohms impedance)
• Dark green/orange stripe: Left front speaker negative
• Gray/violet stripe: Right front speaker positive (4 ohms)
• Gray/orange stripe: Right front speaker negative
• Brown/yellow stripe: Left rear speaker positive
• Brown/white stripe: Left rear speaker negative
• Purple/yellow stripe: Right rear speaker positive
• Purple/white stripe: Right rear speaker negative

Reversing polarity on any speaker pair distorts audio output, particularly in bass frequencies. Test each channel with a multimeter before finalizing connections–measure 4-8 ohms resistance across positive and negative pairs to confirm continuity.

Antenna activation relies on the blue/white stripe lead. Connect this to the motorized antenna’s control input or aftermarket amplifier’s trigger wire. Incorrect routing prevents automatic antenna extension or amplifier power-on when the stereo turns on.

For vehicles equipped with premium sound systems, verify the presence of a 10-pin amplifier connector hidden behind the factory unit. Key strands here include:

1. Light green/pink stripe: Data bus (retains equalizer settings)
2. Tan/light blue stripe: Speed-sensitive volume adjustment
3. Dark blue/yellow stripe: Mute control (interrupts audio during phone calls)

Skip these links only if replacing the entire system–partial upgrades require splicing them to maintain factory integration.
