Detailed Schematic Overview of a Nuclear Power Plant Reactor Design
Begin by isolating the primary coolant loop in your design–this is where heat transfer efficiency defines operational stability. Use pressurized water (PWR) for thermal neutron moderation if your goal is proven reliability, but switch to liquid metal fast breeder (LMFBR) when maximizing fuel utilization is critical. The choice directly impacts fuel burn-up rates: PWRs achieve ~50 GWd/tU, while LMFBRs push beyond 100 GWd/tU with uranium-plutonium cycles.
Position the reactor vessel to withstand 15–17 MPa internal pressures in PWRs or 0.1–0.5 MPa in boiling water variants (BWRs). Thickness calculations must account for neutron embrittlement; AISI 304L stainless steel loses ductility at ~1020 n/cm² flux. Reinforce with zirconium cladding for fuel rods to minimize hydrogen absorption and prevent pellet-cladding interaction (PCI) failures–common at >=1200°C.
Integrate control rod clusters with boron carbide (B4C) or hafnium for rapid reactivity adjustments. Cadmium-silver-indium (Ag-In-Cd) alloys offer superior thermal neutron absorption but require active cooling above 500°C. For passive safety, incorporate hydride-based rods in small modular units (SMRs) to enable self-regulating power levels during transients.
Separate secondary steam circuits from the primary loop with a heat exchanger capable of 300–350°C temperature differentials. Titanium-aluminide (TiAl) alloys resist corrosion from chlorides in seawater-cooled systems, but nickel-based Inconel 690 is mandatory for freshwater applications due to stress corrosion cracking (SCC) risks. Scale condenser tubes to handle 5–7 m/s flow velocities to prevent fouling while avoiding erosion.
Finalize the layout with containment structures engineered for 0.3–0.5 MPa overpressure events. Prestressed concrete with liner plates offers 50+ year durability, but steel-concrete composites reduce construction time by 30% for Gen IV deployments. Include redundant core catchers using sacrificial oxidic melts (e.g., Fe2O3 + Al2O3) to stabilize corium at 2500°C during severe accidents.

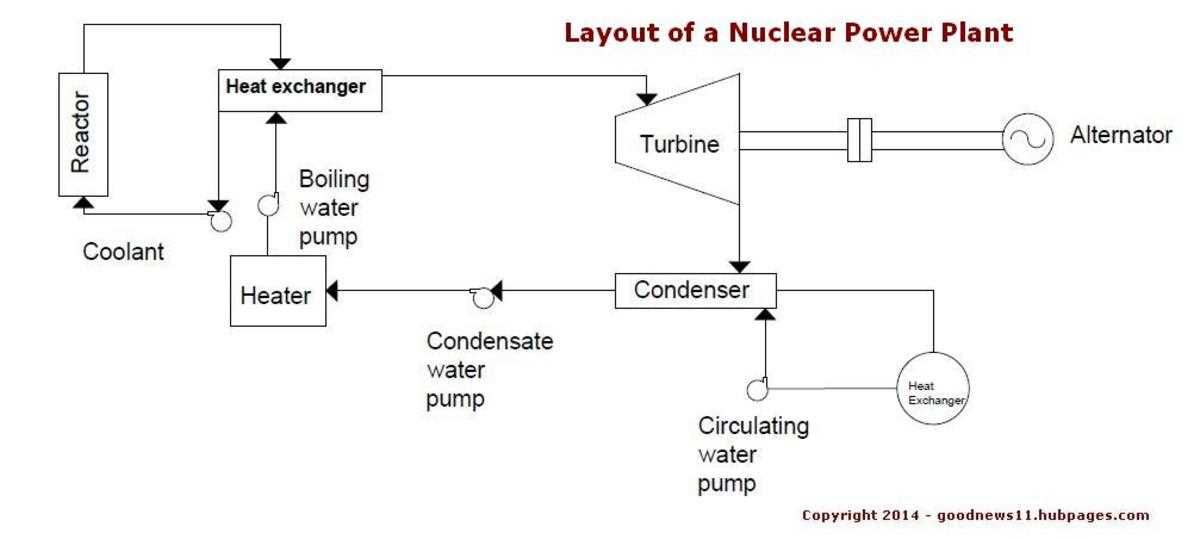

Visual Blueprint of a Fission-Based Energy System
Begin by isolating the core containment vessel, typically a pressurized water chamber or boiling water unit, as the central reference point. Mark entry and exit points for coolant flow–primary loops use borated water at 15.5 MPa in PWR designs, while BWR systems operate at 7 MPa. Label thermal exchange zones precisely: steam generators in PWRs must handle 320°C feedwater entering at 220°C to maintain ΔT >100°C for turbine efficiency.
Delineate the three-barrier radiation shielding sequence: fuel cladding (zirconium alloy, 0.6–0.8 mm thick), reactor pressure vessel (low-alloy carbon steel, 20–25 cm walls), and concrete bioshield (minimum 1.8 m reinforced thickness). Indicate neutron reflectors surrounding the active fuel zone–graphite in gas-cooled units, beryllium in naval prototypes–to optimize fission yield without increasing enrichment levels beyond 4.5–5% U-235.
Critical Subsystems Mapping
Draw the control rod cluster mechanism: silver-indium-cadmium blades (80-15-5% composition) or boron carbide pellets deploy at 1.2 m/s for PWRs, 0.9 m/s for BWRs. Annotate reactivity coefficients: moderator temperature (−1.5 to −5 pcm/°C), void (+10 to +40 pcm/% void), and Doppler (−2.5 pcm/°C at 600°C). Specify emergency core cooling injectors: high-pressure (11 MPa) and low-pressure (1 MPa) safety systems must intersect coolant loops within 220 ms of primary pump failure.
Chart the electrical conversion path: turbine inlet pressure (6 MPa saturated steam), condenser backpressure (0.005 MPa), and generator terminal voltage (20–24 kV). Include auxiliary power buses feeding reactor protection relays (24 VDC) and motor-driven pumps (480 VAC), ensuring ≤2% voltage drop across 200 m cable runs. Locate the spent fuel pool–minimum 12 m water column above assemblies to maintain
Safety Interface Detailing
Trace containment spray headers: 4% sodium hydroxide solution disperses through 5 mm nozzles at 0.2 kg/s·m² to scrub iodine-131 within 20 minutes of LOCA. Identify hydrogen recombiners: passive autocatalytic units (platinum-palladium coated) activate at 1% H₂ concentration, sustaining
Verify auxiliary feedwater turbine pumps: steam-driven units with overspeed trips at 125% nominal RPM, backed by diesel generators achieving ≥95% load factor within 10 s of grid decoupling. Color-code actuated valves: orange for fail-safe pneumatic (ASME Class 2), red for manual isolation (Class 1), and purple for electronically latched (SIL-3 rated) safety interlocks. Cross-reference all markings with IEEE 603-2009 digital logic diagrams to confirm real-time monitoring compliance.
Key Components of a Fission Energy Core Layout
The fuel assembly forms the operational heart of the core, arranged in precise geometric patterns–typically hexagonal or square lattices–to optimize neutron economy and thermal transfer. Uranium-oxide pellets, sintered at 1,700°C to achieve 95% theoretical density, are stacked within zirconium-alloy cladding tubes, each 10 mm in diameter and 4–5 meters long. A single pressurized water unit may contain 150–200 such assemblies, with each assembly housing 200–300 fuel rods. The pitch between rods is critical: too narrow increases neutron absorption in cladding, too wide reduces power density; 1.25–1.35 cm spacing is industry-standard for most light-water designs.
| Component | Material | Function | Typical Failure Threshold |
|---|---|---|---|
| Fuel Cladding | Zircaloy-4 (Zr-1.5Sn-0.2Fe-0.1Cr) | Prevents fission product release, transfers heat | 500°C oxidation limit (steam exposure) |
| Control Rods | Ag-In-Cd (80-15-5) or B4C | Neutron absorption for reactivity control | 2,200°C melting point (Ag-In-Cd) |
| Moderator | Light water (H₂O) or graphite | Slow neutrons to thermal energies | 374°C critical point (water) |
| Coolant Channel | Pressurized H₂O (15–16 MPa) | Transports heat to secondary circuit | 3,400 kW/m thermal limit (DNB) |
Neutron reflectors–often beryllium oxide or stainless steel–surround the active core to minimize leakage and improve efficiency, typically reducing reflector thickness by 20% saves 3–5% in fissile material. The core barrel, a 20–30 cm thick steel cylinder, surrounds the entire assembly, containing high-pressure coolant (up to 16 MPa in PWRs) while shielding structural supports from radiation-induced embrittlement. Temperatures at the fuel centerline reach 1,200–1,500°C during operation, with a radial gradient of 400°C/cm across the pellet radius; exceeding this risks centerline melt and cladding creep rupture at 700°C.
Step-by-Step Flow of Heat Transfer Fluid in Pressurized Water Units
Begin by isolating the primary circuit from the secondary loop at the steam generator’s tube bundle interface. The heat transfer fluid enters the vessel’s core at 290–330°C under 15.5 MPa pressure, ensuring subcooled liquid phase throughout the inlet plenum. Maintain velocity between 4–6 m/s to prevent nucleate boiling on fuel rod surfaces while maximizing heat extraction efficiency; deviations outside this range risk crud deposition or thermal stress fractures.
Once heated to 340–360°C in the active core zone, the fluid ascends through the central assembly channels, where radial temperature gradients should not exceed 20°C/cm. Immediately transition to the upper plenum via the flow skirt–a perforated plate designed to homogenize velocity profiles and eliminate stagnation zones that could lead to localized overheating.
Direct the heated fluid into the steam generator’s U-tubes, where it transfers ~3 GW thermal per gigawatt electric unit to the secondary loop without phase change. The primary coolant exits the steam generator at 285–295°C, routed back to reactor vessel inlet nozzles via two redundant hot leg pipes measuring 750–850 mm diameter. Bypass 0.5–1% of flow through the chemical and volume control system to filter boron and corrosion products without disrupting core stability.
Reintroduce the fluid into the vessel through the cold legs, ensuring even distribution via core baffle plates that prevent channeling. The pumped head must overcome ~0.5 MPa pressure drop across the loop while compensating for elevation changes in large designs (e.g., AP1000’s 36 m elevation delta). Monitor outlet temperature at the reactor coolant pump outlet: any rise above 300°C indicates decreased thermal margin and requires immediate load reduction.
Integrate pressurizer spray valves (operating at 5 L/s) to maintain system pressure within ±0.2 MPa of 15.5 MPa setpoint. During transients, inject borated water at 50 ppm boron through the charging system to offset reactivity swings, but limit injection rate to 10 kg/s to avoid thermal stratification in the vessel’s lower head. Final discharge into the inlet plenum should achieve ≤3°C temperature spread across all nozzles to preserve fuel integrity.
How Control Rods Adjust Reactivity in Boiling Water Units
Insert control rods from the bottom in BWR vessels to manage thermal output. Unlike pressurized systems, boiling water designs require vertical insertion due to steam separation needs above the core. Rods enter through drive mechanisms beneath the vessel, minimizing interference with coolant flow. This orientation also prevents steam voids from disrupting neutron absorption efficiency.
Use boron carbide or hafnium for control rod material. Boron carbide offers cost-effective neutron capture, while hafnium provides superior longevity in high-radiation environments. Both materials maintain structural integrity at temperatures exceeding 300°C, though hafnium’s resistance to corrosion extends service life by 15-20%. Select based on economic constraints and operational lifespan goals.
Adjust rod position in 0.5-inch increments during normal operation. Precise movement prevents thermal shocks to fuel assemblies and avoids sudden flux oscillations. Automated control systems typically limit adjustment speed to 3 inches per minute, ensuring gradual reactivity changes. Manual overrides should be restricted to emergency protocols to minimize human error.
Monitor axial flux profiles during rod adjustments. Boiling water units exhibit pronounced top-to-bottom flux gradients, with higher neutron density near the core’s upper region. Inserting rods from below flattens this profile, but excessive insertion risks overcooling the lower core sections. Use in-core detectors to track flux distribution in real-time, particularly during low-load conditions.
Maintain minimum rod insertion during full-power operation. Over-insertion increases void coefficients, destabilizing the thermal-hydraulic balance. Operators should keep at least 25% of rods withdrawn at 100% load, reserving deeper insertion for load-following or shutdown scenarios. This practice optimizes cycle length while preserving safety margins.
Implement sequential rod movement to mitigate power peaking. Simultaneous adjustment of adjacent rods can create localized hotspots, increasing fuel cladding stress. Configure rod drive logic to alternate movements, spacing adjustments by at least 5 seconds. This approach distributes thermal transients evenly across the core, reducing fatigue on structural components.
Account for burnup-dependent rod worth. Fresh fuel near the core periphery exhibits higher reactivity, requiring less rod insertion than aged assemblies. Reactivity coefficients shift by up to 30% over a fuel cycle, necessitating periodic recalibration of control algorithms. Use predictive modeling to adjust rod positions proactively, particularly during the first 50 effective full-power days (EFPD) of operation.
Emergency rod insertion must complete within 4 seconds. Scram systems in boiling water designs rely on hydraulic or pneumatic drives to achieve rapid insertion, overpowering normal drive mechanisms. Test scram functionality quarterly, verifying insertion time and rod alignment. Replace any rods showing signs of binding or deformation immediately, as delayed response risks exceeding thermal limits during transients.
- Replace control rods every 8-10 years, regardless of material, due to embrittlement from neutron fluence.
- Avoid partial insertion depths below 10% to prevent resonant flux oscillations near the core bottom.
- Use gray rods (low-absorption) for fine-tuning, reserving black rods (high-absorption) for coarse adjustments.
- Coordinate rod adjustments with recirculation flow changes to maintain stable steam production.
