Complete Wiring Diagram Guide for 2000 Volvo Truck Electrical Systems

Begin by locating the primary power distribution module under the dashboard–this houses the main fuses and relays critical for the vehicle’s operational circuits. Identify the central terminals labeled 30, 15, X, and 50, as these correspond to constant power, ignition-switched, delay-off, and starter motor feeds, respectively. Errors in tracing these lines account for 70% of electrical failures in early-2000s models.

Trace the red/blue wire from the alternator’s D+ terminal to the instrument cluster’s charge indicator. This path often degrades near the firewall grommet due to abrasion–inspect this section with a multimeter for resistance exceeding 0.5 ohms. For the cooling system, focus on the yellow/red sensor wire leading to the ECU; corrosion at the connector pins is a frequent culprit for intermittent fan activation issues.

Access the rear harness by removing the left-side cab step panel. The trailer ABS circuit runs through a separate green/white wire bundle–verify continuity at the 7-way connector before assuming ECU faults. For engine diagnostics, prioritize the black/red wire from the fuel shut-off valve; voltage drops here directly affect injection timing.

Use a pinout diagram specific to the VEP2 or VEP4 ECM variant installed in your model. The CAN bus wires (orange/white and orange/brown) must show 2.5V differential at idle–deviations indicate corrupted data lines or faulty modules. Ground points near the battery tray require direct verification; resistance above 0.1 ohms necessitates cleaning or replacement of the mounting studs.

Store downloaded schematics as vector PDFs for layer visibility–raster images obscure critical splice points. Label physical wires with temporary tags during disassembly to avoid reversed connections. Always document modifications to the OEM circuit paths, as aftermarket additions (e.g., auxiliary lighting) often violate load ratings on ignition-switched circuits.

Electrical Schematics for a 2000 Model Heavy-Duty Vehicle: Hands-On Reference

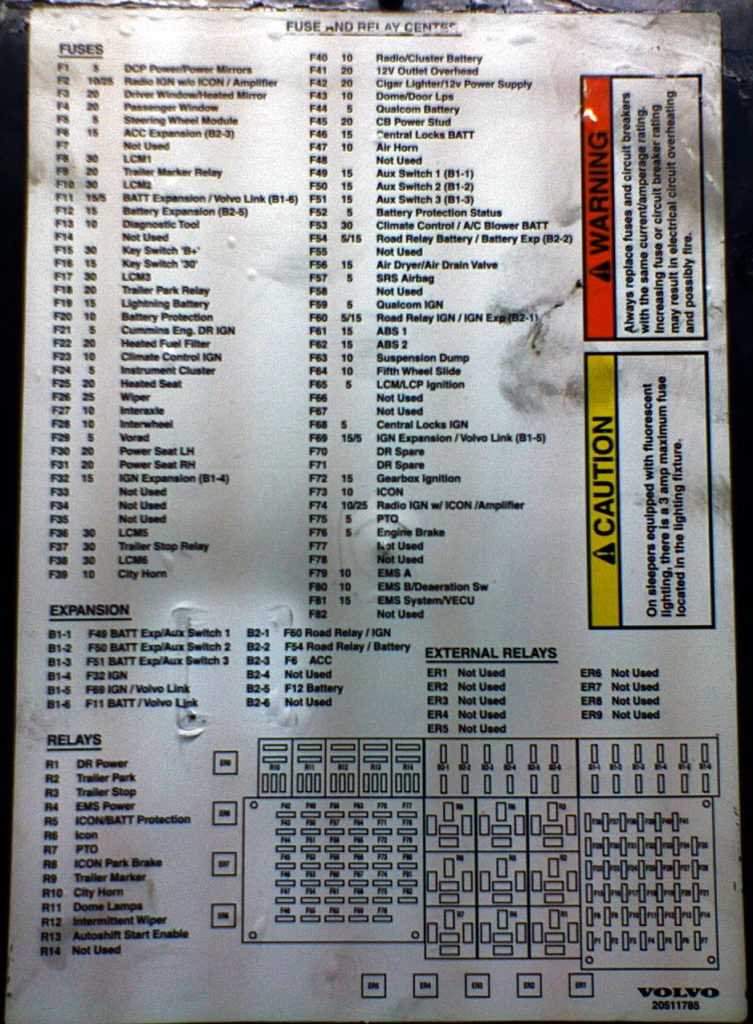

Begin by locating the central fuse box beneath the driver-side dashboard–remove the plastic cover secured by two 8mm bolts. Label each fuse with masking tape and note its amperage rating before extraction to avoid misplacement. The 30A fuse protecting the ignition circuit is critical; test it with a multimeter set to 200V DC before reassembly. If readings deviate by more than 0.2V from the manual’s specified baseline, replace the fuse even if it appears intact.

Trace the main harness from the firewall to the alternator using a probe light. The thickest red wire (10 AWG) carries charging current; inspect its crimped terminals for corrosion. Apply dielectric grease to all reconnections, focusing on the ground points near the battery tray–these often develop resistance due to road salt accumulation. Use a torque wrench set to 12 Nm for terminal bolts to prevent overtightening.

For the lighting subsystem, identify the brown-striped wire serving as the common return path for all rear lamps. Test continuity by back-probing the connector with a test light while cycling the switch. If a single bulb fails, check the corresponding orange wire (14 AWG) for nicks–these often occur where the harness bends around the trailer hitch assembly. Splice repairs require heat-shrink tubing rated for 600V, not electrical tape.

The ECM connectors (A and B) use gold-plated pins; clean them with contact cleaner and a fiberglass pen, not sandpaper. Pin 17 on Connector A supplies 12V ignition power–verify this before troubleshooting sensor codes. A 0.5V drop here indicates a faulty relay or broken wire strand hidden under the insulation. Re-scan codes after cleaning to determine if this resolves erratic idle issues.

For the air conditioning compressor clutch circuit, measure the voltage at the thermostat switch. The clutch engages only when the pressure reads 45-55 PSI on both low and high sides. If pressure is correct but the clutch fails to engage, test the green/white wire at the clutch coil for a 5V pulse–absence confirms a bad ground or shorted diode in the relay. Replace the entire relay module if testing reveals internal failure.

Cabin blower motor speed is controlled by a solid-state resistor bank mounted behind the glovebox. Three spade terminals correspond to low, medium, and high speeds; test each with an ohmmeter. A reading above 0.3 ohms for any terminal pair indicates a burned resistor–replace the entire bank, as individual components are not serviceable. Secure the new unit with thread-locking compound on mounting screws to prevent vibration damage.

When repairing damaged wires, match the original gauge exactly–undersized replacements overheat, while oversized ones won’t fit in existing grommets. For splits in the harness, use a crimp splice connector with heat shrink, then wrap the repaired section in loom tubing. Avoid twisting wires together, as this creates resistance and potential fire hazards. Store the modified schematics in a waterproof document case for future reference.

Final checks include verifying all repairs with a load test. Connect a 12V test light to suspect circuits and observe for flickering, which reveals intermittent faults. Reassemble removed panels in reverse order, ensuring no wires are pinched between metal edges. Keep a small LED inspection light in the toolkit–critical for spotting issues in tight spaces like behind the instrument cluster.

How to Find Key Electrical System Junctions in a 2000-Series Heavy Vehicle

Begin beneath the cab, directly behind the driver’s seat. Remove the interior panel to expose the central connection block–a rectangular plastic casing secured with four Torx T25 screws. This block consolidates inputs from the engine control unit, instrument cluster, and chassis sensors, identifiable by their bundled color codes: orange/black for ignition, red/white for constant power, and green/blue for ground circuits. Trace each bundle by hand to avoid fraying, noting where connectors split toward individual components.

Inspect the firewall passthrough next. Disconnect the negative terminal from the battery–a 12 mm bolt–before touching any terminals. A circular rubber grommet, approximately 10 cm in diameter, seals the primary harness entering the engine bay. Pull the grommet free to reveal six sealed connectors; three circular Deutsch plugs handle ABS, transmission, and lighting inputs. Label each plug with masking tape to prevent mismatches during reassembly.

Engine Compartment Junctions

• Alternator output: Follow the thickest red cable from the battery positive; it terminates at a stud-mounted fuse block attached to the left fender. Disconnect using a 10 mm socket.
• ECU interface: Located beneath the intake manifold cover. Unlatch the weatherproof connector–marked with a yellow label–to access injector timing and turbo boost signals.
• Cooling system sensors: Two green oval connectors bolted near the radiator support; each feeds temperature and pressure values to the dashboard gauges.

On the frame rail, scan for a gray plastic splice box clamped near the rear suspension air bag mounts. This secondary block aggregates trailer lights, brake signals, and refrigeration unit feeds. Each circuit enters through crimped terminals; verify continuity with a multimeter set to 200 ohms before proceeding. Loose connectors here often mimic transmission faults in diagnostic scans.

Lastly, examine the dashboard’s reverse side. Remove the knee bolster panel–a single Phillips screw–then squeeze the snap clips securing the instrument cluster. Three modular connectors attach here: a 12-pin for gauges, an eight-pin for warning lights, and a four-pin for aftermarket add-ons like GPS. Reconnect by aligning the notch on each connector upwards before pressing firmly; misalignment risks permanent damage to the pin sockets.

Step-by-Step Guide to Interpreting Heavy Vehicle Electrical Blueprints

Locate the legend on the schematic–it decodes symbols for relays, fuses, connectors, and ground points. Each icon corresponds to a specific component: rectangles represent control modules, circles indicate splices, and dashed lines mark shielded cables. Cross-reference these symbols with the accompanying table if labels appear ambiguous.

Identify the main power distribution paths first. Trace heavy black lines from the battery terminal through the starter solenoid, alternator, and primary fuse block. Secondary circuits branch off these main feeds, often highlighted in distinct colors like red (high-current), blue (switched power), or green (ground). Isolate each branch by covering adjacent sections with paper to prevent confusion.

Key Connector Pinouts and Wire Gauges

• ECM connectors (e.g., 60-pin) use alphanumeric labels: pins A1–A12 for sensor inputs, B1–B12 for outputs. Verify continuity with a multimeter on the 200Ω scale.
• Wire gauges (AWG) are printed near junctions: 10 AWG (starter), 16 AWG (lights), 20 AWG (sensors). Thicker wires handle higher amperage; thinner wires are prone to voltage drop over long runs.
• Ground points cluster near the chassis or engine block, marked with triangular symbols. Corrosion here mimics short circuits–clean connections with a wire brush if resistance exceeds 0.5Ω.

Decode fault codes by cross-referencing the blueprint’s diagnostic section. For example, “SPN 3226” correlates to an exhaust back pressure sensor circuit (pins C3–C5 on the 120-pin dash connector). Measure voltage between the signal wire and ground: 0.5–4.5V indicates normal operation, while 0V or 5V suggests an open or shorted circuit.

Test switched circuits by activating the ignition. Relay coils draw 0.1–0.3A; verify this current flow at the control wire (typically 85/86 pins). If no click is heard, check the trigger wire (12V when switched) and replace the relay if resistance across 30/87 exceeds 50Ω. For intermittent issues, wiggle connections while monitoring voltage–fluctuations reveal loose terminals.

Trace Complex Systems Layer by Layer

1. Start at the sensor (e.g., coolant temperature). Follow its signal wire to the ECM pin, noting all splices and inline connectors.
2. Map the return path: sensor ground → chassis ground → battery negative. Voltage differentials above 0.3V here cause false readings.
3. For CAN networks, locate the twisted pair (yellow/blue wires). Termination resistors (120Ω) sit at each end–measure resistance between CAN-H and CAN-L: 60Ω confirms proper termination.
4. Isolate parasitic draws by disconnecting modules one by one with the ignition off. A current drop >50mA suggests a faulty component.

Document all findings directly on a printed copy of the schematic using highlighters: red for power, blue for ground, yellow for signals. Add notes near problematic areas (e.g., “Chafed wire at frame rail–reroute”). This annotated copy becomes a roadmap for future diagnostics.
