How to Wire a Single Pole Dimmer Switch Step by Step Guide

Begin by disconnecting power at the circuit breaker to eliminate risk of electric shock. Identify the live, neutral, and ground conductors in the existing electrical box–live wires are typically black or red, neutral wires white, and ground wires bare copper or green. If the box contains older wiring without a ground, consult local electrical codes to determine whether rewiring or using a GFCI-protected device is required.

Attach the adjustable light regulator to the circuit by connecting the live wire from the power source to the brass-colored terminal marked “common” or “line” on the device. Secure the corresponding wire leading to the fixture to the terminal labeled “load.” Twist conductor ends clockwise before tightening terminal screws to ensure maximum contact; loose connections generate heat and increase failure risk. For neutral wires, join them with a wire nut if the regulator requires a return path, though many modern models operate without one.

Ground the device by connecting the green or bare wire from the regulator to the grounding screw or bare copper wire in the box. If no ground exists, wrap the connection with electrical tape and label the box for future reference. Ensure all wires are tucked neatly into the box before securing the regulator–protruding conductors can cause shorts against metal surfaces. Restore power and test the installation by gradually adjusting light intensity; flickering or humming indicates improper connections or mismatched load capacity.

Verify compatibility between the regulator and the light fixture’s wattage rating. Incandescent bulbs typically allow full adjustment range, while LED or CFL fixtures may require a specialized model. Overloading the device with excess wattage reduces lifespan and risks overheating. Replace any damaged or brittle wiring before installation to prevent future faults–insulation degradation is a leading cause of electrical fires.

How to Connect a Light Control Adjustment for One Circuit

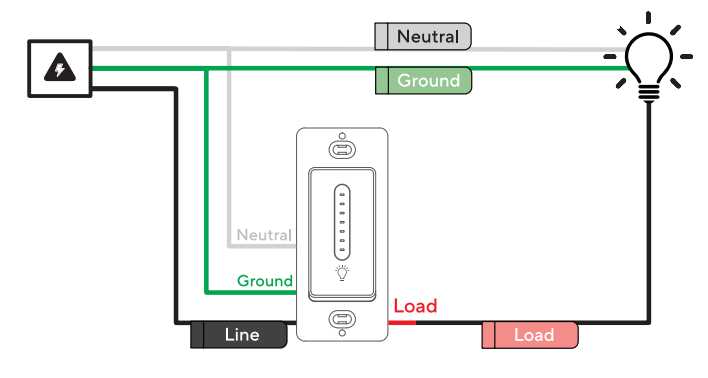

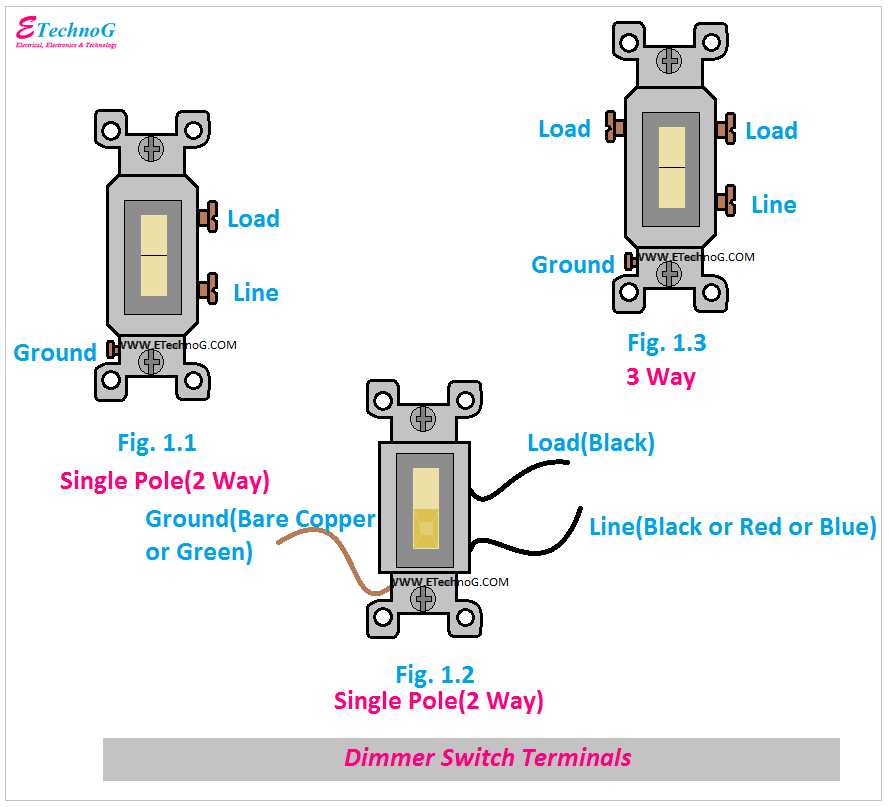

Start by cutting power to the circuit at the breaker panel–verify absence of voltage with a non-contact tester before handling any conductors. For a basic installation, identify the two leads: one from the power source (line) and one to the fixture (load). Securely fasten the line conductor to the brass-colored terminal marked “COM” or “LINE” on the adjustment unit, ensuring no exposed copper extends beyond the screw. The load conductor connects to the opposite terminal, typically silver-colored, while the bare or green grounding lead attaches to the unit’s grounding screw or the metal box if present.

• Use 14-gauge wire for 15-amp circuits or 12-gauge for 20-amp setups–mismatching gauge risks overheating.
• Twist wire strands clockwise before inserting into terminal screws to prevent fraying.
• Tuck conductors neatly into the electrical box, avoiding sharp edges that could damage insulation.

After securing all connections, attach the adjustment plate to the box and restore power. Test the fixture by gradually turning the control–flickering or humming indicates loose terminals or incompatible bulb types (halogen or incandescent bulbs work best; LEDs may require a compatible model). If the light fails to respond, recheck the breaker and connections for continuity with a multimeter. For three-way circuits, consult additional diagrams as the process diverges significantly at this stage.

Essential Equipment for Installing a Light Control Adjustment Device

Choose a voltage tester with a rated range matching your circuit–typically 120V or 240V for residential systems. Non-contact pen-style detectors avoid direct wire contact but verify readings with a multimeter for accuracy. Models like Klein Tools NCVT-3 or Fluke 1AC combine safety with reliability.

Wire strippers calibrated for 14-12 AWG copper conductors prevent nicking strands during preparation. Look for cushioned handles and ergonomic grips to reduce fatigue during repetitive cuts. Ideal Industries T-Stripper or Knipex 12 40 250 offer precision without damaging insulation.

Needle-nose pliers with 7-inch jaws reach confined junction boxes where standard tools fail. Insulated handles rated 1000V protect against accidental shorts. Channellock 362 or Knipex 77 01 160 provide secure grip for twisting splices.

Phillips and flathead screwdrivers sized #1 and #2 fit most terminal screws. Magnetic tips prevent dropped fasteners in tight spaces. Wera Kraftform or Wiha Precision models resist cam-out under torque.

A torque screwdriver ensures terminal connections meet manufacturer specifications–usually 12-18 in-lbs–to prevent loose connections. Over-tightening risks stripping threads. Wiha 38723 series offers adjustable settings down to 0.1 in-lb increments.

Fish tape made from non-conductive fiberglass retrieves wires through conduit walls without snagging. Greenlee 652 or Klein Tools 56000 include hooks for pulling 1/2-inch EMT systems. Lubricate with wire-pulling compound to ease friction.

Junction box extenders create additional depth for new components when retrofitting existing installations. Steel City 81100 adds 1/2-inch clearance for bulkier mechanisms. Verify compatibility with your box material–PVC, steel, or non-metallic–before purchase.

Electrical tape in vinyl or rubber-based formulations insulates exposed connections. 3M Super 33+ resists temperature variations up to 221°F, while Scotch 22 adheres better to slick insulation. Wrap clockwise with 50% overlap for maximum protection.

Step-by-Step Installation Guide for a Light Control Device

Turn off the circuit breaker powering the lighting circuit to prevent electrical hazards. Verify the absence of current using a non-contact voltage tester on the feed wires inside the wall box. If the tester indicates power, locate the correct breaker and switch it off again.

Remove the existing faceplate and unscrew the mounting screws to extract the old fixture. Disconnect the wires by twisting the wire nuts counterclockwise and separating the copper ends. Straighten any bent wire ends with needle-nose pliers for clean connections later.

Identify the three wires in the box: the live (black or red), neutral (white), and ground (bare or green). The new control unit typically has two black wires and one green grounding wire. Match the wire colors:

• Connect the live wire from the box to one black wire on the unit.
• Join the second black wire to the load wire (connected to the light fixture).
• Attach the green grounding wire to the bare copper wire in the box.

Secure each connection with a wire nut, ensuring no exposed copper is visible. Twist the wires clockwise before capping them firmly.

Finalizing the Installation

Tuck the connected wires neatly into the wall box, avoiding tight bends. Align the mounting screws with the slots on the unit and tighten them until snug. Attach the provided cover plate and restore power at the circuit breaker.

Test the functionality by rotating the knob or sliding the lever. The connected fixture should respond smoothly to adjustments. If flickering occurs, check wire connections for looseness. For LED bulbs, ensure compatibility with the unit’s power rating (check the product manual for minimum/maximum wattage).

Critical Errors During Light Control Installation

Misidentifying live and neutral conductors ranks as the most hazardous error. Always verify with a voltage tester before handling wires–label them in advance. Confusing these lines leads to short circuits, immediate device failure, or electrical fires. Modern fixtures often use white for neutral and black or red for power; disregard outdated color conventions if they conflict with your specific setup.

Overlooking the maximum wattage rating on the device causes overheating. Most residential units tolerate 600W, but LED-compatible variants may only handle 150W. Calculate total load by summing all fixture wattages–exceeding limits voids warranties and risks melting internal components. Check the manufacturer’s specifications; some integrate thermal protection, while others require manual adjustments.

Stripping wires too short or leaving excess bare copper creates unreliable connections. Ideal exposure measures 1/2 inch–enough to secure under terminal screws without fraying. Twist stranded cores before insertion to prevent loose strands from touching adjacent terminals. Use needle-nose pliers to shape hooks for smooth insertion, ensuring a tight fit under screw heads.

Ignoring grounding requirements invites electrical shocks. Even if older homes lack grounded circuits, connect the green or bare wire to the metal junction box. For plastic boxes, attach the ground to the device’s dedicated terminal. Skipping this step breaches safety codes and compromises surge protection–especially critical in regions with unstable power grids.

Failing to match load types damages the mechanism. Incandescent and halogen loads tolerate standard forward-phase controls, but LED and CFL fixtures demand reverse-phase units. Mismatches cause flickering, humming, or complete failure. Consult product datasheets–some universal models adapt automatically, while others require dip switches for configuration.

Tightening terminal screws unevenly warps mounting plates. Apply equal torque to avoid gaps between the device and wall plate, which expose wires to moisture and dust. Use a torque screwdriver (12-14 in-lbs) to prevent overtightening, which strips threads or cracks plastic housings. Test the fit after installation–gaps wider than 1mm indicate misalignment.

Neglecting local electrical codes triggers insurance denials for fire claims. Some jurisdictions mandate AFCI protection for lighting circuits, while others prohibit shared neutrals. Obtain permits if required–unapproved modifications may violate home sale agreements. Always update circuit directories post-installation; unmarked circuits delay future repairs and confuse inspectors.
