Complete Wiring Diagram Guide for 2001 Dodge Neon Electrical Systems

Begin by obtaining the official factory service manual for your vehicle’s model year–third-party diagrams often contain errors that can lead to misdiagnosed faults or damaged circuits. The manufacturer’s publication includes color-coded pinouts, fuse ratings, and ground locations verified against original engineering specifications. If physical copies are unavailable, download the PDF from the automaker’s technical portal or authorized repair databases.

Trace circuits methodically using a multimeter set to continuity mode, starting at the fuse block before moving to relays and sensors. Identify splices–tiny crimp connections hidden under dash panels or inside door jambs–that frequently corrode or break. Replace any brittle insulation with heat-shrink tubing rated for 600V to prevent short circuits when reassembling.

For powertrain control modules, cross-reference the pin numbering in the wiring guide with the labels printed on the module’s connector. Misalignment between manual diagrams and real-world plug layouts is common; verify each terminal against the harness’ physical configuration. When splicing into existing wires, strip no more than 6mm of insulation to maintain proper sealing against moisture.

Avoid splicing into CAN bus lines–these high-speed communication wires require specialized termination resistors. Instead, tap into analog sensor outputs (TPS, MAP, vehicle speed) using T-taps designed for 18-22 gauge wire. Confirm sensor voltage ranges (typically 0.5-4.5V) before attempting aftermarket modifications to prevent module lockouts.

For lighting circuits, test the bulb socket for stray voltage–corroded contacts often induce phantom signals that trigger intermittent warnings. When replacing headlight assemblies, ensure compatible resistance values (194/168 bulbs draw ~2.1A) to avoid flasher relay malfunctions. Always disconnect the negative battery terminal before probing airbag or ABS circuits–accidental deployment or diagnostic errors can result.

Comprehensive Electrical Schematic Analysis for the 2002 Compact Sedan

Begin by locating the fuse box under the left side of the dashboard–it houses critical connections for the ignition, lighting, and accessory circuits. Use a multimeter set to 20V DC to verify power at fuse terminals before proceeding. A missing 12V reading at fuse #12 (10A) often indicates a corroded junction or severed ground near the brake switch.

Trace the main harness from the engine bay to the instrument cluster by following the red/light blue striped wire. This 16-gauge conductor carries signals for the tachometer and fuel gauge. Any voltage drop exceeding 0.3V over a 3-foot segment suggests damaged insulation or a loose crimp at connector C201.

Inspect the powertrain control module (PCM) wiring at connector T101, focusing on pins 58 (sensor ground) and 71 (throttle position signal). Resistance between these pins should measure below 0.5 ohms; readings above 2 ohms confirm oxidation at the engine block grounding point. Clean the M8 bolt with 400-grit sandpaper and apply dielectric grease before reconnecting.

For the air conditioning system, test the clutch relay by probing terminals 85 and 86 with the ignition on. A functional relay will show 12V at terminal 86 and continuity to ground at 85. If the relay clicks but the compressor fails to engage, check the dark green/yellow wire from the pressure switch to the PCM–intermittent opens here cause sporadic cooling failures.

The rear defogger grid requires a 500mA test light to diagnose open circuits. Sweep the grid horizontally; any unlit segment indicates a break in the heating element. Repair with conductive epoxy rated for 50W/in², applying pressure with a plastic squeegee to ensure adhesion near the glass edge seals.

Examine the automatic transmission range sensor by monitoring voltage at the violet/orange wire (pin 30) while shifting through gears. Voltage should toggle between 0V (park/neutral) and 5V (drive/reverse). A constant 2.5V reading points to a faulty sensor or shorted circuit within the valve body harness.

Resolve ABS warning lights by verifying the tone ring gap at the front hubs–it must measure 0.020–0.030 inches. Use a feeler gauge to adjust spacing; improper gaps trigger false wheel speed sensor codes (C1234–C1237). Clear codes with an OBD-II scanner after adjustments to prevent recurring alerts.

For aftermarket stereo installations, bypass the factory amplifier by connecting the speaker wires directly to the head unit outputs. The stock amplifier uses a 70Hz high-pass filter–removing it improves bass response but requires recalibrating the equalizer to prevent distortion at volumes above 85%.

How to Find the Original Electrical Schematic for Your Early Compact Sedan

Start by checking the vehicle’s repair manual, specifically section 8W-60 for the base model or 8W-60-1 for models equipped with additional factory options. Chrysler’s official service literature, often labeled as “Tech Authority,” includes these schematics under the “Electrical” subsection, organized by system–engine control, lighting, or instrumentation. If physical copies are unavailable, authorized dealership portals or subscription-based automotive databases like Mitchell1 or AllData retain the exact factory diagrams, including connector pinouts and color-coding specific to production variations.

Alternative Sources for Authentic Documentation

Contact owners’ forums dedicated to the marque, where long-term enthusiasts frequently archive OEM materials. Threads discussing interior fuse panels or powertrain sensors often include direct links to PDF scans of the exact schematics. Specialized parts catalogs, such as those from Mopar or RockAuto, sometimes bundle wiring references with component listings, though these are less detailed than full schematics. Avoid third-party “universal” diagrams–even slight deviations in ground locations or splice points can lead to incorrect diagnostics.

For instant access, search the National Highway Traffic Safety Administration’s public recall database using the VIN prefix “1B3ES46C*1*”–attached service bulletins occasionally include corrected electrical layouts. Some aftermarket repair guides, like Chilton or Haynes, reproduce portions of the factory schematic, but cross-verify these against known connector shapes and terminal numbers from the vehicle itself to ensure accuracy.

Step-by-Step Guide to Reading Color Codes on Vehicle Circuit Blueprints

Locate the legend on the schematic–it’s typically framed in a box near the edges or at the bottom of the page. Each color abbreviation corresponds to a specific wire insulation hue, but manufacturers may vary interpretations. For example, “ORN” universally denotes orange, while “PPL” or “PNK/LT” can indicate purple or light pink depending on the manual’s conventions.

Decode Stripes and Secondary Markings

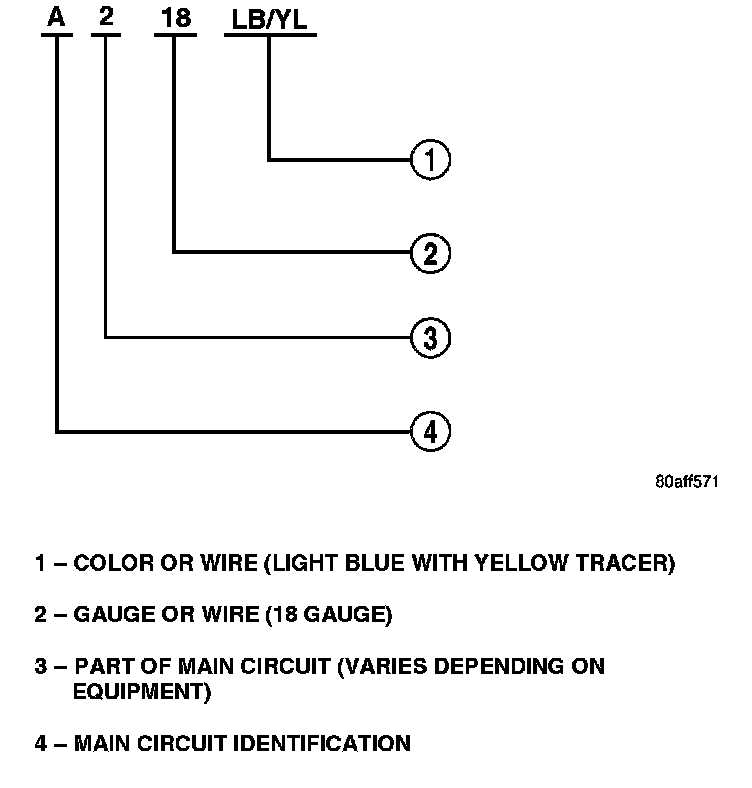

Wires with multiple colors follow a slash (/) or dash (-) format. The first color represents the base, while the second–often a stripe–identifies the tracer. A label like “BLK/WHT” means a black wire with white stripes. If the stripe isn’t specified (e.g., “YEL”), assume a single solid color. Verify stripe directionality by cross-referencing the physical harness–stripes usually run along the top when the wire is held horizontally.

Match color codes to their functional groups by identifying recurring patterns. Power distribution wires (e.g., ignition, battery feeds) often use red (RED) or yellow (YEL), while grounding circuits default to black (BLK) or brown (BRN). Signal wires, like those for sensors or actuators, frequently employ orange (ORN), gray (GRY), or dark green (DK GRN). Create a cheat sheet with these associations to speed up future diagnostics.

Trace the flow by following the color progression through connectors. Schematics label terminals with alphanumeric codes (e.g., “C102-B5”), where the letter indicates the pin’s row or cavity. If a “BLU/RED” wire disappears into a connector labeled “X5”, locate its continuation on the opposite side–often marked “BLU/RED” again–unless it transitions into a splice or component. Highlight each segment with a dry-erase marker on a laminated copy to avoid confusion.

Resolve Ambiguities with Cross-Verification

Compare the schematic’s color codes against the actual harness. Fading or manufacturer substitutions (e.g., “TAN” vs. “BRN”) can mislead–use a multimeter in continuity mode to confirm circuit paths. Probe both ends of a suspect wire while referencing the schematic’s voltage expectations: a “YEL/ORN” wire at “Ignition Switch Output” should register ~12V when the key is in the ON position.

Document deviations immediately. If a “GRY/VIO” wire splits into two “GRY/VIO” branches but only one aligns with the schematic, flag the discrepancy. Common variants include U.S.-market cars using “PPL” for purple, while European diagrams might list “VIO”. Keep a log of these regional differences to prevent misdiagnosis.

Use color codes to isolate faults systematically. If a “DK GRN/WHT” wire carrying fuel injector signals shows resistance outside spec (typically 12–16 ohms), backtrack along its length, checking for chafing at harness bends or corrosion in connector “C105”. Skip general troubleshooting steps–target the exact color-coded path to pinpoint failures faster than generic voltage drop tests.

Diagnosing Typical Circuit Problems with Compact Sedan Blueprint Analysis

Start by inspecting the fuse box located under the driver-side dashboard. Check for blown fuses–especially those labeled “IGN,” “ECU,” and “INJ”–using a multimeter set to continuity mode. A faulty ignition fuse (often 15A) disrupts fuel pump operation, causing crank-no-start scenarios. Replace damaged fuses with identical amperage units; never substitute higher-rated alternatives.

Trace the alternator output circuit if the battery drains excessively or warning lights flicker. The charging system relies on a thick red cable connecting the alternator to the positive terminal. Look for frayed insulation, corroded connectors, or loose mounting bolts–common failure points. Probe voltage at the battery with the engine running; readings below 13.8V indicate a faulty alternator or slipping drive belt.

Common tail light and brake light failures often stem from the BCM-controlled fuse #8 (10A) or corroded ground points near the rear bumper. Verify the ground connections (G101 and G201) by removing the mounting bolt, cleaning oxidation, and applying dielectric grease before reassembly. If bulbs are functional but remain unlit, suspect the brake pedal position switch–located above the pedal assembly–which sends signals to the body control module.

• Dashboard warning lights (ABS, Check Engine) may indicate faulty sensors or shorted circuits in the CAN bus network. Use an OBD-II scanner to retrieve trouble codes before probing wires–random shorts near the instrument cluster often disrupt communication lines.
• Power window failures typically involve the driver-side master switch. Check for voltage at the window motor connector (orange and brown wires) when depressing the switch; absence of 12V suggests corroded switch contacts or a broken circuit within the door harness.
• HVAC blower motor issues usually result from a faulty resistor block mounted behind the glovebox. Test each speed setting–if only the highest speed works, replace the resistor assembly.

For intermittent stalling, focus on the crankshaft position sensor wiring. The sensor’s signal wires (gray/black and violet/white) run alongside the transmission bellhousing. Bends, abrasions, or pinched sections can cause signal dropouts. Backprobe the connector with a logic probe while cranking the engine–consistent pulse waves confirm a functional sensor; random spikes or flatlines require sensor replacement.

1. Disconnect the battery before probing any circuit with live voltage.
2. Label all disconnected connectors to avoid miswiring during reassembly.
3. Avoid twisting or bending wire bundles during inspection–compromised insulation accelerates shorts.
4. Use heat-shrink tubing instead of electrical tape for permanent repairs.
5. For persistent issues, consult the factory repair manual’s pinout diagrams–third-party schematics often contain errors.
