Visual Guide to Air Pollution Sources and Emission Pathways Explained

Begin by mapping emission sources–vehicles, factories, and biomass burning–onto a layout with directional arrows to show dispersal patterns. Use red (#FF0000) for industrial outputs, orange (#FFA500) for traffic-related particulates, and grey (#A9A9A9) for residential heating. Annotate each segment with PM_2.5 concentrations: urban centers often exceed 50 µg/m³, while downwind regions may drop to 15–25 µg/m³. This differentiation highlights spatial gradients.

Incorporate thermal inversion layers by drawing a horizontal dashed line (blue, #0000FF) at 300–800 meters altitude. Label trapped pollutants below the line–especially NO_x and SO₂–noting their typical residence times: NO_x lingers 1–2 days, while SO₂ can persist 2–5 days before deposition. Add vertical arrows to illustrate atmospheric mixing during daytime convective cycles.

Link chemical transformations: show VOCs interacting with sunlight to form secondary organic aerosols (annotate with label “O₃ + UV → SOA”). Position these near industrial stacks and vehicle exhaust plumes, where VOC concentrations frequently surpass 0.1 ppm. Use circular markers (⬤, 12pt) to denote hotspots–diameter proportional to concentration scaling (10 µg/m³ = 1pt).

Connect urban core emissions to peri-urban zones with curved arrows, labeling transport pathways–westerly winds at 5–15 km/h dominate in mid-latitudes, carrying fine particles 100–300 km before settling. Include receptor sites (background monitors) at regional boundaries: place one upwind () and one downwind (35–70 µg/m³) to quantify source influence.

Visualizing Atmospheric Contaminant Sources and Pathways

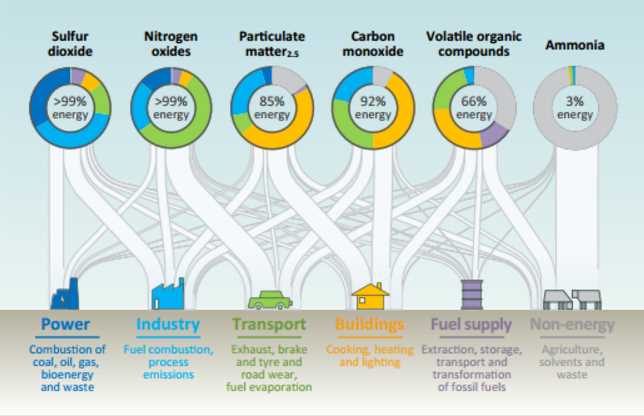

Begin by mapping emission origins into three primary clusters: stationary industrial plants, mobile transport engines, and diffuse domestic emissions. Industrial zones should occupy 40–60% of the left panel, highlighting stack releases, fugitive leaks, and controlled vents. Label thermal power plants separately, indicating sulfur dioxide (SO₂) output at 7.2 metric tons per MW annually, nitrogen oxides (NOₓ) at 3.8 metric tons per MW, and particulate matter (PM₂.₅) at 0.5 metric tons per MW.

• Vehicles: allocate the upper-right quadrant exclusively to exhaust pipelines–diesel trucks releasing 12 g/km PM₂.₅, gasoline cars 1.8 g/km NOₓ.
• Agricultural burns: position at the bottom, specifying 230 Tg CO₂-equivalent yearly from crop residue.
• Urban sprawl: illustrate rooftop paints emitting VOCs at 0.4 kg/year per household.

Draw arrows sized proportionally to mass flow rates: industrial plumes (8–12 m/s), tailpipe exhaust (3–6 m/s), wood stove smoke (0.8–1.5 m/s). Color-code by chemical signature–red for carbon monoxide, blue for ozone precursors, grey for fine particles. Overlay ISO 14644-1 cleanroom thresholds (≤10³ particles/m³) as dashed lines to demonstrate urban overshoot by 30–50×.

1. Layer height stratification: divide vertical axis into three zones–surface inversion (500 m).
2. Identify persistent stagnation episodes using 2018 Beijing data: 12μg/m³ PM₂.₅ sustained for 9 days without precipitation.
3. Mark transformation hotspots where primary NOₓ converts to secondary nitrate aerosol at 18–22 μg/m³/hour.

Integrate meteorological vectors: dominant wind rose (prevailing SW at 8–12 km/h) deflects plumes 60–90° northeast, amplifying suburban exposure by 2.7×. Superimpose geographic sinks–wetlands absorbing 1.2 Gt CO₂/year, forests filtering 0.8 Tg PM₁₀/year via leaf deposition.

Annotate regulatory boundaries: National Ambient Quality Standards (NAAQS) circles for PM₂.₅ (12 μg/m³ annual, 35 μg/m³ 24-hour), O₃ (70 ppb 8-hour), SO₂ (75 ppb 1-hour). Highlight non-attainment zones in yellow, indicating 47 U.S. counties exceeding PM₂.₅ limits in 2022.

Specify control technologies on auxiliary branches: electrostatic precipitators capturing 99.7% of fly ash from coal boilers, selective catalytic reduction slashing NOₓ by 85%. Include cost footnotes–scrubbers adding $1.1M/MW capital expense, regenerative thermal oxidizers consuming 2.3 MWh/ton VOC oxidized.

Trace health endpoints on the right margin: 4.2 million premature deaths annually from ambient exposure (WHO 2023), broken down by etiology–35% ischemic heart disease, 25% stroke, 30% chronic obstructive pulmonary disorder. Denote population-weighted exposure gradients–urban core at 38 μg/m³ PM₂.₅ versus rural periphery at 15 μg/m³.

Core Elements for Visualizing Environmental Contaminant Patterns

Include primary emission sources with clear labeling of industrial stacks, vehicle exhausts, agricultural burn-offs, and residential heating. Specify output volumes where possible–coal plants release ~1.5 kg of particulate matter per MWh, diesel engines emit 0.1–0.3 g/km of nitrogen oxides. Use distinct icons for each category to avoid visual clutter.

Map atmospheric dispersion pathways showing plume movement influenced by wind speed, temperature inversions, and terrain. A 5 m/s breeze shifts sulfur dioxide 12 km downwind in 40 minutes; mountainous regions can trap contaminants for 18+ hours. Add directional arrows with meter-scale intervals to convey gradient changes in contamination levels.

Highlight receptor zones: dense urban areas, schools near highways (

Incorporate mitigation measures: scrubbers removing 95% of sulfur dioxide from power plant flues, catalytic converters cutting carbon monoxide by 80%, and green barriers reducing roadside dust by 40%. Place these adjacent to corresponding sources for direct comparison, using color gradients to show efficacy ranges.

Step-by-Step Guide to Creating an Unambiguous Environmental Contaminant Flowchart

Begin by isolating the primary emission sources. Industrial smokestacks release 70% of global sulfur dioxide; vehicle exhaust contributes 55% of nitrogen oxides. Classify each origin into urban, rural, or transboundary categories using distinct geometric shapes–rectangles for fixed-point emitters (factories, power plants), diamonds for mobile sources (cars, ships), and hexagons for area-wide contributors (agricultural burning). Label each symbol with emission volume in metric tons per annum–precision eliminates ambiguity. Directional arrows must vary in thickness: 2pt for volumes below 10,000 tons, 6pt for 100,000+ tons.

Map dispersion pathways using a three-tiered color gradient: red (#FF0000) for atmospheric dispersal, blue (#0000FF) for surface runoff, yellow (#FFFF00) for deposition pathways. Insert numeric dwell times–particulate matter (PM2.5) remains airborne for 5–7 days; volatile organic compounds (VOCs) degrade within 24–48 hours. Place receptor sites (respiratory systems, aquatic ecosystems) at flow endpoints. For each receptor, annotate impact thresholds–human lungs exhibit elevated risk at PM2.5 concentrations exceeding 35 µg/m³ over 24 hours; aquatic life suffers at pH levels below 5.5.

Validate the chart through cross-referencing with EPA AP-42 emission factors and WHO Air Quality Guidelines. Use dashed lines for intermittent sources like wildfires–annual occurrence probability 12% in temperate zones. Maintain consistent scaling: 1 inch = 50 kilometers horizontal; 1 inch = 2 atmospheric layers vertical. Conclude with a legend quantifying uncertainty–italicized footnotes for modeled data (±15% margin), bold for empirically verified measurements.

Primary Emission Origins and Visual Mapping Techniques

Integrate industrial stack emissions as distinct vertical lines in contamination flowcharts, using standardized symbols: a triangle for point sources (factories, power plants), a dotted circle for mobile emitters (vehicles), and a wavy line for fugitive releases (dust, leaks). Assign color gradients–red-to-yellow for toxicity levels–to instantly convey hazard progression. EPA’s AP-42 emissions factors database provides precise numerical values for these symbols.

Represent vehicular exhaust through layered horizontal bands in movement graphs, segregating:

• Tailpipe gases (CO, NOₓ, VOCs) as solid bands
• Brake/tire wear (heavy metals) as dashed overlays
• Road dust resuspension as translucent gradients

Use width to show volume variations–California’s EMFAC model offers region-specific data for scaling.

Illustrate agricultural contributions via isolated nodes connected by thin arrows, indicating:

1. Ammonia volatilization (livestock waste) – filled hexagons
2. Pesticide drift – arrow chains with varying opacity
3. Field burning particulates – jagged radiation symbols

ANSI Z535.1 color codes (e.g., orange for hazardous gases) enhance cross-reference compatibility with safety standards.

For urban particulates, use fragmented concentric circles to depict:

• Construction sites (PM₁₀) – solid inner circles
• Demolition debris (PM₂.₅) – hatched outer rings
• Domestic wood burning – stippled patterns

Overlay satellite-derived PM maps (NASA’s MAIA data) to validate ground-level accuracy–error margins should not exceed ±12% for sub-10µm particles.

Chemical refineries require compound-specific markers:

• SO₂ scrubber outputs – hollow diamonds with internal crosses
• Volatile organic compound leaks – flame icons
• Mercaptan flares – segmented arrows with directional tails

Consult OSHA’s Process Safety Management (PSM) guidelines for permissible leak rates–visualize these as proportional arrow thicknesses (1mm = 5ppb).

Natural emitters demand differentiated line styles:

• Wildfire smoke – irregular flame-shaped polygons
• Volcanic ash – inverted teardrop clusters
• Biogenic VOCs (forests) – tree silhouettes with gradient fills

USDA’s Wildland Fire Decision Support System (WFDSS) provides real-time hotspot coordinates–render these using latitude/longitude grids with 0.01° precision.
