Honda Civic 2001 ECU Wiring Guide and Schematic Diagram Details

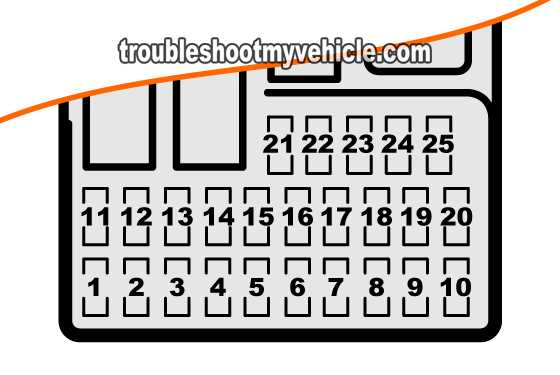

The powertrain control module in a seventh-generation compact sedan relies on precise signal routing to function correctly. For owners diagnosing performance issues or upgrading components, accessing the schematic is the first critical step. Begin by locating fuse box cover diagrams–these often include simplified layouts of primary connectors. Pin assignments differ between automatic and manual transmissions, so verify your model variant before proceeding.

Key connectors to examine:

• ECM/PCM A (31-pin) – Handles fuel injection timing, oxygen sensor inputs, and throttle position signals.
• ECM/PCM B (25-pin) – Manages transmission solenoids (if automatic), vehicle speed sensor, and knock sensor data.
• Ground points – Typically found near the firewall; corrosion here disrupts signal integrity.

Measure voltage at these points: ignition-on readings should show 12V on designated pins (consult a multimeter, not guesswork). Low readings indicate damaged wiring or a failing power relay–common culprits behind erratic idling.

Aftermarket modifications often require rerouting these circuits. If replacing a standalone engine management system, identify the factory harness splice points first–these control critical sensors like the camshaft and crankshaft position indicators. Bypass resistors with direct signal paths only if the aftermarket unit explicitly supports the OEM sensor impedance.

Color-coding follows a strict pattern: white/black wires usually denote ground, while solid yellow or red indicate switched power. Pay attention to shielding–unprotected twisted pairs near ignition coils can pick up electromagnetic interference, leading to misfires. Use heat-shrink tubing on exposed wires to prevent shorts.

Document every change. Paper notes or digital photos prevent backtracking during installation. Troubleshooting? Compare resistance values across identical-length wire segments–discrepancies point to internal breaks. For advanced diagnostics, an oscilloscope reveals signal noise not detectable with a basic meter.

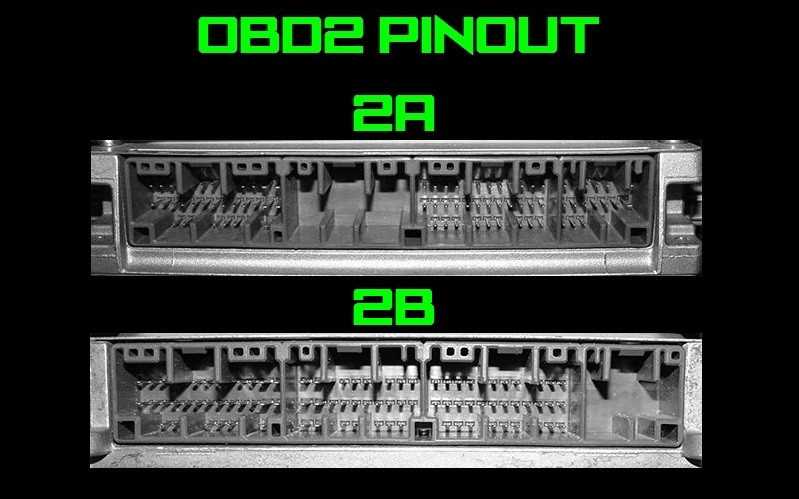

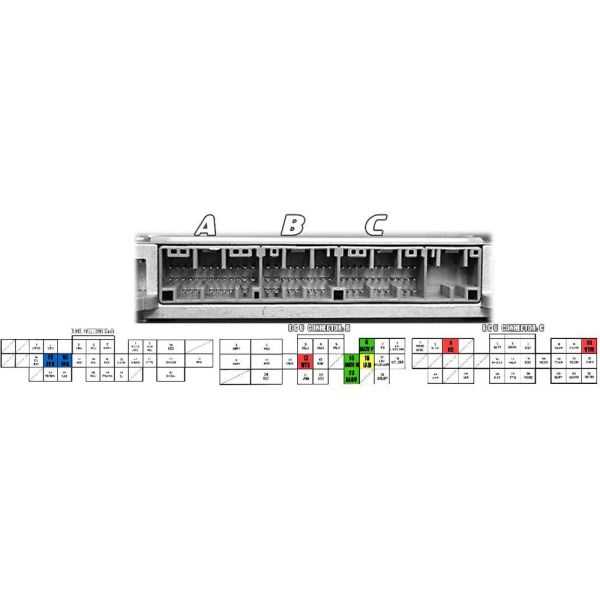

Electronic Control Module Pinout Guide for Compact 2000s Sedans

Locate the main harness connector on the powertrain computer–typically a 31-pin plug labeled “A” and a 26-pin plug labeled “B.” Pin A5 (red/black wire) carries ignition-switched power; verify it reads 12V with a multimeter when the key is turned. If voltage drops below 11V, inspect the fuse box relay for corroded terminals–replace fuse #13 (15A) if continuity fails. Pin A12 (yellow/black) transmits sensor ground; resistance between this pin and chassis ground should not exceed 0.2 ohms. Higher readings indicate oxidized grounds near the intake manifold–clean with 800-grit sandpaper.

Critical Sensor Circuits

• Throttle Position Sensor (TPS): Pins B9 (black/yellow) and B10 (white/blue) provide 5V reference and signal return. Probe B10 with the throttle fully closed–voltage should read 0.5V (±0.1V). If readings exceed 0.8V, adjust the sensor’s mounting screws or replace it. Pin B20 (blue/red) carries the MAF signal; at idle, voltage should stabilize between 1.2-1.8V. Values below 0.9V suggest a clogged air filter or failing MAF element.
• Oxygen Sensors: Upstream O2 sensor connects to pin A24 (white/black); downstream to A23 (white). At 2,000 RPM, upstream voltage should oscillate between 0.1-0.9V every 0.5-2 seconds. If static, check for exhaust leaks at the manifold gasket or depleted sensor heaters (pins A21/A22, 12V supply). Downstream voltage should remain near 0.45V; deviations indicate catalyst failure or ECM calibration drift.
• Crank/Cam Sensors: Crank sensor (pin A25, blue) outputs a 1.5V AC signal at idle. If missing, inspect the reluctor ring for missing teeth or rotation issues. Cam sensor (pin A14, blue/yellow) provides a 5V square wave–verify with an oscilloscope; irregular signals confirm timing belt slippage or sensor misalignment.

Injector circuits follow a sequential firing order: cylinders 1-4-2-3. Pins A18 (pink), A6 (yellow), A7 (green), and A19 (red) deliver switched 12V pulses. Use a noid light to test; if pulses are erratic, resistance across injector terminals should read 13-16 ohms at 20°C. Lower values confirm internal shorting–replace injectors in pairs. For cylinder #3, inspect pin A7 for chafing near the intake plenum; reroute the wire with high-temp loom if insulation is damaged.

Immobilizer data travels via pins B16 (white/red) and B17 (green/red). If the security light flashes continuously, compare resistance between B16 and ground–normal range is 1.2-1.8kΩ. Values outside this range require ignition key transponder reprogramming. Pin B5 (pink/black) carries the MIL lamp signal; if illuminated without faults, pull the ECM fuse for 10 seconds to reset adaptive memory. Persistent codes P0122 (TPS low) or P1457 (EVAP leak) demand leaks checks at the fuel filler neck and vapor canister.

Grounding and Power Distribution

1. Chassis grounds (#G101 near the battery, #G102 left strut tower) must maintain
2. Pin A4 (yellow/green) delivers constant 12V power–verify voltage with the key off. If absent, test fusible link “H” (100A) above the positive terminal; replace if melted or discolored.
3. Cooling fan control splits between pins A11 (blue) and A10 (black/white). Fan should activate at 212°F; probe A11 for 12V when the coolant temp sensor exceeds threshold. If inactive, bypass the relay (yellow/green wire) to confirm a bad relay or ECM output.

For transmission control, pin B3 (white/black) carries shift solenoid A; B4 (black/white) carries solenoid B. Solenoid resistance should read 12-18 ohms at 68°F. If shifting harshness occurs, backprobe B3/B4 during a road test–voltage should toggle between 0-12V at gear changes. Static 5V confirms a shorted solenoid or ECM driver failure. Replace solenoids as a set if resistance deviates.

Finding the Control Module Connector Layout for Your Early 2000s Compact Vehicle

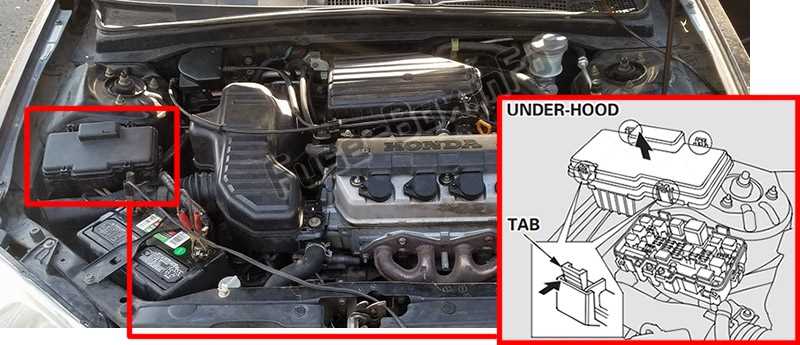

Begin by locating the engine bay fuse box on the driver’s side, near the battery. The primary connection interface is tucked behind a removable plastic cover–pry it open carefully using a flathead screwdriver. The main harness plug for the powertrain control module will be a 31-pin male connector, typically white or gray, distinguishable by its trapezoidal shape. Verify the pin numbering starts from the top-left corner when viewing the socket face-on, following a counterclockwise sequence.

For precise identification, cross-reference the connector with the official service manual schematic labeled “PGM-FI System Circuit.” The critical pins include: #1 (IGN) for ignition power, #5 (MAIN RELAY) supplying constant voltage, #11 (STS) for starter signal, and #22 (GND) as the primary earth point. Avoid probing live circuits–use a multimeter set to continuity mode to confirm connections without energizing the system.

If the OEM documentation is unavailable, trace the wiring harness directly from the onboard computer. The power control module sits beneath the dashboard, above the driver’s footwell–remove the lower trim panel for access. The rear face of the unit exposes two additional connectors: a smaller 16-pin auxiliary plug (handling sensor inputs like IAT and MAP) and a 12-pin secondary interface (reserved for emissions-related signals). Note that pin functions vary between automatic and manual transmissions–in manual variants, pin #30 (CPP) reads clutch pedal position, whereas automatics repurpose it for torque converter lockup feedback.

When splicing or testing, prioritize the thick yellow/black wire (pin #7), which carries primary battery voltage during cranking. For data stream diagnostics, pin #29 (SCS) delivers flash code output when grounded. Always disconnect the negative terminal before handling–this model’s memory backup relies on a dedicated capacitor, preserving settings for up to ten minutes even without power.

Pinpointing Voltage Supply and Earth Conductors in the Control Module Cabling

Locate the primary battery feed wires–typically 12-14 AWG with red, orange, or yellow insulation–connected to terminals labeled B+, IGN, or MAIN. These supply continuous or ignition-switched power, often delivering 11.8V to 14.5V under load. Use a multimeter set to DC voltage, probing the harness-side connector while the vehicle is off (continuous) or in accessory mode (switched) to confirm voltage presence before proceeding.

Ground connections frequently terminate at black, brown, or black-striped conductors, grouped in pairs or bundles near mounting points like the chassis rail or bulkhead. Verify zero resistance between these points and the negative terminal of the battery using a continuity test. Resistance above 0.5 ohms indicates corrosion, loose fasteners, or insufficient contact area requiring immediate attention to prevent voltage drop and erratic module behavior.

The following table identifies common pin assignments for power and ground in late-90s to early-2000s compact sedan control modules:

Connector	Pin Number	Wire Color	Function	Expected Voltage (V)
A	1	Red	Battery constant	12.0–14.5
A	4	Yellow	Ignition switched	11.8–14.3
B	12	Black	Main ground	0–0.1
B	13	Black/White stripe	Secondary ground	0–0.1
A	7	Black/Yellow stripe	Alternator charge sense	13.5–15.0

Inspect connectors for bent pins, melted plastic, or discoloration–a sign of overheating. Apply dielectric grease to pin sockets during reassembly to prevent moisture ingress, which leads to resistance buildup. Avoid touching live circuits with bare hands; use insulated gloves and clip leads for temporary circuit testing.

Voltage drop tests at idle reveal hidden issues: attach the multimeter red probe to the power wire at the module, and the black probe to the battery positive terminal. Anything exceeding 0.2V at 3,000 RPM suggests resistive connections in the fuse block, ignition barrel, or main relay contacts. Repeat the procedure for ground circuits, ensuring the drop remains below 0.1V.

Critical sensor power feeds–often 5V–originate from internally regulated pins. Measure these at the sensor connector, not the module side, to isolate faults in the harness itself. If the 5V reference is absent, suspect a blown internal regulator in the control unit rather than a wiring fault.

Trace suspect wires visually and with a tone generator if identifiers are obscured. Document every splice and junction point, photographing before disassembly. Label each wire with heat-shrink tubing to prevent cross-connection errors during troubleshooting, as misrouted voltage or ground lines can instantly destroy control electronics.
