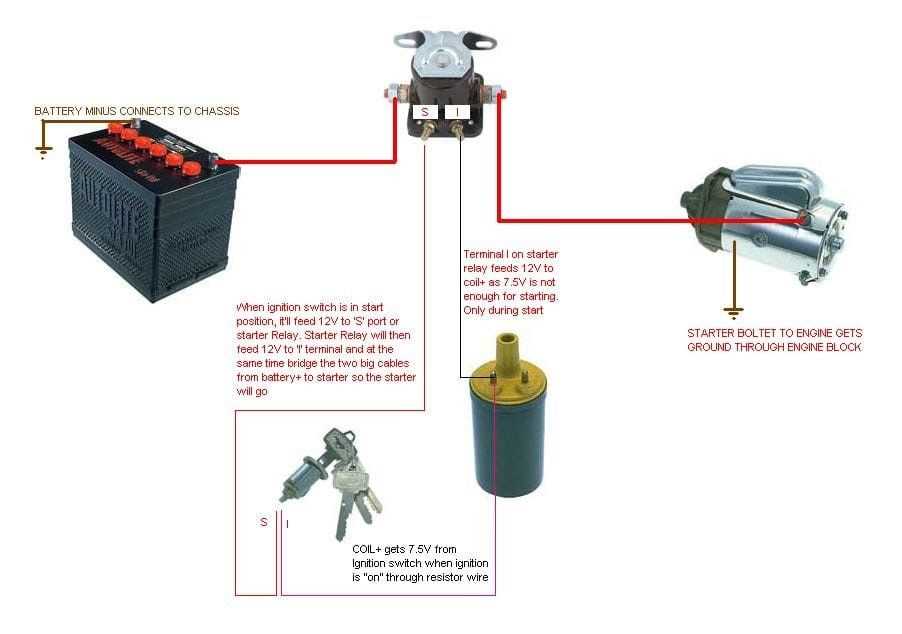

Step-by-Step Guide to Wiring Your Starter Solenoid Correctly
Begin by locating the heavy-duty battery cable terminal on your ignition relay–this is typically the thickest wire, often red or yellow, marked with an “S” or “B+” label. Secure it with a 10mm socket to prevent accidental shorts, as improper contact here can fry the relay or trigger a 150+ amp surge. Ground the relay’s mounting bracket directly to the engine block using an 8-gauge braided wire, avoiding painted or coated surfaces that increase resistance.
Trace the control circuit wire–usually a thin purple or white line–to the ignition switch. Splice it with a crimp connector and heat shrink tubing to prevent moisture infiltration, which is the leading cause of intermittent failure. Verify continuity with a multimeter: a reading above 0.3 ohms indicates corrosion or a faulty connection. If the engine cranks sluggishly, bypass the fuse panel temporarily with a jumper wire to isolate whether the issue lies in the relay or the switch.
For push-button setups, wire the relay’s trigger terminal to the starter button using a relay-rated 20-amp fuse within 6 inches of the connection point. Avoid automotive-grade switches not rated for inductive loads, as they’ll melt under repeated activation cycles. On manual transmissions, integrate a clutch safety switch in series with the control circuit–this prevents engagement unless the pedal is fully depressed, protecting the flywheel teeth from premature wear.
Test the assembly with the engine cold: a clean click from the relay accompanied by immediate flywheel rotation confirms proper installation. If the engine spins without igniting, suspect a worn pinion gear or misaligned Bendix–check for shavings in the oil pan. Replace the relay if voltage drops below 9.6V at the battery during cranking, as internal contact pitting is irreversible.
For diesel engines, add a pre-heat circuit in parallel to the relay’s control path, using a timer relay set to 8-12 seconds. This prevents starter overload during cold starts. On turbocharged gas engines, tap the relay’s trigger wire into the turbo timer harness to extend spool-down duration, but never exceed 30 seconds–excessive draw will overheat the solenoid’s internal coil.

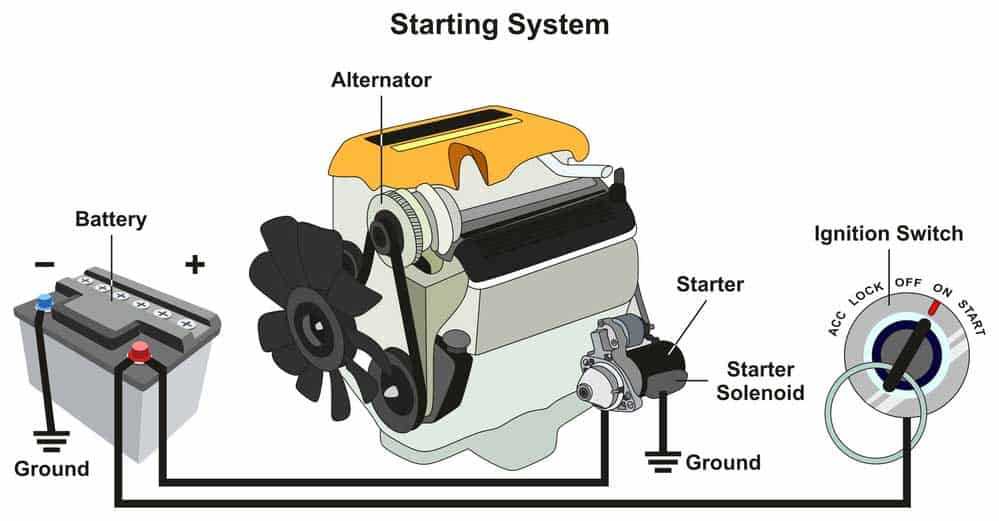

Understanding Electric Relay Connections in Vehicle Ignition Systems
Connect the control circuit wire directly to the ignition switch’s “start” terminal to ensure immediate engagement. This wire, typically 16–18 AWG, must carry at least 10–15 amps temporarily without overheating. Use a 20-amp fuse within 12 inches of the switch to prevent short-circuit damage. Verify the switch’s output voltage drops below 0.2V when engaged–higher readings indicate corrosion or loose connections.
Attach the high-current terminals with 4 AWG copper cables to handle 200+ amps during cranking. Crimp lugs securely and solder joints for corrosion resistance; frayed or undersized wires cause voltage drops of 0.5V or more, leading to slow or failed engine turns. Ground the relay’s frame directly to the engine block, not the chassis, to avoid resistance buildup from paint or rust. Torque all connections to 15–20 ft-lbs to prevent loosening under vibration.
Test the relay’s holding circuit by measuring voltage across the motor-side terminals while cranking. A reading of 9–11V confirms proper operation; values below 8V suggest internal contact wear or insufficient battery charge (below 75% state of charge). Replace relays with resistance exceeding 5 milliohms between the contact points–higher resistance reduces power delivery by 30–50%. Avoid aftermarket relays with plastic plungers; metal-plunger units dissipate heat better during prolonged cranking.
Route all cables away from hot manifolds and moving parts, securing them every 12 inches with zip ties or loom. Exposed insulation near exhaust systems melts at 250°F, risking shorts. For diesel applications, upgrade to a 400-amp relay to accommodate glow-plug draw during cold starts. Label each wire with heat-shrink tubing–”B+” for battery, “M” for motor, “S” for switch–to simplify future diagnostics.
Use a multimeter in continuity mode to check for accidental shorts before reconnecting the battery. Probe the insulated terminal housing while activating the switch; any beep indicates internal failure. For variable-load testing, apply a 12V source with a 10-ohm resistor in series to simulate cranking conditions–relays failing this test show inconsistent contact closure. Store spare relays in sealed bags with moisture-absorbing packets to prevent oxidation of internal contacts.

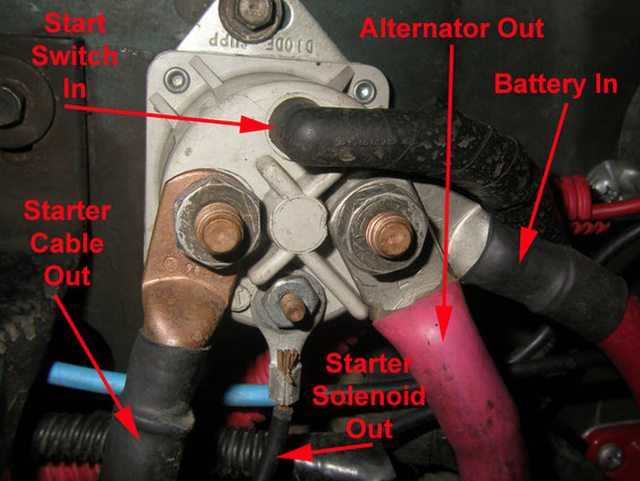

How to Pinpoint Connection Points on an Electrical Relay Switch
Examine the relay casing for engraved or printed markings–most manufacturers label terminals with standard alphanumeric codes. Common identifiers include B (battery), S (switch), M (motor), and C (common). If markings are absent, measure terminal diameters–thicker posts typically denote power input connections, while thinner ones handle control signals.
Use a multimeter in continuity mode to trace circuits: connect one probe to the battery input terminal and touch the remaining posts with the second probe. A beep or low-resistance reading indicates a direct link to the battery side. Repeat the process for the control signal post–this isolates the relay’s two primary circuits.
Check for a small, cylindrical terminal separate from the main posts–this is often the ground or ignition trigger input. Some relays integrate this connection into the main housing, while others position it on the side or back. Verify by testing resistance between this terminal and the vehicle’s frame; near-zero ohms confirm proper grounding.
Identify the heavy-duty output post by its size–this delivers current directly to the engine’s engagement mechanism. Visually distinguish it from the switch input terminal, which carries a thinner gauge wire. The output post typically lacks insulation and has a distinctive copper or brass finish.
- Battery terminal: Largest diameter, often uninsulated, connects to the power source.
- Switch terminal: Smaller, insulated, receives ignition signal.
- Ground terminal: May be separate or integrated, completes the control circuit.
- Motor terminal: Thick post, delivers high current to the drive mechanism.
Look for a secondary small terminal in high-amperage relays–this often serves as a relay coil return path or auxiliary control input. Unlike primary posts, it may have a threaded stud or spade connector. Reference the vehicle’s manual if uncertainty arises; some models repurpose this terminal for diagnostic purposes.
Test for voltage drops under load: activate the engagement circuit and measure voltage between the battery input and output posts. A drop exceeding 0.5V suggests corrosion, loose connections, or internal relay degradation–clean connections with a wire brush or investigate further.
Compare terminal layouts across relay types–permanent-magnet motors typically use a simpler two-post configuration, while series-wound units require additional connections for field windings. Document findings with digital photos if performing multiple tests to avoid confusion during reassembly.
Step-by-Step Connection Guide for Popular Car Makes
For 2005-2012 Ford F-150 trucks, locate the ignition relay circuit near the central junction box under the dashboard. Disconnect the battery’s negative terminal before handling any electrical components. The relay’s pinout follows this pattern: terminal 30 receives constant 12V power from the battery, terminal 85 connects to ground, terminal 86 links to the ignition switch, and terminal 87 outputs power to the engagement mechanism. Use a multimeter to verify voltage at each terminal–readings below 11.8V indicate a faulty fuse or corroded connection.
Chevrolet Silverado models (1999-2007) require a different approach. The control circuit uses a 4-pin connector on the engagement switch mounted near the transmission housing. Pin A supplies power directly from the ignition, Pin B grounds through the chassis, Pin C connects to the inhibitor relay, and Pin D activates the high-current contactor. Test continuity between Pins B and D with the ignition in the “ON” position–absence of continuity suggests a malfunctioning inhibitor relay or damaged wiring harness.
| Vehicle | Relay/Contactor Pin | Voltage (Ignition ON) | Resistance (Ohms) |
|---|---|---|---|
| Toyota Camry (2007-2011) | Pin 1 (Supply) | 12.2-12.6V | N/A |
| Pin 2 (Ground) | 0V | <0.2 | |
| Honda Civic (2006-2014) | Pin 3 (Signal) | 11.8-12.4V | 0.3-0.8 |
On the 2010-2016 Mazda3, the engagement circuit operates through the main power distribution block in the engine bay. Remove the protective cover to access terminals IG1 and IG2–both must register 12V during ignition activation. A third terminal, labeled S, bridges to the transmission range sensor. Failure of the S-terminal to drop below 0.5V in “Park” or “Neutral” indicates a defective sensor or broken connection.
Chrysler 300 sedans (2005-2010) integrate the control module behind the driver-side kick panel. Trace the red/black striped cable from the battery to terminal 87 of the internal relay–this wire carries 80A current during operation. Terminal 85 connects to the body control module via a purple/white stripe wire. If the relay clicks but the engagement mechanism fails, inspect the fusible link near the positive battery terminal; corrosion here mimics relay failure.
Subaru Outback models (2015+) employ a dual-circuit engagement system. The primary circuit activates via an orange wire (constant 12V), while the secondary circuit engages through a black/blue wire triggered by the push-button ignition. Measure voltage drop across the engagement coil–readings exceeding 0.3V under load necessitate cleaning or replacing the ground connection at chassis point G104. Replace the engagement coil if resistance exceeds 3.2Ω.
Nissan Altima (2002-2006) utilizes a bypass module adjacent to the brake master cylinder. The module’s yellow wire delivers 12V during cranking, while the black wire grounds through the chassis. Use a test light to confirm power at the yellow wire with the key in “START”–absence of illumination points to a failed clutch interlock switch or neutral safety switch. Clean the module’s mounting surface to ensure proper grounding; paint or rust here causes intermittent failures.
