Complete 2001 Toyota Tundra Electrical System Wiring Diagram Guide
Start with the service manual’s electrical chapter. The factory-issued booklet separates circuits by subsystem–powertrain, lighting, instrumentation–with color-coded conductors and terminal designations. Verify harness paths behind the instrument cluster and under the driver-side kick panel first; 90 % of open circuits trace back to brittle insulation there.
Use a digital multimeter set to continuity mode. Probe both ends of the suspect wire while wiggling the harness–intermittent breaks often reveal themselves under mechanical stress. If readings fluctuate, slice the sheath lengthwise to expose copper strands, then solder and heat-shrink a jumper directly onto the conductor instead of relying on crimp connectors.
For aftermarket upgrades–trailer brake controllers, auxiliary lights–grab the pin-out diagram for the factory trailer connector. It lists fused circuits (30 A for stop/tail fuses, 10 A for turn signals) and pin assignments (pin 8 → backup lamp, pin 6 → tail lamps). Cross-reference these specs with real-world amp draw: LED bars usually pull 8–12 A, so tap into the existing fuse block via a mini fuse tap rated at 15 A minimum.
Digital repositories organize schematics by major assembly: chassis diagrams cover body ground lugs near the transmission tunnel, while engine compartment foldouts map injectors, ignition coils, and 4WD solenoids. Zoom to the component level first–diagnosing a single misfire? Isolate the coil ground wire (black/yellow stripe) leading from the ignition control module.
Color codes on the fuse block legend dictate conductor sizing: orange wires handle 50 A, red 30 A, blue 15 A. Overlook this detail and you risk melting the harness when splicing high-draw accessories. Always solder splices and insulate with adhesive-lined heat shrink–electrical tape degrades within two seasons.
Complete Electrical Schematic Reference for Early Full-Size Pickup
Locate the main fuse box under the instrument panel on the driver side–remove the lower dash cover by unscrewing the 10mm bolt near the kick panel to expose the 32-circuit relay center. Label each connector with masking tape using the factory numbering system (e.g., “1G” for gray 16-pin harness). Verify continuity with a multimeter set to 200 ohms before reconnecting; resistance above 0.5 ohms indicates corroded terminals requiring contact cleaner and dielectric grease application.
Trace the vehicle-speed sensor circuit (VSS) starting at pin 14 of the gray ECM harness (label “TC”) following the single violet wire down the steering column to the transmission case. This path intersects three connectors: near the firewall (white 8-pin), beneath the transmission tunnel cover (orange 6-pin), and directly above the differential (black 2-pin). Cross-reference each splice point with schematics 771-773 in the official repair manual–discrepancies often stem from aftermarket trailer harness installations disturbing the factory twist.
Replace the ignition switch if cranking produces a single click from under the hood–inspect the starter solenoid S-terminal (red/white wire) for voltage during key-turn using a non-contact probe. Absence indicates a failed fusible link (10mm blue stripe) located 12 inches behind the battery tray; splice in a 20-gauge copper jumper only after verifying the alternator’s B-terminal (thick yellow wire) outputs 13.8-14.4V at 2,000 RPM with all accessories off.
Locating the Authentic Electrical Schematic for Your Early Pickup
Start with the manufacturer’s technical information service at techinfo.toyota.com. Registration requires a fee, but the platform hosts the original factory manuals, including the complete harness layout for all trim levels–SR5, Limited, and pre-runner. Enter your VIN to filter results precisely to the exact build configuration, eliminating guesswork for relays, ground points, and splice connectors.
Visit the ALLDATA DIY portal as a cost-effective alternative. Subscribers gain full access to factory-grade schematics, color-coded circuits, and pin-out details for engine bays, dash clusters, and trailer harness connections. Use the year-make-model search tool to isolate the correct document set–cross-reference diagrams with the component location charts to verify wire gauges and insulation colors.
Explore enthusiast-maintained archives like Tundra Headquarters for downloadable PDFs scanned from original service manuals. These files often include annotated versions, marking common failure points in the fuse block, ignition switch, and rear lighting circuits. Check the forum threads for user-uploaded corrections or updates to legacy diagrams that may contain OCR errors.

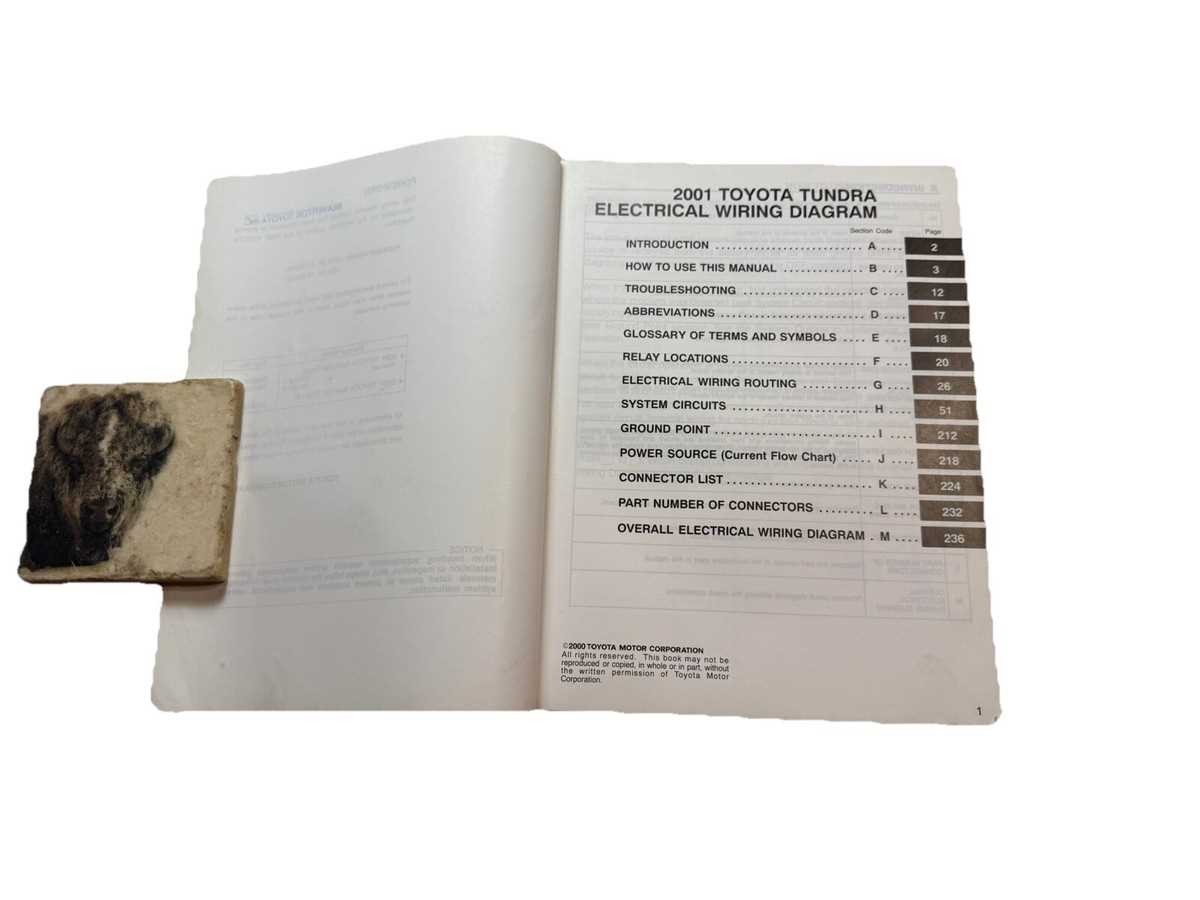

Local dealership parts departments maintain physical or digital copies of the official EWD (Electrical Wiring Diagram) manual as part of their repair documentation library. Request part number EWD375U–this binder includes every circuit, from the 4.7L V8 ECM pin-outs to the 4WD actuator wiring. Some dealers offer a one-time PDF export for a nominal fee, bypassing subscription platforms entirely.
Salvage yards specializing in Japanese pickups–particularly those catering to export markets–frequently archive original service literature. Operators like Car-Part.com or Pick-N-Pull may have retained manuals from donor vehicles. Inquire about the availability of the RM1142U repair manual volume, which supplements the harness diagrams with troubleshooting flowcharts for parasitic draws and intermittent shorts.
Print media repositories like eBay or Amazon occasionally list the original EWD manual as a standalone CD or printed booklet. Search using the ISBN 0855017245 or keywords like “factory harness schematic” paired with the model code VXU10L. Verify seller ratings to confirm scans are legible–especially for fine-print details in the anti-lock brake and cruise control modules.
For off-road or aftermarket modifications, third-party publishers like Haynes or Chilton produce simplified wiring guides that distill complex circuits into actionable steps. While lacking the granularity of OEM diagrams, these resources include practical tips for bypassing damaged harness sections or integrating auxiliary lighting–useful for DIYers without access to proprietary schematics.
Decoding Color Patterns in Vehicle Electrical Systems
Locate the primary ground points first–these are typically black conductors or striped black/yellow cables in most pickup electrical schematics. Trace these back to their chassis or engine blocks to verify integrity before inspecting any other circuit.
Single-color wires (solid purple, green, or brown) usually indicate main power feeds or sensor outputs. Identify their connectors by function:
- Solid red: constant 12V supply
- Solid yellow: ignition-controlled power
- Solid blue: lighting circuits
Cross-reference these with fuse allocation charts to isolate potential shorts before probing further.
Interpreting Stripes and Traces
Two-colored cables combine base hues with thinner stripes (e.g., white/red, black/orange). The stripe color dictates purpose:
- White stripe: signal or data lines (ECU communication)
- Red stripe: high-current paths (starter, alternator)
- Blue stripe: secondary lighting functions
- Green stripe: sensor inputs (O₂, throttle position)
Probe striped conductors at their connection points only–mid-span splicing risks damaging brittle insulation.
For harnesses routed to the dash cluster, note that pink/black and pink/white pairs handle different temperature ranges of the gauge sender circuit. Swap these accidentally and risk incorrect coolant readings on the instrument panel.
Troubleshooting Crossed Circuits
Use a multimeter on continuity mode to confirm suspected misroutes. A common fault pattern emerges when:
- A solid blue wire energizes when brake lights activate (correct)
- A blue/white parallel line shows voltage only when turn signals pulse (crossed)
Document each test point’s voltage in both key-on and accessory positions–transients often reveal intermittent shorts.
For airbag connectors, orange leads with blue stripes strictly denote deployment circuits. Never probe these directly; static discharge can trigger false activation codes. Instead, scan for diagnostic trouble codes using an OBD-II reader if system faults appear.
When replacing sections of harness, maintain original stripe orientation–reversing base and trace colors can create phantom diagnostic errors or inoperative subsystems. Bundle replacements with identical gauge zip ties at 12-inch intervals to match OEM strain relief.
Step-by-Step Guide to Diagnosing Circuit Problems with Schematics
Locate the fault section in the vehicle’s electrical blueprint by identifying the component reporting the issue–its connector, fuse, or relay. Trace the path backward from the load (e.g., motor, sensor, or bulb) to the power source, marking each node: battery, ignition switch, control module, and grounds. Use a multimeter set to continuity mode to verify connections between these points. If continuity exists but voltage is absent, check upstream fuses and relays listed in the legend; a blown fuse often correlates with melted terminals or corroded sockets.
Key Test Points and Expected Readings
| Checkpoint | Probe Method | Target Reading | Fault Indication |
|---|---|---|---|
| Fuse output | DC volts, power on | Battery voltage (±0.5V) | |
| Relay coil pins | Continuity, power off | 0 Ω ±0.2 Ω | OL (open circuit) or >5 Ω |
| Ground stud | DC volts, ground reference | >0.5V (resistance) | |
| Connector pin | DC volts or diode test | Full circuit voltage | Voltage drop >0.4V |
Isolate parasitic draws exceeding 50 mA by disconnecting each circuit branch sequentially, monitoring current with a clamp meter or low-amp fuse bypass. Label wire colors per harness codes (e.g., “B” for black, “R” for red) to avoid misrouting during reassembly. If corrosion is visible on terminal 120 (common ground cluster), clean with a brass brush and apply dielectric grease; repeat voltage drop tests after repair. For intermittent faults, wiggle connectors while observing live meter readings–interruptions pinpoint loose pins or fractured wires hidden beneath insulation.
