Step-by-Step Guide to Designing an Inverter PCB Circuit Layout

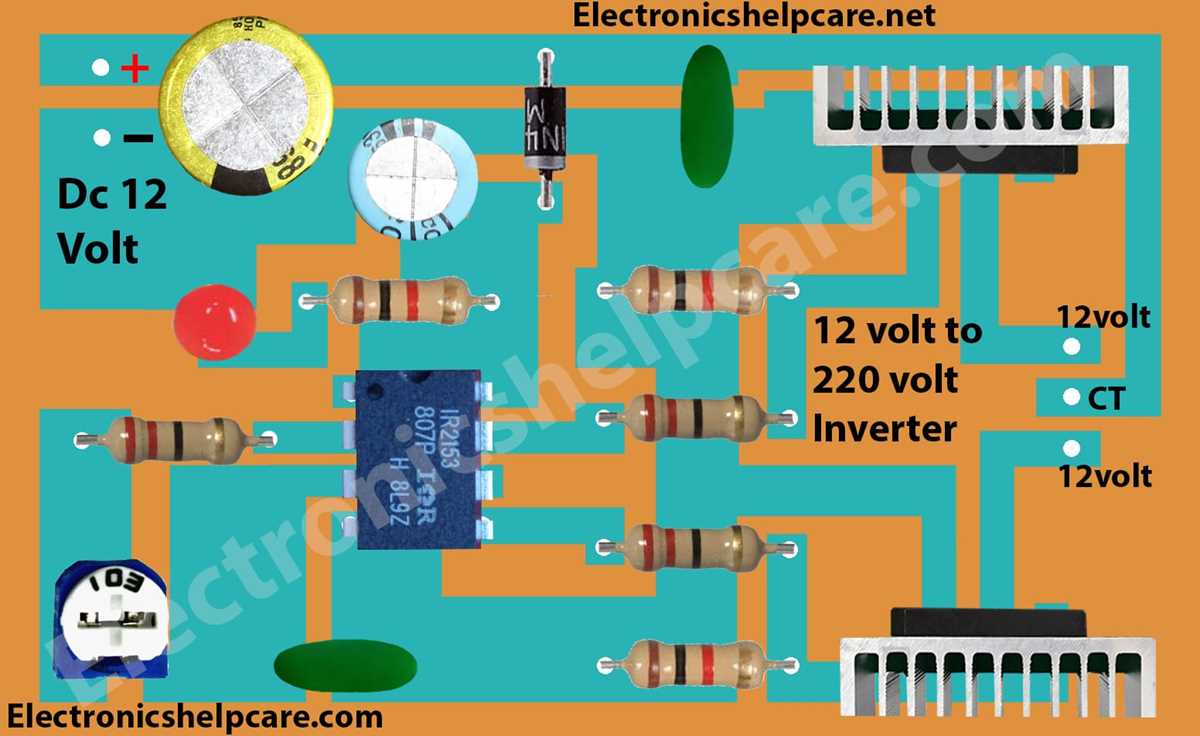

Start with a half-bridge configuration if you need simplicity and cost efficiency. Place two power transistors (MOSFETs or IGBTs) in series, connecting the midpoint to the load. Use 10–47 µF electrolytic capacitors across the DC bus to stabilize voltage ripple–anything below risks instability under varying loads. For PWM control, select a 555 timer IC or a microcontroller like the STM32F103, configured with a switching frequency between 20–50 kHz to balance efficiency and thermal performance.
Ground planes matter. Dedicate a copper fill on the bottom layer for return paths, reducing noise in high-current traces. Keep signal paths under 10 cm where possible; longer routes introduce parasitic inductance, degrading waveform quality. Use snubber circuits (a 10 Ω resistor in series with a 1 nF capacitor) across transistor outputs to dampen voltage spikes–critical for preventing premature component failure.
Thermal management dictates reliability. Mount power devices on heatsinks with thermal adhesive; derate components by 20–30% of their maximum ratings to extend lifespan. For current sensing, opt for a shunt resistor (0.01–0.1 Ω) or a Hall-effect sensor like the ACS712–both avoid voltage drops inherent in series resistors. Route feedback signals separately from power lines; even minor coupling can cause oscillations in closed-loop systems.
PCB trace width calculations are non-negotiable. For a 10 A current, use 2 oz copper with traces at least 2.5 mm wide per ampere. Double-check clearance between high-voltage nodes; 1 mm spacing suffices for up to 100 V, but increase to 2–3 mm for safety margins. Test prototypes with an oscilloscope to verify dead-time settings (typically 1–5 µs)–incorrect values cause shoot-through, destroying transistors.
Gate drivers require isolated supplies for high-side transistors. Choose a bootstrap IC like the IR2110 or a dedicated isolated DC-DC converter for floating supplies. Keep gate resistor values between 10–100 Ω–too low causes ringing, too high slows turn-on/off times. Finally, implement soft-start circuitry (a 10 kΩ resistor and 10 µF capacitor in series to the PWM input) to prevent inrush currents from damaging capacitors during power-up.

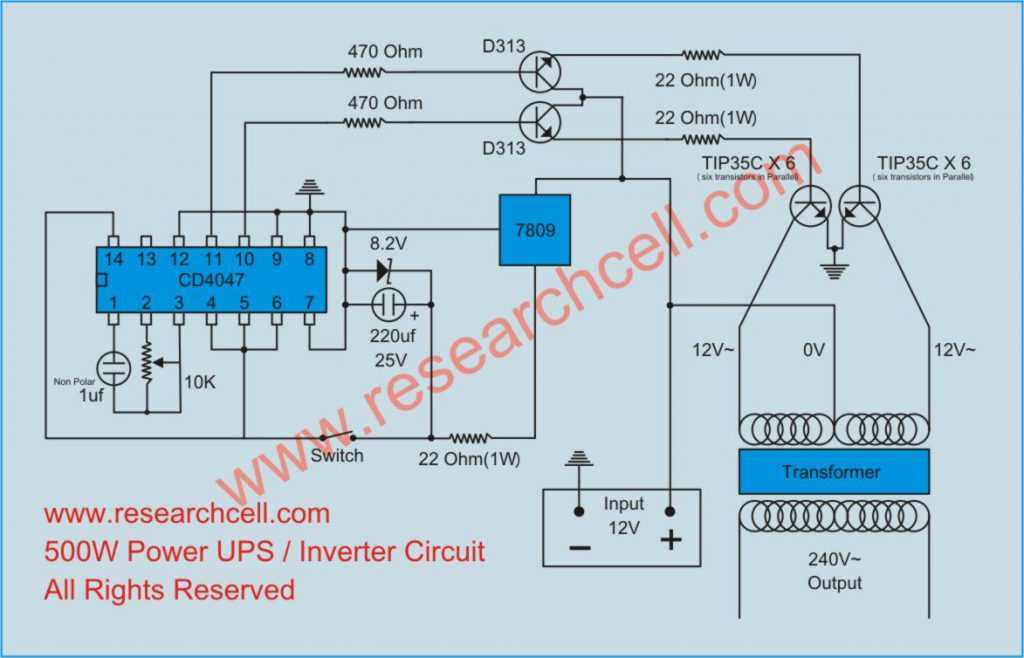

Schematic Layout of Power Conversion Assemblies

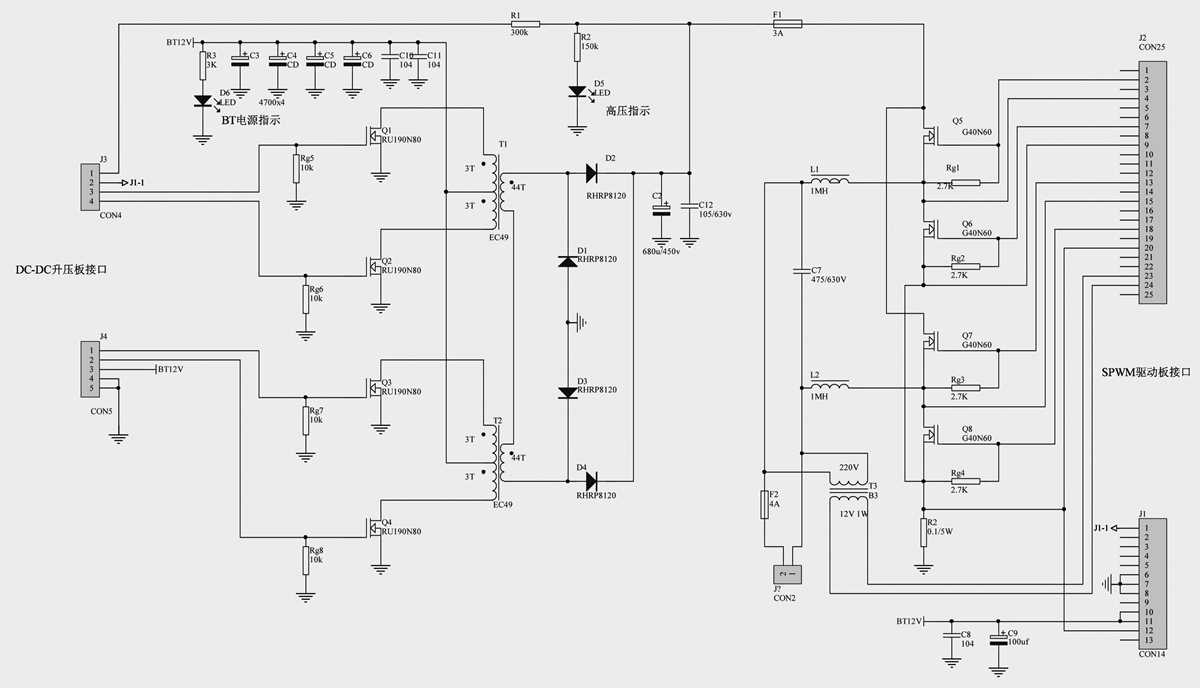

Begin with a high-frequency switching stage–MOSFETs or IGBTs rated for at least 20% above the expected load to prevent thermal runaway. Position gate drivers within 5 cm of switches to minimize parasitic inductance, using dedicated ICs like IR2110 or UCC21520 for isolated configurations. Failure to adhere to this spacing risks erroneous triggering and shoot-through.
Integrate a snubber network–typically a 100nF capacitor in series with a 10Ω resistor–parallel to each semiconductor. This absorbs voltage spikes during transitions, extending component lifespan by up to 40%. For 3-phase designs, distribute snubbers evenly across legs to maintain symmetry in transient responses.
Select capacitors with low ESR (equivalent series resistance) such as film or ceramic types for DC-link stabilization. A 47μF polypropylene capacitor withstands pulse currents better than electrolytic alternatives, though bulk capacitance may require paralleling units. Place these as close as possible to the switching elements to suppress ripple exceeding 2% of the nominal voltage.
Opt for a planar magnetic transformer over toroidal cores if space constraints apply–PCB-embedded windings reduce leakage inductance by 15-25% but demand precise layer stackup to avoid saturation. Use Litz wire for frequencies above 50kHz to mitigate skin effect losses, ensuring wire gauge corresponds to RMS current with a 30% safety margin.
Implement galvanic isolation via optocouplers (e.g., HCPL-3120) or digital isolators (ADuM3223) for gate signals. Signal traces carrying PWM must be routed on inner PCB layers shielded by ground planes to prevent EMI coupling, with a clearance of at least 0.5mm from high-current paths. Test isolation resistance post-assembly; values below 1MΩ indicate compromised creepage distances.
Incorporate a soft-start sequence to limit inrush current–use a PTC thermistor or an NTC resistor in series with the input, bypassed by a relay after 100ms. For microcontroller-driven units, program a ramp-up profile with 1ms resolution to avoid overshooting the target output voltage. Omitting this risks tripping upstream breakers or damaging input capacitors.
Validate the layout with thermal imaging–hotspots exceeding 85°C at ambient 25°C signal inadequate heat sinking or poor solder joints. Use vias (minimum 0.3mm diameter, 1mm pitch) to conduct heat from surface-mounted devices to a copper pour on the opposite side. For outdoor applications, conformal coating (acrylic or urethane) adds 2-3°C overhead but prevents corrosion in humid environments.
Component Placement Priorities
Prioritize proximity between control ICs (e.g., UC3845) and feedback loops–keep sense resistors within 2cm to reduce noise pickup. Analog ground should be star-connected at a single point, separated from power ground until the output stage. Trace widths for currents above 5A must follow IPC-2221 guidelines: 1oz copper requires 0.4mm width per ampere for internal layers, 0.2mm per ampere for external layers.
Testing Protocols
Measure efficiency at 20%, 50%, and 100% load using a power analyzer with 0.1% accuracy. Harmonics beyond the 39th should not exceed 1% THD. Verify no-load voltage stability by toggling the enable pin; output fluctuations over 0.5% indicate insufficient decoupling. Log transient response to a 50% load step–settling time within 1ms confirms adequate compensation in the feedback loop.
Key Components of a Basic Power Conversion Assembly Layout
Prioritize placement of the switching transistors as the core of the design. Position them within 10mm of the control IC to minimize inductance and resistive losses in gate drive paths. Use thick, short traces (minimum 35μm copper for currents above 5A) to connect emitters/sources directly to the DC bus negative terminal, avoiding vias where possible. Bipolar transistors (IGBTs) demand heat sinks with thermal resistance below 1°C/W for 150W+ loads; MOSFETs handling high frequencies (50kHz+) require a ground plane beneath to manage parasitic capacitance.
| Component | Trace Width (A/mm) | Clearance (mm) | Vias (Min. Diameter) |
|---|---|---|---|
| DC Bus (10A) | ≥1.5 | 0.5 | 0.6 |
| Gate Drive (≤3A) | 0.3 | 0.2 | 0.3 |
| Output (20A RMS) | ≥3.0 | 1.0 | 0.8 |
Snubber networks must sit adjacent to switching elements–RC pairs (e.g., 10Ω + 0.1μF) directly across collector-emitter or drain-source to suppress voltage spikes; position them no farther than 5mm from the transistor leads. For filtering, place capacitors (X7R dielectric, 100nF–1μF) at both the DC input and AC output, within 15mm of the converter’s switching stage. Ensure control circuitry–pulse-width modulator (PWM) IC, gate drivers, and feedback loops–occupies a dedicated, low-noise zone with ground isolation (star grounding) to prevent coupling; keep analog signals (e.g., voltage sensing) on inner layers if using a 4-layer substrate.
Step-by-Step Wiring Guide for MOSFET-Based Power Converters
Begin by confirming the DC supply voltage matches the breakdown rating of your selected switching components–typically 20V–100V for low-power setups. Use a precision multimeter to measure input voltage at the MOSFET gate driver pins; verify it sits within 10–12V of the source voltage to avoid incomplete switching. For high-side configurations, ensure the bootstrap capacitor charges fully before gate activation–observe at least 200ns of delay after power-up.
Gate Driver Connections
Connect the gate driver’s output directly to the MOSFET gate, keeping traces under 2cm to minimize inductance. Use star grounding: tie the driver’s ground, source terminal, and any bypass capacitors to a single copper pour beneath the switching device. For driver ICs like the IR2110, link the HO and LO pins through low-ESR decoupling caps (100nF ceramic) positioned no farther than 3mm from the driver’s supply pins. If thermal runaway occurs, replace the caps with 1µF tantalum types rated for at least 50V.
Add snubber networks across drain-source terminals only if switching frequencies exceed 50kHz–calculate values using Rs = √(L/C) and Cs = 1/(2π·f·Rs), where L is stray inductance (≈20nH for 1.5mm traces). For 100kHz operation, typical values are Rs = 10Ω and Cs = 1nF. Omit snubbers for frequencies under 50kHz unless ringing amplitude surpasses 20% of the peak DC voltage.
Test the assembly with an oscilloscope: probe gate-source voltage first (should resemble clean 10V–12V trapezoid waves), then drain-source transitions. Expect rise/fall times under 50ns for 60V MOSFETs (e.g., IRF540N). If waveforms show overshoot above 15%, reduce gate resistor by 2Ω increments or add a 1N4148 diode in parallel with it, cathode toward the gate. Log thermal data after 5 minutes of operation–case temperature must stay below 85°C for TO-220 packages to prevent derating.
Critical Errors to Prevent in Power Conversion Layouts
Avoid placing high-current traces adjacent to low-voltage control lines without proper shielding. Even minor electromagnetic interference can distort signal integrity, causing gate drive malfunctions or erratic switching behavior. Maintain at least 5mm separation between power paths and logic paths, or use guarded traces with grounded copper pours to reduce cross-talk. Failure to do this often leads to unpredictable efficiency drops up to 15% in high-frequency designs.
Thermal Vias and Component Spacing Pitfalls
Ignoring thermal dissipation requirements for power semiconductors guarantees premature failure. Each MOSFET or IGBT pad must include an array of thermal vias (0.3-0.5mm diameter) connecting to an internal or bottom ground plane. Space components so that no single device exceeds 80°C under full load–exceeding this accelerates degradation, cutting lifespan by half. Never cluster switching elements closer than twice the device width; thermal coupling between adjacent parts reduces cooling efficiency by 30%.
Overlooking parasitic inductance in gate drive loops creates voltage spikes that exceed safe operating limits. Keep gate traces shorter than 50mm and match their lengths to prevent timing mismatches. Use Kelvin connections for current sensing resistors to eliminate measurement errors introduced by trace resistance. A single overlooked via or sharp trace corner can introduce inductance values above 10nH, causing overshoot sufficient to damage gate oxide layers in under 100 nanoseconds during transitions.
