Complete Wiring Diagram for 2002 Chevy Blazer Radio Installation Guide

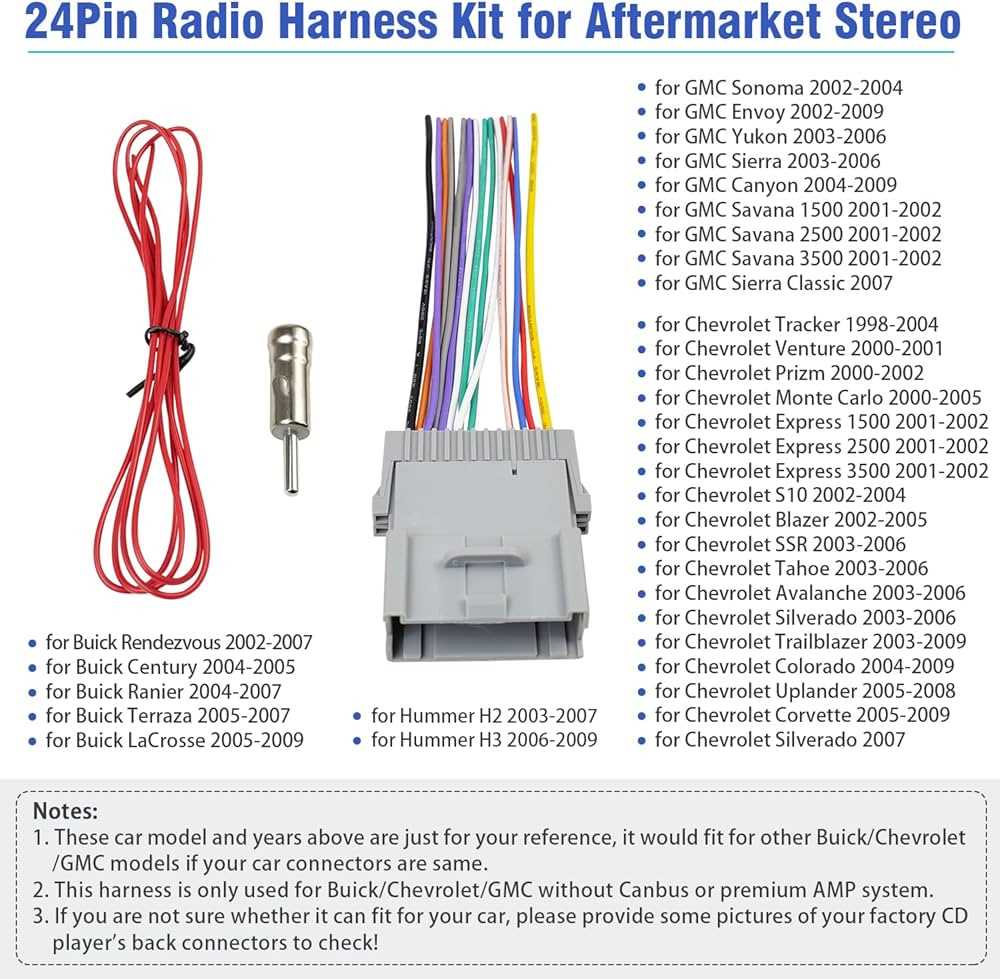

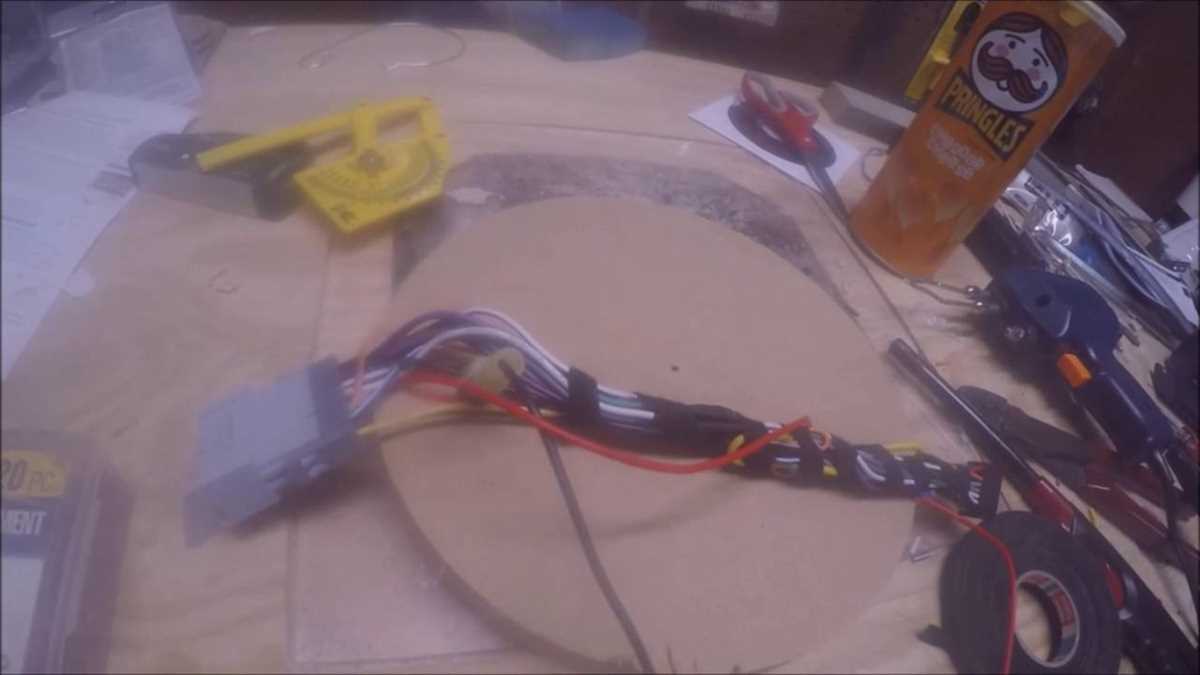

Begin by locating the aftermarket harness adapter or OEM connector behind the dashboard center stack. Pin assignments follow a standardized color code: yellow (constant 12V+), red (switched ACC), black (ground), and orange (illumination/dimmer). Verify power continuity with a multimeter before splicing–resistance exceeding 0.5 ohms indicates corroded terminals requiring cleanup with contact cleaner or sandpaper rework.
Factory speaker outputs utilize twisted pairs: gray/black (front left +/−), tan/brown (front right +/−), light green/puple (rear left +/−), and dark green/violet (rear right +/−). Connect these directly to amplifier inputs without inline resistors; impedance mismatches (below 2 ohms) will trigger protection mode in aftermarket receivers.
For remote turn-on wire (blue/white), tie to a fused (1A) 12V source only when the ignition cycle activates–alternative is tapping the ACC circuit near the fusebox’s C2 connector, contact #18. Avoid daisy-chaining to wiper or HVAC circuits to prevent voltage drop during high-current loads (e.g., subwoofer peaks).
Ground connections demand affixing to bare chassis metal using star washers and dielectric grease; test paths should show continuity below 0.1 ohms. If static persists, reroute antenna lead directly to the receiver’s coaxial input–original coax often degrades due to heat exposure near the firewall pass-through.
Optional steering wheel control integration requires a dedicated decoder module; identify the data bus wire (usually white/black in the driver door harness) and connect to the module’s yellow input, then program button mappings via manufacturer-specific sequences (typically holding buttons 1–3 simultaneously).
Electrical Connections for Factory Sound System in Mid-Size GM SUV

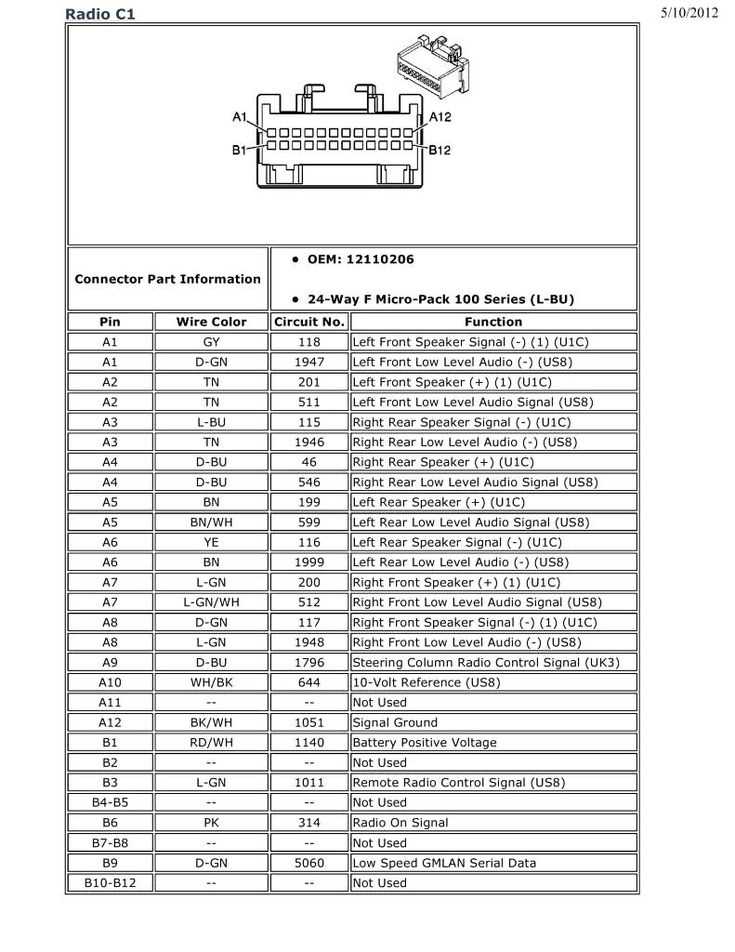

Locate the 12-pin harness behind the dash panel adjacent to the climate control module – pin assignments follow this sequence: A1 (constant 12V), A4 (ground), A5 (illumination), A6 (left front speaker +), A7 (left front speaker –), A8 (right front speaker +), A9 (right front speaker –), B1 (antenna trigger), B3 (speed signal), B4 (memory keep-alive), B5 (right rear speaker +), and B6 (right rear speaker –). Verify each connection with a multimeter set to DC voltage; readings should exceed 11.8V on power lines and drop below 0.3V on speaker wires when idle.
For aftermarket integration, splice leads only at the harness side, never at the head unit – factory connectors crimp better and prevent intermittent shorts. Use this reference table when reconnecting or troubleshooting:
| Wire Color | Function | Test Voltage |
|---|---|---|
| Yellow | Battery feed (constant) | 12.0-14.5V |
| Black | Chassis ground | 0V |
| Orange | Dimmer control | 1.5-12.0V (varies with dash lights) |
| Light Green | LF speaker positive | 0.1-0.5V AC (audio signal) |
| Dark Green | RF speaker negative | 0±0.3V DC |
| Gray | RF speaker positive | 0.1-0.5V AC |
| Light Blue | Antenna amplifier | 12V when unit powered |
When soldering extensions, apply heat-shrink tubing over each joint and seal with adhesive-lined sleeves rated for 105°C – avoid electrical tape due to long-term adhesion failure. Always disconnect the negative battery terminal before handling any wires to prevent airbag deployment faults; reconnect only after verifying no bare copper remains exposed.
Finding the Right Audio System Plug for Your Model Year SUV

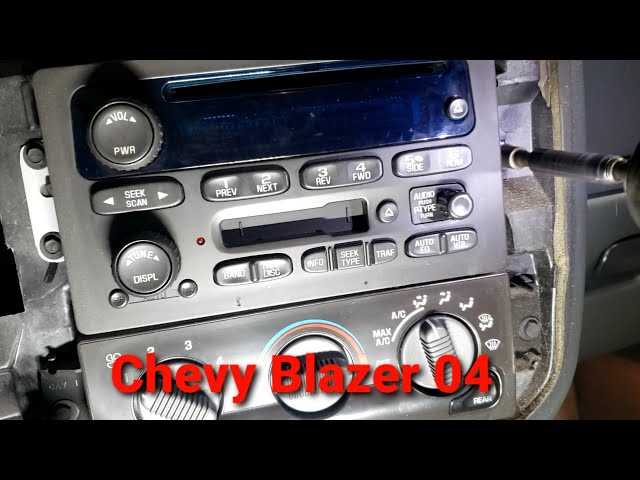

Start by identifying the main harness behind the dashboard cluster. On the left side, adjacent to the climate controls, locate a 12-pin gray connector labeled “C2” or “A11” – this is the primary interface for power, ground, and speaker outputs. For newer stereo installations, verify pin assignments: pins 1-4 handle front and rear left channels, while 5-8 serve the right side. Pin 9 delivers constant 12V power, 10 is ignition-switched, and 12 acts as the illumination lead.
Common Mistakes in Harness Identification
Many replacements fail due to misaligned connectors – avoid forcing plugs with different pin counts. The stock harness often uses a smaller, 8-pin auxiliary plug for amplifier control or CD changer compatibility; ignore this if your new unit lacks these features. Instead, focus on the larger gray connector and cross-reference its pin layout with the replacement device’s manual to prevent reverse polarity or short circuits.
For vehicles with factory premium sound systems, an additional 20-pin connector may hide behind the glove box or center console. This secondary harness integrates the amplifier, subwoofer, or steering wheel controls. Disconnect the battery before probing – use a multimeter to confirm voltage on pins marked “B+” (battery) and “IGN” (accessory) before proceeding. Skip trial-and-error guessing by labeling each wire with masking tape during removal.
Decoding the Electrical Schematic for Your Mid-Size SUV’s Audio Installation
Start by locating the 12-pin connector behind the dashboard’s entertainment unit–the primary interface for signal and power distribution. The first wire, dark blue with white stripe (DB/WT)
- Left front speaker positive (LF+)
- Handles up to 20W RMS at 4 ohms impedance
- Connect directly to corresponding car door tweeter or mid-range
For the right channel mirror, identify dark green with white stripe (DG/WT), matching impedance specs for balanced stereo output.
Power delivery requires two critical cables: yellow (YL) for constant 12V battery feed and red (RD) for accessory/ignition-switched supply. Ensure crimping with gold-plated butt connectors–stranded copper core only–before securing with dielectric grease to prevent oxidation. The red lead must fuse at 10A within 15cm of the battery terminal to comply with FMVSS 302 fire safety standards.
Ground reference is black (BK), typically terminating at chassis point G403 beneath the glovebox. Verify surface prep with 120-grit sandpaper and apply conductive zinc-rich primer if bare metal appears corroded. Resistance should measure <0.2 ohms between ground eyelet and negative battery post.
Amplifier turn-on signal rides on light blue (LT BLU), activating aftermarket processors or subwoofer modules. For bypassing factory chimes during ignition cycles, wire a 1N4007 diode in series with the LT BLU lead, cathode facing onboard computer module.
Illumination control uses orange (ORG), dimming in sync with dash lights. Test functionality by toggling parking lamp switch–verify voltage drops from 12V to ~1V across ORG and BK during night mode. If erratic, inspect for open circuits at connector C201 or bulkhead grommet G102.
Antenna motor drive is pink (PNK), extending or retracting the power mast. For vehicles with fixed antennas, terminate PNK to chassis ground through a 1kΩ resistor to prevent fault codes B0022-4B. Signal reception feeds via gray (GRY), requiring RG-58 coaxial splice for aftermarket satellite tuners.
Data communication operates on tan with black stripe (TN/BK) (Class 2 serial bus) and white (WT) (low-speed CAN). Avoid splicing these unless interfacing compatible OEM integration modules–excessive load disrupts TCM or PCM communication, triggering DTCs U1000-U1200. For retrofits, use a dedicated inline noise filter (Murata NFE61PT472C1H9L) rated for 500mA continuous draw.
Pinpointing Power, Ground, and Audio Leads in the Factory Stereo Harness
Locate the 12-volt constant power line–it’s the yellow wire exiting the harness near the top-right connector, diameter thicker than signal wires, retaining voltage when ignition is off. Test with a multimeter set to DC 20V: probe the wire against chassis ground; readings should hold steady at 12.4–13.2 volts without fluctuation.
- Red wire (switched 12V) cuts power when ignition turns off–critical for memory retention in aftermarket units. Confirm by switching ignition on/off while probing; voltage should appear/disappear instantly.
- Black wires serve as ground return; typically bundled together in pairs. Scrape surface oxidation before testing continuity to chassis–resistance below 0.5 ohms required.
- Orange (dimmer) or orange-striped wire adjusts display brightness when headlights activate; measure voltage drop from 12V to ~8V under dim conditions.
Speaker leads follow a consistent polarity pattern: solid-color wires (gray, green, purple, white) carry positive signal, paired with adjacent stripped variants (gray/black, green/white, etc.) for negative. Use a 9V battery to briefly touch wire pairs–audible click confirms correct pairing while reversing polarity produces no sound or faint hum.
Factory harness connectors utilize ISO-standard layout: upper row (A) carries power/control lines, lower row (B) handles speaker outputs. Probe each pin with ignition on–speakers should emit static when touched, while power pins reveal voltage. Note pin positions for reference: A4 (yellow), A7 (red), B1/B2 (front left), B5/B6 (rear right).
For rear speaker verification, trace wires beneath rear deck panel–solid tan and tan/black wires feed the right speaker; gray and gray/black serve the left. Check impedance with a multimeter (4–8 ohms expected); values outside range indicate shorted/broken wire or damaged driver.
Essential Gear for Safely Inspecting Your Vehicle’s Audio System Connections
Begin by equipping yourself with a multimeter calibrated for automotive use. Models like the Fluke 88V or Innova 3320 provide accurate voltage, resistance, and continuity readings, critical for diagnosing power delivery issues without guessing. Avoid cheaper alternatives that lack diode testing or true RMS capabilities–they’ll waste time and risk misdiagnosis. Set the dial to 20V DC for most circuits; higher ranges can mask low-voltage fluctuations.
A non-contact voltage tester (such as Klein Tools NCVT-3) prevents accidental shorts while probing live circuits. Run it along harnesses before disconnecting any connectors–even “dead” wires can surge if a relay sticks or a capacitor discharges. Pair this with insulated screwdrivers (Phillips #2 and flathead 3/16″) to pry apart dash panels without damaging plastic clips or gouging vinyl. Opt for tools with fiberglass handles; they resist static and won’t conduct stray current.
LED circuit testers (like the Sperry STK001) verify signal paths faster than a multimeter. Plug the probe into accessory sockets–if the light illuminates, the wire is active; no glow means an open circuit or dead fuse. For splicing or repairs, use heat-shrink tubing (minimum 3:1 shrink ratio) instead of electrical tape–it seals moisture out permanently. A butane-powered heat gun (not a lighter) ensures even shrinkage without scorching wires.
Keep fuse pullers (plastic, not metal) and a spare fuse kit (10A, 15A, 20A) in your toolkit. Many audio systems share circuits with turn signals or instrument clusters; a blown fuse often disguises itself as a “no-power” issue. Label each fuse with painter’s tape and note its amperage before removal–blindly swapping fuses can fry modules. For stubborn connectors, apply dielectric grease (Permatex 22058) to repel corrosion after reconnecting; petroleum jelly dissolves over time and attracts grime.
A wire stripper with built-in crimper (Klein Tools 11063) streamlines repairs, but ensure it’s rated for 18-22 AWG wire–thicker gauge risks nicking strands, leading to brittle failures. For tracing hidden wires behind the dash, a flexible inspection mirror (8mm head) and mechanic’s light (magnetic base, 120 lumens minimum) eliminate guesswork. Avoid “clip-on” work lights–they detach under vibration and cast shadows that obscure small connectors.
Static-dissipative gloves (nitrile, not latex) prevent ESD damage to sensitive circuits, especially in dry climates. Even minor static shocks can corrupt firmware in integrated amplifier modules. Finally, document every step with a digital camera before disassembly–photos of connector orientations save hours during reassembly. Store removed fasteners in a magnetic tray; dropped screws often lodge behind HVAC ducts, requiring partial dash removal to retrieve.
