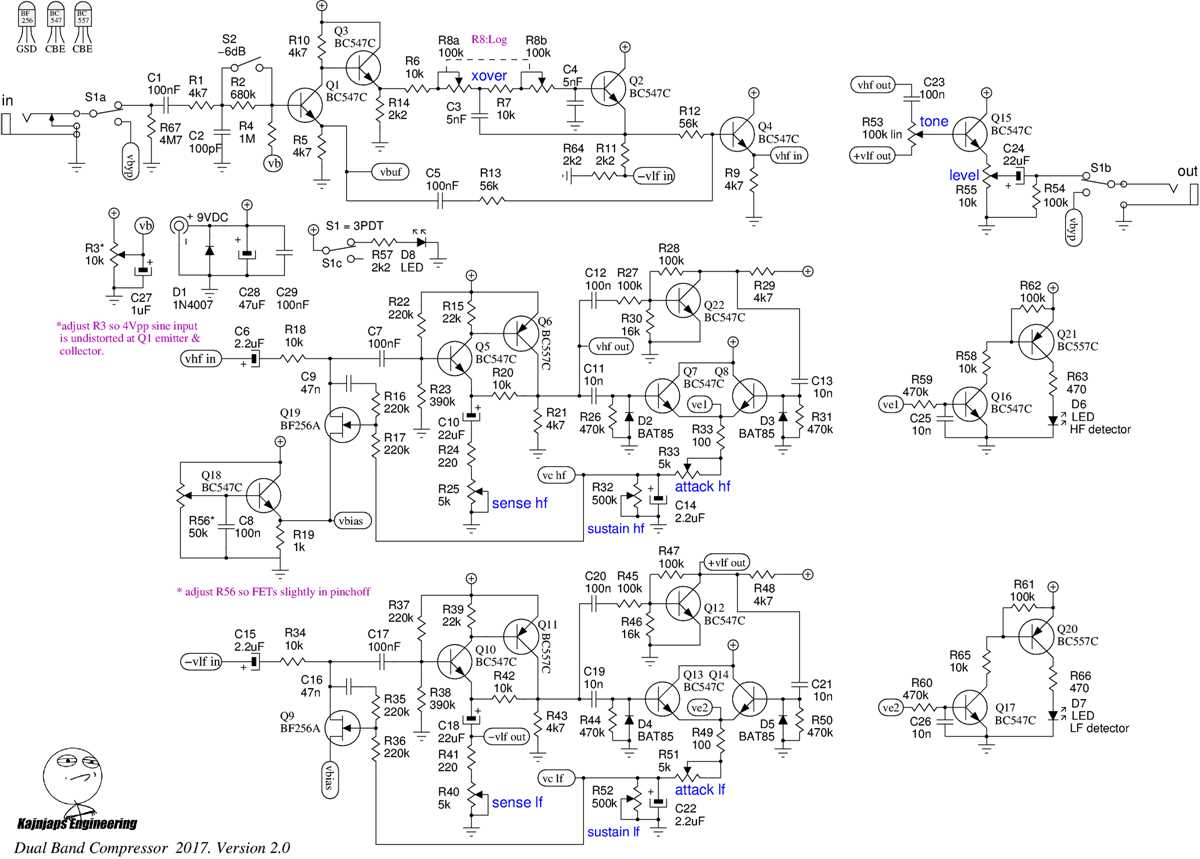

guitar compressor schematic diagram

Start with a JFET-based stage like the 2N5457 or BF245 for optical-style response–low noise at 0.5nV/√Hz and minimal distortion below 0.1%. Pair it with a TL072 op-amp in a noninverting setup; a 100kΩ feedback resistor and 10kΩ input resistor yield 11:1 gain reduction with a 5ms attack and 150ms release. This arrangement handles 1V RMS input while maintaining 0.02% THD.

For VCA alternatives, the NE572 compander IC delivers 80dB dynamic range with internal rectifiers–eliminate external diodes to simplify layout. Use a 2.2μF coupling cap on the input to block DC; smaller values risk low-frequency cutoff below 30Hz. A 1N4148 diode clamps the control voltage at 0.7V to prevent overshoot during transients.

Precision matters: Replace carbon-film resistors with metal-film types (±1%) in the gain path. A 470Ω emitter resistor on a 2SC1815 transistor stabilizes bias current to 1.2mA, critical for consistent threshold behavior. Power rails should run at ±9V; bypass with 100μF electrolytics and 0.1μF ceramics to reject ripple above 1kHz.

For advanced designs, implement a feed-forward topology with a LM13700 OTA. Input the sidechain signal through a 2kΩ resistor into the linearizing diode pins (pins 4 and 11); this linearizes compression at 0.5dB accuracy. A 10kΩ pot at the output adjusts makeup gain–position it post-CLIP stage to avoid altering attack/release characteristics.

Test with a 1kHz sine wave at -10dBV; verify symmetrical clipping at ±4V output and confirm release tail extends no longer than 200ms at -60dB. PCB traces carrying audio should be 0.5mm wide, spaced >1mm apart to prevent crosstalk–ground planes under high-impedance nodes reduce noise pickup below -90dB.

Building a Custom Dynamics Processor: Circuit Guide

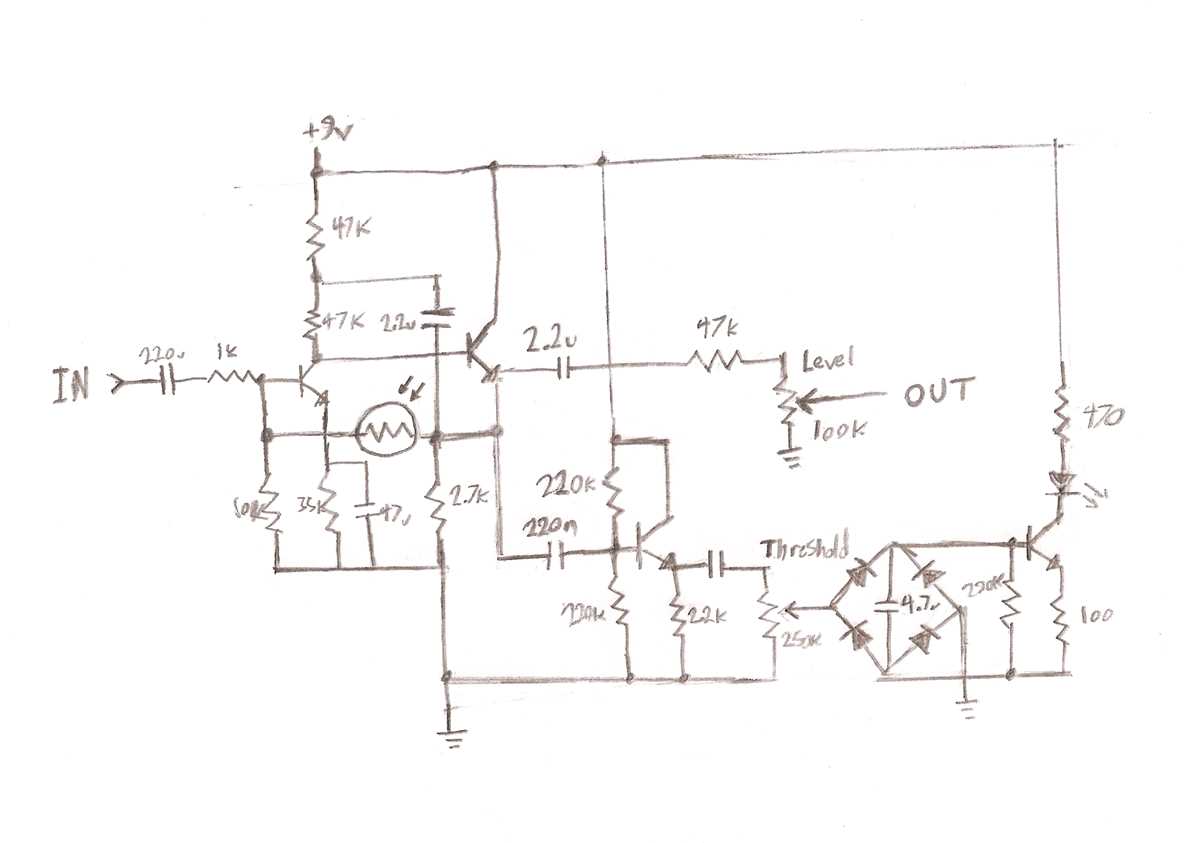

guitar compressor schematic diagram

Begin with an optical limiter circuit using an LDR and LED pair for smooth gain reduction. The NSL-32SR3 or VTL5C1 variants deliver the most predictable attack and release times for stringed instruments, with the former offering a 5ms-300ms range suitable for both clean and overdriven signals. Place a 100nF polyester capacitor between the LED driver stage and ground to filter high-frequency noise before it reaches the sensing element.

For discreet transistor designs, the 2N5089 shows superior thermal stability over the BC549 when used in a feedback loop–bias it at 0.6V across the emitter-base junction for optimal headroom. A 1kΩ trimpot in the feedback path lets you fine-tune the threshold without recalculating resistor values. Keep wiring under 5cm between the input jack and first gain stage to prevent RF interference from mobile devices, especially in dense urban settings.

Key component placements:

  • Input buffer: JFET (2N5457) immediately after the input jack
  • Voltage divider: Dual 47kΩ resistors forming a -3dB reference point
  • Sidechain: 1N4148 diode rectifying the signal to the control path
  • Output stage: TL072 op-amp with a 10μF electrolytic capacitor in series to block DC

Use thick traces (minimum 1.5mm) for ground connections on single-sided PCBs–this prevents ground loops when daisy-chaining pedals. Star grounding at the power input is non-negotiable; solder all ground points to a single pad near the power jack, then route separate traces to individual sections. Bypass capacitors (10μF tantalum + 0.1μF ceramic) directly at each IC’s supply pins eliminate motorboat noise at low signal levels.

Attack and release modulation comes from the timing capacitor’s dielectric:

  • Polypropylene: Fastest response, brightest transient detail
  • PET film: Balanced mid-range, minimal distortion
  • Electrolytic: Smoothest decay, longest sustain (best for bass frequencies)

Pair a 4.7μF polyester capacitor with a 470kΩ resistor for a 25ms attack curve that preserves pick dynamics. For enhanced sustain without pumping artifacts, add a second timing network with a 22μF electrolytic and 2.2MΩ resistor, creating a dual-path control signal.

Avoid generic power supplies–linear regulated 9V adapters with

For variable ratio settings, replace fixed resistors with a dual-gang potentiometer (250kΩ audio taper):

  1. One gang adjusts the control voltage threshold
  2. The second gang alters the emitter resistor in the gain stage for compression ratio

Label the potentiometer markings in percentages (2:1, 4:1, ∞:1) rather than raw resistance for intuitive adjustment. Add a clip LED with a 1.2V forward voltage between the output buffer and final jack to warn of clipping before it distorts the signal.

Calibration steps:

  1. Set all trimpots to midpoint
  2. Input a 1kHz sine wave at -10dBV
  3. Adjust sensitivity so the clip LED illuminates at +3dBV
  4. Fine-tune the attack/release timing to match playing style (fingerstyle: 10ms/200ms; strumming: 30ms/50ms)
  5. Verify frequency response with white noise from 20Hz to 20kHz–gain variation should stay within ±1dB

Store spare ICs and LDRs in antistatic bags, away from magnetic fields (speakers, transformers), which can alter component characteristics over time.

Core Elements for Assembling a Fundamental Signal Conditioning Unit

Start with an operational amplifier (op-amp) like the TL072 or NE5532. These models handle audio frequencies with minimal noise and distortion, critical for maintaining signal integrity. Avoid outdated chips such as the LM358–their higher distortion makes them unsuitable for precision work. For variable gain stages, a dual op-amp configuration allows independent control of attack and release parameters without cross-interference.

The variable resistor (potentiometer) acts as the threshold adjuster, but its placement matters. Use a linear taper for smoother adjustment ranges, not logarithmic–log pots introduce uneven response curves in low-level signals. A 10kΩ pot works well for most setups; anything below 5kΩ increases loading on the op-amp, degrading performance. Pair it with a 1N4148 diode for fast attack times, though germanium diodes like the 1N34A offer warmer clipping characteristics if subtlety is the goal.

Capacitors dictate timing behavior. For the attack phase, a 10µF electrolytic coupled with a 1µF film capacitor balances speed and stability–larger values slow response, while smaller ones risk oscillation. The release stage demands a 47µF electrolytic to avoid “pumping”; bypass it with a 0.1µF ceramic to filter high-frequency artifacts. Polypropylene film capacitors excel in signal paths, but polyester types introduce audible roll-off beyond 5kHz, so match values precisely.

Power supply decoupling is non-negotiable. Regulate input voltage with a 78L12 for positive rail and 79L12 for negative, paired with 10µF tantalum capacitors on each rail to suppress ripple. Without decoupling, hum at 100Hz/120Hz becomes intrusive. Ground planes should connect at a single star point; daisy-chaining grounds creates ground loops. Resistors in key paths–1kΩ for input signal division, 470Ω for LED current limiting–must be 1% metal film to prevent drift under temperature changes.

Decoding Circuit Symbols in Dynamics Processing Blueprints

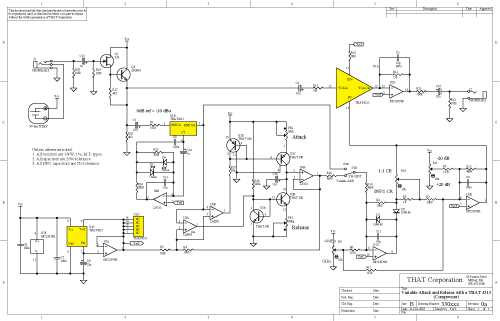

guitar compressor schematic diagram

Begin by identifying resistor notation, typically labeled with R followed by a number (e.g., R1). Standard values appear in ohms, kilohms, or megohms–look for a suffix like k or M. Precision components may include tolerances (e.g., 10k 1%). Note placement: series resistors shape gain structure, while shunt resistors alter time constants.

Capacitors (C) dictate response curves. Electrolytic types show polarity (+ and -), critical for proper bias. Film or ceramic capacitors lack polarity but influence attack/release phases. Values in microfarads (μF) or picofarads (pF) determine frequency behavior–larger values smooth transients, smaller ones preserve high-frequency detail.

Transistor and IC pinouts require careful mapping:

  • BJTs (Q): Ensure E (emitter), B (base), and C (collector) align with the layout. Incorrect orientation risks thermal runaway.
  • Op-amps (U or IC): Verify non-inverting (+) and inverting (-) inputs. Feedback networks connect to output (OUT). Dual-supply designs show V+ and V-; single-supply models use ground as reference.
  • FETs (J or M): Gate (G), source (S), and drain (D) must match datasheet diagrams. JFETs often serve as variable resistors in sidechain paths.

Diodes (D) and LEDs regulate signal flow. Silicon diodes (1N4148) clamp peaks; Schottky types (1N5817) reduce voltage drop for faster recovery. LED placement indicates status–series resistors limit current (I = (Vs - Vf) / R). Zener diodes stabilize reference voltages.

Potentiometers (VR or POT) adjust thresholds or ratios. Note taper: logarithmic (B) suits audio taper, linear (A) for control voltages. Wiper terminal connects to moving contact; outer terminals link to fixed values. Dual-gang pots (VR1A/B) synchronize parameters.

Critical Grounding and Power Symbols

  1. Chassis ground (⏚): Physical enclosure connection, often star-grounded to minimize noise.
  2. Signal ground (GND): Common reference for audio path. Separate from power ground to avoid hum.
  3. Power rails (VCC, VEE): Bipolar designs (±12V–±15V); single-supply uses half-rail biasing.
  4. Decoupling caps (Cdec): Place 0.1μF ceramics near ICs to filter supply ripple. Bulk caps (10μF–100μF) stabilize voltage.

Trace signal paths to spot coupling methods. Input/output buffers use series resistors (10–100Ω) to prevent capacitive loading. Direct coupling avoids phase shift; AC coupling (via capacitors) isolates DC offsets. Transformers (T) appear in optical or vintage designs–primary/secondary windings require correct impedance matching. Verify component interactions: a misplaced resistor in the sidechain can invert control polarity.
