Complete 2002 Chevy Silverado Speaker Wiring Color Code Guide
Begin by locating the factory harness behind the driver-side kick panel. Pin identification is critical–match the aftermarket adapter wires using this sequence:
Front Left (+): Light green, connector A (pin 2)
Front Left (–): Dark green/black, connector A (pin 1)
Front Right (+): Light blue/black, connector D (pin 5)
Front Right (–): Dark blue/white, connector D (pin 4)
Rear Left (+): Brown/white, connector B (pin 3)
Rear Left (–): Brown, connector B (pin 2)
Rear Right (+): Gray/black, connector C (pin 4)
Rear Right (–): Gray, connector C (pin 5)
Disconnect the battery terminal for five minutes before handling any circuits. Verify each splice with a multimeter–expected resistance below 0.5 ohms. No ground loops should exist between any channel. Use crimp connectors rated for 16 AWG minimum; soldering introduces risk unless executed in ideal conditions.
Factory amplifiers may retain voltage after power-down. If retaining the stock unit, bypass the Class-D module by bridging pins 8 (power antenna trigger) and 13 (illumination dimmer) with a 1k ohm resistor to prevent phasing issues. Upgraded head units require direct speaker outputs–confirm compatibility with the GM PAC interface RP4-GM11.
Twist each pair at a rate of three turns per inch to minimize interference. Route all wiring away from high-current paths: avoid proximity to the parking brake cable, HVAC blower motor, and ECM bundle. Secure bundles every six inches using nylon clamps; never rely on factory loom tape, which degrades within forty-eight months.
Audio System Wire Connections for GM Full-Size Pickups
Locate the factory harness behind the driver-side dashboard kick panel. The main harness connector (typically a 12-pin rectangular plug) carries all audio signals. Release the lock tab with a small flathead screwdriver–avoid prying the wires directly to prevent insulation damage.
Use this pinout reference for standard models without premium audio packages:
| Pin | Wire Color | Function | Impedance (Ω) |
|---|---|---|---|
| 1 | Light Blue | Front Left (+) | 4 |
| 2 | Dark Blue | Front Left (-) | 4 |
| 3 | Orange | Front Right (+) | 4 |
| 4 | White | Front Right (-) | 4 |
| 5 | Yellow | Rear Left (+) | 4 |
| 6 | Brown | Rear Left (-) | 4 |
| 7 | Dark Green | Rear Right (+) | 4 |
| 8 | Gray | Rear Right (-) | 4 |
| 9-12 | N/A | Unused/Illumination | N/A |
For extended cab configurations, an additional 6-pin connector handles the rear door audio. Match these colors to the main harness:
| Pin | Wire Color | Door Location |
|---|---|---|
| A | Pink | Left (+) |
| B | Red | Left (-) |
| C | Light Green | Right (+) |
| D | Purple | Right (-) |
Verification & Testing
Set a multimeter to 200mV AC. Probe the positive and negative wires for each channel while playing a 1kHz test tone at moderate volume. Readings should show 1-3V with minimal fluctuation (±0.2V). If values exceed 4V or drop below 0.5V, inspect for corroded terminals or incorrect polarity.
Bypass the amplifier by connecting aftermarket components directly to the harness if the factory system includes an integrated amp (common in LS models). The amp is usually behind the glove box–remove the upper dash panel to access it. Disconnect the amp’s power feed (thick red wire) before splicing.
For aftermarket subwoofer integration, tap into the rear channel wires at the head unit. Use a 20-gauge T-tap connector for the positive lead and solder the negative to chassis ground. Avoid grounding to the seatbelt bolts–opt for a bare metal surface near the rear seat bracket instead.
Twist-pair each channel’s positive and negative wires to reduce noise. Secure connections with heat-shrink tubing; electrical tape degrades over time. Route wires away from the HVAC ducts and transmission tunnel to prevent interference.
Finding the Original Audio Connections in Your Crew Cab Pickup
Start by removing the door panel secured with plastic clips–wedge a flat tool between the panel and metal frame near the handle to release them without breaking the tabs. Behind the armrest, you’ll find a rectangular electrical connector with four or six colored leads terminating in a factory harness; these correspond to front and rear channels depending on trim level. Match the polarity: white wires carry positive signals for left-side drivers, gray for right-side, while green and purple serve as negatives.
The dashboard tweeters hide behind the instrument cluster trim–use a 7mm socket to unscrew the two bolts holding the cover in place, then disconnect the airbag connector (yellow clip) before lifting the panel. Pull the harness gently to expose the thin coaxial lines soldered to the underside of the tweeter assembly; these split into separate L/R paths that merge into the main loom near the fuse box.
Rear coaxial units in extended cabs are routed along the rocker panel under the carpet–peel back the upholstery stapled along the threshold to locate the corrugated conduit housing the harness. Trace the wires toward the cargo area, where they terminate in a sealed plug beneath the side storage compartment; squeeze the locking tab to release the connector.
Under-seat subwoofers (if equipped) attach to a dedicated harness beneath the driver’s seat–slide the seat forward and unbolt the single 10mm bolt securing the bracket to reach the loom. The thick twisted pair carries amplified low-frequency signals directly from the head unit; check for labeled markings “SUB+” and “SUB-” before splicing.
Check the kick panels for passive crossovers bolted to the firewall–these split full-range signals into separate tweeter and woofer feeds. Remove the scuff plate to access the hidden screws, then follow the wires upward into the A-pillar to identify the branching connections.

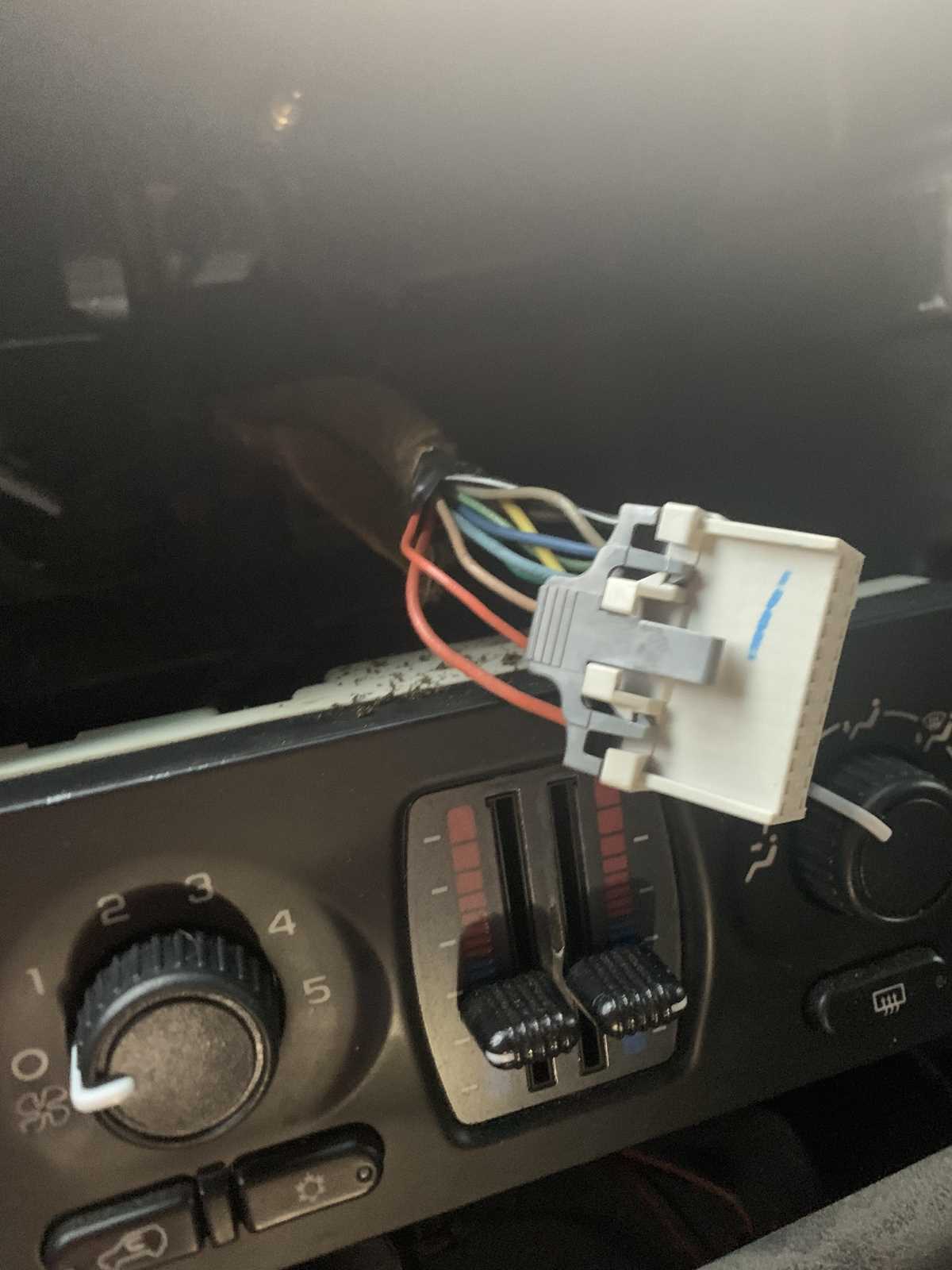

If the radio has been replaced, the factory harness adapter might still be tucked behind the unit–press the release tabs beside the climate control vents to drop the head unit, then pull the harness straight out to inspect the original plug. Original wires maintain consistent color-coding: solid hues are positives, striped variants indicate negatives.
Color Standards for Factory Audio Connections
Verify the wires by checking the harness behind the radio unit first–front channels follow a consistent scheme across most trim levels:
- Left positive: Light green with black stripe (LG/BK)
- Left negative: Gray with black stripe (GY/BK)
- Right positive: White with black stripe (WHT/BK)
- Right negative: Violet with black stripe (VIO/BK)
Rear channels diverge slightly on extended cab models; trace the harness near the B-pillar or under the rear seat:
- Left rear positive: Dark blue with white stripe (DK BLU/WHT)
- Left rear negative: Light blue with white stripe (LT BLU/WHT)
- Right rear positive: Brown with yellow stripe (BRN/YEL)
- Right rear negative: Tan with black stripe (TAN/BK)
Double-door variants may reroute the rear harness under the carpet liner–lift the threshold plate to expose the loom. Look for:
- DK BLU/WHT paired with TAN/BK
- LT BLU/WHT paired with BRN/YEL
Fade resistor circuits appear on GY/VIO or ORG/WHT on some base models; clip and bypass these for cleaner signal.
Quick Reference for Door Panel Removal
Pop the door panel using a plastic pry tool–start at the bottom corner adjacent to the latch. Disconnect the:
- Power window switch plug (harness colors often mirror front door wiring)
- Lock actuator plug (usually YEL/BK and PPL/WHT)
- Trim panel screws behind the handle bezel (Torx T20 on most builds)
Troubleshooting Mismatches
If colors deviate, cross-check with a multimeter set to continuity mode (
- Pin 1: LG/BK – front left (+)
- Pin 2: GY/BK – front left (–)
- Pin 5: DK BLU/WHT – rear left (+)
- Pin 6: LT BLU/WHT – rear left (–)
Amplifier-equipped trims substitute WHT/BK and VIO/BK with PPL/VIO and ORG/WHT–confirm with the amplifier’s input/output labels.
Avoid splicing into the vehicle’s PPL wire (data bus)–it can trigger false warnings on the instrument cluster.
How to Verify Audio System Terminals Using a Multimeter
Set your multimeter to the 200-ohm resistance setting before proceeding. Disconnect the amplifier harness from the vehicle’s head unit to prevent interference. Probe the positive and negative terminals of each channel–expect readings between 3 and 8 ohms. A steady zero or infinite resistance indicates a shorted or open circuit, respectively. Test both front and rear channels individually, noting discrepancies.
Checking Signal Continuity
Switch the multimeter to AC voltage mode (2V range). With the audio source playing a 1kHz test tone at moderate volume, connect the probes to the corresponding terminals. A valid connection should register between 0.1V and 1.5V AC. Absence of voltage suggests a broken lead or faulty crossover component. Measure all channels, including tweeters and subwoofers, if installed.
Inspect terminal connections for oxidation or loose crimps. Clean contacts with a wire brush or electrical cleaner, then retest impedance. Reconnect the amplifier harness and repeat voltage checks; differences exceeding 10% between channels may reveal phase cancellation issues. Document each reading for system balancing adjustments.
Diagnosing Ground Loops
Move the multimeter to DC voltage mode (200mV range). Attach the black probe to a bare metal chassis point and the red probe to the ground terminal of each channel. Any reading above 50mV suggests a ground loop, potentially causing hum. Relocate the ground wire to a different chassis location or use a noise filter for suppression.
For coaxial drivers, verify the tweeter’s inline capacitor by measuring resistance across its leads–the value should match the component’s rated capacitance (typically 1.0–3.3 microfarads). If inconsistent, replace the capacitor before reassembling. Recheck all measurements after repairs to confirm proper current flow and voltage delivery.
