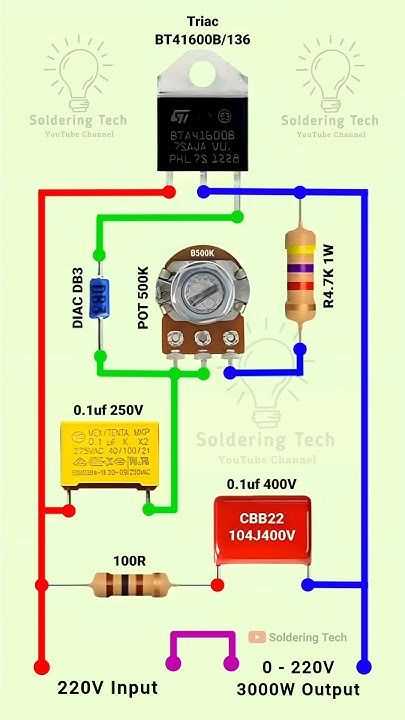

StepbyStep Guide to Designing a Voltage Regulator Circuit Schematic

Start with a linear approach using an LM317 for adjustable output ranges between 1.25V and 37V. Pair it with a 10μF input capacitor and a 1μF output capacitor to dampen oscillations. For higher loads, replace the standard TO-220 package with a heatsink–thermal resistance drops to 2°C/W with proper mounting. Avoid placing the feedback resistor too far from the IC’s adjust pin; stray capacitance above 10pF can induce instability.

Switching setups demand precise inductance calculations. Choose a coil with 22μH rated for at least 2A saturation current when working with a TPS54331 at 500kHz. Keep trace loops tight to prevent EMI–use a ground plane beneath the inductor and diode to reduce radiated noise. For buck converters, position the Schottky diode within 5mm of the transistor’s drain; longer routes increase voltage spikes by 5–10%. Test layout with an oscilloscope; ringing above 200mV indicates poor decoupling.

Fixed-output modules like the 7805 simplify designs but trade efficiency. Add a 0.33μF ceramic capacitor on the input side if the source impedance exceeds 0.5Ω–this prevents dropout at high currents. For battery-operated devices, consider an LD1117 with its 1V dropout; it extends runtime by 15–20% compared to standard regulators. Avoid paralleling outputs without load-sharing techniques–current imbalance can exceed 30% due to manufacturing tolerances.

High-current applications (above 3A) require MOSFET-based designs. Use a IRFZ44 with a gate driver like the MIC4422; delay between turn-on and turn-off should stay below 50ns. Thermal vias under the MOSFET’s tab improve dissipation–space them 1mm apart and fill with solder. For noise-sensitive loads, add a pi filter (two 22μF capacitors plus a 10μH inductor) after the regulator to suppress ripple below 5mV.

Low-quiescent designs favor the MIC29302 (8μA standby). Bypass capacitors should match ESR values: 0.1Ω for tantalum, 0.01Ω for ceramic. Remote sensing compensates for voltage drops in wiring–route Kelvin connections directly to the load terminals. Failure to do so risks undershoot of 100mV during transient events. Finally, validate with a load transient test: apply 10% to 90% of max current in 1μs–settling time should remain under 20μs.

Designing a Stable Voltage Control Layout

Start with a linear approach for low-noise applications like audio preamps or sensor interfaces. A LM317 adjustable module delivers precise output with minimal ripple–critical for analog signals–requiring only two resistors to set voltage between 1.25V and 37V. Calculate resistor values using the formula V_out = 1.25 × (1 + R2/R1), where R1 is typically 240Ω. Add a 1µF tantalum capacitor before the adjustment pin and a 10µF electrolytic at the output to prevent oscillations.

For high-current demands (above 1.5A), swap to a LM1084 or LT1085. These devices handle up to 5A with built-in thermal and current limiting, but require a heatsink sized for worst-case dissipation: (V_in – V_out) × I_out. Mount the device on a 40mm×40mm×2mm aluminum plate drilled with M3 holes for TO-220 packages. Ensure input and output capacitors are low-ESR types–ceramic 22µF for input, polymer 100µF for output–to maintain stability under load transients.

Switch-mode designs cut losses in battery-powered systems. A TPS5430 buck converter achieves 95% efficiency with 300kHz switching frequency. Configure the feedback network with a 10kΩ upper resistor and a 1kΩ trimpot for fine adjustment. Use a 4.7µH inductor with saturation current >2A and DCR

Common mistakes to avoid: Omitting the catch diode in switching designs (use a SS34 for 3A loads), undersizing trace widths (2oz copper for >3A), or neglecting ground planes. Star grounding prevents voltage drops–separate analog and digital grounds, connecting them only at the regulator’s output pad. For adjustable versions, route the feedback trace away from noisy components like inductors or MOSFETs to prevent output ripple.

Noise-sensitive loads need extra filtering. Add an LC pi-network after a linear module: a 10µH inductor sandwiched between two 100µF caps (one at the regulator output, another at the load). For RF applications, shield the feedback loop with a grounded copper pour. In dual-rail systems (e.g., ±12V), use a MC34063 inverting topology–ensure the ground reference and output capacitors are matched to avoid latch-up.

Layout recommendations: Place input caps within 2mm of the regulator’s Vin pin; output caps within 5mm of Vout. Use vias to connect top-layer traces to internal planes for heat dissipation. For SMD components, prioritize DPAK or TO-252 packages–their tab provides better thermal conduction than SOT-223. Test stability by injecting a 100mA load step; output should recover within 50µs without ringing.

For custom voltages, consider discrete designs with a MOSFET and TL431 shunt reference. This method avoids dropout but requires precise resistor ratios. Example: To generate 5V from 12V, use a IRFZ44N with Rds(on)

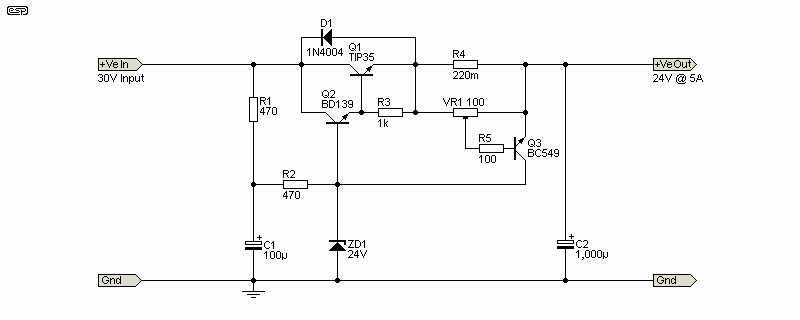

Key Components Selection for Linear Voltage Stabilizers

Prioritize the pass transistor’s current-handling capability–it must exceed the load current by at least 30%. For example, a 1A load requires a device rated for 1.3A minimum. Overlook this margin, and thermal runaway becomes inevitable under sustained operation. TO-220 packages dominate for discrete solutions, while SOT-223 suits surface-mount needs where board space is constrained. Always cross-reference the safe operating area (SOA) curve; transient spikes often dictate the final choice, not just steady-state ratings.

Input and output capacitors demand low equivalent series resistance (ESR) to prevent oscillations. Solid tantalum or high-grade ceramic types (X5R/X7R) reign supreme, with values typically between 10µF and 100µF, depending on the dropout voltage. Below is a quick reference for capacitor selection:

Load Current (A)	Min. Input Capacitance (µF)	Min. Output Capacitance (µF)	ESR Max (mΩ)
0.5	22	33	300
1.0	47	68	200
2.0	100	150	100

Avoid electrolytics unless operating temperatures stay below 85°C; their ESR degrades rapidly beyond this threshold. For noise-sensitive applications, pair the output cap with a 0.1µF ceramic bypass directly at the load terminals to suppress high-frequency artifacts injected by upstream switching converters.

Bias Resistor and Feedback Network Precision

Choose feedback resistors with 1% tolerance or better to maintain output accuracy within ±2%. Higher precision (0.1%) pays off in multi-rail systems where cross-regulation errors compound. The resistor divider’s total impedance should stay below 10kΩ to minimize the error amplifier’s offset and drift. For adjustable stabilizers, a 240Ω/1.24kΩ pair sets a 5V reference with near-zero temperature coefficient; swap values to target different voltages while preserving stability.

Heat sinks must dissipate the product of input-output differential and load current without exceeding the pass element’s junction temperature limits. Calculate thermal resistance θ_JA = (T_J(max) – T_A(max)) / P_diss, where T_J(max) rarely exceeds 125°C for silicon devices. Copper-clad PCBs act as rudimentary sinks; one square inch of 2oz copper adds roughly 25°C/W. Favor aluminum heatsinks with forced air for currents above 3A, ensuring the mounting interface uses thermal grease or a phase-change pad to eliminate microscopic air gaps.

Step-by-Step PCB Layout Tips for Switching Supply Designs

Minimize loop areas for high-current paths first. Position the input capacitor, switching element, and freewheeling diode within 5 mm of each other, orienting traces to form a tight triangle. This reduces parasitic inductance, which can exceed 10 nH per centimeter, leading to voltage spikes above 50 V in fast-switching systems (dv/dt > 200 V/μs). Use 2 oz copper for these traces, even if the rest of the board uses 1 oz, to lower resistance and thermal stress.

Route control signals perpendicular to noisy paths. Place the feedback trace at least 2 mm away from the inductor and switching node, using guard traces tied to a stable reference (e.g., ground plane) if necessary. For critical nodes like the compensation network, employ a ground pour beneath the trace to shield it from coupled noise, ensuring signal integrity without requiring additional filtering components.

Thermal Management in Layout

Distribute heat-generating components (MOSFETs, diodes, magnetics) across the board rather than clustering them. For TO-220 packages, allocate a 10 cm² copper pad per watt of dissipation, connected to the component’s thermal pad via multiple vias (minimum 0.3 mm diameter, 0.1 mm plating). Avoid vias in switch-node traces–these act as thermal bottlenecks and can degrade efficiency by up to 3%. If heatsinks are used, align them with natural airflow or forced cooling paths.

Implement a star grounding topology for mixed-signal sections. Tie the analog ground (e.g., error amplifier, reference) to a single point near the output capacitor, keeping it separate from the noisy digital ground (gate drivers, microcontrollers) until the end. For multilayer boards, dedicate one inner layer exclusively to ground, stitching it to component layers with vias spaced no farther than 5 mm apart to prevent ground bounce exceeding 50 mV during transients.

EMI Mitigation Techniques

Use serpentine routing for traces carrying >1 MHz signals to equalize propagation delays and reduce radiated emissions. For switching nodes, add snubber networks (RC series: 1 Ω, 1 nF) directly across the diode or FET terminals to dampen ringing without affecting efficiency. Keep trace lengths to the feedback pin of the converter IC under 15 mm to prevent phase margin degradation; if longer traces are unavoidable, increase the compensation capacitor by 50% to stabilize the loop.
