Ford Explorer 2003 Radio Wiring Color Codes and Connection Guide

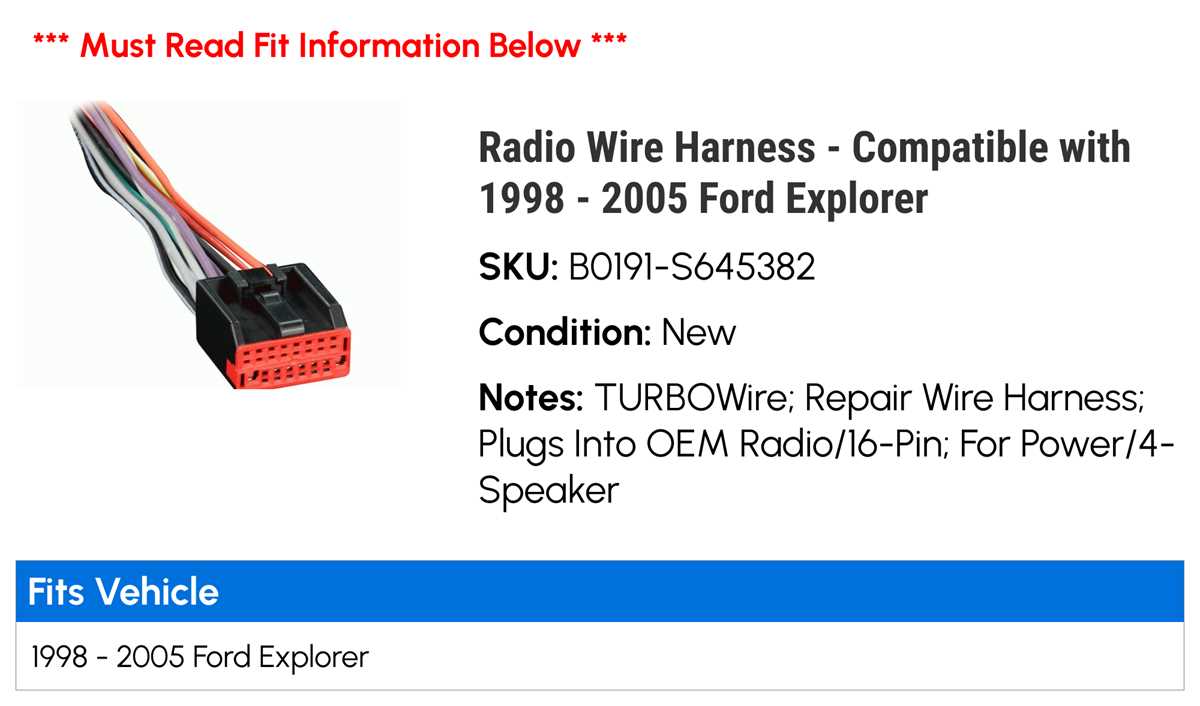

Begin by identifying pinouts on the factory harness behind the dashboard panel. The 16-pin connector–typically white or gray–contains power, ground, and speaker leads mapped as follows: pins 5 and 6 correspond to constant 12V (yellow wire), 7 delivers switched ignition (red), while 8 through 11 handle rear-left (gray/light blue), front-left (gray/violet), rear-right (gray/orange), and front-right (gray/green) audio channels respectively. Pin 15 is a safety mute lead; disconnecting it may trigger erratic volume behavior.
Trace the antenna trigger (blue or blue/white) through pin 9 to prevent signal dropout during power cycles. Verify continuity between chassis ground (black, pin 4) and the vehicle’s frame using a multimeter before reattaching any aftermarket components. Heat-shrink all splices–twist-and-tape connections degrade within 12–18 months under cabin temperature fluctuations.
For steering wheel control retention, match resistor values on the data bus (pin 14, pink/violet) to the replacement head unit’s protocol–Nissan-spec modules often require 1.5kΩ, while GM adaptations demand 2.2kΩ pull-downs. Check fuse 22 in the under-dash panel; a blown 15A will disable memory functions despite proper harness connections.
Color discrepancies exist between model trim levels– Eddie Bauer editions include a dedicated subwoofer output (pin 3, purple/white) absent in base configurations. Cross-reference schematics with a torque converter wiring guide if experiencing parasitic drain; mistakenly energized solenoids (e.g., pin 2, gray/black) mimic amplifier remote faults.
Always disconnect the battery’s negative terminal before splicing–factory-installed anti-theft systems erase radio presets upon power loss detection, requiring dealer-reprogrammed unlock codes (varies by VIN). Retain the original connector shell; third-party adapters omit critical ground paths causing intermittent static.
Audio System Harness Pinout for 2002–2004 SUV Models
Locate the harness connector behind the center console–the rectangular 12-pin plug labeled “C” or “Premium Sound.” Cut factory wire ties before pulling the harness free for inspection. Verify wire gauge: front speakers demand 18 AWG, subwoofer outputs need 16 AWG solid-core copper.
Color codes follow the OEM standard but may shift with aftermarket amplifiers. Use a multimeter to confirm continuity; inconsistent readings often trace back to corroded fuse contacts near the battery tray.
| Pin | Function | Wire Color | Voltage |
|---|---|---|---|
| A1 | Battery Constant | Yellow/Black | 12V |
| A4 | Ground | Black/White | 0V |
| A7 | Left Front (+) | Light Green/White | 2–4V RMS |
| A10 | Right Rear (−) | Gray/Red | 0V |
Signal wires interface directly with the factory amplifier–bypass it by splicing into door loom connectors. Rear speakers share a single ground wire; separating grounds reduces interference in tweeters.
Security module integration requires a 5-minute latching relay triggered by accessory power (pin A3). Mismatched relays cause repeated shutdowns; replace with Omron G5Q 12VDC.
Antennas run coaxial cable; strip insulation carefully–center conductor carries 1.5V phantom power. Replace stock antenna mast with a short FibreFab FRP-4 for clearer FM reception.
Dashes of factory harness vary: base models omit the subwoofer control line. Upgrade involves tapping into pin A2 using a 1K-ohm resistor for simulated bass signals.
Troubleshooting Static or Intermittent Sound
Probe chassis bolts along the firewall–loose grounds emit a popping noise during acceleration. Solder each connection, then apply liquid electrical tape over splices to prevent oxidation.
Finding the Audio System Connector Behind the Instrument Panel
Begin by removing the lower dashboard trim panel beneath the steering column. Use a 7mm socket or flathead screwdriver to release two bolts securing the panel. Pull downward firmly–plastic clips will disengage without breaking if done carefully. Avoid tugging near the OBD-II port area to prevent snapping the retaining tabs.
Locate the climate control module on the passenger side, directly above the glove compartment. Two Torx T-20 screws hold it in place; remove them before gently wiggling the unit free. Behind it lies the main harness bundle–thick black sheathing with neatly arranged colored leads. Trace the bundle upward to find the six-pin connector dedicated to the sound system.
Identifying the Correct Plug

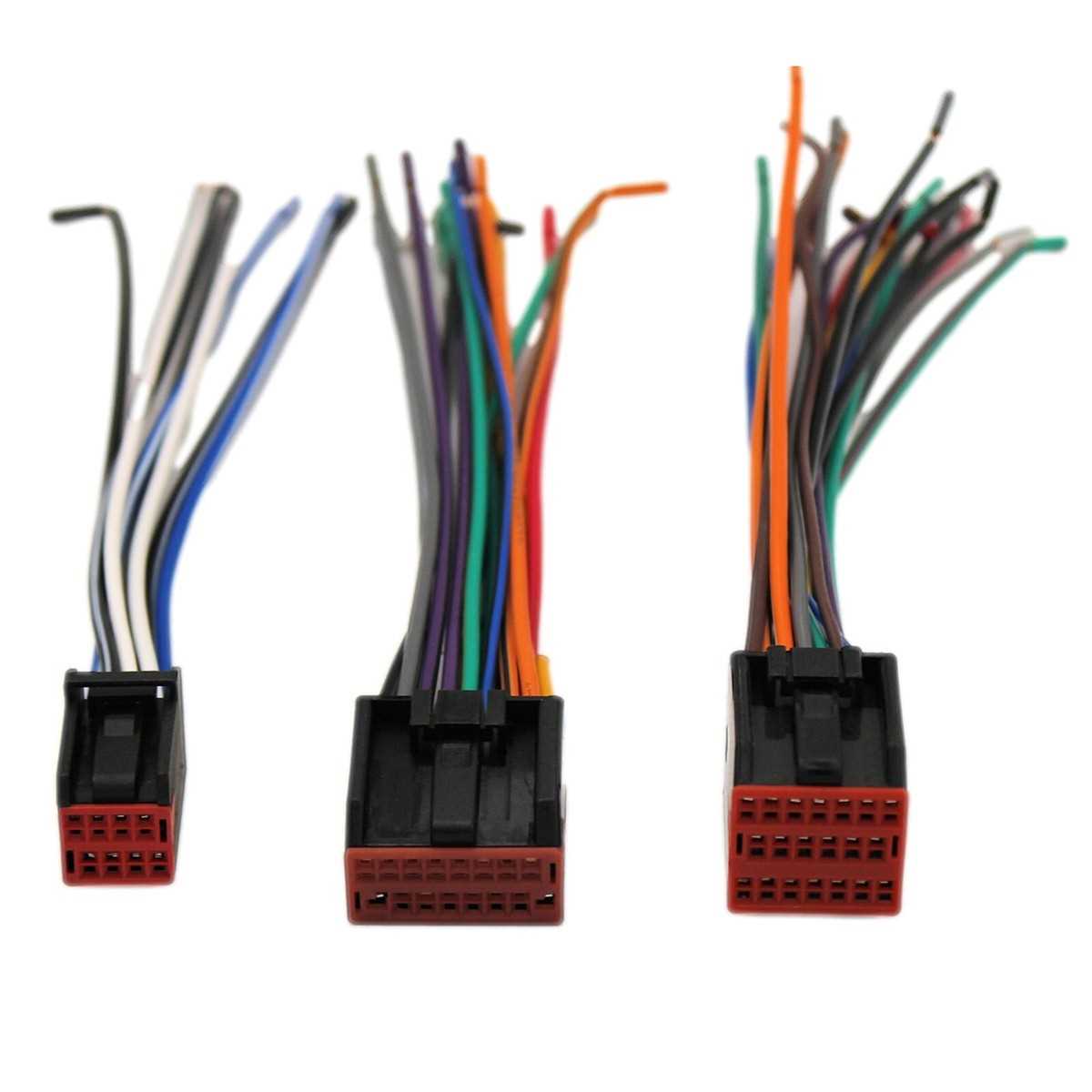

The harness features three distinct connectors: one for power, another for speakers, and a smaller plug for antenna or amplifier signals. The sound system connector is rectangular with chamfered edges, approximately 2.5 cm wide. Apply light pressure to the release tab on the side–do not pry–it should detach smoothly. If resistance is felt, check for hidden clips beneath the plug.
Use a multimeter to verify leads before splicing. Ground the black probe to the vehicle’s chassis, then test each wire with the red probe. Ignition-controlled power should read 12V only when the key is in the “ACC” or “ON” position. Speaker wires will show minimal resistance (0.5–4 ohms) when probed in pairs. Confirm channels by listening for faint pops through connected speakers.
If factory illumination is desired, locate the dimmer wire–a smaller orange lead with a white stripe. Attach it to the new system’s corresponding input before securing all connections with solder or crimp connectors. Wrap each joint with electrical tape or heat-shrink tubing, ensuring no bare metal remains exposed near rotating components or sharp edges.
Securing Access and Reassembly
Route the harness away from moving parts, particularly near the pedals and heating ducts. Avoid sharp bends in the wires–use existing harness channels for a clean fit. Reinstall the climate control module first, then the dashboard trim. Test all functions–volume, balance, fader settings–before fully tightening screws to allow final adjustments.
For vehicles with premium systems, an additional amplifier may reside behind the rear seats or in the cargo area. Disconnect the battery negative terminal before probing any high-power components. Leave the dashboard open for 10 minutes after reconnecting power to reset any error codes triggered during the procedure.
If static persists, check for loose grounds near the left kick panel. A single 10mm bolt secures the chassis ground–a wire brush can remove corrosion if connection feels unstable. Re-examine all splices after 50 miles of driving to ensure vibration hasn’t loosened any joints.
Locating Power, Ground, and Audio Connector Color Codes
Begin with the yellow (12V constant) lead–this supplies uninterrupted voltage regardless of ignition state. Verify with a multimeter set to DC volts; probe should read 12.6V when the battery is healthy. If absent, trace back to the fuse box under the dash, checking Fuse 23 (20A) or the directly connected orange wire with blue stripe running through the firewall grommet.
Ground connections typically use black or black with colored tracer (often brown or green) clustered near the chassis mounting points. Scrape paint from the attachment surface to ensure bare metal contact. Test continuity: clip the multimeter ground to battery negative, probe the harness ground–resistance should read below 0.5 ohms. Avoid relying on bolted joints alone; solder or crimp with heat shrink for permanent stability.
Speaker Terminals: Left vs. Right, Front vs. Rear
Front left positive is usually light green or gray with a violet stripe, while front left negative appears gray with a light green stripe. Rear channels follow a similar logic: rear right positive may be purple or dark blue, matched with its negative–purple with white stripe or dark blue with gray stripe. Confusing pairs? Inject a 1kHz test tone via an audio source; oscilloscope or cheap signal tracer will confirm polarity by waveform inversion when reversing leads.
Illumination and memory keep-alive circuits often masquerade as power feeds. The orange (or pink) with white stripe carries dimmer-controlled 12V when headlights are active–critical for backlit displays. Memory retention frequently shares the yellow constant wire, but some models split it into yellow (primary memory) and green (secondary). Isolate by removing fuses: memory functions persist only if the correct wire remains live.
Harness adapters can simplify installation, yet factory connectors rarely align universally. Aftermarket units may expect gray (left front positive) where stock used tan with orange stripe. Cross-referencing with a pinout table (available via OEM service manuals) prevents costly errors. Clip and extend only after confirming continuity; never splice based on color alone–batch variations exist between production runs.
Static discharge protection demands disconnecting battery negative before touching any connector. Short circuits between power and speaker leads will destroy amplifier chips instantly. Use a 10-amp inline fuse near the head unit when bench-testing; reinspect every connection under a bright light, ensuring no stray copper filaments bridge adjacent terminals.
Direct Integration of Third-Party Head Units to OEM Harnesses
Identify the constant 12V power wire in the vehicle’s original connector–typically a yellow or orange lead–using a multimeter to confirm voltage stability with the ignition off. Splice this directly to the aftermarket unit’s permanent power input, ensuring a secure crimp or solder joint without exposing bare copper. Factory harnesses often include resistance-based illumination controls; tap the dimmer wire (usually gray with a stripe) to the new head unit’s lighting circuit for automatic brightness adjustment.
Avoid adapter looms entirely by matching speaker wires by color and function. Front left positive (white) and negative (white/black) must pair with the corresponding channels on the replacement stereo, while rear outputs (gray/gray-black for right, green/green-black for left) follow identical logic. Polarity mismatches cause phase cancellation, resulting in muffled or nonexistent output–verify connections with a 9V battery test before finalizing crimps.
Factory mute and steering wheel controls rely on a data bus; retaining these requires a microcontroller like Arduino or a dedicated CAN bus interface. For basic setups, splice the accessory wire (red) to a switched 12V source–often the radio fuse slot–to maintain memory presets without parasitic drain. Ignore parking brake wires unless bypassing is mandatory; incorrectly grounded, they prevent video playback while driving.
Ground the new unit’s chassis to the vehicle’s frame near the original harness termination point, sanding paint for bare metal contact. A loose or corroded ground introduces alternator whine, distortions, or intermittent failures. Use a dedicated ring terminal rather than twisting wires to the existing harness ground lead–shared grounds overheat under high current demands.
Fuse the power input directly at the battery or an accessible junction point, using a fuse rating matching the aftermarket unit’s specification (usually 10–15A). Factory harnesses sometimes omit dedicated fusing for audio equipment; skipping this risks melting insulation or electrical fires under short-circuit conditions.
Test all connections incrementally: power on, then audio output, followed by auxiliary functions like USB or Bluetooth. If whistling or static persists, add ferrite chokes to speaker wires near the amp to suppress EMI from the alternator or ignition system. Factory amplifier integration (if applicable) demands bridging the remote turn-on wire (blue/white) to the aftermarket unit’s amp control output; failure here leaves speakers silent.
Document each wire’s function and splice location with labeled tape or a schematic diagram. Factory harnesses rarely follow standardized color codes beyond primary functions–future diagnostics become impossible without clear references. Store used connectors rather than discarding them; degraded pins reattach to salvaged wires if reverting to stock.
Prevent wire loom friction by securing splices with heat-shrink tubing and high-quality electrical tape. Exposed joints near sharp metal edges or moving components (e.g., steering columns) eventually chafe, causing intermittent faults. Route all new wiring through existing harness channels rather than drilling new holes–unintended water intrusion or rodent damage compounds failures exponentially.
