Understanding the Structure of Matter Through Schematic Diagrams

Start by illustrating atomic arrangements using concentric circles with protons and neutrons at the core–electrons orbiting in distinct energy levels. Label each particle with its charge: +1 for protons, 0 for neutrons, -1 for electrons. Assign colors: red for protons, blue for neutrons, yellow for electrons. This clarity prevents confusion during analysis.

Break down molecular bonding into three types: ionic, covalent, and metallic. For ionic bonds, show electron transfer between a metal and non-metal, marking gained or lost electrons with arrows. Covalent bonds require overlapping electron clouds; use shaded areas to highlight shared pairs. Metallic bonds depict a sea of delocalized electrons–fill the space with directional arrows to indicate free movement.

For crystalline solids, arrange repeating units in a grid. Use dashed lines to show unit cell boundaries and solid lines for atomic connections. Include measurements: distance between nuclei in picometers (pm) for precision. Polymers demand chain visualization–repeat monomers with clear bonds, indicating single, double, or triple links.

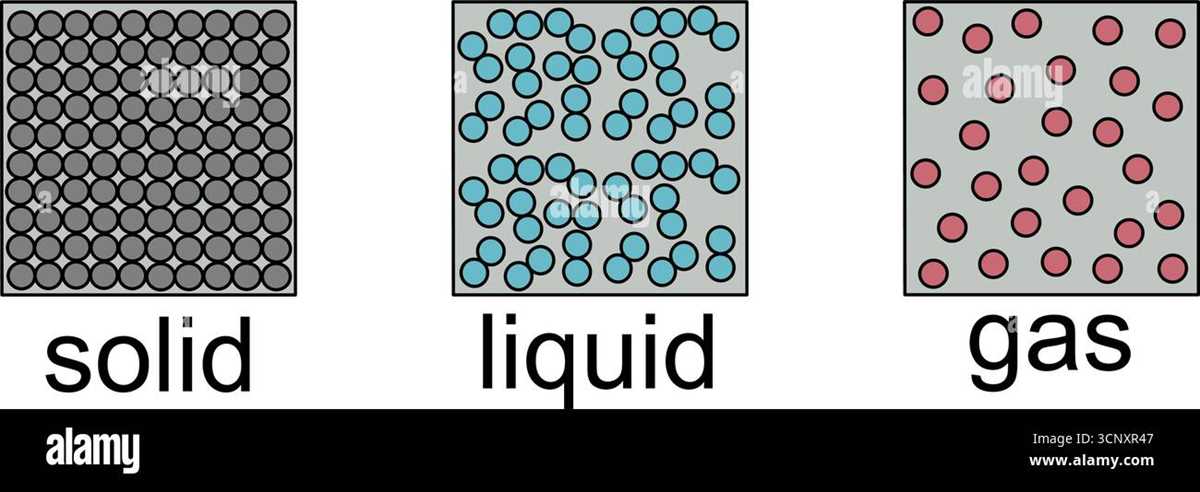

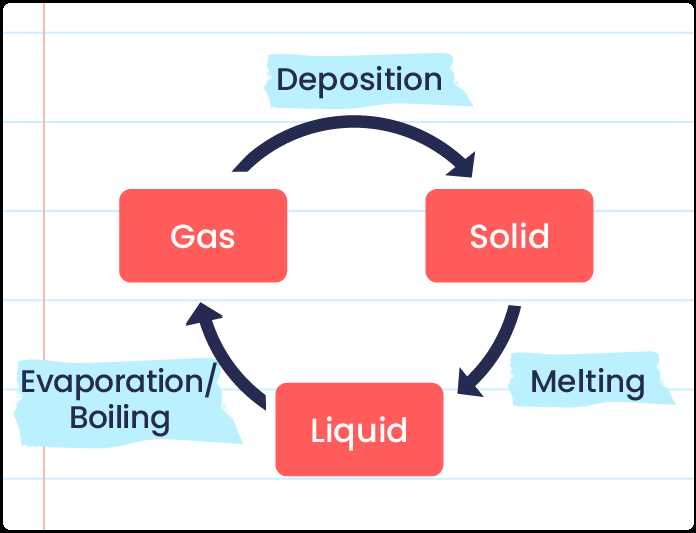

When representing gases, focus on particle distribution. Space molecules uniformly in a container, noting pressure-temperature relationships. Label key points: 25°C and 1 atm for standard conditions. Liquids require closer particle packing but maintain random motion–use curved arrows to suggest flow.

Compare states by density: solids at 1.0–22.6 g/cm³, liquids at 0.5–13.6 g/cm³, gases below 0.001 g/cm³. Reference materials like osmium (highest solid density) and hydrogen (lowest gas density) to contextualize extremes.

Visualizing Structural Layers in Physical Substances

Begin by mapping elementary particles as foundational units–quarks and electrons–arranged in defined hierarchies. Protons and neutrons cluster within nuclei at scales of 10^-15 meters, while electron clouds occupy 10^-10-meter orbitals. Use nested concentric circles or layered blocks to depict this progression: nuclei at the core, electron shells surrounding, and molecular bonds as connecting lines. Specify atomic numbers and mass numbers for clarity, e.g., carbon-12 (6 protons, 6 neutrons). Tip: Employ color gradients to differentiate particle types–red for protons, blue for neutrons, green for electrons–to enhance immediate recognition.

For compounds, illustrate covalent or ionic linkages with dashed lines, labeling bond angles (e.g., 104.5° for water’s H-O-H) and distances (95.7 pm for O-H). Highlight crystalline structures using repeating unit cells, noting symmetry groups; cubic for NaCl, hexagonal for graphite. Include state indicators: solid blocks for crystalline, overlapping spheres for gaseous diatomic molecules like O₂. When depicting polymers, represent monomer chains with directional arrows showing polymerization paths, e.g., polyethylene’s -CH₂-CH₂– repeat units. Add marginal notes on periodic trends: electronegativity rises left-to-right (Fluorine: 3.98), atomic radius shrinks (Francium: 270 pm vs. Helium: 31 pm).

Visualizing Atomic Models for Clearer Scientific Insight

Begin with Bohr’s planetary analogy when illustrating electron behavior–draw concentric circles around a nucleus, labeling each orbit with its principal quantum number (n=1 to n=7) and maximum electron capacity (2, 8, 18, etc.). Indicate energy levels using vertical spacing: narrower gaps near the core (K-shell) widens outward (Q-shell). Annotate each ring with actual electron configurations for elements like Neon (1s² 2s² 2p⁶) or Argon (1s² 2s² 2p⁶ 3s² 3p⁶) to demonstrate stable noble gas arrangements.

Practical Techniques for Accurate Atomic Depictions

Use color-coded arrows to show electron spin pairs in orbitals: upward (↑) for +½ and downward (↓) for -½. For transition metals, highlight exceptions like Chromium ([Ar] 4s¹ 3d⁵) or Copper ([Ar] 4s¹ 3d¹⁰) by marking occupied d-subshells with distinct hues. Overlay Pauli exclusion violations in hypothetical sketches–cross out unpaired electrons in the same orbital–to reinforce quantum rules.

For advanced learners, sketch hybrid orbitals: draw sp³ tetrahedrons (methane’s 109.5° bonds), sp² trigonal planar (ethylene’s 120°), or sp linear (acetylene’s 180°). Compare these with unhybridized p-orbitals’ dumbell shapes, noting nodal planes at the nucleus. Include numeric bond angles and real-world molecules (e.g., benzene’s delocalized π-system) to bridge theory with application.

Fundamental Particles in Atomic Structure Blueprints

Begin by labeling nuclei and electron shells distinctly in visual representations. Protons carry a +1 elementary charge, weigh approximately 1.6726 × 10^-27 kg, and define elemental identity in the periodic table. Neutrons contribute no charge but add 1.6749 × 10^-27 kg to nuclear mass, stabilizing isotopes through strong nuclear force. Prioritize clarity in depicting these particles–use color-coding: red for protons, gray for neutrons, and blue for electrons.

Electrons occupy discrete energy levels outside the nucleus, each holding up to 2n² particles (n = shell number). Their rest mass measures 9.1094 × 10^-31 kg, nearly 1,836 times lighter than protons. Illustrate electron arrangements with Bohr models showing quantized orbits or orbital shapes for advanced depictions (s, p, d, f). Ensure scale accuracy: if nuclei are 1 mm in diagrams, electrons must appear at ~100 mm distances to reflect relative spatial proportions.

Particle	Charge	Mass (kg)	Location	Visual Cue
Proton	+1.6022 × 10-19 C	1.6726 × 10-27	Nucleus	Red solid circle
Neutron	0	1.6749 × 10-27	Nucleus	Gray outlined circle
Electron	-1.6022 × 10-19 C	9.1094 × 10-31	Orbitals	Blue dot or wave function

Calculate neutron-to-proton ratios when illustrating isotopes–hydrogen’s protium lacks neutrons, while deuterium contains one, and tritium two. For heavier elements, use empirical data: carbon-12 has 6 protons and 6 neutrons, carbon-14 adds 8 neutrons. Highlight beta decay potential (neutron → proton + electron + antineutrino) for unstable variants with dashed lines in diagrams.

Ground-state electron configurations follow Aufbau principles. For sodium (Z=11), depict 1s²2s²2p⁶3s¹, showing 3s electron as valence. Employ Lewis dot structures for outer-shell electrons to emphasize bonding behavior. Cross-reference with electronegativity values–fluorine’s 3.98 versus cesium’s 0.79–to predict ionic versus covalent tendencies in molecular crafts.

Validate diagrams against spectroscopic evidence. Proton NMR relies on magnetic moments (2.7928 μ_N), neutron imaging uses scattering cross-sections, and photoelectron spectroscopy confirms orbital energies. Integrate real-world applications: radioactivity in uranium-235’s 143 neutrons enabling fission, lithium-ion batteries leveraging electron transfer between 1s²2s¹ and transition metals. Annotate practical outcomes directly on atomic framework illustrations.

How to Illustrate Molecular Structures in Detailed Blueprints

Begin by selecting a target compound and writing its chemical formula. Break it into atoms, noting their counts: hydrogen (H), oxygen (O), carbon (C), or nitrogen (N) dominate most organic models. For example, glucose (C₆H₁₂O₆) consists of 6 carbons, 12 hydrogens, and 6 oxygens. Sketch each atom as a circle, labeling them with atomic symbols; carbon circles form the backbone, others branch off.

Draw straight lines between circles to denote bonds–single lines for single bonds, double lines for double bonds, triple where applicable. Carbon chains often follow a zigzag pattern, mimicking tetrahedral geometry (109.5° bond angles). For rings like benzene (C₆H₆), arrange carbons in a hexagon, alternating double bonds. Use orthogonal lines for clarity in 2D representations.

Refining the Layout

Add functional groups next: hydroxyl (-OH), carboxyl (-COOH), or amine (-NH₂) groups demand distinct placements. Hydroxyls typically attach upward or downward on carbon chains, avoiding symmetry clashes. For accuracy, measure bond lengths–C-C spans ~154 pm, C-O ~143 pm–scaling circles proportionally keeps visual fidelity. Number each atom if stereochemistry matters, marking chiral centers with wedges or dashes.

Avoid crossing lines; rearrange branches to minimize overlaps. In complex molecules like DNA nucleotides, spiral or layer atoms sequentially (e.g., phosphate-sugar-base). Use color sparingly: red for oxygen, blue for nitrogen, black for carbon, white for hydrogen. Verify connections match the chemical formula–every atom must have correct valence electrons: carbon (4), oxygen (2), hydrogen (1).

Finalizing and Validating

Scan the blueprint for lone pairs on atoms like nitrogen or oxygen–depict them as small adjacent dots. Check formal charges if present (e.g., +1 on ammonium NH₄⁺); annotate near atoms. Simplify repeating units: polymers show one monomer bracketed with subscripts (e.g., [-CH₂-CH₂-]_n). Export as vector (.svg) to preserve scalability, or raster (.png) at 300+ DPI for print legibility.

Critical Errors in Visualizing Substance Structure

Avoid oversimplifying atomic arrangements in layered models. Crystals like quartz or metals demand precise spatial grids–skipping bond angles distorts properties like conductivity or brittleness. Use van der Waals radii for organic compounds to prevent misleading proximity in molecular visuals. Tools like Avogadro or Olex2 calculate these automatically; manual adjustments risk errors.

Incorrect scaling ranks as a persistent blunder. Ionic solids (e.g., NaCl) and covalent networks (e.g., diamond) require distinct magnification–1 Å vs. 50 nm levels–yet artists often merge these. A logarithmic scale reference prevents this, but many omit it entirely. Test visuals with known real-world measurements before finalizing.

• Neglecting charge distribution: Polar molecules (water, DNA) need color gradients to show dipoles–ignoring this misrepresents solvation effects.
• Overusing color: More than 5 hues reduces clarity. Use ColorBrewer palettes designed for scientific figures.
• Stereoisomer confusion: Chiral centers in sugars/amino acids require 3D rendering. Flat depictions of glucose falsely imply symmetry.

Misrepresenting Dynamic Systems

Static depictions fail for plasmas or colloids. Supercritical fluids (e.g., CO₂) blur phase boundaries–use arrows or animated vectors instead. For polymers, indicate chain entanglement with Kuhn length markers; rigid rods mislead about elasticity. Bose-Einstein condensates need time-domain illustrations; still images obscure quantum signatures.

Common shortcuts corrupt accuracy. Shortcuts like equidistant spheres for FCC lattices ignore electron density variations. AMBER force fields correct this, but generic drawing tools default to symmetrical approximations. Cross-verify with X-ray crystallography data–diffraction patterns reveal deviations often erased in conceptual art.

1. Verify bond lengths/angles against Crystallography Open Database before publishing.
2. Label states of aggregation: Gas/liquid/solid illustrations look identical without contextual cues.
3. Avoid “ornamental” electrons: Hydrogen bonding in ice requires dashed lines, not artistic swirls.
