Complete 2003 Honda Civic EX Factory Radio Wiring Diagram Guide
Begin by disconnecting the negative battery terminal before touching any electrical connections. This prevents short circuits and accidental airbag deployment. Locate the factory harness behind the dashboard, typically concealed beneath the glove compartment–remove the lower dash panel for access. The EX trim’s audio interface uses a 16-pin white connector; pinouts are as follows:
Pin 1: Constant 12V (yellow/red stripe) – Powers memory functions.
Pin 2: Ignition-switched 12V (red/white stripe) – Activates unit when key is turned.
Pin 3: Ground (black) – Secure connection to chassis required.
Pin 4: Illumination (red/black stripe) – Dimmer-controlled backlighting.
Pin 5-8: Front and rear speaker outputs – Left front (+) green, left front (-) light green; right fronts follow the same pattern with gray and light gray.
Pin 9-12: Rear speaker wiring – Purple (+) and purple/black (-) for left; blue (+) and blue/white (-) for right.
Aftermarket installations often require adapter harnesses–match color codes precisely. Use a multimeter to verify voltage on each wire before splicing. If the vehicle’s amplifier is retained, ensure the remote turn-on lead (blue/white) is connected to activate it. Improper grounding causes engine computer interference; route ground wires away from fuel lines and ECU connections.
For integrated Bluetooth or navigation upgrades, consult the new unit’s manual for additional power needs. Some systems require a separate antenna adapter–check compatibility with the sedan’s coaxial cable. If static persists, inspect the antenna mast connection; corrosion here is a common culprit. Reassemble dashboard panels securely to prevent rattles.
Audio System Harness Pinout for 7th Generation EX Trim
Connect the aftermarket head unit’s yellow 12V constant power lead to pin 10 on the factory harness (white/green stripe), ensuring it matches the 20-gauge wire spec. Pin 4 (red/yellow) delivers switched ignition voltage–splice this directly to your stereo’s red cable without intermediary relays unless upgrading to high-current amplifiers exceeding 15A draw. Ground faults often stem from corroded pin 1 (black) or loose chassis bolts; sand the firewall mounting point to bare metal before reattaching.
Speaker outputs follow a non-standard split-phase layout: front left positive (pin 2, gray/black) pairs with negative (pin 14, gray/red), while rear left positive (pin 6, green/black) and negative (pin 16, green/red) share identical isolation requirements. Use a multimeter to verify
Antenna control resides on pin 7 (blue); failure to trigger power windows during manual antenna tests suggests a faulty ground path at the base unit rather than harness issues. Replace the factory coax with RG-58 for low-level signal loss if extending beyond 18 inches–solder the shield braid at both ends and heat-shrink to prevent shorting. Climate control illumination wiring (pins 11/red and 15/orange) must be isolated when retrofitting LED head units to avoid parasitic voltage bleed; crimp these to dedicated 5V regulators if backlight flickering persists.
Factory amplifier integration requires bridging pin 9 (pink/blue) to the aftermarket harness’s remote turn-on lead–add a 1A fuse within 6 inches of this connection to prevent fire hazards from shorted RCA grounds. For manual transmission models, the reverse trigger (pin 13, purple/white) doubles as a parking brake safety override; connect this via a relay if implementing video-in-motion functionality to bypass the VSS interlock. Use dielectric grease on all pin sockets to prevent oxidation during humid seasons.
Diagnose intermittent issues by probing connector C409 (driver-side kick panel) with a non-contact voltage tester while wiggling the harness–voltage drops >0.2V indicate frayed wire insulation requiring complete reroute through corrugated loom. Avoid soldering harness joints for subwoofer outputs; crimped terminals with crimped-in adhesive-lined heat shrink provide superior vibration resistance for 50Hz–150Hz frequencies. Keep documentation of all reroutes with reference colors to streamline future troubleshooting.
Identifying Original Stereo Interface Plugs

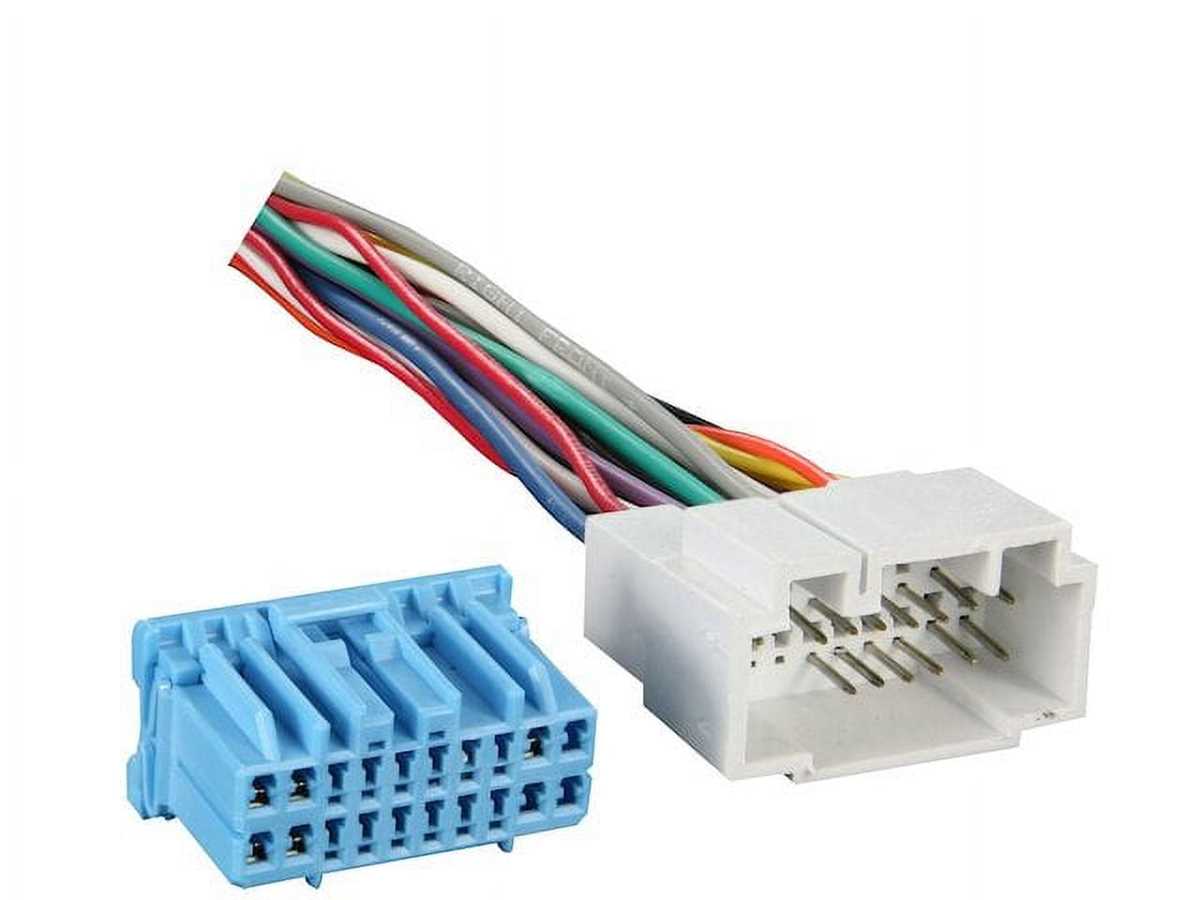

Start by removing the center dashboard trim panel–release the clips at the bottom using a plastic pry tool, then tilt the unit downward to access the rear connectors. The factory harness consists of two primary plugs: a 16-pin rectangular connector (typically white or gray) for power, speakers, and illumination, and an 8-pin rectangular plug (often black) reserved for the antenna and steering wheel controls. Pinouts follow ISO standard: constant 12V at terminal 4 (yellow), switched power at 7 (red), ground at 5 (black), and speaker outputs at 1/2 (front left), 3/6 (front right), 8/9 (rear left), and 10/11 (rear right), with illumination feed at 12 (orange).
Trace the harness from the head unit’s rear to where it splits–look for tape markers or color-coded sleeves (factory wraps use red/white for speaker leads, solid colors for power) to confirm correct paths before disconnecting. If adapter plugs are absent, use a multimeter to verify voltages: probe terminal 4 with ignition off (should read ~12V), then switch to ACC or ON (terminal 7 should activate). Misrouted connections risk blowing the 10A fuse (marked “ECU” in the under-dash fuse box near the driver’s knee bolster).

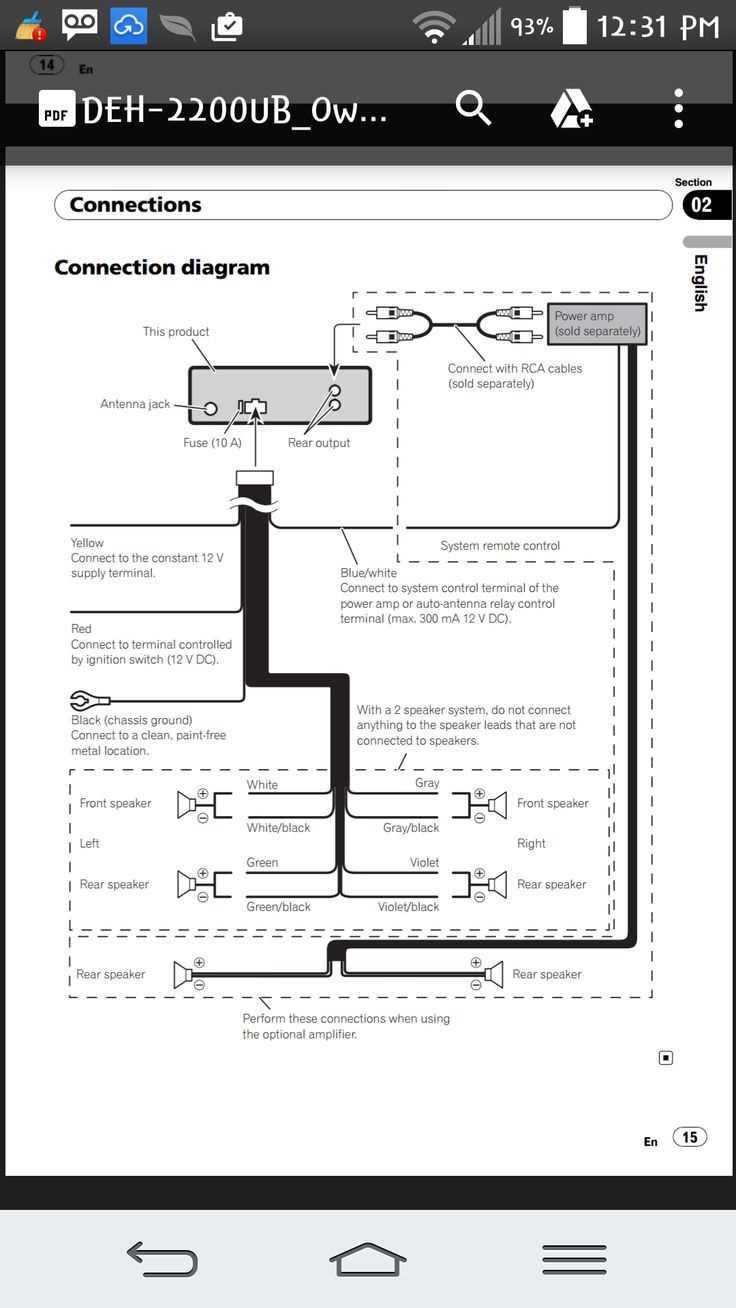

Understanding Wire Colors and Their Roles in Your EX Trim Audio System
Begin by locating the factory harness adapter behind the dashboard’s entertainment unit. The main power feed uses a yellow wire (B+)–this carries constant 12V from the battery and must connect directly to avoid draining the vehicle’s electrical system when the ignition is off. Pair it with the black wire (ground), which should attach to a solid metal point on the chassis for stable performance.
For switched power, trace the red wire (accessory). This lead activates only when the key is in the “ACC” or “ON” position, ensuring the stereo powers down with the vehicle. If your aftermarket device lacks a corresponding red lead, splice it into the yellow (B+) with a fuse tap rated at 10A to prevent overloads. Avoid connecting it to the cigarette lighter circuit, as this can introduce electrical noise.
Speaker Outputs and Their Color Codes
- Front Left (+): White with black stripe (Factory stripe orientation: base color first, stripe second)
- Front Left (-): White
- Front Right (+): Gray with black stripe
- Front Right (-): Gray
- Rear Left (+): Green with black stripe
- Rear Left (-): Green
- Rear Right (+): Violet with black stripe
- Rear Right (-): Violet
Mismatching these will invert sound polarity in one channel. Use a multimeter in continuity mode to verify each speaker’s function before finalizing connections–this prevents damage from short circuits. For systems with amplified outputs, ensure the aftermarket harness includes RCA preouts or high-level inputs.
The orange/white wire serves illumination control, dimming the display in sync with dashboard lights when headlights are activated. If your unit doesn’t support this feature, cap it with electrical tape. The blue/white wire triggers power antennas or external amplifiers–leave it disconnected unless you’re using an amplified setup, in which case it needs a relay for current handling beyond 200mA.
For vehicles with steering wheel controls, the gray/yellow (DATA) and gray/blue (CLOCK) wires integrate with the OEM interface module. Aftermarket adapters like Metra ASWC-1 require these leads to retain functionality. Solder each connection and cover with heat-shrink tubing to prevent corrosion or accidental shorts, especially in high-moisture environments.
Before reassembling the dash, test all inputs and outputs with a 9V battery: touch the positive lead to speaker wires (one at a time) while holding the negative to ground. A proper “pop” confirms correct polarity. If no sound is heard, recheck fuses and wiring integrity–common failure points include poor crimps or pinched insulation behind the glove box.
Step-by-Step Guide to Removing the Factory Audio Head Unit
Disconnect the negative battery terminal first to eliminate power supply risks. Use a 10mm wrench to loosen the clamp on the terminal–this takes approximately 30 seconds. Store the terminal away from the battery post to prevent accidental reconnection. Skipping this step may trigger airbag sensors or damage sensitive ECU components.
Locate the dash trim surrounding the audio system. Insert a plastic trim removal tool into the visible seam on the left side below the climate controls. Gently pry upward, releasing the clip holding the panel. Repeat for the right side, then lift the entire trim piece straight out. Avoid metal tools; they can scratch surfaces. Five clips secure this panel–two near the top, three along the bottom. If a clip breaks, replacements cost $3 each (part #72730-SDA-A00ZA).
Removing the Head Unit
Behind the trim, four 10mm bolts secure the bracket holding the stereo. Remove each bolt in a diagonal pattern to distribute pressure evenly. Slide the entire assembly toward the rear of the vehicle–it should move 2 inches before stopping. Disconnect the antenna cable first (push the release tab while pulling), then unplug the two wiring harness connectors. Label each connector with masking tape if reinstalling later.
| Tool | Purpose | Estimated Time |
|---|---|---|
| 10mm wrench | Battery terminal & bracket bolts | 2 min |
| Plastic trim tool | Dash panel removal | 3 min |
| Flathead screwdriver | Connector release (if stubborn) | 1 min |
After removing the harnesses, check for retained foam or debris behind the opening. A flashlight helps spot leftover screws or forgotten connectors. If upgrading to an aftermarket system, verify the new unit’s mounting kit compatibility–metra 99-8206 fits this model year. Reconnect the battery only after securing all electrical connections to avoid short circuits.
