How to Create a Reliable Fire Alarm System Circuit Diagram Step by Step
Start with a 24V power supply–this ensures stable operation under load variations and minimizes false triggers. Select a normally open heat or smoke detector rated for 10-20Ω resistance when activated; higher resistance models degrade response speed. Wire detectors in parallel using 18AWG solid copper conductors to reduce voltage drop over distances exceeding 30 meters. For every 50 meters of cable, recalculate wire gauge to maintain a ≤5% voltage drop at the farthest sensor.
Integrate a latching relay (coil voltage matching your supply) to sustain warnings after initial detection. Connect the relay’s NC contacts to a 120dB piezoelectric siren positioned within 1 meter of primary evacuation paths. Test siren output at 90% of rated voltage; lower voltages reduce audibility below critical thresholds. Include a push-to-test switch in the control panel–this bypasses sensors and validates circuit integrity without activating full responses.
Use surface-mounted terminal blocks for all connections; avoid soldered joints in high-vibration areas. Label each conductor at both ends with heat-resistant sleeves (minimum 3mm width) to prevent miswiring during maintenance. For zones prone to electrical interference, shield cables with aluminum foil tape grounded at a single point near the panel. Verify grounding resistance below 1Ω using a dedicated earth rod, separate from building grounds.
Install a supervised battery backup (sealed lead-acid, 7Ah minimum) with automatic switchover. Calculate runtime: sum all loads (detectors, relays, sirens) and ensure batteries cover 24 hours of standby plus 5 minutes of full alarm operation. Add a low-battery LED (red, 3 years regardless of test results–degraded cells fail at critical moments.
Route all wiring through rigid conduit (metal, ≥20mm diameter) where exposed to mechanical damage. Seal conduit ends with fire-resistant putty rated for 2-hour integrity to prevent smoke infiltration. In multi-story designs, dedicate separate zone circuits for each floor to isolate faults without disabling entire networks. Label each zone on the control panel with phosphorescent tags for visibility during power loss.
Designing a Reliable Early Warning Electrical Schematic

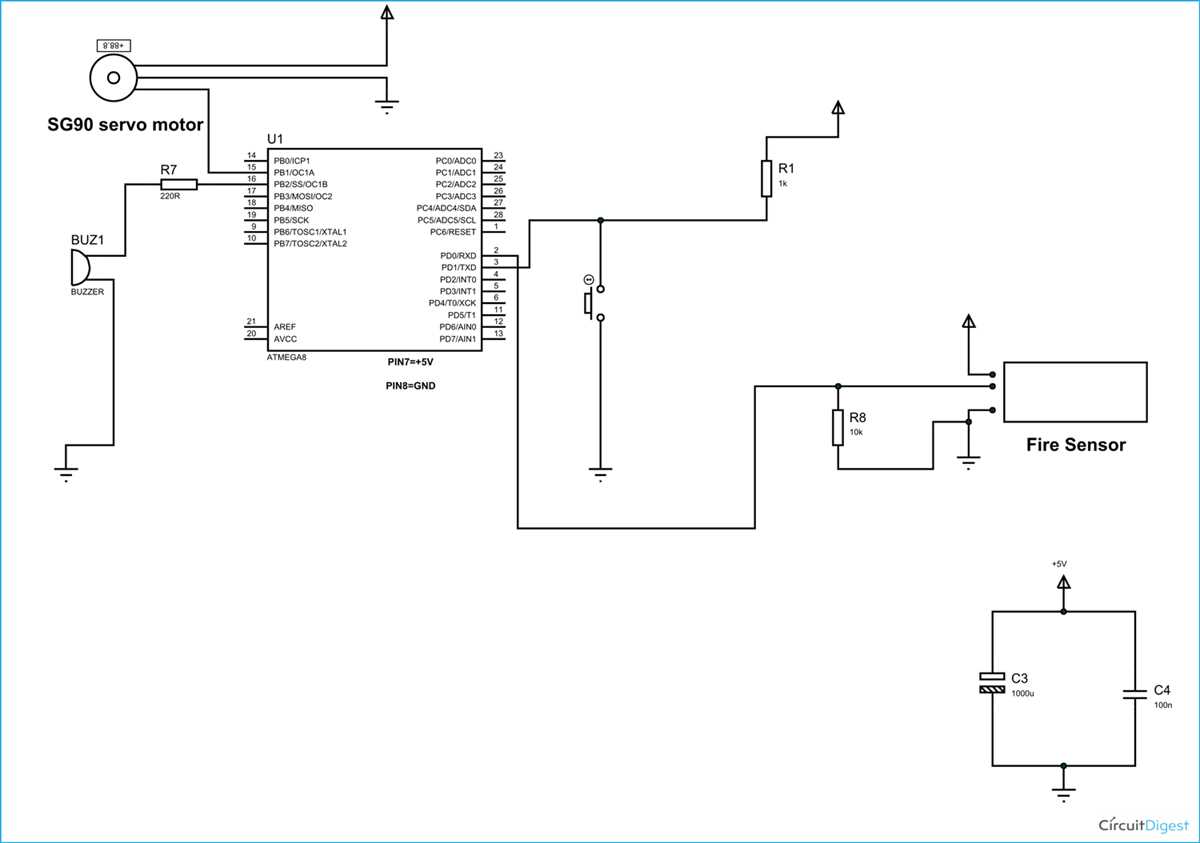

Select a dual-loop configuration to improve fault tolerance. Use thermistor-based heat detectors rated for 135°F (57°C) in high-risk zones like kitchens, while optical smoke sensors work best in sleeping areas. Connect all sensing elements to a central microcontroller–Arduino Mega or STM32 Nucleo–for real-time processing. Power consumption drops 40% when sensors enter sleep mode between sampling cycles every 250ms.
Integrate at least three redundancy pathways in the wiring. Solid-core copper wire (22 AWG minimum) prevents signal degradation over distances above 30 meters. Avoid vulnerable solder joints–use crimped connectors with dielectric grease to prevent corrosion. Test each segment under simulated fault conditions: open loop, short to ground, and induced EMI from nearby appliances.
Use a separate 12V battery bank with deep-cycle lead-acid cells for backup. Calculate load requirements: smoke detectors draw 0.2mA standby, 18mA active, strobe lights demand 500mA pulses. Add a buck converter to stabilize voltage fluctuations–ripping currents from inductive loads collapse unregulated supplies by 2.3V during activation spikes. Charge circuitry must include temperature compensation to extend battery life beyond 5 years.
Route wiring through fire-resistant conduit in commercial settings. EMT steel tubing withstands 950°C for 30 minutes–mandatory for exit stairwells. Label each conduit segment with heat-shrink sleeves containing ANSI Z535.4 compliant warnings. Split branching into isolated segments–faults in one section shouldn’t disable the entire network. Include pull stations at maximum 60-meter intervals, ensuring each loops back to the control panel.
Deploy supervised relay contacts for every device. End-of-line resistors (4.7kΩ) monitor circuit integrity–broken wires or removed detectors trigger immediate alerts. Use twisted-pair wiring for data lines to reject noise: common-mode rejection ratio improves 60dB. Separate power and data cables by at least 50mm to prevent cross-talk.
Program the microcontroller with multiple timeout thresholds. Initial smoke detection triggers a 10-second verification delay to eliminate false positives from steam. Subsequent detections within 30 seconds escalate to full emergency mode: unlocking egress doors, activating sprinklers, broadcasting localized voice alerts in three languages simultaneously. Log all events to external EEPROM–opt for SPI interface over I2C for faster write speeds under high stress.
Conduct monthly full-system tests under simulated load. Disconnect a random detector segment, verify backup battery switchover completes within 250ms, confirm emergency lighting reaches 1.2 lumens/m². Replace any component showing 15% deviation from original specifications. Archive test results digitally with checksum hashing–regulatory audits require five-year traceability.

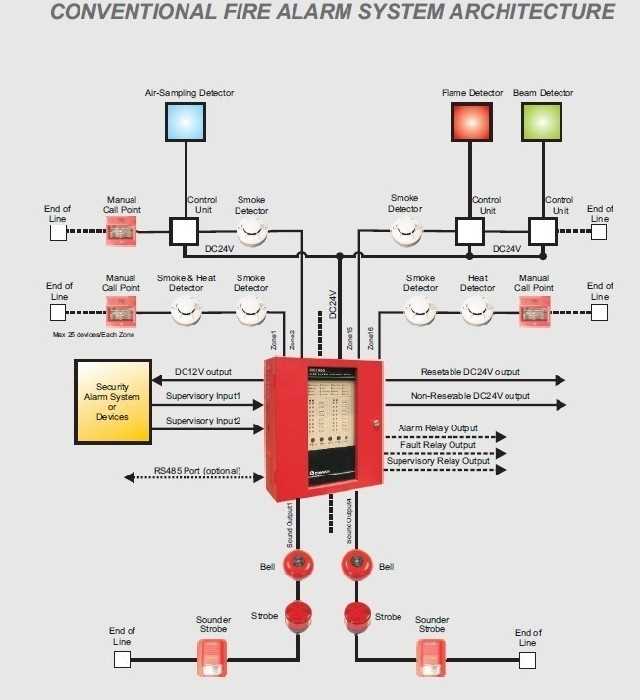

Critical Elements for an Emergency Detection Network
Install a rate-of-rise heat detector with a threshold of 15°C per minute–models like the *Honeywell FS20* outperform fixed-temperature units in environments with rapid temperature shifts, such as server rooms or industrial kitchens. Pair it with a photoelectric smoke sensor (e.g., *System Sensor 2251*) to detect smoldering combustion; these devices trigger 30–60 seconds faster than ionization types when responding to dense smoke from upholstery or wiring. For outdoor or dusty areas, opt for air-sampling detectors that draw ambient samples through pipes–systems like the *Xtralis VLF-250* filter particulates down to 0.03 microns, minimizing false alerts from pollen or sawdust.
Power redundancy demands a 12VDC sealed lead-acid battery (minimum 7Ah capacity) with trickle-charging from a transformer-rated for 20% above anticipated load–failing to size this correctly risks voltage sag below 10.5V under sustained draw, causing control panel lockouts. Wiring must comply with EN 54-14: use 1.5mm² stranded copper (tinned for corrosion resistance) for loop circuits, and separate power feeds from signal lines by at least 30cm to prevent inductive noise from motors or lighting dimmers. Terminate all connectors with cold-crimped ferrules–soldered joints degrade resistance over time due to oxidation, increasing loop faults by 40% within 5 years.
For audible notification, deploy multi-tone sounders (e.g., *Federal Signal MDC*) with a minimum 85dB output at 1m; lower volumes risk masking by HVAC systems or background noise in warehouses. Strobes should pulse at 1 flash per second (compliant with ADAAG 4.28.4) with xenon tubes rated for 100,000 flashes to avoid premature burnout. Integrate a silence/isolate switch with a 5-second delay to prevent accidental deactivation during a real event, using a latching relay to ensure manual reset is required after testing.

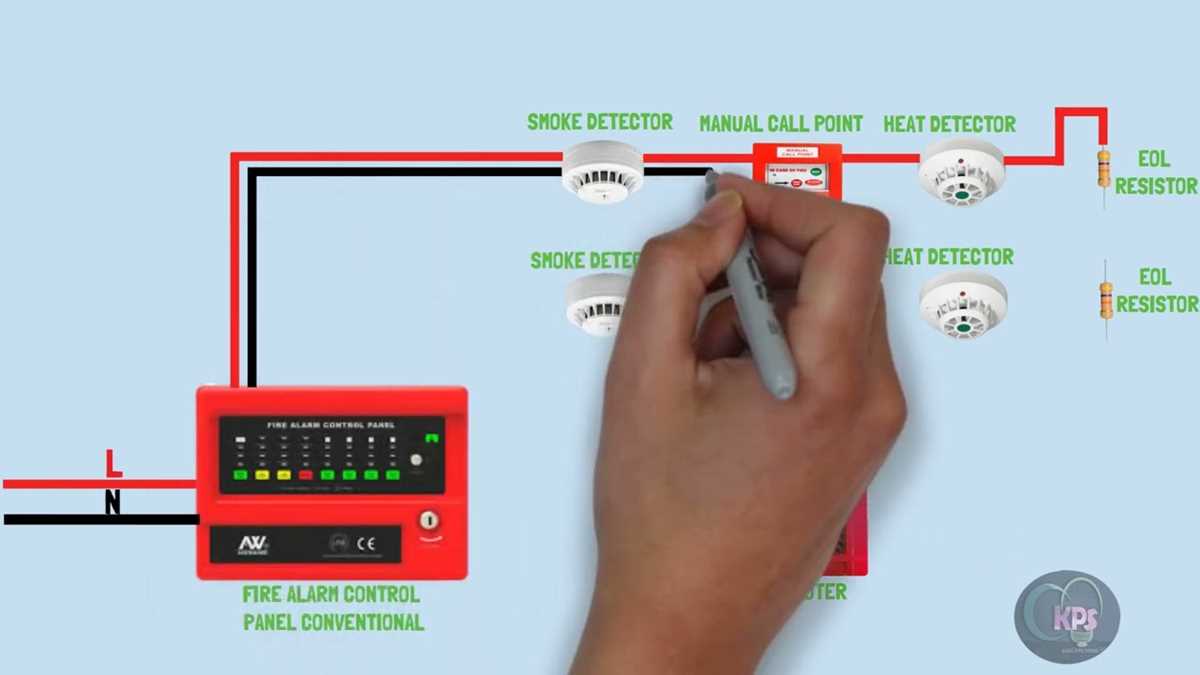

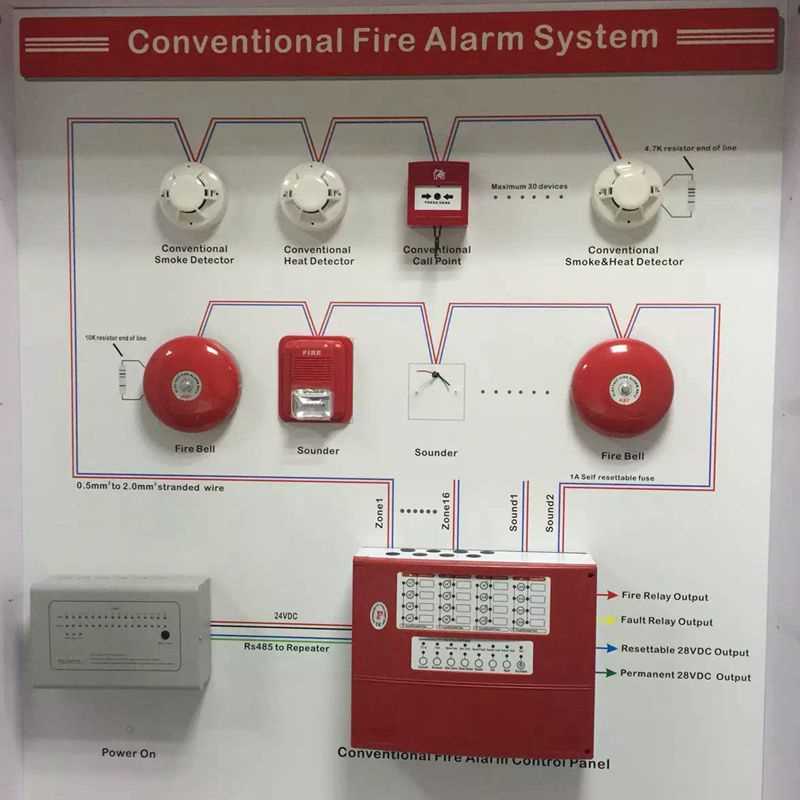

Step-by-Step Wiring of Smoke Detector to Control Panel
Select a 2-wire conventional detection device rated for 24V DC operation to ensure compatibility with most central units. Verify the device’s polarity markings–typically a + (red) and – (black) terminal–before proceeding. Incorrect polarity will prevent signaling.
Run shielded twisted pair (STP) cable from the detector’s location to the control unit, maintaining a minimum 18 AWG gauge for reliable current flow. Avoid parallel runs near power lines (keep ≥30 cm separation) to minimize interference. Strip 6–8 mm of insulation from each wire end and twist strands tightly to prevent fraying.
- Connect the detector:
- Attach the red wire to the + terminal (often labeled “Alarm” or “Loop”).
- Secure the black wire to the – terminal (common/ground).
- Tighten terminal screws to 0.5 Nm torque–loose connections cause false triggers.
- Interface with the control unit:
- Identify the zone input on the panel matching the detector’s intended area (e.g., “Zone 1”).
- Link the detector’s + wire to the zone’s + input and the – wire to the common/return terminal.
- For end-of-line (EOL) resistors, install a 4.7 kΩ resistor across the zone terminals to enable supervision.
Power the panel and conduct a walk test:
- Activate the detector (use canned smoke or a test button if available).
- Confirm the panel displays the correct zone and triggers the audible/visual indicators.
- Measure voltage at the detector terminals–expect 18–22V DC in standby and 0V during activation.
- If voltage drops below 12V, check for undersized cables or excessive loop length (max 100 m per BS 5839).
Seal connections with heat-shrink tubing or anti-oxidant compound to prevent corrosion. For multi-story installations, wire detectors in daisy-chain (NOT parallel) to maintain individual fault isolation. Label all cables with zone identifiers–e.g., “SD 3rd Flr NE”–using durable tags resistant to UV and moisture.
Proper Power Supply and Reserve Energy Integration for Safety Networks
Always route primary and auxiliary power lines through separate conduits to minimize electromagnetic interference–especially in environments with high inductive loads. A 24V DC supply is optimal for most detection setups, but verify voltage drop across the longest run: use at least 1.5mm² wire for distances under 30m and 2.5mm² for runs up to 50m. Beyond 50m, switch to 4mm² wire or consider a distributed power topology with intermediate boosters.
Select a rechargeable backup module with a capacity at least 20% greater than the worst-case load duration–typically 12 hours for regulatory compliance. Lithium iron phosphate (LiFePO₄) units are preferred over sealed lead-acid for lower self-discharge (3% vs 10% per month) and longer cycle life (2000+ cycles). Mount the reserve unit within 1m of the main power entry to reduce voltage sag during switchover; use a dual-input charging controller rated for 3A minimum to handle inrush currents from control panels and notification appliances.
Implement a dual-diode isolation scheme between main and auxiliary power paths to prevent backfeed; Schottky diodes with a forward voltage drop under 0.3V reduce parasitic losses. Include a low-voltage disconnect at 21V to prevent deep discharge of the reserve energy store–this prolongs lifespan and ensures a valid start-up sequence after prolonged outages. Place a 100nF ceramic capacitor directly across each power input terminal of sensitive modules to suppress transient noise from switching relays or nearby machinery.
Critical Connection Sequence
| Step | Action | Verification |
|---|---|---|
| 1 | Disconnect all power sources at the breaker panel | Measure infinite resistance at the panel terminals |
| 2 | Connect main supply positive to the control panel’s V+ input | Confirm polarity with multimeter; expected 24V ±1V |
| 3 | Attach reserve energy positive to the auxiliary input through the isolation diode | Measure ≤0.3V drop across diode; reverse test to confirm no leakage |
| 4 | Join negatives together at a single grounding busbar; avoid daisy-chaining | Check continuity from busbar to earth; resistance <0.1Ω |
| 5 | Restore main power and monitor charge current | Charger output should settle at 700mA ±50mA within 10 minutes |
For off-grid or unreliable mains locations, supplement the reserve store with a trickle-charged 12V gel cell paired to a 24V step-up converter; efficiency drops to ~85% but extends runtime by 40-60%. Always fuse both supply rails at the source–use slow-blow fuses sized at 125% of the maximum continuous current draw; typical values are 5A for small installations and 8A for multi-zone configurations. Include a manual bypass switch to allow safe servicing without disabling the entire network.
Fault Condition Diagnostics
If the primary supply fails but the reserve unit remains offline, check the isolation diode first–failed rectifiers often exhibit increased forward drop or reverse leakage. Next, verify the charger output with a clamp meter; a healthy unit should source constant current during absorption phase, tapering to maintenance voltage (27.2V ±0.2V) after full charge. Swollen cases or electrolyte odor from lead-acid backups signal imminent failure–replace immediately; LiFePO₄ units may develop internal resistance above 50mΩ yet appear stable, so measure under load to confirm deterioration.
Label every power connection with heat-shrink tubing and indelible marker–include voltage, current rating, and upstream breaker reference. During annual testing, discharge the reserve store to 22V under supervised conditions and log recovery time to 90% capacity; a healthy installation should return to operational voltage within 4 hours. Maintain a logbook with date-stamped voltage readings from both rails–baseline drift exceeding 5% per year indicates deteriorating connections or impending module failure.
