Complete Lincoln Navigator 2003 Radio Wiring Diagram Guide for Car Audio

Check the fuse panel under the dashboard–left side–for a 15-amp fuse linked to the audio unit. If corroded or blown, replace it before touching any wires. The central harness connects through a 16-pin plug (typically white or gray) behind the dashboard trim. Disconnect the negative battery terminal first to avoid short circuits.

Trace the speaker lines: front door tweeters (blue/white and gray/red), rear door woofers (green/black and violet), and subwoofer (brown/yellow and tan). Each pair corresponds to a 4-ohm resistance–any deviation signals a ground fault or damaged voice coil. Test continuity with a multimeter before reattaching.

Locate the power harness: constant 12V (yellow), ignition-switched (red), and ground (black). The yellow wire draws directly from the battery–verify voltage remains consistent even with accessories off. Dimmer control (orange) adjusts display brightness; cross-check for 0-12V fluctuation when turning the dash knob.

For steering wheel controls, find the gray 6-pin connector near the column. Resistance values vary: volume up (230 ohms), seek down (650 ohms). Measure before splicing remote modules. The satellite radio interface (if fitted) uses a separate black 12-pin adapter–pin 7 carries the data line (purple).

Antennas on non-factory setups require coaxial cable (RG-58) with proper shielding. The factory amp (under the front passenger seat) taps into the rear woofer lines–disconnecting it reverts to dash-powered output. Retain the original harness if adding an aftermarket unit; color codes differ for third-party adapters.

Vehicle Audio System Connection Guide for Premium SUV Models

Locate the factory harness behind the dashboard center stack–specifically, pin 1 (yellow) carries constant 12V power from the battery, while pin 5 (red) delivers switched voltage via the ignition circuit. Verify these connections with a multimeter before proceeding, as incorrect attachments can trigger fuse blowouts. Ground wire (black, pin 3) must terminate directly to bare metal, avoiding painted surfaces to prevent intermittent failures.

Aftermarket head units typically require an adapter harness matching OEM configurations; Axxess ASWC-1 interfaces with most systems without cutting original wires. For amplified setups, identify the purple/white wire (pin 15) linked to the factory amplifier–this carries the signal to rear-door speakers. If bypassing the amp, splice this wire directly to the aftermarket unit’s rear output channels, ensuring proper impedance matching (4-8 ohms).

Front speaker outputs follow a distinct color code: gray/light blue (pin 12) for the positive right front, and gray/red (pin 13) for the negative. Rear speaker wires–purple (pin 17) and purple/black (pin 18)–mirror this pattern. Use crimp connectors or solder joints with heat shrink tubing for durability; electrical tape degrades over time and invites corrosion. Confirm polarity with a 9V battery–positive wires will push the speaker cone outward.

Subwoofer integration demands a dedicated RCA output from the head unit to a standalone amplifier. If the OEM system lacked sub outputs, employ a line output converter (LOC) tapping into the rear speaker wires. Adjust gain settings meticulously to avoid distortion; factory settings often default to +6dB, which may overload aftermarket amplifiers. Test with a sine wave tones at 50Hz to ensure clean low-frequency reproduction.

Steering wheel control retention requires a separate adapter module. The gray/violet wire (pin 6) interfaces with the vehicle’s data bus–compatibility varies by brand (e.g., Metra ASWC-X vs. Pac SWI-JACK). Program each button function through the module’s software to avoid erratic behavior. If retaining the stock chime system, ensure the gray/black wire (pin 8) remains intact, as severing it disables seatbelt and door alerts.

Finding the Audio System Cable Clusters in Your Full-Size SUV

Begin by removing the lower dash panel beneath the climate controls. Two primary connectors hide behind a plastic cover near the driver’s left knee–press the release tabs to detach them. The upper harness handles speaker feeds: front left (light blue/white), front right (dark green/violet), rear left (yellow/black), and rear right (brown/white). The lower cluster carries power (red, 12V constant), ignition switch (yellow), illumination (orange), and ground (black). Label each wire before disconnecting to avoid confusion during reassembly.

• Front speaker outputs: position wires adjacent to the temperature blend actuator.
• Power leads: trace thicker gauge cables to verify against a multimeter (12V on red wire, 0V on ground).
• Amplifier trigger: if equipped, a pink/violet line indicates the factory amp connection.

For rear entertainment connections, slide the rear seat forward–an additional harness emerges near the cargo floor. Look for an 8-pin plug with video (yellow RCA-style), chassis ground, and left/right audio inputs. Use a trim tool to pry the side panels gently; excessive force cracks the clips. Note the antenna lead (blue/white) in the upper connector–damage here disrupts FM reception.

Decoding Audio System Cable Standards for Custom Head Unit Upgrades

Start by locating the constant power lead–typically a yellow or orange-stripe conductor–which delivers uninterrupted 12V from the vehicle’s fuse panel. Verify this with a multimeter (11-14V regardless of ignition state) to prevent draining the battery during installation. Avoid mistaking it for the ignition-switched power wire (red or red-stripe), which only activates when the key is in the “ACC” or “ON” position. Incorrect connections here will cause the head unit to power off with the ignition.

Ground connections demand scrutiny: a black or black-stripe cable must terminate directly to the chassis, stripped of paint and secured with a star washer. Poor grounding introduces alternator whine, signal interference, or sporadic shutdowns. For vehicles with amplified factory systems, confirm whether the harness retains an amp turn-on wire (blue or blue-stripe)–this signal engages external amplifiers and must not be confused with the power antenna wire (also blue, but thinner gauge).

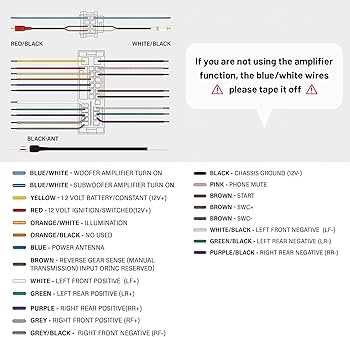

Speaker outputs follow a universal but inconsistent color-coding scheme: white (front left +), white/black (-), gray (front right +), gray/black (-), green (rear left +), green/black (-), purple (rear right +), purple/black (-). Cross-check these against a pinout chart specific to the vehicle’s original harness, as aftermarket adapters may transpose colors. Test each lead with a 9V battery; a quick pop confirms correct polarity before finalizing connections.

Illumination wires (usually orange or orange/black) sync dashboard dimming circuits–connect these only if the new head unit supports variable brightness. Ignoring this step may leave controls excessively bright at night. For steering wheel control compatibility, identify the data bus wire (often brown or purple/white) using an oscilloscope to confirm signal integrity before integrating a control module. Static pulses here indicate compatibility; erratic waveforms suggest a different protocol.

Safety-check the completed harness by probing each connection with a circuit tester before mating the adapter. Look for stray voltage on any accessory wires–a common cause of blown fuses or fried head units. Label every verified lead with heat-shrink tubing or flags, noting deviations from standard colors (e.g., brown replacing orange in some models). Store a hand-drawn reference sketch of the verified layout, including any splices, for troubleshooting later.

Step-by-Step Guide to Bypassing the Factory Amplifier for Direct Speaker Wiring

Locate the audio system’s central module behind the dashboard trim panel on the passenger side. Remove the retaining clips securing the trim by prying gently with a plastic tool–metal tools risk damaging interior components. Disconnect the electrical connectors from the module by pressing the release tabs and pulling straight out. Identify the amplifier output wires by tracing the multicolor harness; these typically include thicker gauge wires (16–18 AWG) paired with thinner signal leads.

Cut the amplifier output wires approximately 3 inches from the module’s connector, leaving enough length for splicing. Strip ½ inch of insulation from each wire end using wire strippers calibrated for the gauge. Match the speaker connections directly to the head unit’s output terminals, referencing the following color codes for front and rear channels:

• Front Left (+): Light blue/violet stripe
• Front Left (–): Light blue/orange stripe
• Front Right (+): Gray/light blue stripe
• Front Right (–): Gray/yellow stripe
• Rear Left (+): Dark green/violet stripe
• Rear Left (–): Dark green/orange stripe
• Rear Right (+): Tan/light blue stripe
• Rear Right (–): Tan/yellow stripe

Twist the corresponding head unit output wires to the amplifier output wires, ensuring polarity matches. Secure each splice with crimp connectors or solder; heat shrink tubing over the connection prevents short circuits. Bundle the spliced wires with electrical tape or conduit to avoid interference with dashboard mechanisms. Reconnect the head unit’s power and ground wires if disconnected during access–these are usually solid yellow (constant 12V), red (switched 12V), and black (ground).

Testing and Troubleshooting

Reinstall the dashboard trim panel loosely before finalizing connections. Turn the ignition to accessory mode and test each speaker individually using a balance/fader control. If no sound is detected, verify the following:

1. Ground connections: Ensure the black wire is securely attached to chassis metal.
2. Fuse integrity: Check the 10A fuse linked to the audio system’s power lead.
3. Splice continuity: Probe each connection with a multimeter set to 200Ω; resistance should read below 1Ω.
4. Factory antitheft reset: Some models require a security code if power was interrupted.

Adjust the head unit’s equalizer settings to compensate for the bypassed amplification. Factory amplifiers often apply bass boost or frequency shaping; disabling these features may result in flatter sound. A dedicated aftermarket amplifier with adjustable gain controls can restore lost output if direct wiring yields insufficient volume. For rear-fill channels, confirm the head unit supports separate rear speaker outputs–some base models combine front and rear signals internally.

Final Assembly and Optimization

Once audio output is confirmed, fasten the dashboard trim panel completely. Reattach any console components previously removed, such as climate control knobs or storage compartments. Route all modified wiring away from moving parts (e.g., steering column, pedal assemblies) to prevent chafing. Secure loose wires with zip ties anchored to existing harness clamps.

Replace the vehicle’s battery terminal disconnect if removed during the process. Test the system with varied audio sources (FM radio, auxiliary input, CD) to ensure consistent performance. If distortion occurs at high volumes, reduce the head unit’s preamp voltage using a line output converter or install inline resistors (1–2Ω) on the positive speaker leads. Document all modifications, including wire colors and splice locations, for future reference or component upgrades.
