Complete Guide to Magnetron Microwave Oven Wiring and Component Layout

Start troubleshooting by verifying the diode and capacitor assembly in the power conversion stage. Failure often stems from a faulty high-voltage rectifier or degraded smoothing capacitor. Replace these components if they show signs of bulging, discoloration, or leakage–common indicators of stress under pulsed 4,000 VDC loads. Test continuity across the diode with a multimeter in resistance mode; an open circuit confirms failure.

Check the transformer’s secondary winding for shorts or open circuits. A properly functioning unit delivers 2.1 kVAC to the rectifier stack. If voltage drops below 1.8 kVAC, inspect for loose connections or degraded insulation on the winding taps. Primary coil resistance should measure 1.2–1.5 ohms; deviations suggest internal damage requiring replacement.

Examine the waveguide connection where RF energy exits the cavity. Corrosion or carbon deposits at this junction cause arcing, reducing efficiency by up to 30%. Clean contacts with isopropyl alcohol and ensure the choke flange sits flush with the waveguide aperture. Misalignment here creates standing waves, overheating the emitter tube.

Refer to the service manual’s exploded view for disassembly steps. The emitter’s filament requires 3.3 VAC at 10–12 amps; verify this with an AC voltmeter before reassembly. If the filament glows but RF output is absent, suspect cathode poisoning or a defective resonator grid, both requiring emitter replacement.

Safety interlocks must engage before testing under load. Bypass capacitors hold lethal charge for minutes; discharge them through a 1 kΩ resistor before servicing. Wear rubber gloves rated for 10 kV when handling the power section–live nodes retain voltage even after power removal.

Understanding the Core Schematic of High-Frequency Heating Systems

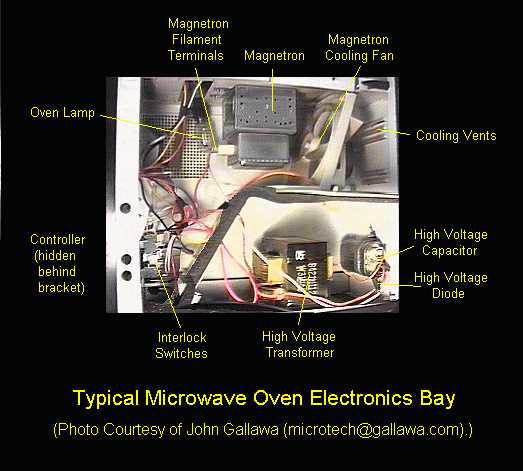

Start by locating the key components on the schematic: the high-voltage transformer, capacitor bank, and electron tube. These elements form the power conversion chain, stepping up standard AC input to several thousand volts DC. The transformer’s secondary winding typically outputs 2kV–3kV AC, which the capacitor smooths into usable DC for the tube’s filament and anode. Verify the capacitor’s rating–most residential units use 1.0–2.2 μF at 2100V DC. Lower values risk inadequate power delivery, while higher capacitance shortens tube lifespan.

Pay attention to the high-voltage diode’s orientation in the diagram. Positioned between the capacitor and tube’s anode, it prevents backflow during the negative half-cycle, ensuring unidirectional current. A reversed diode causes immediate arcing, tripping fuses or damaging the cathode. Check the diode’s peak inverse voltage (PIV); it must exceed 12kV to handle transient spikes. Replace with an exact match–substitutes with lower PIV ratings fail catastrophically under load.

Safety Interlocks and Control Logic

The schematic’s interlock switch cluster isolates the high-energy section when the door opens. Two redundant microswitches cut power to the transformer primary, while a third monitors the latch mechanism. Bypass these switches only for testing–never operate the system without them. Most failures trace to corroded contacts; clean with isopropyl alcohol and verify continuity with a multimeter before reinstating power.

Observe the timing relay’s role in the control board. It governs the tube’s duty cycle, preventing overheating by limiting continuous operation to 10–30 seconds. Exceeding this duration activates thermal cutoffs near the tube’s magnet assembly. If the relay sticks in the “on” position, replace it immediately–prolonged operation warps the magnet poles, degrading efficiency by up to 40%. Refer to the thermal cutoff’s temperature rating, usually 95°C–105°C, and replace faulty units with the same bimetal type to maintain protection.

Component Placement and Wiring Best Practices

Route high-voltage cables at least 15mm from chassis metal to avoid corona discharge. Use silicone-insulated wire rated for 20kV; PVC degrades under sustained high voltage. Secure cables with nylon ties–zip ties melt near the tube’s filament terminals. Ground the chassis directly to the transformer’s core with 8AWG braided copper; thinner wire introduces resistance, risking RF interference and uneven heating.

The tube’s filament winding delivers 3.3V AC at 10A–12A. Verify this with a true-RMS meter; an underpowered filament reduces electron emission, dropping output power disproportionately. If voltage sags, check the transformer’s taps–most have multiple primary connections for voltage adjustment. Ensure the secondary winding’s resistance matches the schematic (±5%); deviations indicate shorted turns, requiring transformer replacement.

Finally, test the system’s RF output with a neon bulb held 30cm from the waveguide. A faint glow confirms proper operation, while no glow indicates tube failure or misaligned magnet poles. For output tuning, adjust the magnet’s air gap in 0.1mm increments; oversized gaps reduce beam focus, wasting power as heat. Calibrate the beam with an oscilloscope–optimal waveforms show a clean 2.45GHz sine wave. Noise or distortion suggests damaged cavity walls or foreign debris in the waveguide, necessitating disassembly and cleaning with lint-free cloths.

Core Elements of a High-Frequency Heating Tube in Appliance Schematics

Prioritize verifying the cathode filament when diagnosing power delivery failures–it must sustain 3.3V AC (±0.1V) at 10A during standby to prevent uneven electron emission. Replace any filament showing resistance deviations above 0.2Ω from the manufacturer’s baseline; even minor variance accelerates anode erosion. The permanent magnets demand annual alignment checks: position them within 2mm of their original spacing, as misalignment reduces magnetic flux density below the required 1.2T, causing inconsistent microwave output. Always discharge the high-voltage capacitor before handling–residual charges exceeding 4kV pose lethal risks despite seeming de-energized systems.

Critical Specifications for Reliable Operation

Component	Optimal Value	Failure Threshold	Diagnostic Tool
Anode Voltage	4.2kV DC (±200V)	<3.9kV or >4.5kV	High-voltage probe (1000:1 ratio)
Filament Resistance	0.1Ω (±0.05Ω)	>0.2Ω	Precision milliohm meter
Stator Coil Inductance	50mH (±5mH)	<40mH or >60mH	LCR meter (1kHz test freq)
Waveguide Seal	Continuous RF integrity	Gaps >0.5mm or corrosion	Microwave leakage detector (5mW/cm² limit)

Ensure the thermal cutout resets only after the appliance chassis temperature drops below 80°C–premature resets risk overheating the resonant cavity. Replace any waveguide components showing pitting or oxidation; these defects scatter RF energy, decreasing cooking efficiency by up to 30%. For electromagnetic interference suppression, maintain a 2μF (±0.1μF) capacitor across the anode and chassis ground; deviations cause erratic power fluctuations detectable via spectrum analyzer (1GHz–2.5GHz sweep).

Step-by-Step Wiring Layout for High-Voltage Transformer Integration

Ensure the primary winding terminals of the transformer connect directly to a dedicated 220V AC supply line, bypassing all intermediate switches. Use 12 AWG stranded copper wire with heat-resistant insulation rated for 300V minimum. Label both input leads clearly before energizing to prevent miswiring during reassembly.

Route the secondary winding output through a high-voltage capacitor bank assembled in series with the load. For a 2kW system, select capacitors rated at 2100V DC, 1.1µF each, combining three in parallel for redundancy. Secure connections with crimped ring terminals and apply dielectric grease to prevent arcing under 4kV peak conditions.

Ground the transformer core and chassis using a braided copper strap no thinner than 6mm². Attach the strap to a dedicated earth terminal–never rely on mounting screws alone. Verify continuity with a megohmmeter after installation, targeting <0.5Ω resistance to the main ground bus.

Install a current-limiting fuse between the transformer primary and the power source. For a 10A steady-state load, use a slow-blow 15A fuse housed in a ceramic holder to survive transient surges up to 30A. Position the fuse holder within 15cm of the transformer terminal to minimize unprotected wiring.

Add a bleeder resistor across the capacitor bank to safely discharge stored energy when power is removed. Use a 1MΩ, 5W wirewound resistor in ceramic housing, connected with 18 AWG silicone-insulated wire. Confirm residual voltage drops below 50V within 30 seconds of disconnection using a high-impedance probe.

Test the wiring integrity with a hipot tester at 5kV AC for 60 seconds. Apply the probe between each high-voltage node and ground, ensuring no leakage current exceeds 1mA. Document test results with date and voltage parameters before enclosing the assembly in a shielded metal housing with RF gasket seals.

Identifying and Resolving Frequent Issues in High-Frequency Generator Schematics

Begin troubleshooting by measuring the filament voltage at the tube’s terminals. A reading below 3.1V AC (±0.2V) suggests a faulty power transformer winding or corroded connections. Inspect solder joints at the high-voltage capacitor and diode for hairline cracks–use a 10x magnifier under bright light. Replace any components showing discoloration or bulging, as these indicate thermal stress. For intermittent operation, check the thermal fuse: a multimeter in continuity mode should show near-zero resistance when cooled; if not, replace it immediately.

Voltage Irregularities and Component Degradation

• High-potential diode failure: Symptoms include a loud humming noise and no heating. Test with a multimeter set to 10kΩ range–forward bias should read ~50-200kΩ; reverse bias, infinite. Swap with a 12kV-rated diode if defective.
• Capacitor leakage: Observe for oil residue or swollen casing. Discharge safely via a 10kΩ resistor, then measure capacitance. A drop below 80% of labeled value (e.g., 0.9µF vs. 1.0µF) warrants replacement. Always pair with a matching diode to prevent voltage imbalance.
• Stator coil issues: An open winding (infinite resistance) or short (below 0.5Ω) disables the cooling fan, leading to overheating. Verify continuity from the control board to the fan assembly; re-solder or replace the coil if damaged.

Arcing between the cathode and anode typically results from carbon deposits or misaligned internal structures. Disconnect power, then clean electrodes with 1200-grit sandpaper followed by isopropyl alcohol. Ensure a 0.05-0.1mm gap–use a non-conductive spacer tool for adjustment. If arcing persists, the tube’s vacuum seal may be compromised, necessitating a full replacement. Always discharge the high-voltage capacitor before handling internal components to avoid lethal shocks, and use insulated tools rated for 5kV minimum.
