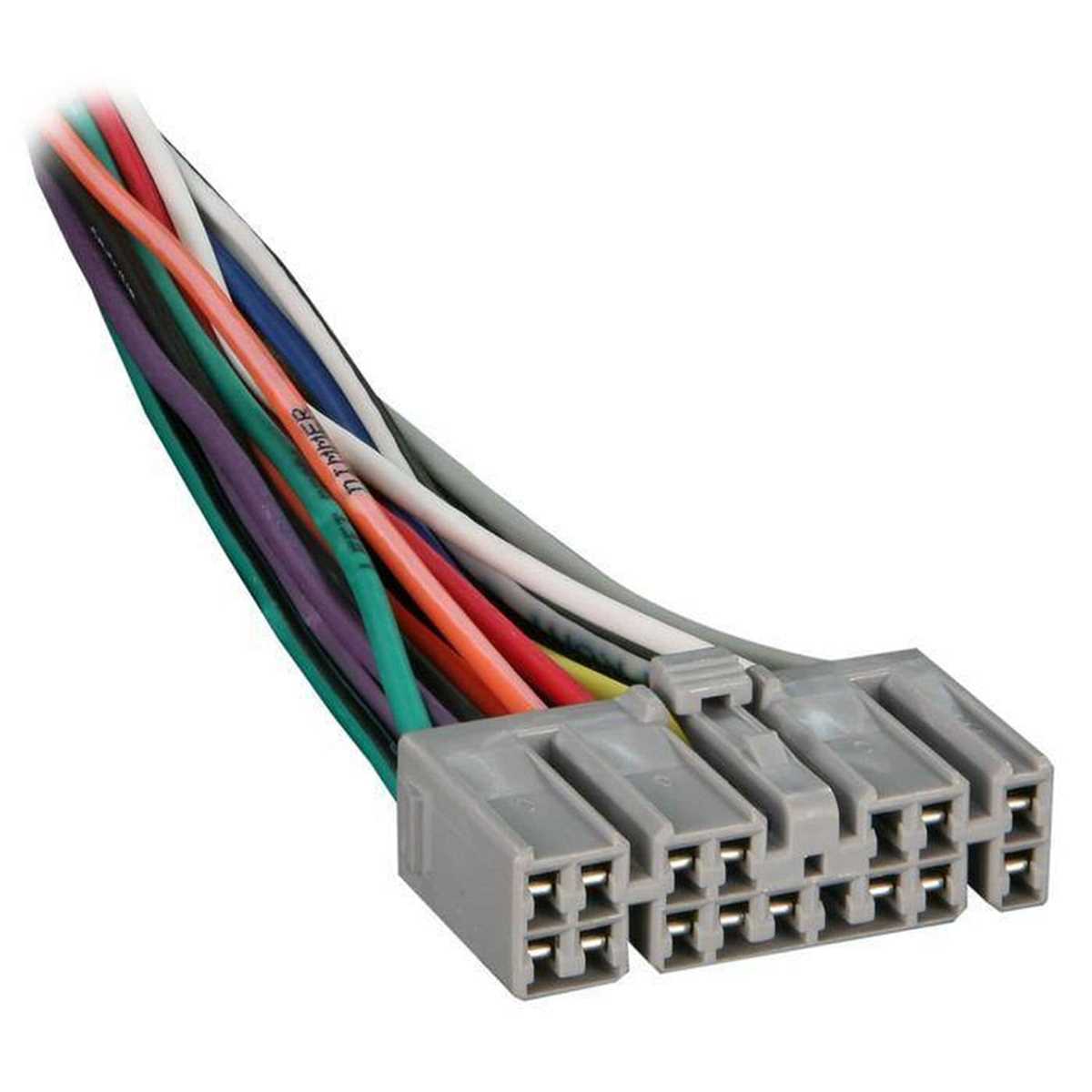

Complete 2003 Mercury Grand Marquis Radio Wiring Diagram Guide
Locate the fuse box under the dashboard on the driver’s side–remove the interior panel by unsnapping the six plastic clips. Pin 16 on the C2 connector delivers constant 12V power; splice a 18-gauge red wire directly to this terminal for uninterrupted current. The C1 harness carries the ground (black, pin 2), speaker outputs (gray/white stripes for front right, purple/orange for rear left), and illumination feed (gray/yellow stripe, pin 8). Trace the orange/black wire from the factory harness to the antenna motor–this line controls auto-retract; bypass it with a manual switch if the motor fails.
Identify the three connectors at the back of the stock head unit: 12-pin white, 8-pin gray, and 4-pin black. The white connector routes power, ground, and turn-on signals–verify continuity with a multimeter before reconnecting. Replace corroded terminals with gold-plated replacements; solder joints instead of crimping to prevent intermittent faults. Radio memory retains presets via pin 14 on the gray connector–ensure this line remains isolated from other circuits to avoid battery drain.
Speaker wires follow color-coded pairs: front left (gray/light blue), front right (gray/red), rear left (purple/light blue), rear right (purple/red). Strip ½ inch of insulation, twist the strands tightly, and secure with heat-shrink tubing. For aftermarket upgrades, match the harness adapter’s pinout to the vehicle’s existing loom–mismatches cause phase cancellation or blown fuses. Label each wire with masking tape before disconnecting to simplify reassembly.
Check the in-line fuse holder near the firewall–replace the 15A fuse if the audio cuts out intermittently. If static persists, inspect the coaxial cable between the tuner and amplifier for frayed shielding. Ground loops occur when the chassis ground differs from the radio’s; attach an additional 10-gauge ground wire to the nearest bare metal surface, sanded clean of paint or rust inhibitors.
Electrical Guide for Aftermarket Stereo Integration in Ford Panther Platform Sedans
Locate the primary 12-pin connector behind the factory head unit–harness identifier C9067-L or equivalent. Pin assignments are as follows:
- Pin 1: Constant +12V (yellow, 18-gauge)
- Pin 2: Ignition-switched +12V (red, 18-gauge)
- Pin 3: Ground (black, 16-gauge)
- Pin 4: Left front speaker (+) (light green, 20-gauge)
- Pin 5: Right front speaker (+) (gray, 20-gauge)
- Pin 6: Left rear speaker (+) (brown, 20-gauge)
- Pin 7: Right rear speaker (+) (purple, 20-gauge)
- Pin 8–12: Chime, illumination, and data bus (varied gauges)
Verify power continuity with a multimeter–minimum 11.8V on both constant and switched circuits. Use crimp connectors rated for 20A; solder joints risk corrosion under dashboard vibrations.
For seamless chime retention, splice the factory chime module between Pin 1 (constant power) and Pin 9 (chime trigger). Preserve the original dash illumination by retaining Pin 10 (orange/white) to the replacement stereo’s dimmer input. If removing the stock amplifier–mounted behind the glove box–bypass it directly to the speakers using 18-gauge twisted pairs to prevent signal degradation.
Identifying the OEM Audio System Plug Behind the Instrument Cluster
Begin by removing the lower dash trim panel on the driver’s side. This access cover, typically secured with four 7 mm screws, conceals the primary electrical junction for the vehicle’s entertainment module. After extraction, locate a white or grey multi-pin connector directly behind the climate control assembly, adjacent to the steering column support bracket.
The harness connector you seek measures approximately 2.5 inches in width and contains either 12 or 16 terminals depending on vehicle trims. Pin configuration follows this layout:
| Pin Position | Wire Color | Signal Type | Voltage (Key ON) |
|---|---|---|---|
| 1 | Light green/orange | Power antenna | 12V |
| 4 | Yellow/black | Constant +12V | 12V |
| 7 | Grey/light blue | Illumination | 0-12V (variable) |
| 10 | Black | Ground | 0V |
For precise identification, examine the release tab on the connector housing–it aligns vertically on the right side. Depress this tab while gently pulling the connector apart; excessive force risks damaging the locking mechanism. The male portion attaches to the audio unit, while the female side interfaces with the vehicle’s main wiring loom.
In cases where the harness appears sun-faded or discolored, verify continuity by probing each terminal with a multimeter set to 20VDC. Expect consistent readings matching the table above; discrepancies indicate corroded connections or severed cables, particularly common in higher-mileage models.
If the connector proves difficult to access, temporarily detach the dual climate control servo mounted above the glove box. This 10 mm bolt removal grants an additional 3 inches of clearance, sufficient to manipulate the harness connector without full dashboard disassembly.
When reinstalling components, ensure all fasteners torque to 8-10 ft-lbs–over-tightening risks cracking brittle plastic mounts common in this trim series. Double-check ground wire integrity at the chassis connection point (typically a 12 mm stud beneath the driver’s side footwell), as poor grounding remains a frequent cause of post-installation audio interference.
Decoding Harness Connections for OEM Audio System Upgrades
Match the constant power lead–typically a yellow wire–directly to the aftermarket head unit’s 12V+ input, verified with a multimeter showing uninterrupted voltage regardless of ignition state. The red ignition-switched wire, often fused at 10A, must terminate at the stereo’s ACC terminal to prevent battery drain; cross-check with the vehicle’s fuse box diagram if color coding deviates (e.g., red/white stripe on some models). Ground connections demand bare-metal contact–scrape paint or corrosion from the chassis point and secure with a star washer for optimal conductivity.
Speaker Wires: Polarity and Impedance
Front and rear speaker outputs follow a standardized pair: solid color (positive) paired with striped variant (negative). For instance, gray (+) and gray/black (-) for front-right, violet (+) and violet/black (-) for rear-right. Confirm polarity by tapping a 1.5V battery to the wires–the speaker cone should push outward; if it retracts, swap leads. Ensure the aftermarket amplifier’s impedance aligns with the factory speakers (typically 4 ohms); bridging mismatched loads risks thermal shutdown or distorted output.
Illumination and Mute Circuits require precise splicing for seamless integration. The orange or orange/white wire supplies +12V dimmer-controlled voltage–connect it to the new stereo’s lighting input to synchronize dashboard brightness. Anti-theft mute wires (if present), usually solid purple or pink, trigger during door chime events; isolate these from the power antenna lead (blue/white) to prevent erratic signal drops. Test all connections with a test disc or pink noise generator before finalizing trim panel reassembly.
Safe Removal of Factory Audio Unit to Preserve Electrical Connections
Disconnect the negative battery terminal first. Use a 10mm socket to loosen the clamp, then set the cable aside on a non-conductive surface. This eliminates risk of short circuits when handling the dash harness, which remains live even after ignition cutoff. Wait three minutes before proceeding–this allows capacitors in the amplifier circuit to discharge fully, preventing voltage spikes that could damage connected modules.
Remove dashboard trim carefully. Start with the climate control surround panel held by plastic clips. Insert a trim removal tool at the lower left corner, twist gently, and work upward to release each clip without snapping. Repeat for the lower bezel beneath the audio fascia–locate two 7mm screws at each bottom corner and one hidden behind the cigarette lighter receptacle. Store screws in separate labeled bags to avoid mix-ups during reassembly.
Release the factory audio unit by pressing four spring clips inward using a U-shaped removal key. Slide keys into the designated slots (located at 2, 4, 8, and 10 o’clock positions) and push until the unit disengages. If keys are unavailable, bend two sturdy paperclips into hook shapes–insert them simultaneously to prevent uneven pressure on the clips, which can snap under lateral force. Pull the unit straight out; tilting may dislodge the antenna lead or pinch wires.
Label every connector before unplugging. Use masking tape and a fine-tip marker to tag each harness: “Front Speaker +,” “Amp Power,” “Illumination,” “Speed-Sensitive Volume,” etc. The stock system uses a combination of 6-pin, 8-pin, and coaxial connectors–mistakes here can trigger airbag warning lights or disable retained accessory power functions. For coaxial connections, grip the inner collar firmly while twisting counterclockwise to unlock without damaging the delicate center pin.
Inspect the dash harness for brittle insulation or corroded terminals before installing aftermarket components. Replace any nicked wires using heat-shrink tubing and solder–electrical tape degrades over time. Clean male connectors with contact cleaner and a nylon brush to remove oxidation; dielectric grease prevents future corrosion. Reconnect each harness precisely as labeled, ensuring snug fits–loose connections cause intermittent faults or speaker whine.
Reinstall trim in reverse order. Snap the climate control panel first, then the lower bezel–listen for clicks confirming full engagement. Reattach the negative battery terminal and test all vehicle functions: turn signals, gauges, power windows, and the horn. Audible pops from speakers during ignition confirm amplifier reactivation. If warning lights appear, revisit connections–crossed wires can trigger false DTCs even if no physical damage occurred.
