Complete MIG Welder Electrical Circuit and Wiring Schematic Guide

Start with the transformer core–choose silicon steel with a thickness between 0.3mm and 0.5mm to minimize hysteresis losses. Wind the primary coil using 2.5mm² enamel-coated copper wire for handling input currents up to 30A without overheating. The secondary should use 10mm² wire to sustain welding currents ranging from 50A to 200A, depending on duty cycle requirements.

Integrate a full-wave bridge rectifier using four high-current diodes rated at least 200V/50A. Place a snubber capacitor (0.1µF/250V) across each diode to suppress voltage spikes. For smoothing, add two electrolytic capacitors (2200µF/100V) in parallel–ensure their ESR is below 0.1Ω to prevent ripple from exceeding 5% of output voltage.

Select a variable inductor with an adjustable core gap for fine-tuning arc stability. A 1mH to 5mH range works for most applications; wind it with 12-gauge magnet wire. Connect it in series with the output to reduce splatter–measure its impedance at 60Hz to verify correct inductance before assembly.

Use a gas valve solenoid rated for 24V DC, paired with a 10A relay to handle inrush currents. A 555 timer circuit can control pre-flow (0.5s) and post-flow (2s) to protect the weld pool. For wire feed, a 12V DC gear motor with a 25:1 reduction ratio provides consistent speeds from 50 to 500 IPM–couple it with a pulse-width modulated driver for precision.

Include a thermal overload protector: a bimetallic switch set to trip at 85°C. Mount it directly on the heat sink of the power transistors or thyristors. For cooling, a 120mm PWM fan (70 CFM) keeps temperatures below 60°C during extended operation–attach a thermistor (10kΩ) to the heatsink for automatic speed adjustment.

Ground the frame with a 4-gauge copper braid, ensuring resistance to chassis stays below 0.1Ω. For safety, place a 10A fuse in the primary circuit and a 30A breaker on the output side. Test continuity across all connections with a multimeter before powering on–voltage drop between the torch and workpiece should not exceed 0.5V at full load.

Key Components of a Gas Metal Arc Equipment Schematic

Start by identifying the power source transformer–typically a step-down unit converting high-voltage input (220–440V AC) into lower operating voltage (20–40V DC). Ensure the primary windings match your facility’s supply; mismatches cause inefficiency or overheating. Use thick copper wire (minimum 4 AWG) for secondary connections to handle current spikes up to 300A without voltage drop.

Incorporate a rectifier bridge immediately after the transformer to convert AC to DC. Silicon-controlled rectifiers (SCRs) or insulated-gate bipolar transistors (IGBTs) are standard–IGBTs offer better control for pulsed transfers. Add snubber circuits (combination of resistor-capacitor pairs, e.g., 10Ω/0.1µF) across each diode to suppress voltage spikes exceeding 10% of the nominal output.

Wire Feed and Gas Delivery Subsystems

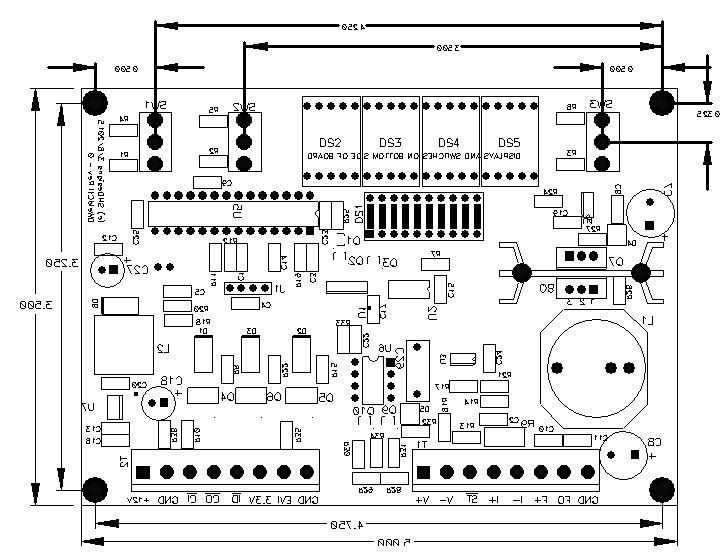

The wire feed motor requires precise speed regulation. Use a pulse-width modulation (PWM) controller with feedback from a tachometer to maintain consistent feed rates (2–20 m/min). Pair it with a dual-roll drive system: knurled rolls for solid wire, U-groove rolls for flux-cored. Mount rollers on needle bearings to reduce friction under 150 kg load.

For shielding gas, install a solenoid valve (12–24V DC) rated for 3,000 cycles/hour upstream of the torch. Add a pressure regulator set to 15–30 psi and a flowmeter (0–50 CFH) calibrated for argon, CO₂, or blends. Include a delay timer (0.5–2 seconds) to purge air from the line before arc ignition–prevents porosity in the bead. Bypass valves should open only when the torch trigger circuit completes.

Protection and Control Logic

• Overcurrent relay: Trip at 120% of rated capacity (e.g., 360A for a 300A unit) with a 10 ms response time.
• Thermal overload: Bimetallic strip sensor on the transformer core, rated for 90°C continuous/110°C transient.
• Undervoltage lockout: Prevents output if input drops below 180V AC–increases electrode burn-back risk.

Ground fault detection requires a current transformer (CT) on the work lead. Configure it to trigger shutdown if leakage exceeds 5 mA DC or 30 mA AC. Place a 1 µF capacitor across the CT output to filter high-frequency noise from the arc. Fuse all control circuits (typically 2A slow-blow) and isolate low-voltage sections (12V DC) with optocouplers to avoid interference from the high-power side.

Torch cooling relies on either forced-air fans or liquid circulation. For fans, position a 120 mm axial unit (50 CFM) near the rectifier stack–airflow should exhaust through a dust filter to avoid buildup. Liquid-cooled systems need a 0.5 GPM pump and a heat exchanger rated for 1 kW dissipation. Use distilled water with 10% propylene glycol to prevent corrosion in aluminum channels.

Add an emergency stop circuit–a normally-open mushroom switch wired in series with the main contactor coil. Include a latching relay to hold the shutdown state until manually reset. Test the circuit monthly by simulating a fault–contactor should drop within 50 ms. Document all wiring colors: black for phase, white for neutral, green/yellow for ground, red for control positive, blue for control negative.

For troubleshooting, integrate test points at the transformer secondary, rectifier output, and wire feed motor terminals. Use banana plugs for quick measurements–mark voltages as follows:

1. Transformer secondary: 24–48V AC (no load)
2. Rectifier output: 20–42V DC (nominal)
3. Wire feed motor: 12–24V DC (varies with speed setting)
4. Solenoid valve: 24V DC (active during trigger pull)

Keep a multimeter with true RMS capability and 600V/10A probes for accurate readings under active duty cycles.

Core Elements of a Gas Metal Arc Equipment Power Framework

Start with a robust transformer capable of handling 220–440V input while delivering 18–36V output at 60–350 amperes. Copper windings with a minimum 2.5mm² cross-section prevent overheating during prolonged operations. Ensure the transformer’s core uses grain-oriented silicon steel to reduce hysteresis losses by up to 30%.

Select a rectifier bridge with Schottky diodes for minimal voltage drop–typically 0.3V per diode compared to 0.7V in standard silicon diodes. For 300A systems, use six parallel diodes per bridge leg to distribute current evenly and avoid thermal runaway. Mount them on a heatsink with a thermal resistance below 0.5°C/W to maintain junction temperatures under 125°C.

Component	Material	Min Thickness	Thermal Conductivity (W/m·K)
Heatsink	Aluminum 6061	5mm	167
Insulating Pad	Mica	0.2mm	0.7
Thermal Paste	Silver-based	N/A	8

Implement a smoothing choke with an inductance between 0.05–0.5mH to stabilize arc performance. Ferrite cores outperform iron powder in high-frequency applications (above 10kHz) but saturate more easily. For 250A units, a 0.2mH choke with a saturation current of 350A reduces spatter by 40%. Use Litz wire to minimize skin effect losses–strands should be ≤0.3mm in diameter.

Integrate a foot pedal or torch-mounted rheostat with a logarithmic taper to allow precise current adjustment. Wire the potentiometer in a 10kΩ–100kΩ range, ensuring wiper resistance variation does not exceed 10% across its travel. A dual-gang potentiometer can sync wire feed speed with amperage, improving arc consistency in short-circuit transfer modes.

Use a contactor rated for 20% above the system’s peak current–AC-3 duty cycle contactors handle inductive loads better than DC-rated models. For 400A systems, specify a contactor with a 500A interrupting capacity and a coil voltage matching the control circuit (typically 24V DC or 110V AC). Include a snubber circuit (0.1µF capacitor + 100Ω resistor) across the contactor coil to suppress voltage spikes.

Opt for a wire feed mechanism driven by a DC motor with a torque of 2.5–5Nm. Gear ratios between 50:1 and 150:1 balance speed and torque–higher ratios improve low-speed control but increase mechanical complexity. Replace brushed motors with coreless designs to eliminate brush wear, which can introduce conductive debris into the feed path and cause jamming.

Install a dedicated fan rated for at least 10% higher CFM than the calculated heat dissipation requirement. Forced-air cooling should maintain internal temperatures below 60°C during continuous operation. Place intake filters upstream of critical components to prevent dust accumulation–HEPA filters extend lifespan but reduce airflow by 10–15%.

Ground the chassis and all conductive components to a single point near the rectifier to minimize ground loop interference. Use 50mm² copper braid for main power returns, reducing resistance below 0.1mΩ per meter. Separate analog and digital grounds with a ferrite bead to prevent noise coupling–high-frequency signals can induce erratic wire feed behavior if improperly isolated.

Step-by-Step Wiring Layout for Power Transmission Paths

Begin by securing the main power input cables to the primary transformer terminals, ensuring polarities and phases are matched per the manufacturer’s specifications. For a standard 220V single-phase feed, attach the live wire (red or brown) to the L-terminal and the neutral (blue) to the N-terminal, maintaining a minimum 10 AWG gauge to handle peak current loads of up to 50A. Ground the system via an 8 AWG green/yellow conductor, connecting it directly to the chassis at a designated earthing point–never loop this through control boards or auxiliary components.

Connecting High-Current Secondary Pathways

Wire the output terminals of the transformer to the rectifier assembly using 6 AWG copper conductors, labeling each connection point–positive (+) to the anode and negative (-) to the cathode–to prevent reverse polarity damage. For pulse-modulated setups, integrate a high-speed diode bridge rated for 200A continuous duty, positioning it within 15 cm of the transformer to minimize inductive losses. Verify all crimp connections with a torque wrench (target: 12-15 Nm) to eliminate resistive heating at junction points.

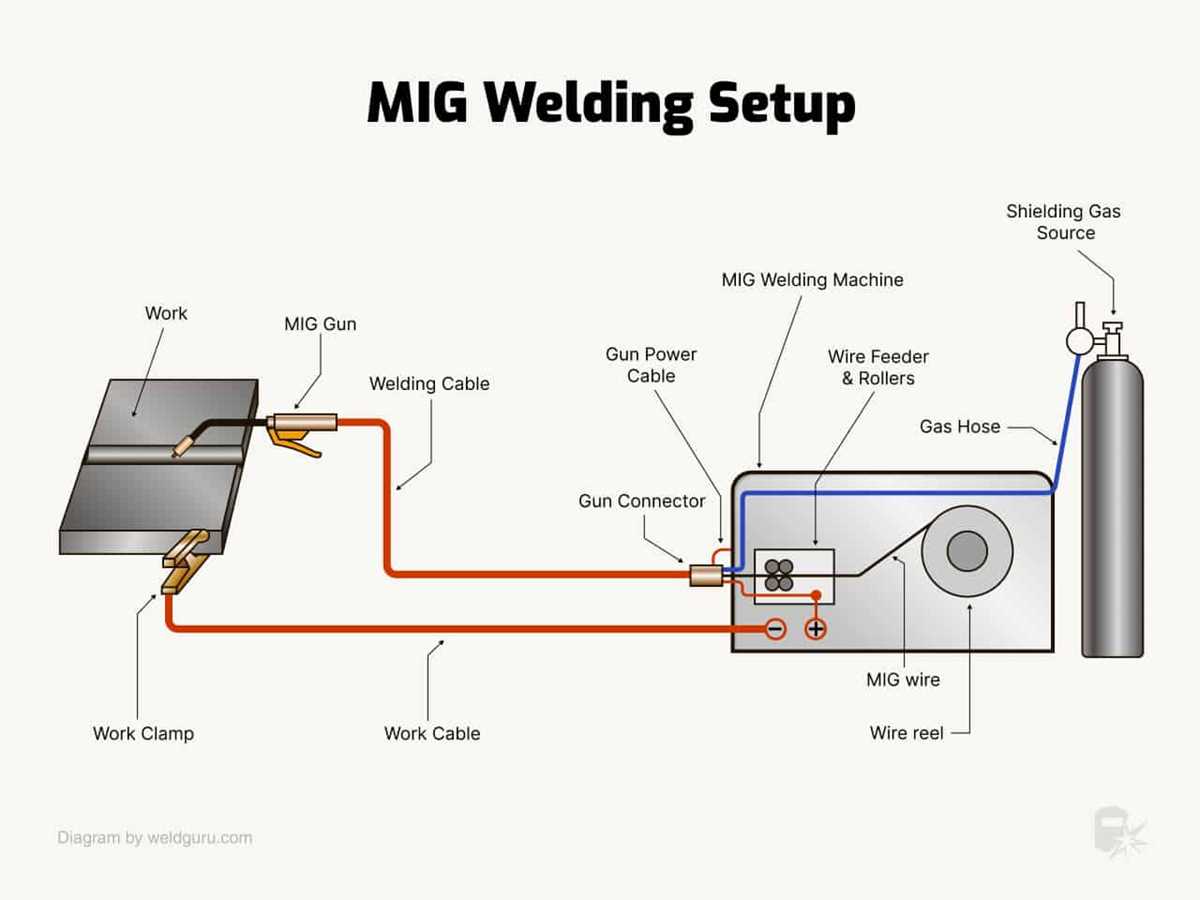

Extend the secondary lines to the workpiece terminal and gun assembly using flexible, heat-resistant cables (rated 90°C minimum), with the return path connected to a heavy-duty clamp or worktable–avoid relying on the chassis as a current return. Install a 50A circuit breaker between the rectifier and gun handle, sized 20% above the maximum operating current to prevent nuisance tripping while preserving fault protection. Test the entire path with a multimeter in continuity mode, confirming resistance values below 0.5Ω across all joints before energizing the system.
