Complete Wiring Guide for 2003 Chevy Silverado Bose Radio System

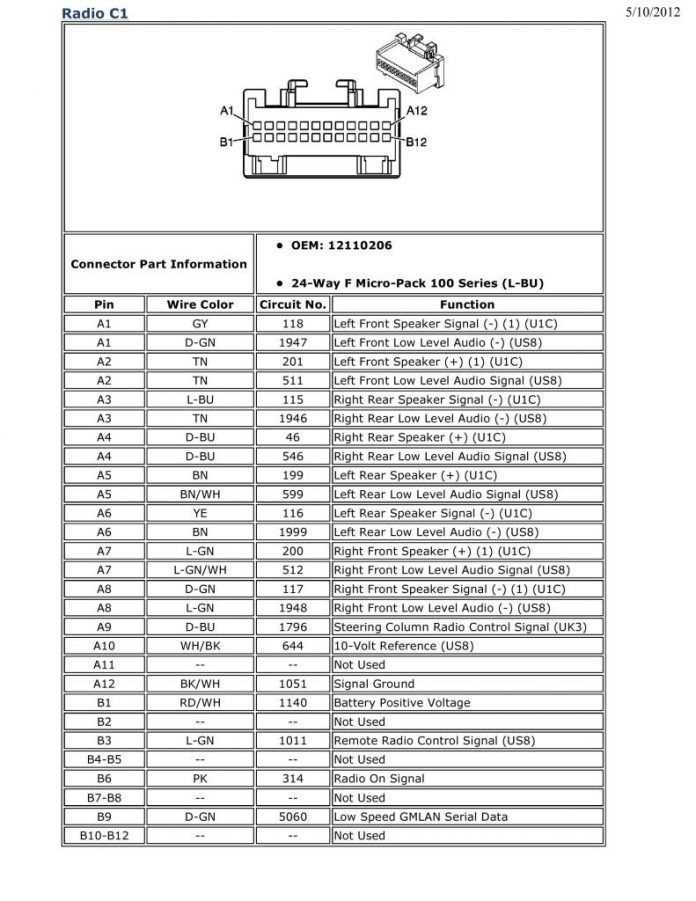

Start with pinout identification. Locate the factory harness under the dashboard near the climate controls. The GM-chassis integration uses a 24-pin connector, divided into power, ground, speaker outputs, and antenna triggers. Pins A1 through A10 handle left/right front and rear channels; B3, B4, and B7 deliver constant, ignition-switched, and dimmer-fed voltage respectively. Ground returns occupy A8 and B1.
Verify speaker impedance tolerances: factory amplified outputs expect 2Ω per coil. Swapping stock amplifiers for aftermarket head units risks overloading low-Ohm drivers; inline resistors or impedance-matching modules must precede any direct connection. Harvest wiring from the rear of the head unit–avoid splicing door harnesses unless bypassing the built-in equalizer entirely.
Color coding follows GM standards: dark green/white for front left (+), light blue/white for front right (+), gray/black for rear left (+), and light green/white for rear right (+). Common ground wires bundle as brown clusters; antenna control appears as a single orange wire, usually pin B10. Test continuity with a multimeter before connecting–corroded factory plugs often disguise intermittent breaks beneath apparent integrity.
Installation sequences demand battery disconnection to prevent backfeed damage. Reattach negative terminal only after verifying no bare wires contact chassis grounds. Fuse ratings should mirror OE specs: 10A for switched circuits, 20A for constant feeds. Label each connection immediately after crimping–factory harness looms obscure visual paths within minutes.
Retain steering wheel control functionality by integrating a PAC RP4-GM51 adapter. Match voltage thresholds between stock and new systems–GM data bus communicates at 0-5V logic levels; exceeding this range triggers fault codes in BCM modules. Adapter harnesses ship pre-wired but require termination resistors if bypassing the original amplifier entirely.
Chevy Pickup Premium Sound System Connection Guide
For the GM truck equipped with the factory-enhanced audio setup, begin by locating the 16-pin harness behind the head unit. Pin assignments follow this configuration: terminals 1-4 handle front speaker outputs (+/-), 5-8 manage rear channels, while 9 delivers constant 12V power. Ground connects to pin 10, illumination control occupies pin 11, and accessory power runs through pin 12. Pins 13-16 remain unused in OEM installations.
When interfacing with aftermarket amplifiers, observe these critical connections:
| Harness Pin | Function | Wire Color Code | Voltage (Key On) |
|---|---|---|---|
| A | Main power feed | Yellow | 12V |
| C | Right front (+) | Light green | 2.5V |
| J | Left rear (-) | Gray/black | 0V |
| M | Ground | Black | 0V |
Verify connections using a multimeter before energizing the system. Impedance mismatch between the premium sound processor and standard aftermarket speakers can trigger protection circuits, leading to intermittent operation or complete shutdown. The factory harness includes built-in 2Ω resistors on each speaker lead to maintain proper load for the on-board amplifier module.
For vehicles with navigation capability, the purple wire (pin 14) carries serial data for the GPS antenna. Cutting this connection renders navigation inoperative while leaving basic audio functions intact. Modify this only when installing compatible third-party navigation interfaces. The pink wire (pin 15) serves as a speed signal input for automatic volume adjustment – disconnecting it stabilizes volume levels across all speeds but eliminates the speed-sensitive compensation feature.
Troubleshooting Common Harness Issues
Flickering lights on the faceplate typically indicate an unstable ground connection at pin M. Clean the chassis attachment point with 150-grit sandpaper before re-securing. If the system powers on but produces no audio, probe pins A (yellow) and M (black) for consistent 12V potential – resistance above 0.3Ω suggests corrosion in the wire run. For rear channel failures, inspect pins E-H continuity; the factory tape deck routes these through the vehicle’s body harness near the C-pillar, a frequent corrosion zone in southern climates.
Finding the Original Audio System Connector for Aftermarket Upgrades
Begin beneath the driver-side dashboard panel, directly behind the fuse box cover. The primary harness bundle for the premium sound interface is secured with a black plastic tie-wrap; it measures approximately 1.5 inches in diameter and contains ten wires in standard colors (yellow, purple, gray, dark green, light blue, pink, orange, white, brown, and tan). Trace this bundle upward–it exits through a rectangular grommet in the firewall before looping back toward the center console.
Follow the wires to the rear of the climate control module: the harness splits here. The larger section continues horizontally to the amplifier, while the smaller branch (six wires) terminates in a white 12-pin connector. This connector is clipped to a metal support beam behind the instrument cluster, roughly three inches below the speedometer. Release the retaining clip by pressing inward on the sides before gently pulling outward–no excessive force is needed.
Alternative Access Points
If the console is fully removed, check the underside of the storage compartment lid. A secondary harness junction hides here, taped between foam padding and the carpet. Remove two 10mm bolts to drop the carpet panel; the connector’s latch faces downward, secured by brittle gray plastic tabs prone to snapping–use a slim flathead to pry from the center outward.
Look above the brake pedal assembly for a duplicate harness route entering the firewall via a rubber grommet at the same location. This backup path is often overlooked; its wires are encased in protective corrugated tubing, terminating at an identical 12-pin male plug. Label both connectors to prevent mixing auxiliary speaker feeds with power leads–each pin serves distinct functions (ground, ignition, rear channels, etc.).
Align the replacement unit’s adapter with pinouts before seating fully. Test connections by toggling ignition on: factory retainers emit a single chime if power feed integrity is preserved. Avoid twisting or bending harness bundles–repeated movement causes insulation cracks, particularly near firewall entry points where vibrations accelerate wear.
Secure spare harness length with adhesive-lined clamps along existing tie-downs. Route excess away from sharp edges near the steering column and pedals to prevent accidental piercing during pedals’ full travel. Verify each connection’s latch engagement by feeling for an audible click; incomplete seating risks intermittent signal dropout during rough terrain or high-volume playback.
Final Inspection Steps
Examine all visible wire shielding for nicks–minor tears invite moisture ingress over time. Reapply dielectric grease to both connector faces if corrosion signs appear (greenish oxidation). Use multimeter continuity checks on speaker outputs: expected resistance values for tweeters (2 ohms), midrange drivers (4 ohms), and subwoofers (6 ohms) confirm intact pathways before reinstalling trim panels.
Decoding Harness Colors and Purposes in the Factory Premium Audio Setup
Start by locating the 12-pin connector at the back of the head unit–this is your primary interface. Pin 1 (white/black stripe) carries constant 12V power from the battery, critical for memory retention; verify it with a multimeter before proceeding. Pins 2 (gray) and 3 (dark blue) are switched power and illumination feed, respectively–ground issues here cause erratic display behavior or dimming failures. Pin 4 (black) is the chassis ground; ensure it’s secure to the vehicle’s frame with no corrosion.
Audio channels follow this scheme: front left speaker (+) is pin 5 (light green), front right (+) pin 6 (gray/light blue), rear left (+) pin 7 (yellow), and rear right (+) pin 8 (purple). Their corresponding negatives are grouped at pins 9–12: black/white (front left), black (front right), black/brown (rear left), and black/red (rear right). Damaged or reversed connections here result in phase issues, weak output, or complete silence on one side.
Amplifier and Antenna Control Lines
- Pin 13 (pink): Remote turn-on for the external amp–check continuity to the amplifier’s activation input.
- Pin 14 (brown): Antenna motor control–if the antenna doesn’t extend, test this line for 12V when the ignition is on.
- Pin A (dark green, often overlooked): Posi-lock feature–interrupts the starter circuit when the system is active.
For the data bus, pins B (tan/black) and C (tan/white) handle serial communication with the vehicle’s computer. If the unit displays “NO DATA” or fails to retain settings, inspect these wires for breaks or shorts–resistance should read below 0.5 ohms. Never splice or tap into these lines; even minor interference disrupts module synchronization.
Step-by-Step Guide to Hooking Up an Upgraded Stereo System to Factory Harness
Locate the vehicle’s main harness behind the dash panel on the driver’s side. Use a multimeter to verify power and speaker wires by checking for 12V constant on the yellow lead, 12V accessory on the red, and ground on the black. Trace each wire back to its connector–factory systems often use a 12-pin plug with labeled outputs.
Match the aftermarket unit’s wiring colors to the existing harness. Orange indicates illumination control, light blue denotes amplified signal trigger, and gray or green pairs typically represent rear speaker outputs. If colors differ, refer to the stereo’s manual for pin assignments–cross-reference with the original setup’s documentation.
Splice connections using crimp connectors or solder for secure, corrosion-resistant joints. Avoid twisting wires directly, as this leads to signal loss or intermittent failures. Apply heat-shrink tubing over splices to seal out moisture, especially for speaker wires carrying amplified signals.
Test the ground connection first–poor grounding causes buzzing, static, or complete system failure. Attach the stereo’s black wire to a bare metal surface on the chassis, scraping away paint or rust for a solid contact. Verify continuity with the multimeter; resistance should read near 0 ohms.
Connect the antenna adapter if switching from a motorized to a fixed mast. Factory systems with premium sound often require a signal booster–use a line-level converter for RCA outputs to prevent distortion in door-mounted tweeters and subs.
Power up the unit before finalizing dash reassembly. Check each speaker for balanced sound–front/rear fade and left/right balance should adjust cleanly without pops or drops in volume. If the system includes a subwoofer output, verify the low-pass filter engages properly.
Secure all wiring away from moving parts like the steering column or pedals. Use zip ties or adhesive mounts to prevent rattles or short circuits. Reconnect the battery last to avoid power surges, and confirm all functions–including turn-on delays–operate as intended.
