Complete Trailer Wiring Guide with Diagrams Connectors and Troubleshooting
Start with a 7-way round or flat connector for modern towing setups. Verify pin assignments: 12V power (white/stripes) on pin 1, ground (white) on pin 2, left turn/brake (yellow) on pin 3, right turn/brake (green) on pin 4, tail/running lights (brown) on pin 5, electric brakes (blue) on pin 6, and reverse lights (purple) on pin 7. Use a multimeter to test each circuit before connecting to avoid short circuits.

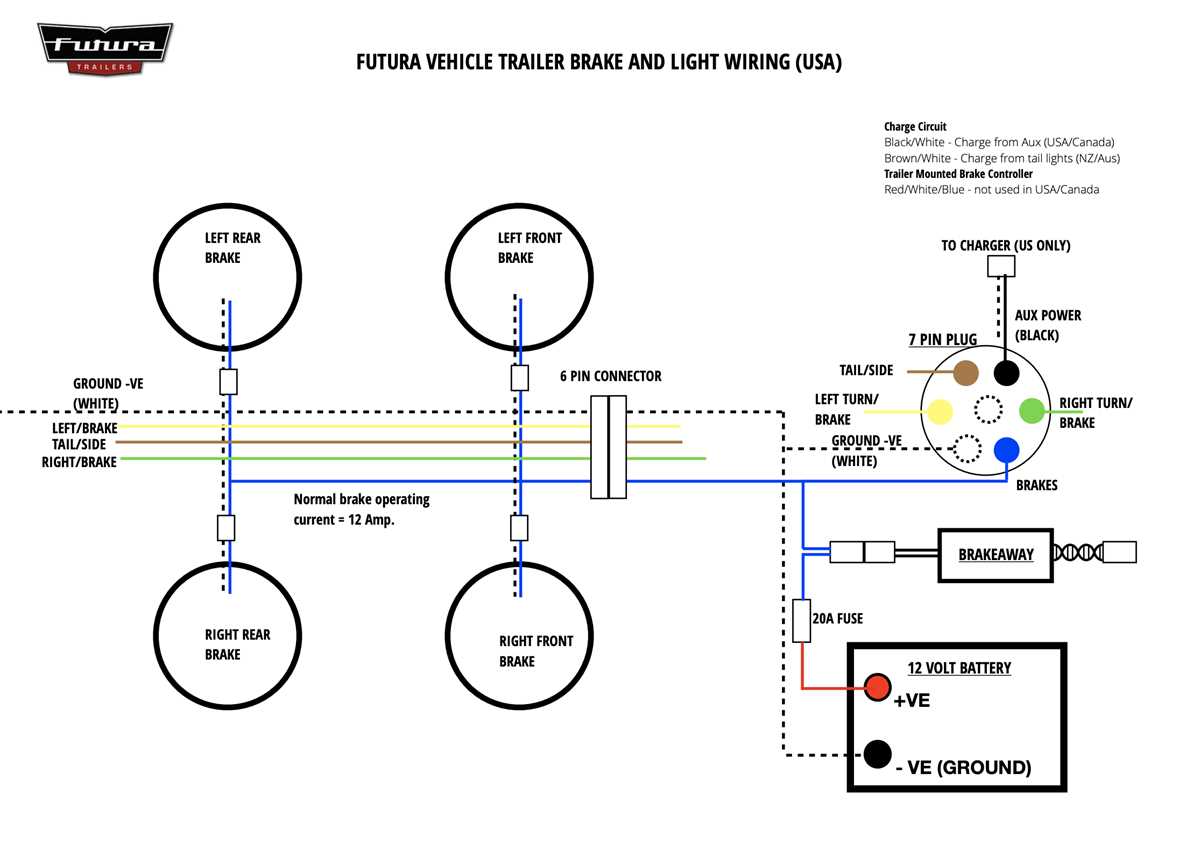

For heavy-duty loads, add a breakaway battery system. Connect the blue brake wire to a dedicated 12V source with a fuse rated for 30A. Route the breakaway switch cable through a weatherproof solenoid and attach it to a fully charged small 12V battery–this ensures emergency braking if the tow vehicle detaches. Insulate all exposed terminals with heat-shrink tubing or dielectric grease to prevent corrosion.
Avoid daisy-chaining lights–run separate 16-gauge wires from the connector to each light assembly. Use waterproof butt connectors and crimp them securely with a ratcheting crimper. For LED lighting, add load resistors (50W, 6-ohm) to prevent hyperflash. Check voltage drop across each circuit: 0.5V or less under full load is acceptable; anything higher requires thicker wire (14-gauge minimum).
Label every wire at both ends with color-coded heat-shrink sleeves or adhesive tags. Store a backup copy of the wiring layout in the tow vehicle’s glove box. Test all functions–turn signals, brakes, marker lights–before each trip. Replace any frayed or damaged wires immediately; a single compromised connection can disable the entire system.
Essential Electrical Schematics for Towable Units

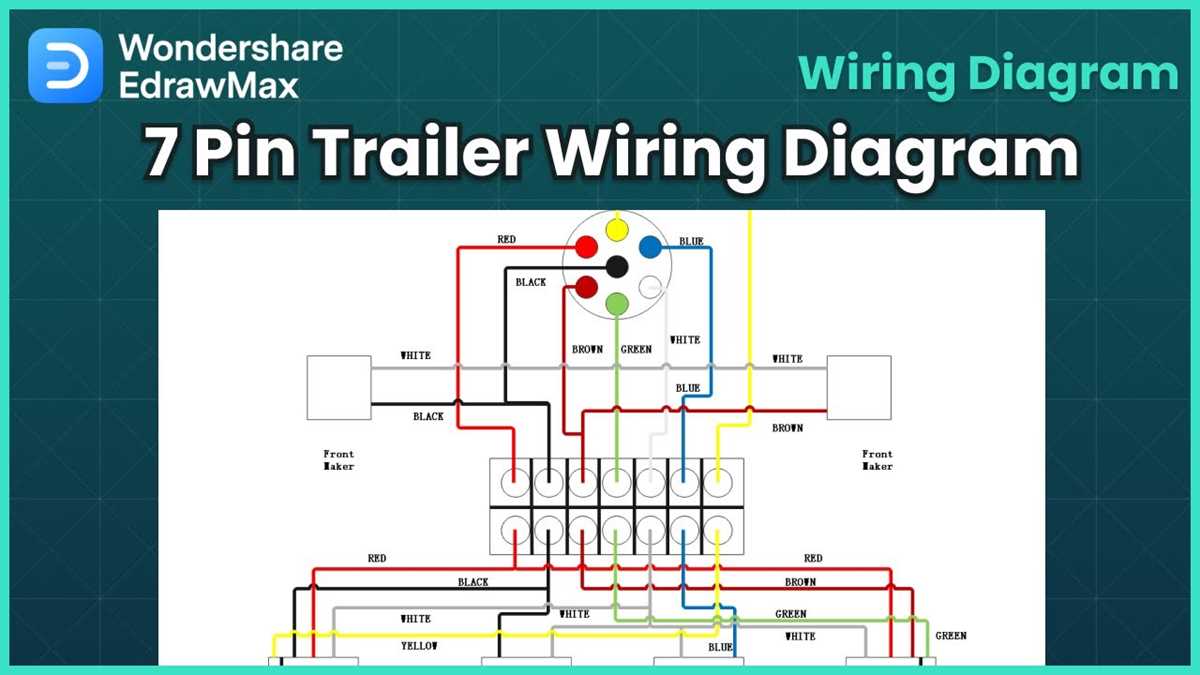

Begin by matching the vehicle’s connector type to the towable unit’s plug–4-pin flat for basic lighting, 5-pin for braking and reverse signals, 6-pin round or 7-pin (SAE J560) for auxiliary power. Verify voltage compatibility: 12V systems dominate light-duty setups, while heavier loads might require 24V or dedicated circuits. Use a multimeter to test each pin before connection–PIN 1 (yellow) for left turn/brake, PIN 2 (green) for right, PIN 3 (white) for ground, and PIN 4 (brown) for running lights. Avoid splicing into existing wiring; instead, tap into the vehicle’s fusebox with a relay harness to prevent voltage drops.

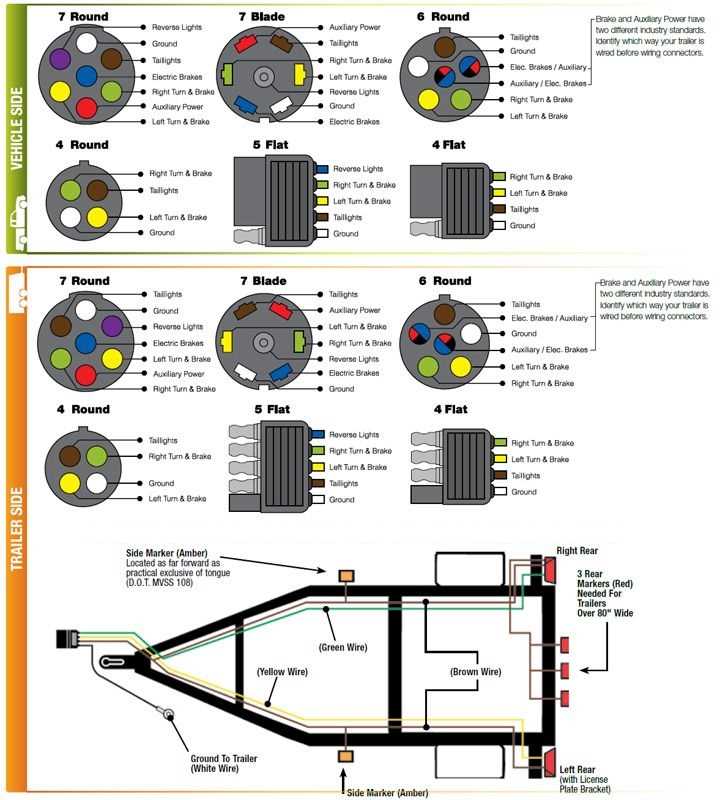

Color codes vary by manufacturer, so cross-reference with this standardized chart for North American/European setups:
| Function | Standard Color (NA) | Standard Color (EU) | AWG Gauge | Max Current (A) |
|---|---|---|---|---|
| Ground | White | Brown | 12 | 20 |
| Left Turn/Brake | Yellow | Black/Yellow | 14 | 15 |
| Right Turn/Brake | Green | Green/Yellow | 14 | 15 |
| Running Lights | Brown | Grey | 16 | 10 |
| Brake Controller (Aux) | Blue | Blue/White | 12 | 25 |
| Reverse Lights | Purple | Violet | 16 | 10 |
| 12V Power | Red | Red/White | 12 | 30 |
For 7-pin connectors, PIN 6 (blue) handles electric brakes or auxiliary load–ensure the brake controller is rated for the towable unit’s gross weight (e.g., 10A controller for 3,500 lbs). Secure connections with dielectric grease and heat-shrink tubing; oxidation causes intermittent faults. Route wires away from sharp edges and moving parts, using loom tubing for protection. Test all functions under load (e.g., brakes while in motion) before finalizing.
Pinpointing Connector Cable Colors and Their Roles in Towing Systems

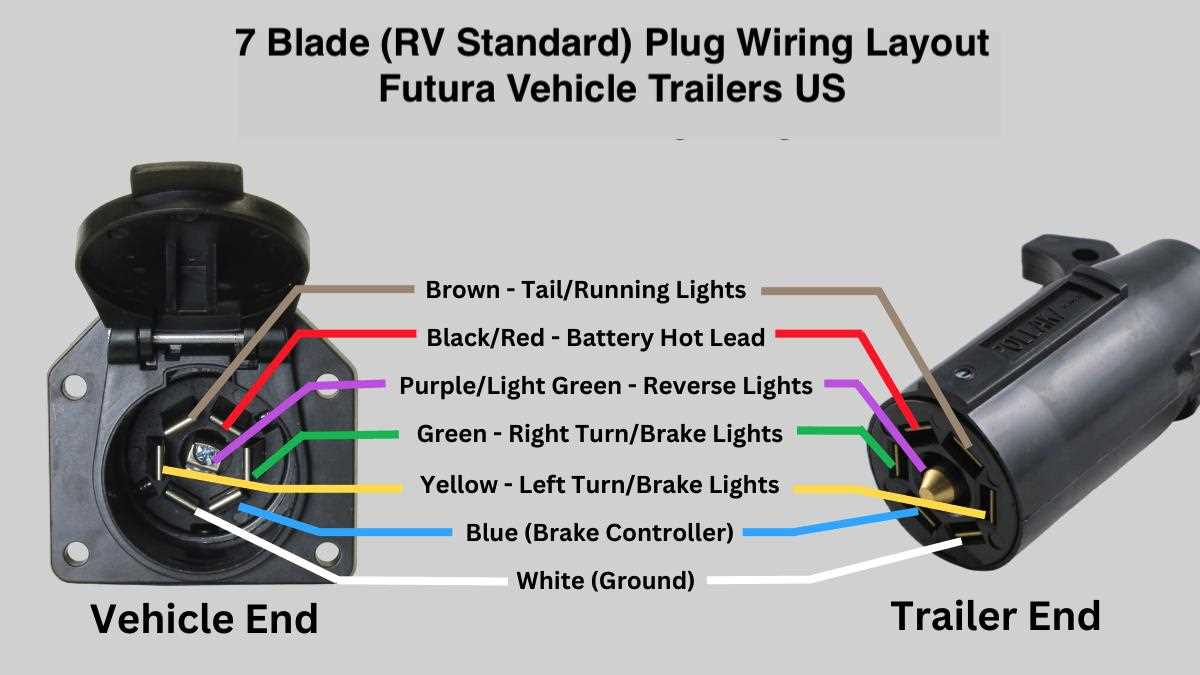

Start by matching the vehicle’s harness to the standard 7-way RV plug configuration. The white cable is always ground–attach it to the chassis or designated ground point without fail. A loose or corroded ground causes intermittent faults, especially in brake and signal circuits. Verify voltage between ground and each pin with a multimeter before securing connections.
Locate the brown lead–this powers tail lights, side markers, and license plate illumination. Test it last after securing all other circuits to ensure no parasitic draw affects brightness. Flickering often stems from poor soldering or a frayed section; splice cleanly or replace the entire run if damage exceeds 10% of the gauge.
- Yellow – Left turn signal and brake light
- Green – Right turn signal and brake light
- Blue – Electric brake controller output (12V, pulsed)
- Red (or sometimes purple) – Auxiliary power (battery charging, 12V constant)
For 5-way flat connectors, colors simplify: white remains ground, brown handles running lights, and the remaining three–often yellow, green, and blue–handle left turn/brake, right turn/brake, and brakes respectively. Cross-test each by activating the corresponding vehicle light; a misaligned wire will light the wrong LED cluster.
If colors deviate (common in aftermarket harnesses), trace each wire from the plug to the bulb socket or module. Use a tone generator for concealed runs–probe at the socket, follow the beep to the correct pin. Avoid relying on generic charts; measure resistance or consult the harness manufacturer’s spec sheet if ambiguity persists.
Corrosion on copper strands reduces conductivity–clean terminals with 400-grit emery paper followed by dielectric grease. Tin the ends of stranded cables to prevent oxidation; solid-core wires rarely need soldering but crimp with a ratcheting tool rated for the wire gauge. Loose crimps cause voltage drop; check with a load test pulling 3A through each circuit for 30 seconds–drop over 0.5V signals a weak joint.
Auxiliary circuits like reverse lights or hydraulic pump feeds may use non-standard colors. Label every wire at both ends before disassembly. For modular plugs, photograph the pinout configuration; recheck during reassembly against the image to prevent miswiring. Keep a spare fuse (typically 10A) on hand–blown fuses are the first symptom of a short, often traced to a pinched section near the coupling joint.
Step-by-Step Guide to Connecting 4-Pin and 7-Pin Towing Plugs
Start by stripping ¼ inch of insulation from each cable end using wire strippers, ensuring clean cuts without damaging the copper strands. For a 4-pin setup, match the standardized color codes: white (ground), brown (running lights), yellow (left turn/brake), and green (right turn/brake). Crimp a 10-12 gauge butt connector to each wire, then heat-shrink for waterproofing. Secure the white wire to the vehicle’s frame or a dedicated ground bolt, as corrosion-resistant points prevent voltage drops. Test continuity with a multimeter before mounting the socket–readings should show near-zero resistance for ground and 12V for live circuits.
7-Pin Connector Assembly
Label all wires before handling: white (ground), brown (tail lights), green (right signal/brake), yellow (left signal/brake), blue (auxiliary power or brake controller), black (12V hot lead), and red (reverse lights). Use a 14-16 gauge crimp tool for the finer wires (blue/red). Apply dielectric grease to the socket interior before insertion to block moisture. For the brake controller circuit (blue wire), route it directly to the controller’s output terminal, avoiding shared circuits to prevent signal interference. Verify each function with a 12V test light–activation should mirror the tow vehicle’s lighting sequence exactly.
Common Wiring Errors in Towing Setups and Solutions
Mismatching connector types between the vehicle and hauled equipment leads to immediate malfunctions. Always verify pin configurations (e.g., 4-pin vs. 7-pin) before splicing cables. Use a multimeter to check continuity on each circuit–ground faults often disguise themselves as broken lights. Replace corroded terminals immediately; applying dielectric grease prevents future oxidation. Test all functions (turn signals, brake lights, reverse lamps) separately to isolate failures before towing.
Skipping the ground circuit check guarantees intermittent failures. Ensure the main ground cable connects directly to bare metal on both the towing vehicle and attached load–paint or rust disrupts conductivity. Route cables away from moving parts and heat sources; secure them with zip ties or conduit every 12 inches. If LED lights flicker, install a load equalizer to balance voltage fluctuations. Never assume factory wiring matches aftermarket components–consult the manufacturer’s specifications for amperage ratings on each circuit.
Essential Gear for Setting Up or Fixing Tow Vehicle Electrical Systems
Begin with a multimeter capable of measuring up to 20V DC to verify voltage levels at each connection point. Fluke 17B or Klein Tools MM400 deliver accurate readings without damaging circuits, unlike cheaper models prone to overload. Confirm ground integrity by testing between the chassis and negative terminal–any resistance above 0.2 ohms indicates corrosion or loose fasteners requiring immediate attention.
Select crimp connectors rated for 16-14 AWG wire matched to the system’s current draw. Heat-shrink tubing with adhesive lining (3M FP-301 or similar) creates watertight seals; avoid non-shrinking sleeves that fail under vibration. Use butt connectors for inline splices and ring terminals for secure chassis grounding–never twist wires together as temporary solutions that degrade over time.
Wire strippers with precision blades (Ideal 45-121 or Knipex 12 62 180) prevent nicks in copper strands, which weaken connections. For heavy-duty circuits, 12 AWG tinned copper wire resists oxidation better than bare copper, especially in marine or off-road environments. Apply dielectric grease (Permatex 22058) to all connectors before assembly to block moisture and prevent corrosion.
Ratchet crimpers with interchangeable dies (Ancor 120307 or equivalent) ensure consistent compression; manual pliers often crush terminals unevenly. For troubleshooting intermittent issues, a circuit tester with a 12V LED indicator (like the Lisle 19600) pinpoints live circuits faster than a multimeter. Keep a pack of 10A blade fuses on hand for testing circuits before finalizing permanent repairs.
A torque screwdriver set (Wiha 28391 or similar) tightens grounding bolts to manufacturer specifications, typically 8-12 in-lbs, preventing loose connections that generate heat. For rewiring projects, pre-made harnesses from brands like Curt or Hopkins reduce installation time but may require custom length adjustments–measure twice before cutting. Inspect all connectors under a magnifying light for frayed strands or cold solder joints before final tight assembly.
Store spare parts in labeled containers sorted by gauge and terminal type to avoid mix-ups during urgent repairs. A battery-powered heat gun (Steinel HL 1820 E) speeds up shrink tubing application without scorching wires, unlike open flames. Document all modifications with photos or sketches–future diagnostics become simpler when previous work is clearly recorded.
