Complete 2004 Acura MDX Electrical Wiring Schematic and Diagram Guide
Start troubleshooting electrical issues by locating the main fuse box under the driver-side dashboard–label C101 in technical manuals. This connector houses critical relays for the fuel pump, ignition system, and cooling fan circuits. Sketch a quick reference map of fuse positions before disassembly; each slot correlates to specific subsystems like power windows (fuse #12, 15A) or anti-lock brakes (fuse #28, 30A).

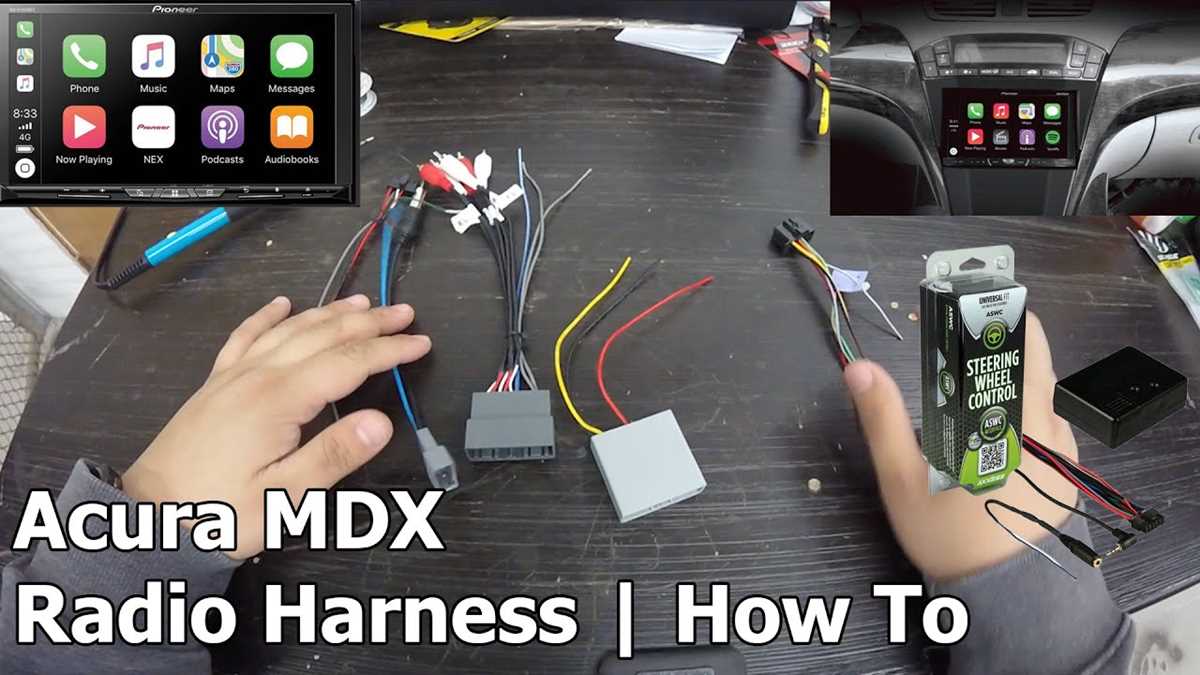

For infotainment or climate control malfunctions, follow the red/white and green/black wires from the rear of the stereo unit back to connector I30 behind the center console. Use a multimeter set to 20V DC to verify voltage between these pins and ground–expect 12V on red/white during accessory mode. If readings drop below 10.5V, inspect the instrument panel fuse (#9, 10A) or corroded terminals at the battery junction box.
Headlight or turn signal failures often trace to the front combination light assembly. Check pins B3 (white/black) and B4 (red/black) for 12V activation pulses when toggling the stalk switch. Ground issues manifest as dim or flickering LEDs; probe C201 near the driver’s side strut tower for continuity with chassis ground. Replace any heat-shrunk splice showing resistance above 0.2 ohms.
Access the under-hood distribution module by removing the plastic cowl panel–this reveals the engine control module (ECM) connectors. Pin E1 (blue/yellow) delivers ignition-switched power; measure here before condemning the ECM. For sensor-related codes (e.g., P0122), backprobe the applicable sensor connector with a scope to capture voltage sweeps; faulty throttle position sensors typically show spotty transitions between 0.8V-4.5V.
Wiring repairs demand automotive-grade heat-shrink tubing and crimped terminals–not solder alone. Strip 5mm of insulation, twist strands tightly, and apply dielectric grease before sealing splices. For intermittent faults, wiggle-test connections while monitoring live data via OBD-II; shorts in the door jamb harness often disrupt power mirror or window circuits.
Electrical Blueprint for Honda’s 2003 Luxury Crossover: Hands-On Reference
Begin by locating the engine bay fuse box on the driver’s side, adjacent to the battery. Label F-17 controls the cooling fan relay–use a multimeter set to 20V DC to verify voltage at the pink/black wire (terminal 1) and green/yellow wire (terminal 3) during ignition. A reading below 11.8V indicates a faulty relay or corroded connections in the under-hood harness, specifically at connector C102.
Trace the instrument cluster harness through the firewall grommet into the cabin. The six-pin white connector (C301) carries signals for the tachometer, fuel gauge, and check engine light. Pin assignments are as follows:
| Pin | Wire Color | Function | Expected Voltage (Key ON) |
|---|---|---|---|
| 1 | Red/Black | Ignition Input | 12.6V |
| 2 | White/Blue | Tachometer Signal | 0-5V (pulsed) |
| 3 | Green/Yellow | MIL Control | 0V or 12V |
| 4 | Brown/Black | Fuel Level Signal | 0.5-4.5V |
| 5 | Blue/Red | Battery Voltage | 12.6V |
| 6 | Green/White | Ground | 0V |
For rear liftgate troubleshooting, focus on the seven-wire harness feeding the power tailgate module. The black/orange wire (terminal 1) must show 12V from fuse 30 in the under-dash panel; absence suggests an open circuit in the C502 connector. The brown wire (terminal 7) should toggle between 0V and 12V when activating the switch–use a scan tool to monitor PID “Liftgate Motor Request” for verification.
Audio system power distribution centers on the yellow/black wire from fuse 2 (10A) in the passenger kick panel. Check continuity between this point and the head unit’s 12-pin connector (B11) at pin 12. Speaker outputs–front left (gray/blue, pin 6), front right (gray/red, pin 7)–require 4-8 ohms impedance; values outside this range confirm a shorted coil or disconnected wiring at the door jamb flex circuit.
Finding Electrical Schematics in Official Repair Guides for the 2003-2005 Honda Luxury Crossover
Start by securing the manufacturer-issued repair documentation, not aftermarket manuals. The official guide splits electrical layouts into multiple sections, organized by vehicle sub-systems. Look for the “Electrical Troubleshooting” chapter–typically Section 22 or 23 in the full-volume set. This portion contains both overviews and detailed pinouts for every harness and module.
Each schematic page follows a consistent numbering pattern. The first two digits correspond to the major system (e.g., 09 for lighting, 20 for powertrain), while the final digits denote specific circuits. Page 22-78, for example, maps the rear liftgate actuator connections. Verify the exact layout by cross-referencing the component index at the back of the manual.
- Engine bay layouts: locate these in subsection A, pages 22-1 to 22-50.
- Interior fuse box and relay assignments: subsection B, pages 22-51 onward.
- Infotainment and navigation wiring: subsection D, isolated due to proprietary shielding.
Color coding in the schematics matches the harness: black/white traces for ground, yellow/red for power feeds. Thickness indicates wire gauge–standard body circuits use 0.5 mm², while starter circuits employ 8 mm². A legend appears on the first page of the electrical chapter; keep it visible during tracing.
If the printed manual feels dense, extract the PDF version from the official dealer portal. Search for “EBC” (Electrical Body Control) to jump directly to the relevant pages. Bookmark the starting points for the under-dash connector pinouts–these are on pages 22-112 to 22-130.
Check appendix G for revision notes. Even within the same model year, mid-cycle updates altered pin assignments for the rear entertainment unit. The manual lists build-date cutoffs; verify your vehicle’s production month against this table before trusting any individual schematic.
For rapid access, create a digital index marking:
- High-voltage hybrid circuits (pages 22-150 to 22-170).
- Steering angle sensor calibration procedures tied to wiring diagrams (section 17).
- Headlight levelling motor connections, which share pages with HVAC actuator schematics.
Label each saved file with the exact system name and page numbers to avoid scrolling through 300+ sheets later.
Locating Critical Powertrain Circuit Elements
Begin by isolating the engine control module (ECM) harness connector–typically a 120-pin unit on this platform. Pin assignments follow a color-coded scheme: solid colors mark primary signal wires (e.g., red for ignition-switched power), while striped variants denote grounds or sensor returns. Probe the connector’s C1 terminal group first, where pins C1-36 (yellow/black) and C1-39 (green/white) deliver crankshaft and camshaft position sensor signals respectively. Verify continuity between these pins and the corresponding sensor connectors before proceeding–resistance should not exceed 0.5 ohms across any active circuit.
Sensor Circuits Requiring Immediate Validation
- Throttle Position (TPS): Locate the gray 4-pin connector at the throttle body. Pins A and D (black/white wires) serve as ECM reference and signal grounds; pin C (blue/red) carries the 0.5V–4.5V positional output. Absence of voltage at pin C under full throttle indicates either a severed wire or internal ECM failure.
- Mass Airflow (MAF): The MAF sensor’s 5-pin harness (black connector) uses pins 1 (red/black) for 12V power, pin 2 (green/white) for signal output (0.2V–4.9V range), and pin 4 (black/yellow) for ground. A flatlined signal under load confirms a faulty sensor or broken wire–check pin 2 at the ECM’s D1-20 terminal to isolate the fault.
- Coolant Temperature: The ECT sensor’s 2-pin connector (yellow wires) interfaces with ECM pins D1-35 (signal) and D1-33 (ground). At 20°C, resistance should measure 2.2–2.7 kOhms; deviations suggest a compromised sensor or short to chassis.
Examine the ignition coil pack harness–each of the six towers connects via individual 2-wire pigtails (black/yellow for 12V supply, white/red or white/blue for ECM-triggered grounds). Pull-back the insulating sleeve on each pigtail to inspect crimp integrity; corrosion here generates misfires that scan tools misread as random cylinder failures. Replace any suspect pigtail assemblies with OEM-spec terminals–aftermarket alternatives often lack proper strain relief.
- Disconnect the battery negative terminal before probing any ECM-related circuit.
- Use a digital multimeter with a 10MΩ impedance setting to avoid false voltage readings on delicate sensor circuits.
- For fuel injector harnesses (light blue wires), test continuity from the injector pins through ECM terminals D1-1 through D1-8; resistance should mirror coil impedance (14–17 Ohms typical).
- Inspect the main relay harness (black 4-pin connector) for burned contacts–pins 1 (red/wire) and 3 (black/yellow) deliver permanent power, while pin 4 (blue/white) is ECM-switched. Melted pins here strand the powertrain in a “no-start” condition.
Trace the main power distribution box adjacent to the battery–key fusible links S1 (red, 100A) and S7 (orange, 50A) protect the ECM and ignition systems. Probe the underside of each fuse holder with the ignition OFF; voltage should match battery potential (12.6V nominal). Any drop below 12.4V under load suggests a corroded bus bar or undersized replacement fuse.
For evaporative emissions circuit diagnostics, focus on the canister vent solenoid’s 2-pin connector (green wires). The ECM commands this solenoid via pin C1-37 (black/blue); a DC voltage pulse here under key-ON conditions verifies circuit integrity. Replace the solenoid if input resistance exceeds 34 Ohms–common failure mode includes silent opens that trigger P0440/P0441 codes without illuminating the MIL lamp.
