Complete Guide to Building a Burglar Alarm Circuit Step by Step

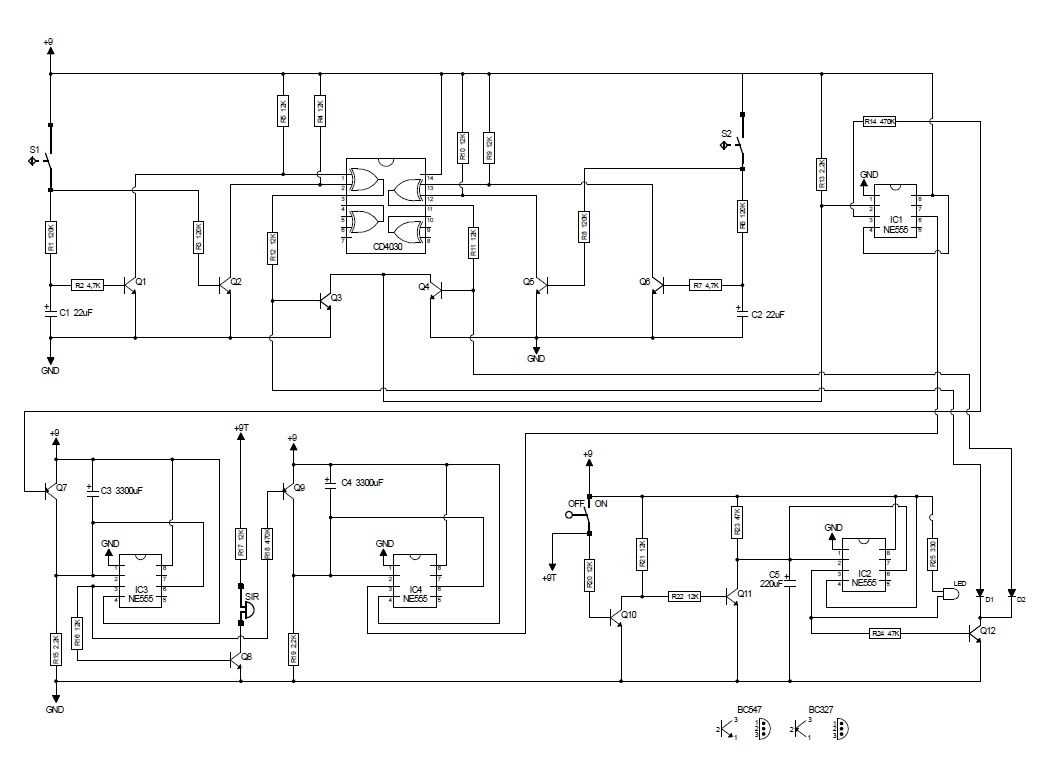

Start with a passive infrared sensor (PIR) connected to a 5V power source–its output triggers a transistor (BC547) when motion is detected. Pair this with a 10k resistor to ground to stabilize false readings. For immediate response, wire the transistor’s collector to a delay timer using a 555 IC in monostable mode, configured with a 100μF capacitor and 100k potentiometer. Adjust the potentiometer to set the activation window (3–30 seconds) before the alert resets.
A piezo buzzer or 12V siren requires direct connection to the 555 IC’s output via a relay if higher current is needed. Use a diode (1N4007) across the relay coil to prevent voltage spikes. For wireless signaling, integrate an HC-12 module or GSM kit by connecting its TX/RX pins to a microcontroller (ATmega328P). Program the microcontroller to send SMS alerts via a SIM800L module–ensure proper power supply (minimum 2A) to avoid brownouts.
Power the setup with a 12V lead-acid battery (7Ah) for backup. Add a LM7808 voltage regulator to supply steady 8V to sensitive components. Test the sensitivity of the PIR at 3–5 meters–reposition or shield it if ambient heat sources (radiators, sunlight) cause false triggers. For outdoor use, enclose the entire assembly in a polycarbonate case with IP66 rating to withstand rain and dust.
Avoid relying solely on breadboards for final deployment–solder all critical connections to eliminate vibrations or corrosion risks. Calibrate the 555 timer’s RC network (resistor-capacitor) empirically; theoretical calculations often misalign with real-world performance. For redundancy, parallel two PIR sensors covering overlapping zones–but ensure their outputs merge via a logic OR gate (CD4071) to prevent conflicts.
Designing an Intrusion Detection Electrical Layout
Start by selecting a 12V DC power supply with at least 2A capacity–common lead-acid batteries or switching adapters are ideal. Place a Schottky diode (e.g., 1N5822) directly after the power input to prevent reverse polarity damage. Connect a 1000µF electrolytic capacitor across the supply rails to stabilize voltage during transient loads from sensors or sounders. Include a 10kΩ resistor in series with the main supply to limit current if short circuits occur.
For sensor loops, use magnetic reed switches (normally closed) on doors and windows. Wire each switch in series with 4.7kΩ pull-up resistors tied to the control unit’s input pin–this creates a high-impedance state when triggered. Glass-break detectors require a different approach: connect a piezo element (e.g., Murata PKGS-00LD-R) to a high-gain op-amp (LM358) configured as a comparator with a 100kΩ feedback resistor. Set the threshold with a 50kΩ potentiometer to filter ambient noise.
Key Component Placement
Position the main control IC (e.g., PIC16F628A or ATmega328P) centrally on the board with direct traces to all sensor inputs and output drivers. Use optocouplers (PC817) to isolate high-current loads like sirens or strobes–connect the LED side to a microcontroller pin via a 220Ω resistor and the transistor side to the load through a TIP120 Darlington pair. Add flyback diodes (1N4007) across inductive loads to suppress voltage spikes.
Include a 3×4 matrix keypad for arming/disarming. Wire the rows to pull-up resistors (2.2kΩ) and columns to microcontroller pins configured as inputs with internal pull-ups disabled. Debounce the inputs in firmware with a 50ms delay. For remote control, add an HC-05 Bluetooth module–connect TX/RX to the microcontroller’s UART pins at 9600 baud, power with a 3.3V regulator (AMS1117), and decouple with a 0.1µF capacitor near the module’s VCC pin.
Test continuity with a multimeter before powering on–ensure no short circuits exist between adjacent traces on the PCB. Verify sensor loops by opening/closing doors–check for clean logic transitions (0V → 5V). Program the microcontroller with a 1-second entry delay, a 30-second siren duration, and a tamper-proof memory reset. For debugging, route status LEDs (current-limiting resistors: 330Ω) to critical nodes like power, sensor inputs, and output triggers.
Critical Elements for a Home Security Detection Network
Select a 12V sealed lead-acid battery as the power source–these units deliver consistent voltage under load while tolerating deep discharge cycles better than lithium alternatives. Pair it with a low-dropout voltage regulator like the LM2940 to maintain steady 5V output for logic components, even when battery charge dips below 60%.
Motion detectors should use passive infrared modules with a detection range of at least 8 meters and a 90° field of view. The HC-SR501 offers adjustable sensitivity and a 3-second trigger lockout to prevent false positives from thermal fluctuations. For entry points, install magnetic reed switches–mount the magnet within 8 mm of the contact to ensure reliable operation.
| Component | Model | Key Specification | Power Draw |
|---|---|---|---|
| Power supply | Yuasa NP7-12 | 7Ah capacity | 1.2W standby |
| Motion sensor | HC-SR501 | 8m range | 50µA idle |
| Entry contact | Generic reed switch | 8mm max gap | Negligible |
Use a microcontroller with low-power modes–an ATmega328P draws only 0.2µA in sleep while retaining full program memory. Program interrupt-based wake-up on sensor triggers to minimize energy waste. For output, a piezoelectric buzzer rated for 90dB at 3 meters will ensure audibility without external amplification.
Signal wiring must be 22-gauge solid copper, shielded with foil for runs exceeding 3 meters to block RF interference from household appliances. Route cables along door and window frames, securing every 30 cm with nylon clips–avoid staples as sharp edges can fray insulation over time.
Add a latching relay like the Omron G2R-1 to keep the warning device active after the initial trigger, even if the intruder closes the door. This component requires only a 50ms pulse to engage and holds indefinitely on 12V, consuming just 60mA.
Noise Filtering Requirements
Install a low-pass RC network with a cutoff at 50Hz on every sensor line to eliminate false triggers from power-line noise. A 10kΩ resistor paired with a 1µF capacitor yields a time constant of 10ms, sufficient to block transient spikes while allowing genuine signals to pass.
Test the assembled network with a digital multimeter set to continuity mode–verify each reed switch closes properly when the door is ajar, and confirm the motion detector registers movement at varying distances. Perform this validation during daytime and nighttime to account for thermal variations.
Step-by-Step Wiring of Door and Window Sensors
Begin by mounting magnetic contact switches at the top corner of doors and windows–never along the hinge side. Use 22 AWG stranded copper wire for all connections, ensuring a minimum bend radius of 1 cm to prevent breaks. Strip 5 mm of insulation from each wire end, twist the strands tightly, and secure them with a crimp connector before soldering.
Follow this polarity for all sensors: connect the reed switch’s common (COM) terminal to the control panel’s zone input. Attach the normally closed (NC) terminal to the panel’s ground reference. For windows wider than 90 cm, use two switches wired in series–failure of one will trigger the alert.
- For wooden frames: screw the switch base 3 mm below the surface to avoid interference from paint or warping.
- For metal frames: apply a 1 mm layer of non-conductive tape between the magnet and frame to prevent false signals.
- Test every connection with a multimeter–resistance should read 0 ohms when closed, infinite when open.
Route wires through 16 mm PVC conduit along door/window frames, securing every 30 cm with insulated staples. Avoid running wires parallel to power lines–maintain at least 20 cm separation. At corners, use 90-degree conduit sweeps instead of sharp bends to reduce signal degradation.
For tamper-proofing, add a supervised loop: wire a 2.2 kΩ resistor in parallel with each sensor. If the wire is cut, the panel detects a resistance shift and activates the notification. Label every wire at both ends with zone numbers (e.g., “DOOR-FRONT-ZONE1”) using heat-shrink tubing to prevent fading.
After installation, perform these checks:
- Walk-test each sensor–open/close 5 times while monitoring the panel’s LED indicators.
- Verify that the control unit logs the correct zone number for each event.
- Trigger the tamper circuit by momentarily disconnecting a wire–ensure the notification activates.
- Insulate all exposed connections with self-fusing silicone tape to protect against moisture.
Seal conduits with expandable foam at entry points, but leave 1 cm unsealed at the panel end for future troubleshooting.
Enhancing Security with Motion Sensors in Protection Networks
Position passive infrared (PIR) detectors at 2.1–2.4 meters above floor level in corners of rooms to maximize coverage while minimizing blind spots. Ensure the sensor’s field of view extends 10–12 meters with a 90-degree angle for standard indoor models. For corridors, mount units at ceiling height with a 180-degree lens to detect lateral movement without interference from furniture.
Use dual-technology sensors combining PIR and microwave detection for high-security zones. Microwave sensors emit radio waves (typically 10.5 GHz) that reflect off moving objects, reducing false triggers from pets under 35 kg. Adjust sensitivity so the unit responds to movement within 8 meters but ignores thermal fluctuations or insects. Calibrate microwave range weekly to prevent signal drift from humidity or nearby equipment.
Install pet-immune PIR sensors in residential settings to filter disturbances from animals under 20 kg. These units use advanced algorithms to distinguish between human heat signatures and smaller, erratic movements. Configure the sensor’s pulse-count setting to trigger only after detecting two consecutive movements within a 3-second window, reducing false alarms from drafts or sunlight shifts.
Integrate motion detectors with zoned control panels using wired connections for critical areas. Run shielded 18 AWG twisted pair cables to minimize electromagnetic interference. For retrofits, use wireless transmitters operating on the 433 MHz band with AES-128 encryption. Verify signal strength by placing a test unit at the farthest point from the receiver–acceptable levels should register above -80 dBm.
Place outdoor motion sensors under eaves or overhangs to protect from rain and direct sunlight. Use weatherproof models rated IP65 or higher, with built-in heaters for cold climates to prevent condensation on lenses. Angle outdoor units downward at 22 degrees to cover pathways while avoiding tree limbs or flags that may trigger false positives. Test detection patterns by walking the perimeter at dusk and dawn when ambient light changes are most pronounced.
Combine motion sensors with tamper switches to detect sabotage. Mount switches on the sensor’s backplate so removal triggers an instant alert. Ensure backup power supplies–typically 9V lithium batteries–are checked monthly, as drained units may fail silently. Log all activation events in a central database to analyze patterns and adjust thresholds for seasonal variations like heating systems cycling on in winter.
