Buick Rendezvous 2004 Radio Wiring Diagram and Electrical Guide

The factory sound unit in your mid-2000s crossover relies on a precise electrical layout. The harness behind the dashboard integrates power, ground, speaker outputs, and accessory triggers through a single plug. Start by locating the main connector–it typically holds twelve to sixteen pins, arranged in two rows. Pin #1 delivers constant 12V from the battery, while pin #4 supplies switched power from the ignition. Verify both voltages with a multimeter before proceeding. Speaker wires follow a consistent pattern: front left (+) and (-) on pins 5 and 6, front right on 7 and 8, rear left on 9 and 10, rear right on 11 and 12. Color codes–yellow (left), gray (right), green (rear)–help visually distinguish each channel.

Ground faults create intermittent sound or feedback. The factory chassis connection often degrades behind the instrument panel, near the fuse box. Sand the paint off the mounting point, attach an 8-gauge braided cable, and secure it with a stainless-steel bolt. Aftermarket amplifiers require a separate ground; route it directly to the vehicle’s frame, avoiding the thinner body panels. If installing a newer head unit, pay attention to the dimmer signal on pin #13. Some adapters omit this wire, causing dashboard lights and the sound system display to operate independently–a common cause of backlight failures.

Retain steering-wheel controls by sourcing a compatible interface module. The OE remote wire (pin #3) carries resistive values that decode button presses; aftermarket adapters translate these signals into CAN-bus or voltage triggers for modern receivers. If the vehicle lacks an amplifier, speaker wires connect straight to the head unit. Gauge resistance before rewiring–each coil should read 4 ohms; deviations indicate a shorted voice coil or damaged wire. Splice repairs require soldering and heat-shrink tubing; electrical tape degrades within months, causing shorts in high-humidity climates.

Static or popping noises often trace to poor solder joints or corroded connectors. Strip, twist, and solder all connections, then seal them with adhesive-lined shrink tubing. The antenna lead (pin #14) carries RF signal from the roof-mounted element; if reception weakens, check the coaxial cable for fraying, particularly where it passes through the firewall grommet. For CD changers, the data bus (pin #16) runs at 38.4 kHz–replacement units must match this baud rate to avoid “ERR” errors.

Color-Coded Connections for Your SUV’s Audio System

Locate the 12-pin harness behind the head unit–yellow (constant power, 14-gauge), red (switched ignition, 18-gauge), and black (ground) are critical for baseline functionality. Verify battery voltage at yellow with a multimeter; readings below 11.5V indicate fuse #18 (10A) failure or corroded terminals in the under-hood box. Orange/white (illumination) dims with dashboard lights, while gray (power antenna) triggers only when AM/FM modes engage–test with a 12V probe to confirm relay activation.

Speaker outputs use paired wires: front left (dark blue/white, 20W max), front right (dark green/white, 20W), rear left (brown/white, 15W), rear right (tan/white, 15W). Blown channels often trace to shorted voice coils–measure impedance with an ohmmeter; values under 2Ω signal speaker damage. For amplified setups, bypass the factory 18W amp by tapping the light blue/white (+) and light green/black (-) wires directly at the harness, ensuring stereo maintains 4-ohm load.

Factory theft-deterrent systems integrate via pink (data) and purple (serial) wires–cutting these disables the head unit until reprogrammed. For aftermarket installations, splicing into green (Left channel pre-amp) and violet (Right channel pre-amp) at the harness’s rear retains steering wheel controls; use ISO adapters (#GM-21) to preserve OEM plug compatibility. Always disconnect the negative battery terminal before handling speaker wires to prevent memory loss in the body control module.

Common Pitfalls During Replacement

Avoid tinning wires–stranded copper oxidizes faster under solder, creating resistive joints. Crimp connectors with heat shrink or use butt splices rated for 22-18AWG. Fuse all unswitched feeds (e.g., memory keep-alive from orange) at 5A to protect the harness from shorts. If static persists on FM bands, inspect the coaxial antenna lead for fraying; the mast’s impedance must match 50Ω at the base for optimal signal strength. For hands-free upgrades, the light blue (telephone mute) wire mutes audio during calls–confirm with a 9V battery and multimeter before final installation.

Finding the Audio System Harness Connections in Your Mid-2000s Crossover

Start by removing the center console trim panel beneath the climate controls. Use a trim removal tool to pry the panel loose at the bottom, then lift it upward to release the clips securing it. The harness connectors are immediately visible behind this cover, nestled against the firewall.

Identify the main plug cluster–there are two primary connectors. The larger one handles signals and power, while the smaller manages speaker outputs and ground. The rear connectors have distinct shapes: one is trapezoidal, the other rectangular with rounded edges.

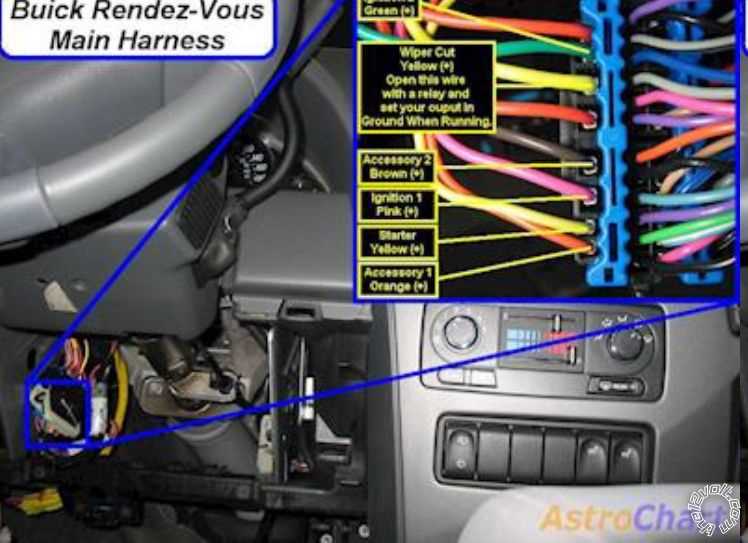

Trace the bundled wires from the dash toward the vehicle’s backbone. The connectors are positioned just above the fuse box, requiring only partial removal of the lower dashboard panel. No screws hold them in place; they’re secured by friction locks.

Label each connector before detachment. Use masking tape for quick identification. The mock-antennal feed (thin coaxial) is often overlooked–locate it adjacent to the main power block, wrapped in black sheathing.

Check for fused or brittle wires near the harness entry points. Heat from the cabin heater core can degrade insulation over time. Use a multimeter to verify continuity on pins 12 (constant 12V), 10 (illumination), and 6 (switched power).

If replacing the audio unit, note the connector orientation. The trapezoidal plug has an asymmetric notch–align it precisely to avoid bent pins. The rectangular connector clicks into place with a firm push.

For aftermarket installations, the speaker wires follow color-coding: gray (front right +), light blue (front left +), green (rear right +), violet (rear left +). Ground wires are striped with black. Use crimp connectors rated for 18-gauge wire.

Ensure all connections are seated fully. A half-inserted plug can cause intermittent sound or erratic display behavior. Test the system before reassembling the trim–ignition on, verify all channels produce clean audio before finalizing the job.

Identifying Wire Colors and Their Corresponding Functions

Start by locating the harness connector at the back of the audio unit. The yellow cable typically carries the constant 12V power supply, ensuring memory retention for preset stations. Pair it with the orange stripe (illumination), which activates upon dashboard backlighting. The red wire delivers switched 12V power, controlled by the ignition–verify its continuity with a multimeter when troubleshooting dead displays. Ground connections often use black or brown cables, sometimes combined with a lighter trace; improper grounding causes intermittent failures or noise.

• Purple stripe – Left front speaker (+)
• Purple – Left front speaker (−)
• Light green stripe – Right front speaker (+)
• Light green – Right front speaker (−)
• Dark blue stripe – Right rear speaker (+)
• Dark blue – Right rear speaker (−)
• Gray stripe – Left rear speaker (+)
• Gray – Left rear speaker (−)
• Pink stripe (if present) – Antenna motor control

Aftermarket adapters frequently mismatch colors–cross-reference with factory service manual schematics before splicing. Test speaker wires with a 9V battery: a click confirms polarity. For amplifier triggers, a solid blue or blue-white wire engages external power boosters, while gray or tan wires may signal mute functions during phone calls. Strip no more than 1/4 inch of insulation to prevent short circuits; use heat-shrink tubing or crimp connectors rated for 18–22 AWG.

Step-by-Step Guide to Removing the Factory Audio System

Disconnect the vehicle’s negative battery terminal first to prevent electrical shorts or airbag deployment. Use a 10mm wrench to loosen the clamp, then slide the cable away from the post–wait at least 10 minutes before proceeding to ensure residual power dissipates.

Remove the trim panel surrounding the center console by inserting a plastic pry tool into the seam near the lower edge. Apply firm, even pressure to release the clips–there are six along the bottom and two on each side. Work slowly to avoid cracking the plastic.

Locate the four Torx T20 screws securing the head unit–two on top behind the trim, one at the bottom left, and one at the bottom right. Remove them with a magnetic driver to prevent losing them in the dash cavity. The unit will then slide forward once screws are removed.

Pull the assembly out gently, exposing the wiring harness and antenna plug at the rear. Press the release tab on the harness connector before unplugging it to avoid damaging the pins. The antenna lead has a separate locking ring–rotate it counterclockwise to detach.

If retaining steering wheel controls, use a trim removal tool to pop off the left-side dashboard panel below the steering column. The control module is secured by one Phillips screw and a single wiring plug–unplug it before removal.

Reinstall components in reverse order, ensuring all clips snap securely into place. Reconnect the battery last, then verify electrical functions–headlights, gauges, and climate controls–before testing the new unit to confirm proper integration.
