Step-by-Step Guitar Amp PCB Design with Circuit Schematic Guide

Start with a class-A single-ended topology for low-wattage applications–ideal for home practice or studio recording. Use an EL84 or 6V6 power tube paired with a 12AX7 preamp stage. Position the coupling capacitor (0.1μF polyester) between the preamp and power sections to maintain clarity while avoiding microphonics. Include a global negative feedback loop of 5-10dB for tonal stability, but keep it switchable to preserve harmonic richness.

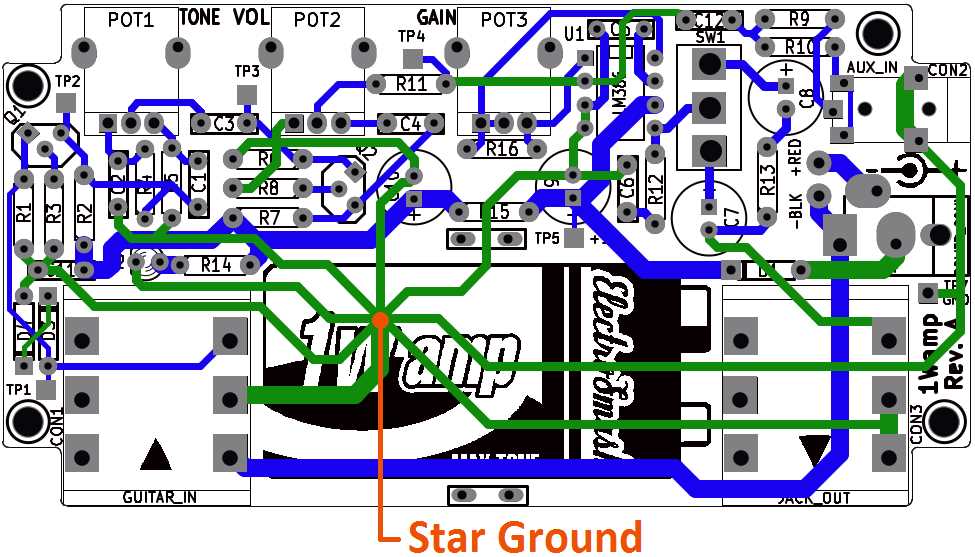

For the printed board, prioritize ground-plane separation: split analog (signal) and power (heater/filament) grounds at a single star point near the power transformer. Use 2oz copper for traces carrying more than 300mA, and keep signal paths under 2 inches to minimize noise pickup. Mount electrolytic capacitors (100μF/450V) vertically with short leads to reduce ESR, and place decoupling capacitors (0.1μF film) near each tube socket’s cathode resistor.

Select a toroidal power transformer with 250VCT secondary for the high-voltage rail and 6.3V/2A for heaters. Add a PI-type filter (two chokes, 10H/150mA) to smooth high-voltage ripple; this outperforms RC filters in dynamic response. For biasing, use a 1N4148 diode and 10kΩ potentiometer in series with the grid resistor–avoid fixed-bias designs for beginners due to safety risks.

Route the tone stack as a passive network after the first gain stage. A Baxandall circuit (treble and bass controls centered at 1kHz) provides linear adjustment; alternative James or Fender-style stacks introduce phase shifts that may require compensation. Keep lead dress tight: twist heater wires, use shielded cable for input (RG-174), and avoid parallel runs of signal and power traces longer than 1 inch.

Etch the board with 1mm trace clearance and 0.5mm annular rings to handle high voltage safely. Drill component holes at 1.0mm for resistors/2.5mm for tube sockets, and tin all pads before soldering. Test each stage incrementally: measure DC voltages (±5% of target) before installing tubes, and verify AC signals (10Hz–100kHz bandwidth) with a probe shielded from mains hum.

Designing a Tube-Based Sound Reinforcement Board: Key Schematics and Fabrication Tips

Start with a vacuum tube preamp stage using a 12AX7 or ECC83 dual triode to preserve harmonic richness. Place the input jack, grid resistor (1MΩ), and coupling capacitor (0.1µF film) on the top layer, maintaining ≥15mm spacing between traces to minimize interference. Route the cathode to a 1.5kΩ resistor and 25µF bypass capacitor–adjust values for desired tonal shaping. Power the filaments with AC 6.3V, twisting wires to cancel magnetic hum, and keep them 5mm from signal paths on the PCB.

Critical Power Supply and Grounding Strategies

Isolate high-voltage DC (300V–400V) from low-level signals using a star grounding scheme. Connect the power transformer’s center tap to a chassis ground, then split into analog ground (for tubes) and control ground (for pots/LEDs). Use 10µF electrolytic and 0.1µF ceramic capacitors in parallel near each tube socket for ripple suppression. For the rectifier, opt for a GZ34 or solid-state bridge with 47µF/450V smoothing caps–position them ≤30mm from the board to reduce inductance.

Track width for high-current paths (e.g., secondary winding connections) should be ≥2.5mm on 2oz copper; signal traces can be 0.8mm. Use teflon standoffs for off-board components like transformers, and label danger zones (high voltage) with silkscreen warnings. For mixed-signal layouts, keep analog and digital grounds separated until a single low-impedance point, typically the input jack’s sleeve. Validate with a 1kHz sine wave at 1V RMS–distortion should stay below 0.5% before engaging the tone stack.

Key Components for a Tube-Driven Sound Reinforcement System

Select 12AX7 or ECC83 tubes for preamp stages–they deliver optimal gain and harmonic richness. Match their operating point to 150–250V plate voltage with 1–2mA current draw for consistent performance. Pair with a bypass capacitor (0.1µF polyester) between cathode and ground to stabilize tone without compromising midrange clarity.

Output tubes demand higher power ratings: EL34, 6L6GC, or KT88 handle 30–100W power levels efficiently. Bias them at 50–70% of maximum plate dissipation (e.g., 6L6GC at 25–35W per tube) to avoid red-plating while preserving dynamic response. Install 5W wirewound resistors (1–1.5kΩ) as grid stoppers to tame parasitic oscillations.

• High-voltage filter capacitors: 330µF–470µF/450V electrolytic for B+ smoothing; replace every 5,000 hours of operation to prevent ESR-related sag.
• Rectifier selection: GZ34 tube for soft compression or ultra-fast recovery diode (UF4007) for tighter transient response.
• Power transformer: 200–300VA core with separate filament winding (6.3V/3A) to minimize hum in class-A stages.

Tone-shaping networks rely on precision components. Use carbon film resistors (1%, 0.5W) in signal paths–metal film types introduce audible phase shifts. Coupling capacitors: Orange Drop (0.022µF) for crisp treble or paper-in-oil types (0.1µF) for warmth. Treble bleed circuits require 220pF silver-mica capacitors to maintain high-frequency fidelity.

Critical Passive Components

Volume potentiometers: 250kΩ audio taper (CTS or Bourns) for linear taper applications; 500kΩ log taper suits bass-heavy voicings. Install 0.01µF disc capacitors across the wiper-to-ground terminals to filter RF interference. Switchcraft jacks with gold-plated contacts prevent oxidation in high-impedance stages.

Chassis grounding follows a star topology: connect all ground returns to a single central point (e.g., input jack sleeve) via 16AWG copper wire to eliminate ground loops. Shield signal cables with braided copper mesh (90% coverage) and terminate to chassis ground using tinned lugs.

Negative feedback networks should use 5% tolerance resistors; measure actual values with a DMM before installation. A 1kΩ resistor in series with 0.047µF capacitor across the output transformer primary adjusts damping factor–reduce feedback by 3dB increments for tighter low-end response.

For bias circuits, employ a 10-turn 5kΩ trimpot (Bourns 3006P) with lock nut to set quiescent current. Calibrate with a 1Ω/5W current-sense resistor in series with the tube cathode; target 30–60mA per output tube for optimal Class AB operation. Verify stability with a dummy load (8Ω/100W non-inductive resistor) at full power before first use.

Step-by-Step Signal Path Engineering for Tone Shaping Units

Begin by isolating each functional block on graph paper or a schematic capture tool with a grid spacing of 0.1 inches (2.54mm). Trace signal flow from the instrument input to the speaker output, marking high-impedance nodes–typically the first gain stage–with a 1MΩ resistor to ground to prevent parasitic oscillations. Use a 1μF coupling capacitor between stages to block DC while allowing frequencies above 30Hz to pass, ensuring no audible rolloff at guitar-relevant tones. For PCB traces, maintain a minimum width of 0.5mm for power rails and 0.3mm for signal paths to reduce inductance and crosstalk.

Next, calculate the quiescent current for each active component. A common-emitter preamp stage using a 2N3904 transistor should draw 1.2mA at 9V supply, achieved by setting the emitter resistor to 1kΩ. Verify the collector voltage sits at 4.5V (half supply) to maximize headroom before clipping. For op-amps, select models with a slew rate exceeding 5V/μs (TL072 or NE5532) to preserve transient response without slew-induced distortion. Ground planes should be continuous, separated from signal traces by at least 0.2mm to minimize noise pickup.

Key Component Placement Rules

• Place the power rectifier diodes within 10mm of the smoothing capacitors to prevent voltage spikes from radiating into adjacent traces.
• Keep the volume potentiometer’s wiper trace under 20mm long; route it directly to the next gain stage to avoid RF interference.
• Mount input jacks on the edge of the board, with shielding cans grounded at a single point to reduce hum.
• Separate analog and digital grounds with a star point at the main filter capacitor to prevent ground loops.
• Use 100nF ceramic capacitors across IC power pins, positioned within 2mm of the pins to suppress high-frequency noise.

After placing components, simulate the network using SPICE software. Verify that frequency response remains flat from 80Hz to 5kHz with no more than 0.5dB variation. Test overdrive behavior by sweeping input levels from 100mV to 1V; the onset of clipping should occur symmetrically at ±3.5V for a 9V rail. For preamp tubes (12AX7), bias the cathode at 1.5V relative to the grid to achieve 1.2mA plate current, ensuring balanced distortion characteristics. Traces carrying heater filaments should be routed as a twisted pair to cancel magnetic fields.

Finalize the board layout by doubling the copper weight (2oz) on power traces to handle currents up to 1A without voltage drop. Apply a solder mask to prevent short circuits, but expose ground pads for solderable vias linking the top and bottom layers. Before fabrication, etch a prototype on copper-clad board using ferric chloride at 40°C with agitation to avoid uneven etching. Measure DC voltages at each stage with a multimeter: discrepancies beyond ±5% from calculated values indicate incorrect resistor tolerances or misplaced components.

PCB Design Guidelines for High-Fidelity Signal Paths

Separate analog and digital ground planes by splitting them at a single star point near the power input. Copper pours on the analog side should connect to this star ground at only one location to prevent ground loops, which introduce 50/60Hz hum and high-frequency noise. For mixed-signal boards, the analog ground plane must cover at least 60% of the area beneath sensitive traces to maintain low impedance.

Route audio signal traces as short as possible with widths between 0.25–0.5mm, depending on current levels. Maintain a minimum 3W spacing rule–three times the trace width–to avoid crosstalk between adjacent paths, especially for differential pairs. When layer transitions are unavoidable, use multiple vias (minimum two) to reduce inductance, ensuring the via diameter does not exceed 0.3mm to preserve signal integrity at frequencies above 20kHz.

Signal Type	Trace Width (mm)	Spacing (mm)	Via Diameter (mm)
Low-level inputs	0.25	0.75	0.3
Line-level outputs	0.4	1.2	0.4
Power supply rails	0.8+	2.4	0.5

Keep high-impedance nodes physically small–limit pad sizes on FET gates and input stages to 0.8mm diameter or less. Exposed traces on these nodes should be shielded with a grounded copper pour on adjacent layers, connected via stitching vias spaced no farther than 5mm apart. For op-amp feedback loops, position compensation components (resistors, capacitors) immediately adjacent to the IC pins, minimizing trace length to prevent parasitic oscillations.

Decouple all ICs with ceramic capacitors (100nF X7R) placed within 2mm of each power pin, using 0402 or 0603 size for lowest ESL. For audio-grade applications, add a bulk electrolytic (47µF–220µF) at the board power entry point, but avoid placing it near sensitive analog sections–keep a minimum 10mm clearance. Bypass capacitors must connect directly to the ground plane without intermediate traces to reduce high-frequency impedance.

Use 45° angles instead of 90° bends on signal paths to reduce reflection and emissions. For layered boards, stagger via positions on consecutive layers to prevent parallel alignment, which can create unintended resonant circuits. If differential signaling is employed, ensure trace lengths match within ±2mm to maintain phase coherence, particularly for balanced inputs and outputs.

Thermal reliefs should be avoided on ground planes beneath sensitive components; instead, use solid copper connections to maintain low thermal resistance. For TO-220 and similar packages, allocate a copper area of at least 30mm² per amp of current, with multiple vias to the internal planes for improved heat dissipation. Avoid thermal vias under ICs with exposed pads–route them around the perimeter to prevent solder wicking during reflow.

For boards with through-hole components, orient all polarized parts (diodes, electrolytics) identically to reduce assembly errors. Silk-screen reference designators must not overlap pads or traces–maintain a minimum 0.5mm clearance. When panelizing, include 2mm mouse-bite tabs between individual boards, with fiducial marks (1mm diameter) at diagonal corners for automated assembly alignment.

Test points should be 1mm diameter with a 0.5mm annular ring, spaced at least 5mm from adjacent components. For impedance-controlled lines, verify trace impedance using a time-domain reflectometer (TDR) before finalizing the design–target 50Ω ±10% for single-ended, 100Ω for differential. Post-fabrication, coat exposed copper on high-impedance nodes with solder mask to prevent oxidation, but avoid mask over thermal pads or connectors where conductivity is critical.
