Complete 2004 PT Cruiser Radio Wiring Color Codes and Connection Guide
To locate the harness behind the dashboard panel, remove the lower trim beneath the steering column–this exposes the main power connector. Pin configurations follow a 12-pin layout: positions 1-3 (red, yellow, black) handle constant power, switched ignition, and ground respectively. Verify continuity with a multimeter; resistance should read under 0.5 ohms for any active circuit.
Aftermarket units often require an adapter–Chrysler’s 16-pin OEM plug won’t match standard ISO harnesses. Use a Metra 70-1761 or equivalent; its color-coded wires simplify splicing. For заводской штатный модуль, pins 9 and 10 (blue/orange stripes) carry the antenna signal; disconnecting them may trigger a security fault in vehicles equipped with Vehicle Theft Protection.
If bass response is inconsistent, inspect the amplified turn-on lead (gray, pin 7). This wire triggers external amplifiers; a faulty relay can cause intermittent loss. For retrofits, bypass the factory amplifier by jumping pins 4 and 5 (gray/black and gray/violet). Remember to fuse any added circuits–a 10A inline fuse protects against short circuits near the fusebox under the hood.
For troubleshooting static, check antenna mast resistance–it should measure 2-5 ohms. Corrosion at the base often disrupts reception. Replace the coaxial cable if shielding shows fractures; use RG-58 for durability. Ground loops manifest as engine RPM-synchronized hum–relocate the head unit ground to a bare metal chassis point instead of the original plastic-backed mount.
Complete Electrical Schematic for Your 2004 PT Model’s Audio System
Locate the factory harness behind the dashboard–pin A (yellow) carries constant 12V power from the battery, while pin B (red) supplies ignition-switched voltage. Confirm connections with a multimeter before splicing; factory crimps often fail under vibration. Ground wires (black) must terminate directly to chassis metal, not painted surfaces, to prevent signal interference.
Speaker outputs follow this configuration: front left (+) gray/black, (-) gray; front right (+) white/black, (-) white; rear left (+) green/black, (-) green; rear right (+) violet/black, (-) violet. Miswiring reverses polarity and damages factory amplifiers. For aftermarket units, match impedance–Chrysler’s stock setup uses 4-ohm speakers, while most aftermarket head units expect 2-ohm.
Common Pitfalls and Fixes
Flickering displays indicate unstable power delivery–check the fuse (20A, position #10 in the under-hood box) and alternator output (should read 13.8-14.4V at idle). If static persists, unplug the antenna lead (blue/white stripe) when not in use; its amplifier can pick up engine noise. Steering wheel controls require a resistor network (200-2.2k ohms) for proper function–skip this, and the BCM logs fault codes.
For OEM navigation retrofit, the factory wiring includes a pink/light blue lead for speed sensor input–this synchronizes GPS data with vehicle movement. Without it, navigation drifts by 10+ meters at highway speeds. Swap the factory antenna module (mounted near the rear defroster) to a dual-band unit if adding satellite tuners; the single-band version lacks L-band signal reception.
Aftermarket Installation Notes

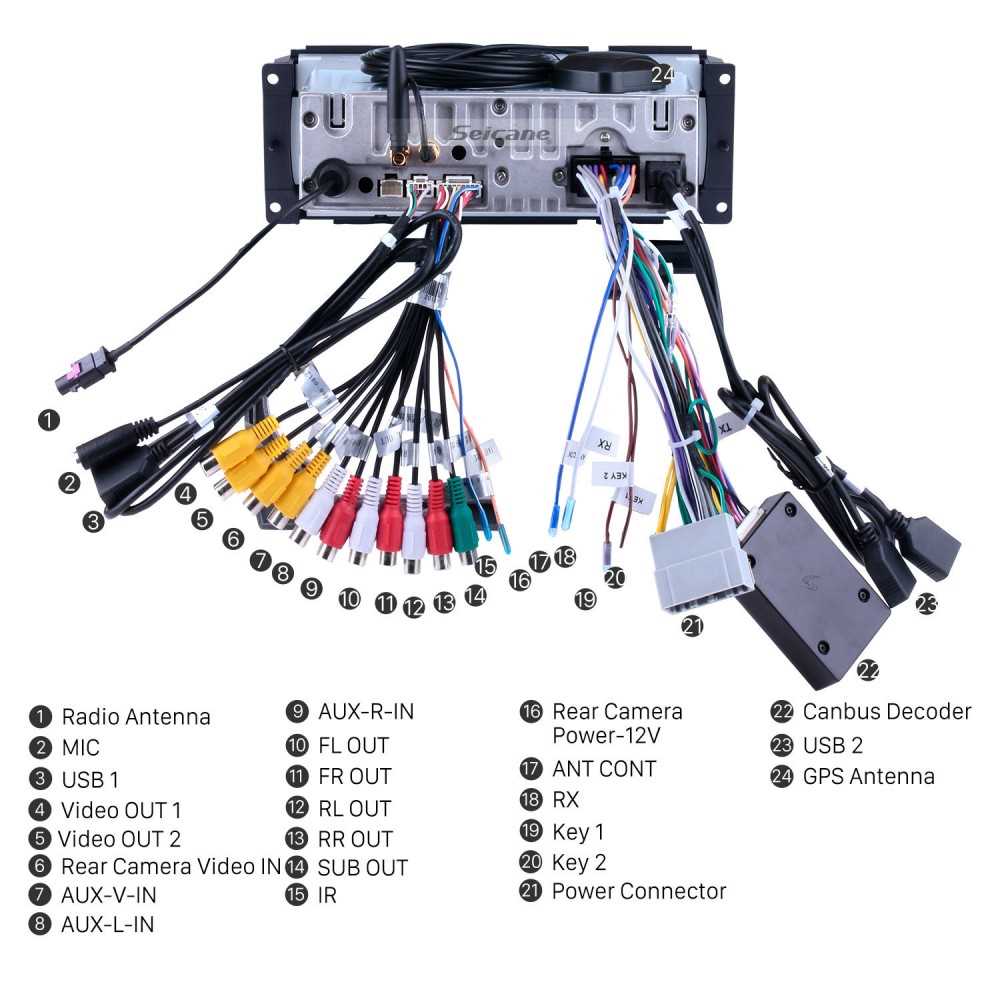

Most third-party stereos use ISO standard connectors–Chrysler’s harness wires differ in gauge (18AWG vs. 20AWG) and insulation thickness. Use solder splices with heat shrink, not twist-and-tape, for long-term reliability. The dimmer wire (orange/white) adjusts display brightness with dashboard illumination; leaving it floating causes backlight failures. If adding a subwoofer, tap the gray/black (LF+) and white/black (RF+) leads–these carry amplified signals, not line-level outputs.
Finding the Stock Audio System Plug in a PT Model from the Early 2000s
Begin beneath the center console, directly behind the climate controls. Remove the ashtray or coin tray (held by two screws) to expose the lower dash panel. Pry off the panel carefully–plastic clips secure it at the top and sides. Once removed, the factory audio harness connector sits on the right side, attached to a vertical metal bracket. The plug has a distinctive 16-pin layout, typically black with colored wires: yellow for constant power, red for accessory, black for ground, and blue/white for amplifier trigger.
Trace the wires downward if visibility is limited; they route through a rubber grommet into the firewall. Mark each wire with tape before disconnecting, noting positions for aftermarket unit installation. Chrysler’s harness often includes lighting dimmer (orange) and mute/interrupt (gray)–preserve these for factory integration.
Matching Aftermarket Audio Unit Connections in a 2003 Compact Hatchback
Locate the factory harness behind the dashboard cluster–typically a 12-pin rectangular plug with staggered blade terminals. The constant power feed is orange with a thin red stripe; verify with a multimeter (12V+ with ignition off). If the orange cable shows voltage below 10.8V, inspect the in-line fuse (often 10A) near the glove compartment bulkhead.
Ground connections share a black wire terminating in a 6 mm ring lug; strip 8 mm of insulation, crimp tightly, and secure to bare chassis metal–avoid painted surfaces. Loose grounds introduce alternator whine; test continuity between lug and battery negative before final tightening.
| Factory Color Code | Aftermarket Pin Label | Voltage (Key ON) | Ampacity (A) |
|---|---|---|---|
| Yellow (thick, no stripe) | B+ / Memory | 12.6V | 15 |
| Red (thin brown tracer) | Accessory | 12.2V | 10 |
| Light green (dark base) | Illumination (+) | 0–12V dimming | 3 |
| Dark blue (white stripe) | Amplifier remote | 12V | 7.5 |
Speaker leads follow a consistent stripe pattern: solid color for positive, matching color with black stripe for negative. Front left tweeter uses gray (solid) and gray-black; rear full-range unit pairs purple (solid) and purple-black. Resist twisting pairs during routing–shield each bundle with 3 mm split loom to prevent engine-bay interference.
Steering-wheel control signals transmit via a single gray-violet (thick) wire; connect to an adapter box’s “DATA” or “SWC” input. If controls fail, probe the gray-violet line with an oscilloscope: valid button presses produce 1–4V square waves at 50 ms intervals. Incorrect adapters can back-feed 5V logic and fry the car’s Instrument Cluster Module–always fuse the gray-violet line with a 1A micro fuse.
Dimmer illumination taps the light green wire; voltage varies from 0V (lights off) to 12V (full brightness). Most aftermarket head units expect negative-switched dimming–install a 1N4007 diode cathode-to-car side to prevent reverse current. Skip this step only if upgrading to a double-DIN unit with factory-style rheostat behavior.
Parking brake safety circuits often intercept red-white (female bullet connector under dash); splice to aftermarket “brake” input only if videos require engagement. Some harness adapters include a bypass jumper–never use it for street-driven vehicles. Instead, trace the red-white wire to its actuator switch; faulty switches can be replaced for under $8 with part #05016789AA.
Finalize connections with solder and 4:1 shrink tubing–crimp splices degrade within 18–24 months. Validate every circuit with ignition cycling before reassembling trim panels; intermittent faults often trace to crushed door-jamb harnesses or poor ISO block engagement. Keep a 120W test light handy: it draws realistic current loads and exposes weak joints that multimeters miss.
Step-by-Step Installation Guide for Aftermarket Audio Upgrades
Disconnect the vehicle’s battery terminals first–negative (ground) cable first, then positive–to prevent accidental shorts or component damage. Locate the factory harness behind the dashboard’s center stack; it’s typically secured with snap-in clips and a single 10mm bolt near the climate control module. Remove the original unit by pressing the release tabs on both sides simultaneously while pulling outward firmly–avoid yanking wires.
Follow this sequence for secure integration:
- Match the aftermarket harness pins to the vehicle’s connector using a multimeter (set to DC 12V) to verify:
- Constant power (yellow wire, 12V from battery)
- Switched power (red wire, ignition-dependent)
- Ground (black wire, typically chassis-mount)
- Speaker outputs (pair polarity checks: white/white-black for front left, gray/gray-black for front right, etc.)
- Illumination (orange wire, dimmer-controlled)
- Antenna trigger (blue/white wire, automatic activation)
- Trim 1/4″ of insulation from each wire, twist strands tightly, and apply solder for durability–heat-shrink tubing or electrical tape follows immediately to prevent corrosion. Crimp connectors are acceptable but less reliable long-term.
- Route new power cables away from moving parts (e.g., steering column, A/C ducts) and secure them with zip ties every 6 inches. Test all connections with a 5-amp fuse in-line before final reassembly.
- Reattach the negative battery cable last, then cycle the ignition to confirm functionality: display backlight, responsive controls, and seamless Bluetooth/USB pairing (if applicable).
Troubleshooting Common Pitfalls
- No power: Verify fuse integrity (10A minimum) and ground attachment–poor grounding causes intermittent failures. Scrape paint from chassis contact points for bare-metal conductivity.
- Distorted audio: Check speaker wires for stray strands touching adjacent terminals. Replace any damaged voice coils (audible “popping” indicates overload).
- Static/noise: Add a noise filter (inline capacitor, 2200µF) on the power input or relocate the head unit’s ground wire to the firewall (original grounds often introduce alternator whine).
- Display issues: Measure voltage on the orange illumination wire–values below 11V suggest a faulty dimmer or corroded harness plug. Clean contacts with a brass brush and DeoxIT spray.
