Complete Nissan Altima Radio Wiring Color Codes and Connection Guide

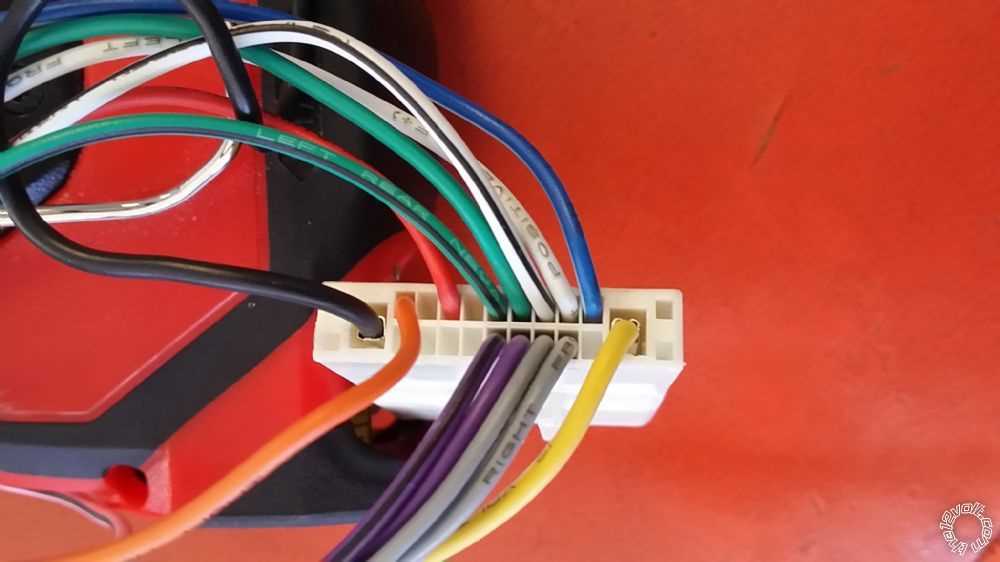

Begin by locating the factory wiring harness behind the stereo unit–color-coded wires simplify identification. The yellow wire serves as the constant 12V power source, while the red wire supplies switched power, activating only when the ignition is turned on. Ground connections typically use a black wire, often bundled with other neutral leads. Speaker outputs follow a standard four-pair configuration: front left (gray), front right (white), rear left (green), and rear right (purple).
Match aftermarket components by verifying ohm resistance–most factory systems use 4-ohm impedance, though higher-end models may include 2-ohm variants for premium sound processing. Avoid cutting wires directly; instead, use quick-connect splices or T-taps to preserve the original harness. For vehicles equipped with amplified systems, check for blue/white remote turn-on wires–these signal external amplifiers to engage.
Test connections with a multimeter before finalizing installations. Set the device to DC voltage and probe the power wires to confirm 12V readings when the ignition is on. If the display remains blank, trace the fuse box for blown circuits or inspect the wiper motor fuse, which often shares power with audio systems. For models with integrated Bluetooth or navigation, retain the pink data wire–interrupting this connection may disable steering wheel controls.
Document each step with photos or notes, especially if the dashboard requires partial disassembly. Retain all original mounting hardware and clips to avoid rattles or misalignment. If static or distortion occurs post-installation, recheck ground connections–poor grounding frequently causes interference. For vehicles with Bose or Rockford Fosgate setups, note that amplifier wires may differ; consult the service manual for exact pinouts.
Car Audio System Connection Guide for 2007–2012 Sedan Models

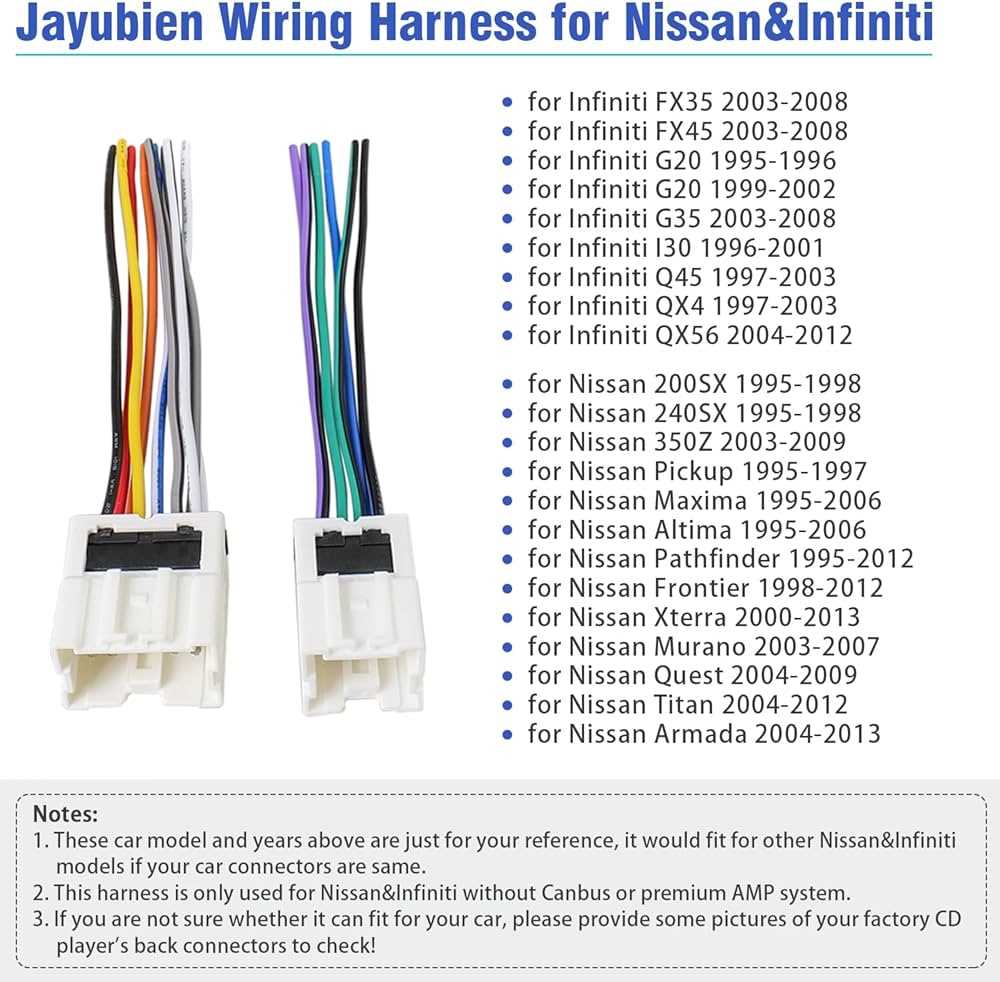

Start by locating the factory harness behind the console–match the 12-pin connector to the aftermarket adapter (Metra 70-7552 or equivalent). The adapter simplifies splicing, preserving the OEM harness while ensuring compatibility with most aftermarket head units.
Color codes differ slightly between model years but follow a consistent pattern. Use this reference for the primary speaker and power wires:
| Function | Color (2007–2009) | Color (2010–2012) |
|---|---|---|
| Constant 12V | Yellow | Yellow (thick gauge) |
| Switched 12V | Red | Red/Yellow stripe |
| Ground | Black | Black |
| Front Left (+) | White | White/Black stripe |
| Front Left (–) | White/Black stripe | White |
| Rear Right (+) | Gray | Gray/Red stripe |
For amplified systems, the factory harness includes a separate power wire (blue/white) for the amplifier remote turn-on. Connect this directly to the new head unit’s amp trigger output–failure to do so will leave the amplifier inactive.
Parking brake and reverse signal wires are critical for full functionality. The brake wire (light green) must be grounded to enable video input, while the reverse wire (pink/black) triggers the backup camera if equipped. Use a relay or adapter to simulate these signals when testing.
Subwoofer outputs (if present) use a dedicated RCA pair (purple/white and purple/green) in the 20-pin connector. These bypass the standard speaker wires and require a line-level converter if the new unit lacks dedicated sub outputs. Check impedance–factory subs are typically 2-ohm, and mismatched aftermarket units may need impedance matching.
Always verify connections with a multimeter before powering on. The constant power wire should show ~12V regardless of ignition state, while the switched power wire should drop to 0V when the key is off. If dimming functionality is needed, tap into the orange illumination wire (or pink/blue in 2010+), which adjusts voltage with the dash lights.
Finding the OEM Head Unit Connector in Your Mid-Size Sedan
Begin by removing the center console trim panel–locate the release tabs on the underside of the gear shift bezel (typically two on the front edge and one on each side). Apply firm but controlled pressure to avoid cracking the plastic clips. Once detached, the 20-pin factory harness adapter will be exposed, secured by a metal bracket to the vehicle’s firewall. The connector sits directly behind the climate control module, identifiable by its rectangular shape and beige or gray casing. For models produced after 2015, check for an additional 8-pin auxiliary connector hidden beneath a foam pad.
- Disconnect the negative battery terminal to prevent airbag deployment or electrical shorts.
- Use a trim removal tool; never force removal with screwdrivers–this risks damaging retaining clips.
- On vehicles with navigation, the harness may include an extra 4-pin GPS antenna lead (white/yellow stripe).
- For 2013–2018 units, the power harness wires follow this pinout: red (constant 12V), yellow (switched 12V), black (ground), blue/white (amplifier turn-on), orange (illumination), green/white (rear left speaker +), purple/white (rear right speaker +), brown/white (front left speaker +), tan/white (front right speaker +).
Troubleshooting Hidden Connectors
If the harness is not immediately visible, follow these steps:
- Remove the passenger-side lower dash panel (held by three 7mm screws and a single hidden clip near the glove box).
- Trace the bundle of cables from the infotainment system–it routes along the transmission tunnel and connects to a white 16-pin diagnostic interface before splitting.
- Check for aftermarket splices (common in pre-owned vehicles); these often use crimped butt connectors that degrade over time.
- On hybrid models, an additional orange fuse link (20A) powers the audio system–verify continuity if the head unit fails to power on.
Decoding Wire Colors and Roles in the 2002-2006 Sedan Audio System
Locate the 12-pin connector at the rear of the head unit–black for ground (pin 1), yellow for constant 12V power (pin 7), and red for switched 12V (pin 8). The yellow wire maintains memory for presets and clock settings, while the red wire activates the unit when the ignition is turned on. If the audio system loses settings after ignition cycles, inspect these two leads for breaks or poor connections before proceeding.
Front speaker outputs emerge from pins 2 (left positive, gray), 3 (left negative, gray/black stripe), 4 (right positive, white), and 5 (right negative, white/black stripe). These pairs handle the primary stereo output; mismatched polarity here causes phase cancellation, dulling treble and midrange. Verify continuity with a multimeter–impedance should read between 3.2 and 4.0 ohms per channel.
The antenna trigger wire (pin 12, blue) extends power to the motorized mast when the ignition activates, enabling automatic deployment. A non-functional antenna often traces back to a severed blue lead or faulty ground at the base unit. Test by probing the wire with 12V while monitoring antenna movement; resistance should drop below 0.5 ohms during retraction.
Illumination control (pin 9, orange/black) dims dash lights in sync with headlight activation. If display intensity fails to adjust, splice a 1k-ohm resistor into this circuit to simulate dimmer input. Dimmer relays in these model years degrade unpredictably; replacing the factory harness segment with a 16-gauge silicone wire restores consistent brightness modulation.
Amplifier turn-on (pin 11, blue/white) signals aftermarket amps to engage. Factory units integrate this function seamlessly, but aftermarket head units often require an inline fuse (7.5A) to prevent backfeeding. Without proper isolation, phantom power draw drains the battery within 24 hours. Use a relay-triggered circuit for clean power delivery to external amplifiers.
Auxiliary inputs (pins 6 and 10, brown and gray/red respectively) support factory CD changers or external audio sources. These leads remain inactive unless bridged with a 1k-ohm resistor to ground or patched into an RCA adapter. Signal voltage peaks at 2V RMS; exceeding this threshold distorts audio and risks damaging the internal preamp stage.

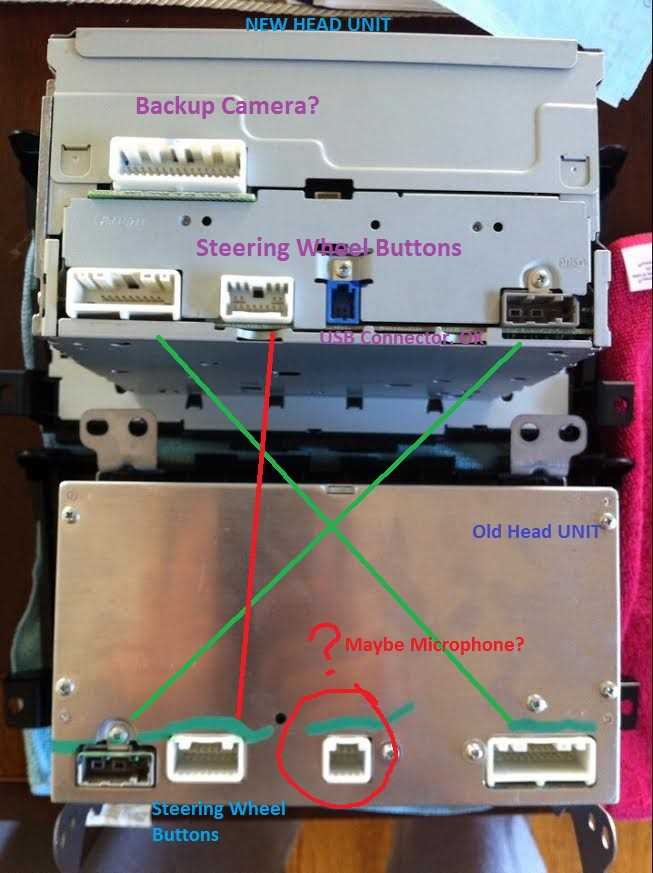

Step-by-Step Guide to Installing a New Audio Head Unit in the 2015-2020 Sedan
Disconnect the car battery’s negative terminal before touching any electrical connections to prevent short circuits. Use a 10mm wrench to loosen the clamp, set the cable aside, and verify power is fully drained from the system.
Remove the factory trim panel surrounding the stereo by carefully prying along the edges with a plastic trim tool. Start at the bottom corners, working upward to release the clips without cracking the plastic. Store all screws and clips in a magnetic tray to avoid losing them.
Identify the OEM wiring harness adapter–match the colors on the aftermarket unit’s connector to the sedan’s stock harness. For a 2015-2018 model, the solid orange wire supplies constant 12V power, the red/black stripe handles accessory power, and the yellow/black stripe connects to the illumination circuit. The 2019-2020 variant replaces the orange wire with a solid pink one.
Use a multimeter to confirm voltage on each wire before making connections. Set the meter to DC 20V, probe the ground (black wire) and test each colored lead. A lit indicator on the aftermarket display should appear only when probing the pink or orange wire with the ignition off, verifying constant power.
Securing the New Connections
Align the aftermarket harness with the OEM adapter, pressing firmly until each pin clicks into place. Avoid twisting or bending the wires–excessive force can damage the terminals. For vehicles with Bose amplification, locate the light green/white wire on the sedan’s harness and connect it to the corresponding lead on the new head unit to maintain factory sound processing.
Mount the new stereo into the dash kit, ensuring it sits flush without gaps. Test the eject button, volume knob, and screen responsiveness before fully securing it with the factory screws. Reattach the trim panel by aligning the top clips first, then pressing downward until all edges snap into place.
Final System Verification
Reconnect the battery’s negative terminal, tightening the 10mm nut securely. Turn the ignition to “ACC” and verify the new interface powers on without error messages. Play a test track through all speakers, adjusting fade/balance settings to confirm even audio distribution. If the steering wheel controls are unresponsive, revisit the adapter’s blue/white data wire–it must interface with the sedan’s CAN bus module for full functionality.
If static or distortion occurs, check the ground connection at the dash support bracket. Scrape away any paint or corrosion, then reattach the grounding wire with a star washer for a solid link. For persistent issues, probe the sedan’s antenna lead with the multimeter–a reading below 150 ohms suggests a faulty coaxial cable requiring replacement.
