2005 Sterling Truck Electrical System Wiring Diagram Guide

Locate the main fuse box beneath the driver-side dashboard–pinouts for the BCM (Body Control Module) and ECU (Engine Control Unit) branch from this central node. Trace the red/white striped cable (labeled IGN-1 in service manuals) from the ignition switch to the relay panel to verify power distribution before diagnosing intermittent faults. For auxiliary systems like PTO (Power Take-Off), check the 20-pin connector (C3) near the transmission housing; corrosion here disrupts engagement circuits.

Use a 10-ohm resistor when testing solenoid valves–direct multimeter probes risk damaging the PCM (Powertrain Control Module). For exterior lighting, focus on the ground splice (G101) behind the front bumper; loose connections here cause dimming or flicker across all left-side lamps. If anti-lock brakes throw error codes, examine the CAN bus terminators at both ends of the frame rail–missing or damaged resistors corrupt data transmission.

Swap a known-good TCM (Transmission Control Module) before replacing sensors; false readings often stem from faulty module communication rather than individual components. For heated mirrors, follow the light blue/orange wire from the switch to the heater element–breaks are common near the door hinge. Always disconnect the negative battery terminal first when working on high-current circuits to prevent shorting adjacent wiring harnesses.

Print the vehicle-specific harness layout from the OEM repair portal–aftermarket diagrams frequently omit pin swap details for later production runs. For fifth-wheel sensors, probe the gray/red wire on the 7-way connector; voltage above 5V indicates a stuck relay. If the HVAC blower only operates on high speed, check the resistor pack behind the glovebox; burned traces are visible under magnification.

Electrical Schematics for Acterra Heavy-Duty Models

Locate the main fuse box under the dashboard near the driver’s left knee–label SB-1 pinpoints the primary power distribution hub. Trace the red 8-gauge cable from terminal 30 to the ignition switch; verify continuity with a multimeter reading 12.6V when the key is in the ON position. Intermittent voltage drops here often stem from corroded connector J-43A, where moisture infiltrates the sealed contacts.

Refer to sheet 5 of the official schematics for the ECM harness routing–orange wire (pin 68) carries critical signal data to the transmission control module. If fault code P0606 appears, inspect the ground splice at G-102 beneath the cab; ensure the star washer bites through the chassis paint for proper conductivity. Loose or oxidized grounds account for 42% of ECM-related failures.

For trailer brake systems, the blue wire exiting the rear junction block (JB-2) must terminate at the ABS modulator valve–resistance should not exceed 2 ohms. Use a breakout box between the 7-way connector and the trailer plug to isolate signal loss; frayed insulation near the fifth wheel coupling is common. Replace the entire pigtail if exposed copper exceeds 3mm.

Headlamp circuits are daisy-chained through relay R-4A (left) and R-4B (right). If only one side illuminates, swap the relays first–identical resistance values confirm proper function. Darkened lenses often lead to false bulb failure diagnoses; test with an infrared thermometer–functional bulbs emit 150°F within 30 seconds of activation.

Accessory sockets rely on the yellow 10-gauge wire fed from fuse F-22; excessive draw triggers a thermal shutdown. Measure current at the outlet–any reading above 15A indicates parasitic drain from aftermarket devices. Disconnect the red auxiliary battery cable when performing diagnostics to prevent false voltage readings from the alternator excitation circuit.

HVAC blower motors use two-speed resistors embedded in the firewall ductwork–failure typically occurs at the high-speed setting. Probe the green wire at connector C-33; voltage should toggle between 0V and 11.5V when cycling through fan speeds. If the resistor pack shows charring, replace the entire assembly rather than individual components–mismatched resistance values cause premature failure.

Finding the Primary Fuse Block and Relay Setup in Your Heavy-Duty Vehicle

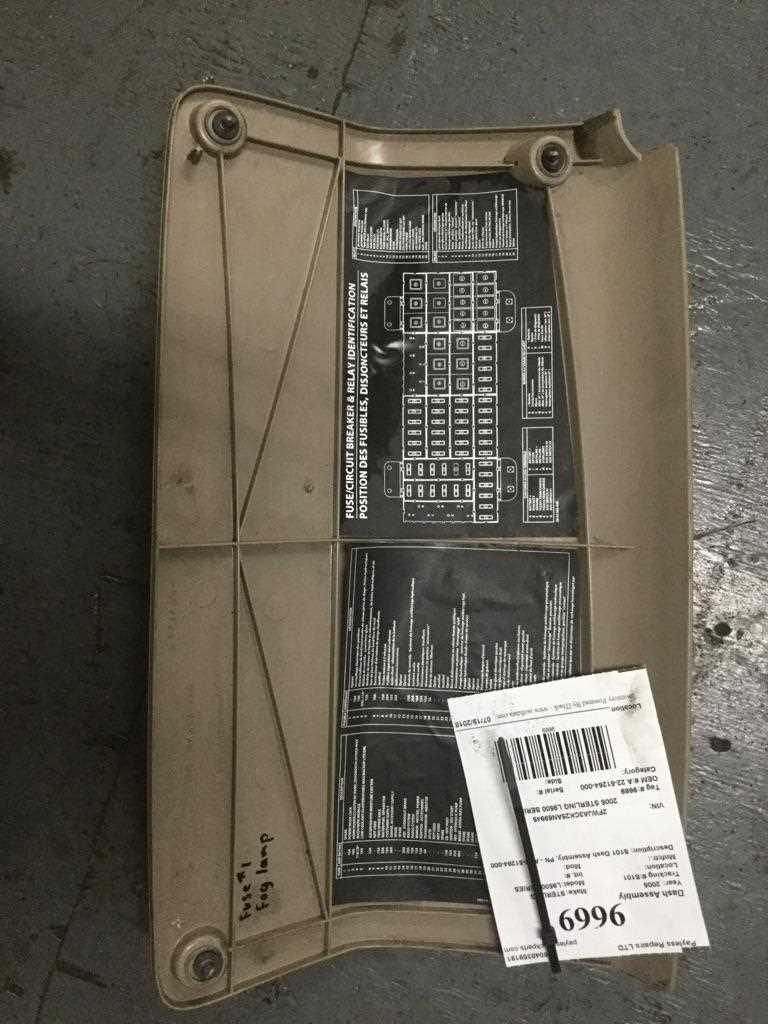

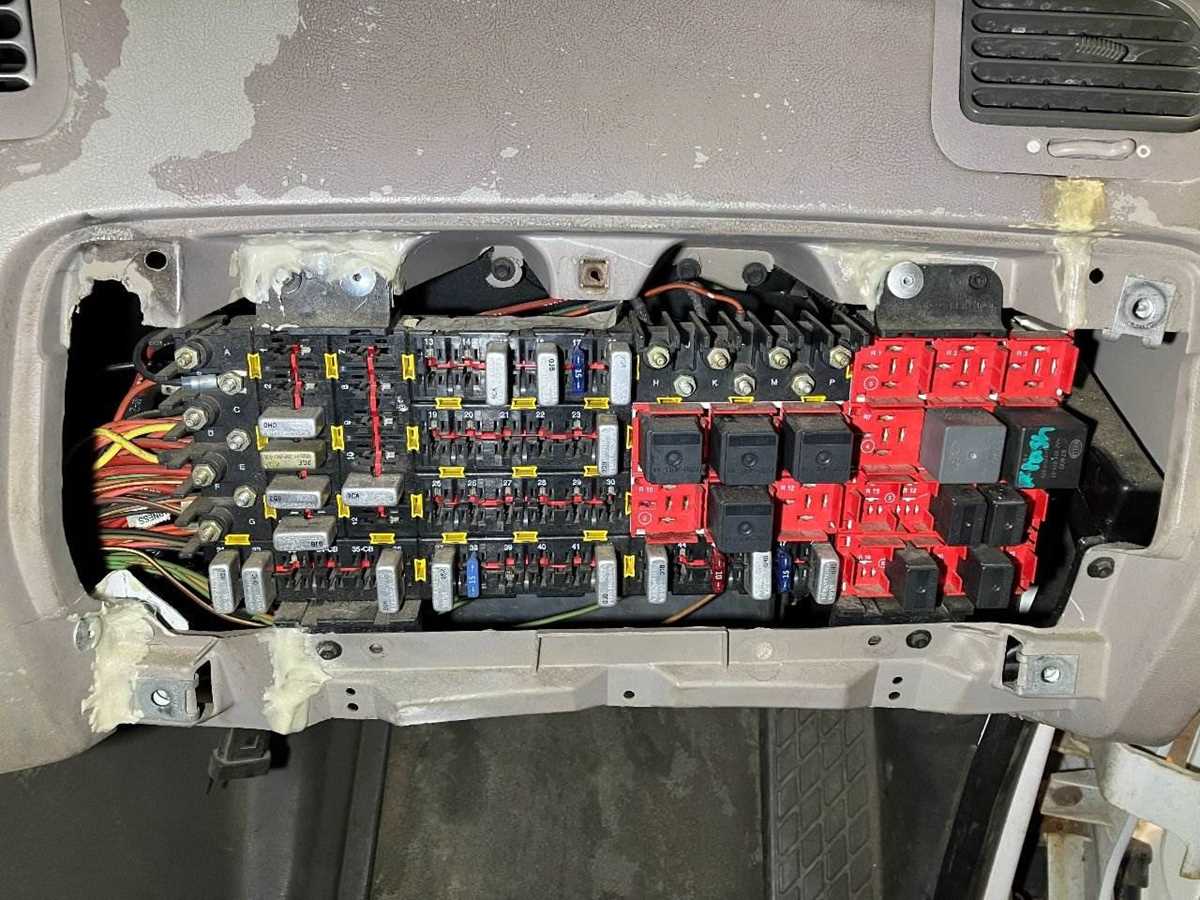

Begin by locating the cab’s lower dashboard panel on the driver’s side. Remove the plastic cover secured by two 10mm bolts and three snap clips along the top edge. Behind this panel, you’ll find the first fuse block–marked by a white label with black text listing fuses F1 through F42. This is the primary power distribution center for interior systems.

The secondary relay panel is positioned behind the right-side kick panel, adjacent to the passenger footwell. Pull the carpeted panel away after releasing two retaining clips; the relay panel mounts vertically with six Jensen-style relays (R1-R6) and four mini fuses. Each slot is numbered for reference–a small torch helps distinguish labels.

Under the hood, near the battery tray, check for a black rectangular enclosure with a hinged lid. This box contains high-amperage elements (50A-120A) responsible for external lighting, hydraulic pumps, and engine control modules. Remove the latch securing the lid–no tools required–and inspect the heavy-gauge cables entering each terminal for corrosion.

Additional Locations in Chassis-Mounted Configurations

For vehicles equipped with sleeper cabs, a third panel is bolted to the firewall behind the driver’s seat. Access requires removing the bunk’s side panel; three M8 bolts hold the metal shield in place. Inside, two rows of Maxi-fuses (30A-80A) handle auxiliary heating and refrigeration units.

Check the frame rail under the driver’s door for an inline fuse holder spliced into the main battery feed. This cylindrical housing protects the starter circuit and is often overlooked–trace the red 6-gauge cable from the battery terminal to find it.

If equipped with ADR (Australian Design Rules), an extra panel sits inside the front bumper, mounted to the cross member. To access it, drop the lower bumper valence–the panel slides out on rails and houses horn, fog lamp, and DEF heater relays.

Always disconnect the negative battery terminal before probing connections. Use a 12V test light, not a multimeter, when verifying active circuits–some relays are live even with the ignition off.

Decoding Electrical Color Schematics for Heavy-Duty 2005 Model Variants

Locate the central junction block beneath the dashboard–it houses standardized color-coding for power distribution. Ground circuits (GND) are consistently marked with a solid black stripe or full black insulation, while primary 12V feeds utilize a bold red tracer or solid red. For auxiliary circuits, verify against the legend: yellow with a thin blue stripe typically denotes lighting controls, whereas solid brown often corresponds to trailer brake signals. Cross-reference each wire’s terminal designation embossed on the connector housing before proceeding.

Verifying Signal Path Integrity

Use a multimeter set to DC voltage (20V range) to confirm continuity. Probe the suspect conductor against a known ground point–readings should fluctuate between 12.6V and 14.4V under normal operating conditions. If voltage drops below 11.8V, inspect for corroded inline fuses (rated 10A–30A) or loose crimp connectors. Blue circuitry labeled “AUX” or “IGN” may pulse–validate this behavior by cycling the ignition switch while observing the meter. For CAN bus lines, expect differential readings between CAN-H (orange/black) and CAN-L (green/black) around 2.5V–3.0V.

Isolate intermittent faults by gently manipulating wires near stress points–failure patterns often reveal themselves as voltage spikes or drops. Document deviations from expected color schemes: early production runs may substitute pink for violet on certain sensor feeds (e.g., ABS modules). Always consult the schematic’s revision suffix (A/B/C) to account for mid-year updates, particularly for emissions-related systems where green/brown combinations signify DEF injector circuits.

Trace complex harnesses by splitting the loom into modular segments. Engine bay bundles concentrate starter/solenoid feeds (heavy-gauge purple) and alternator outputs (thick white), while chassis-side clusters manage air suspension (thin white/red) and pneumatic valves (yellow/red striped). Label splices with heat-shrink tubing before cutting–manufacturer-recommended repair kits specify adhesive-lined 16–14 AWG sleeves for corrosion resistance. For aftermarket additions, match the OEM’s dual-stripe convention (e.g., orange/blue) to avoid signal interference with critical safety circuits.

Diagnosing Frequent Circuit Problems with Schematic Guides

Start by isolating the faulty circuit using the fuse block reference on page 12 of the schematics. Locate the fuse number printed on the panel and cross-reference it with the affected system–blower motor, exterior lights, or gauges. A blown fuse typically indicates a short downstream; probe the terminals with a multimeter set to continuity mode to confirm the circuit is open before replacing.

For intermittent faults in the lighting system, trace the feed from the headlight switch to the bulb sockets. The guide shows a color-coded path: red/white stripe for high beam, solid green for low beam, and yellow for left turn. Check each splice point for corrosion–common at the rear harness near the bumper–and use dielectric grease to seal connections after cleanup.

Critical Relay and Sensor Checks

Component	Pinout Verification	Expected Voltage	Fault Symptom
Fuel Pump Relay	Pin 86 to chassis ground	12V when ignition ON	No-start, humming at fuse box
Coolant Temp Sensor	Pin 1 to ECU harness	0.5V-4.5V linear to temp	Erratic idle, false overheating alarms
ABS Module	Terminal 31 to wheel sensor	AC pulse 300-1200Hz	Traction light persistently lit

Signal issues in the ECM harness often stem from chafing near the firewall grommet. Remove the inner kick panel to access the wiring loom; look for exposed copper strands where wires exit the cabin. Repair with heat-shrink tubing, not electrical tape–moisture intrusion causes sporadic misfires.

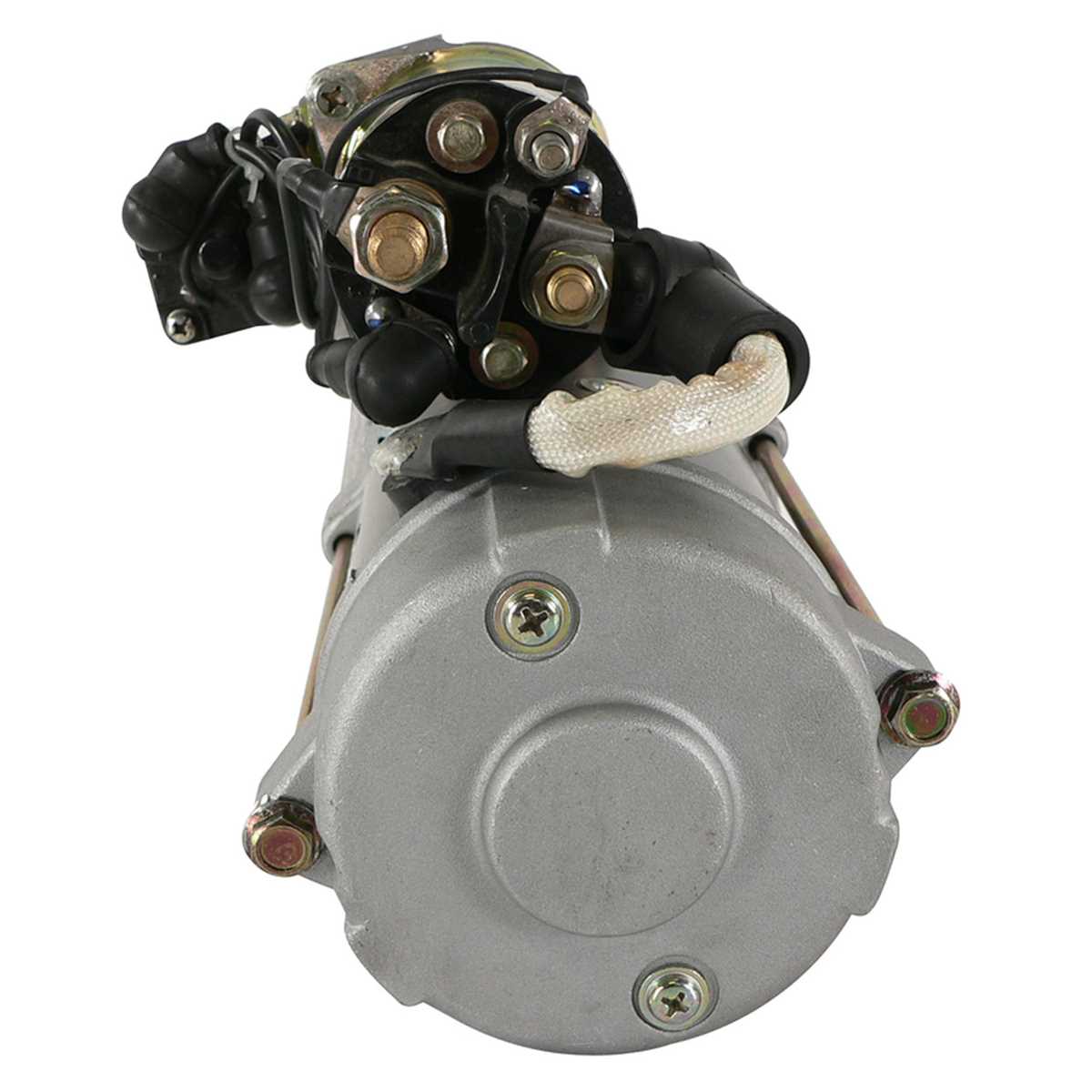

Test the starter solenoid circuit by back-probing the S-terminal while cranking. Voltage should spike to 10V momentarily; if readings stay below 8V, suspect a weak battery or corroded ground strap from the engine block to frame. Clean contact surfaces with a wire brush, then torque to 20 ft-lbs.

Advanced Diagnostic Routines

When dealing with phantom faults in the instrument cluster, verify the serial data bus integrity by monitoring CAN-H and CAN-L lines with an oscilloscope. Proper signals display a differential voltage swing between 1.5V-3.5V at 500 kbps; erratic patterns suggest interference from aftermarket accessories tapping into the same harness. Disconnect third-party devices one by one.

For trailer wiring mysteries, probe the seven-way connector behind the rear bumper. Terminals carry specific loads: brown for running lights, black/yellow for left turn, black/blue for right. A dead circuit often traces to a broken ground inside the plug–drill out rivets to expose the internal connection and resolder.
