Complete HVAC Thermostat Wiring Guide with Detailed Schematic
Use a 24V AC transformer with a 40VA rating as the power supply for low-voltage control circuits–this prevents overheating in residential setups. Connect the R terminal to the transformer’s hot side and the C terminal to the neutral; omit this if the system lacks a dedicated common wire, but expect intermittent failures with battery-powered units.
For heating-only configurations, wire the W terminal directly to the furnace relay with 18-gauge solid copper cable. Avoid daisy-chaining multiple zones–each requires its own dedicated path to the control module. If humidity regulation is integrated, the H terminal must split to both the humidifier solenoid and the evaporator coil dehumidification relay, with separate 2A fuses for each branch.

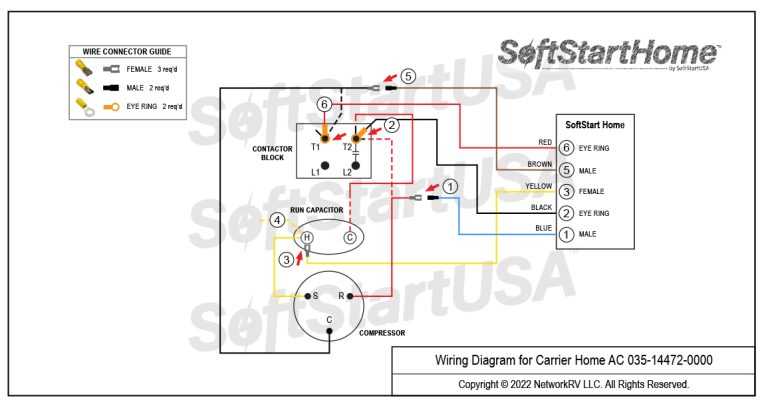

Cooling circuits demand a delayed start: insert a 5-minute delay timer between the Y terminal and the compressor contactor. Bypass capacitors (470µF, 35V) across the compressor motor windings reduce voltage spikes; failure to include them will shorten the lifespan of single-stage scroll compressors by 40%. Dual-fuel systems need a priority interlock–use a double-pole relay to prevent simultaneous operation of the heat pump and gas valve.
Fan control should default to “auto” but allow manual override via a SPDT switch. For variable-speed blowers, connect the G terminal to a PWM module set at 25kHz; standard 60Hz signals cause excessive noise and motor wear. Three-wire sensor setups (two for phase, one for ground) require shielded cable–ground the shield at a single point to prevent loop interference.
Isolate high-voltage components with UL-rated junction boxes. Label every connection with heat-shrink tubing printed with terminal codes (R, Y, G, etc.)–this cuts troubleshooting time by 60%. Always include a 3A fuse inline with the control board’s 5V logic supply; surge protectors alone won’t prevent microcontroller damage during brownouts.
Designing Climate Control Wiring Blueprints

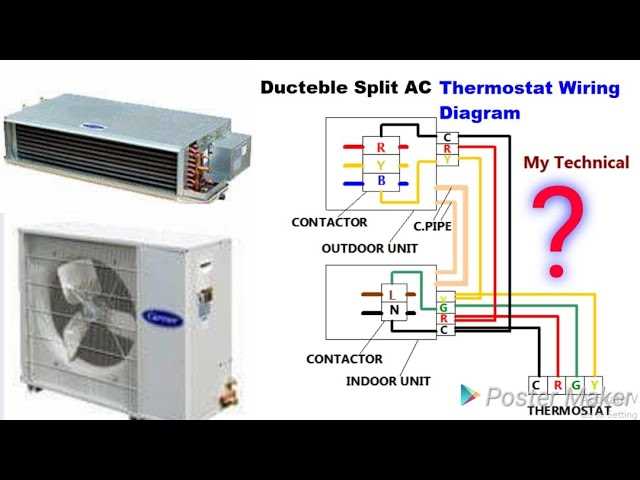

Start by mapping the low-voltage circuit paths–typically 24V AC–between the control unit, relays, and terminal blocks. Use color-coded wires (R for red/power, W for white/heating, Y for yellow/cooling, G for green/fan, C for blue/common) to prevent misconnections. Verify compatibility with the system’s power source; mismatched voltages risk damaging microcontrollers or solenoid valves.
Component Placement for Reliability
Position the temperature regulator near the return air duct to avoid false readings from heat sources or drafts. Mount relays within 10 feet of the furnace or air handler to minimize signal degradation in 18-gauge wiring. Include a dedicated neutral (C-wire) if the unit requires constant power for Wi-Fi modules or touchscreen displays; older two-wire setups may cause erratic behavior.
Test each connection with a multimeter before completing the circuit. Measure resistance across terminals to confirm open/closed states match the expected sequence–heating mode should engage W and R, while cooling requires Y and R. For zoned systems, integrate damper actuators and ensure each control board shares a synchronized signal with the central hub to prevent conflicts.
Key Components of a Climate Control Circuit Layout
Begin by identifying the power input terminals, typically labeled R (red) for 24V AC and C (common) for the ground return. These connections form the foundation of any electrical routing plan, supplying energy to the regulation device. Use a multimeter to verify voltage between R and C–readings should stabilize at 24VAC ±10%. Deviations indicate wiring faults or transformer issues requiring immediate correction.
Trace the load control paths: W (white) for heat demand, Y (yellow) for cooling activation, G (green) for fan operation, and O/B (orange/blue) for heat pump reversal. Label each conductor with heat-shrink tubing to prevent misconnections during installation or servicing. For systems with auxiliary heating, expect an E/Aux terminal (brown) wired to a secondary stage relay–ensure compatibility with the control board’s staging logic by consulting the manufacturer’s resistance charts.
Examine the sensor integration points. Modern setups incorporate temperature probes (marked S1/S2) and humidity modules (H1/H2) with specific impedance ratings: 10kΩ NTC for standard sensors, 5kΩ for high-precision variants. Cross-reference the wiring color codes against the control panel’s documentation–some European models invert yellow (Y) and blue (W) conventions. Secure all low-voltage connections with insulated crimp connectors; avoid twisting wires together as oxide buildup causes intermittent failures over time.
Understanding Low-Voltage Climate Control Wiring Plans: A Practical Walkthrough
Locate the power terminals first–typically labeled R (24V hot) and C (common). Measure voltage between these points with a multimeter before proceeding. Consistency here confirms proper transformer output and prevents misdiagnoses later. If readings deviate beyond ±2V from 24VAC, inspect the power supply circuit for loose connections or faulty components.
Identify the switching lines next. Labels like W (heating), Y (cooling), G (fan), and O/B (heat pump) correspond to relay activations. Trace each wire from the controller to its connected device–furnace, air handler, or outdoor unit–to verify continuity. Use this table to match standard color codes with functions across major manufacturers:
| Function | Common Wire Color | Secondary Options |
|---|---|---|
| R (Power) | Red | – |
| C (Common) | Blue | Black, Brown |
| W (Heat) | White | Orange |
| Y (Cool) | Yellow | Purple |
| G (Fan) | Green | Gray |
Examine the jumper configurations for multi-stage systems. A single-stage heating unit will connect R to W directly, while dual-stage models use W1 and W2. Remove all jumpers before testing individual circuits to isolate faults. Energize each stage separately and monitor system response–unexpected operation (e.g., cooling instead of heating) often indicates crossed wires or mislabeled terminals.
Check for auxiliary circuits like emergency heat (E) or reversing valve control (O/B). These are critical for heat pump systems, where O/B determines defrost cycle operation. Verify the correct phase by observing compressor and fan behavior during heating cycles–improper settings can lead to inefficient operation or short cycling. Utilize a clamp meter to measure current draw on these lines under load, ensuring values align with equipment specifications (
Document all findings with photographs before reassembly. Label each wire with masking tape at both ends, noting terminal numbers and corresponding device connections. Cross-reference this documentation with the manufacturer’s technical manual to confirm compatibility, particularly for aftermarket upgrades. Reconnect one circuit at a time, testing operation after each step to pinpoint any discrepancies introduced during reassembly.
Standard Wire Colors and Terminal Labels in Climate Control Units
Always verify terminal markings against the manufacturer’s installation manual–even minor deviations can cause system failure. Most residential and light commercial units follow a consistent pattern, but exceptions exist, particularly in zoned or multi-stage systems.

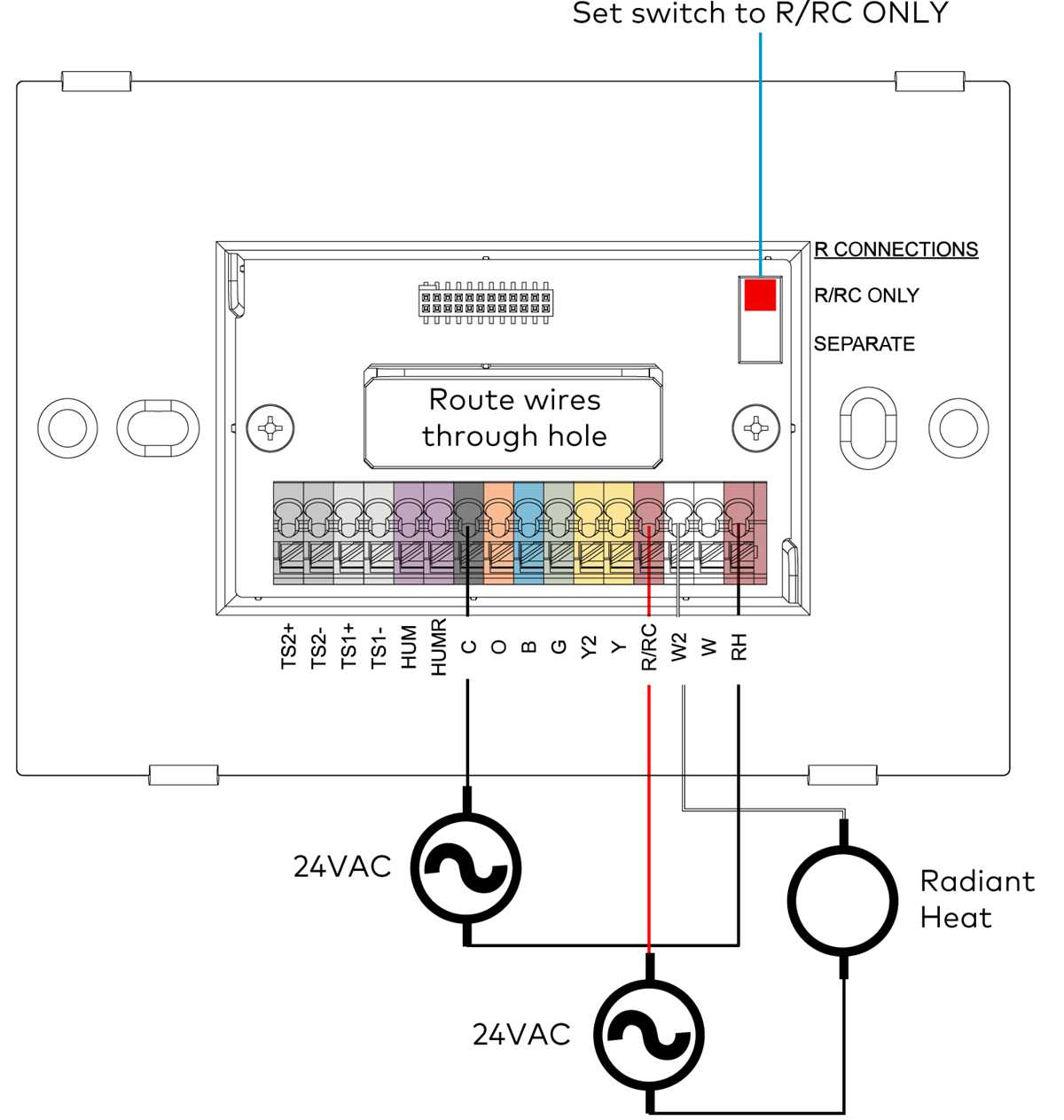

The R (or Rh/Rc) wire is the primary power source, typically red, carrying 24V AC from the transformer. Rh and Rc are usually bridged in single-transformer setups; separate connections indicate dual-transformer systems (e.g., heat pump with auxiliary heat). Never connect R directly to any other terminal without confirmation–short circuits can damage the control board.
Common terminal designations and their standard wire colors:
- R/RC/RH – Red (power)
- W – White (heating stage 1)
- W2 – Light brown or dark gray (heating stage 2)
- Y – Yellow (cooling stage 1)
- Y2 – Light blue (cooling stage 2)
- G – Green (fan/blower)
- O/B – Orange or purple (reversing valve, heat pump)
- C – Blue or black (common/neutral)
- L – Brown (line voltage, rare–verify before connecting)
- E – Pink (emergency heat, heat pumps)
Heat pumps introduce variability: the O/B terminal toggles between heating and cooling modes. Orange usually denotes cooling mode (O), while purple indicates heating mode (B). Reverse this at your own risk–incorrect wiring will cause the system to run in the wrong mode, often without triggering faults.
For multi-wire cables (e.g., 18/7 or 18/9 AWG), manufacturers may use striped or dotted wires for secondary functions. A white wire with a red stripe, for example, might serve as W2 instead of solid light brown. Always trace each wire back to the control board–do not rely on color alone.
Low-voltage wiring (R, W, Y, G, O/B, C) must never be bundled with line-voltage cables (>30V). Even a small nick in insulation can lead to shorts, transformer burnout, or fire hazards. Use separate conduits or designated channels in bundled cables.
If the installation manual specifies non-standard colors (e.g., black for C), document the changes immediately. Label both ends of the wire with heat-shrink tubing or printed tags. Mismatched labels are a leading cause of troubleshooting errors during maintenance or upgrades.
For legacy systems, terminals may include B (auxiliary heat) or X (unused but potentially live). Test with a multimeter before handling–some older units retain voltage even when powered off. Replace any cracked or brittle wiring with new 18- or 20-gauge thermostat wire, ensuring the gauge matches the system’s current draw (typically 0.5–1A per circuit).
