Complete 2006 Cadillac DTS Wiring Harness Diagram Guide with Connections

For immediate troubleshooting, locate the primary power distribution block beneath the driver-side dashboard–terminal labels follow an alphanumeric sequence (A1-G4) matching factory schematics. Verify fuse continuity before probing connectors to prevent false readings; use a multimeter set to 200Ω for resistance checks. The underhood junction box consolidates sensor feeds–orange/black wires denote ignition-switched circuits, while gray/yellow carry constant 12V.

Common failure points include the BCM connector (C101), where corrosion disrupts input/output signals. Apply dielectric grease sparingly during reassembly to protect exposed pins. For infotainment wiring, trace the twisted pair between the head unit and amplifier–damaged shielding causes static interference. The trunk harness requires direct access through rear seat removal; probe the crossover splice (S205) for short circuits before replacing components.

High-current paths, such as starter relay circuits, use 10-gauge cables–inspect for heat damage near the solenoid. Climate control systems rely on the CKT K7 loop; monitor voltage drop across the blower resistor if fan speeds are inconsistent. Instrument cluster backlighting shares a common ground (G103)–test continuity to the chassis rail if illumination flickers. Always cross-reference tested values against the official service manual’s tolerance tables.

Electrical Integration Guide for Full-Size Luxury Sedan

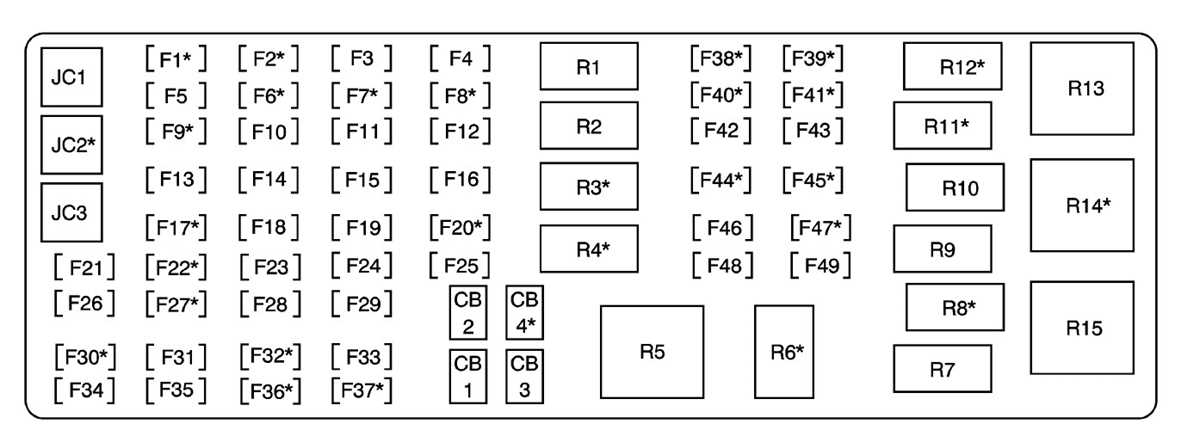

Begin diagnostics by locating the main fuse block under the dashboard on the driver’s side–remove the lower trim panel secured with two 7mm screws to access it. Pinout mappings for the under-hood connector (C1) are as follows:

Pin	Color	Function	Voltage (Key ON)
A1	Red/White	Battery Feed	12.6V
A3	Dark Green	Starter Control	10.8V (Crank)
A7	Yellow	Ignition 1	12.4V
A12	Pink	Fused Ignition	12.4V

Trace the instrument cluster bundle through the firewall grommet adjacent to the brake booster. The 18-pin connector (C202) at the cluster includes three critical grounds–verify resistance between each ground pin and chassis: <0.2 ohms. If values exceed this threshold, sand the contact point to bare metal and re-secure with dielectric grease.

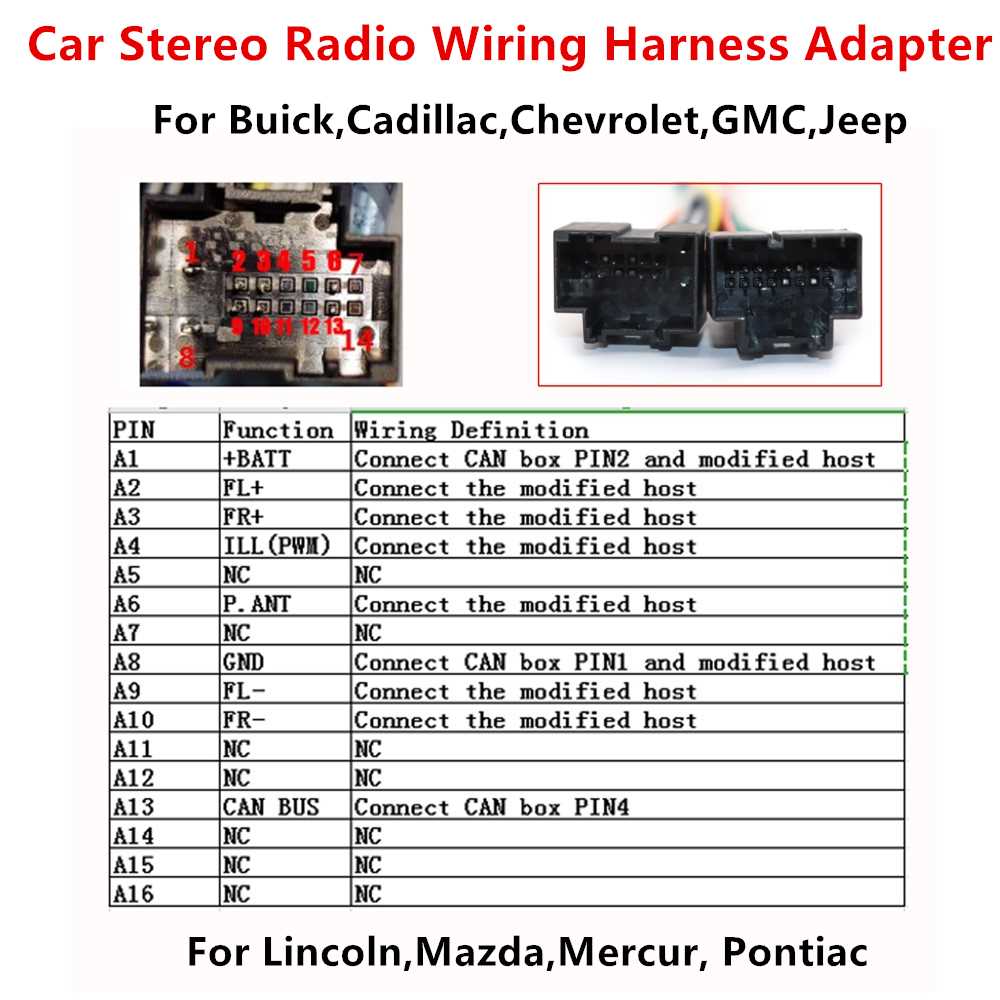

For rear seat entertainment systems, the 12-way connector (C305) beneath the rear deck splits into two sub-harnesses: left speaker wires (orange/black striped) carry 4Ω signal paths, while the right channel (gray/black) feeds mirrored impedance loads. If audio distortion occurs, bypass the factory amplifier by splicing speaker-level inputs directly to the head unit–use crimp connectors rated for 20A current draw.

Engine compartment bundles converge at the bulkhead connector near the brake master cylinder. Secure the retaining clip before separating halves–premature release risks damaging the locking tab. Critical power distribution points:

• Alternator B+ terminal (nuts torqued to 12 ft-lbs)
• Coolant fan relay control (light blue/white wire, 5A fuse)
• Oil pressure sender (gray connector, 0.5V at idle)

When replacing any segment of the front-end bundle, match wire gauge–primary circuits use 12-14 AWG, while secondary sensors (e.g., ambient air temp) employ 20-22 AWG. Use heat-shrink tubing with adhesive lining for all repairs; standard electrical tape degrades within 18 months in under-hood environments. Test continuity across splices with a digital multimeter set to 200Ω range–readings above 2Ω indicate compromised connections.

Common Failure Points and Mitigation

Twisted-pair bundles behind the glovebox frequently suffer chafing against the HVAC duct. Route replacement bundles through the existing loom, adding spiral wrap every 8 inches–ensure wraps extend 1.5 inches beyond potential contact points. The BCM-to-IPC connector (C201) often develops intermittent faults; clean pins with contact cleaner and re-seat with dielectric compound.

For retained accessory power circuits, the door ajar switch (C304) harness experiences fatigue from repetitive motion. Replace the entire pigtail rather than attempting splice repairs–factory harnesses use high-flex copper alloys not replicated in aftermarket alternatives. Verify the ground strap between the driver’s door hinge and A-pillar–corrosion here simulates other electrical failures by raising system voltage 0.3V above spec.

Finding Key Electrical Connector Points in a Large Luxury Sedan

Begin under the driver-side dashboard near the fuse box–this area houses the primary link cluster for the vehicle’s central electrical system. Disconnect the negative battery terminal first to prevent shorts. Remove the lower trim panel beneath the steering column by unscrewing two 7mm bolts and gently prying the plastic clips along the edges. The main connector block is positioned directly behind this panel, shielded by a black plastic cover secured with three T20 Torx screws.

The front junction module, responsible for power distribution to critical systems, sits behind the glove compartment. Empty the compartment completely, then press inward on both side tabs while pulling forward to release the assembly. Behind it, you’ll find a multi-pin connector wrapped in protective loom–this unit interfaces with the powertrain control and climate control subsystems. Label each connection before detachment to avoid cross-wiring during reassembly.

Engine Bay and Rear Connector Access

Lift the vehicle’s hood to locate the engine control module near the firewall on the passenger side. The main input/output plug is concealed beneath a rubber gasket–pull the gasket upward to reveal a 96-pin connector. Use a small flathead screwdriver to release the locking tab before separation. This connector carries signals for fuel injection, ignition timing, and sensor feedback.

For the rear trunk, remove the left-side cargo trim panel by unsnapping five plastic retainers. The central electrical relay box is mounted against the body behind this panel. Disconnect the seven-pin connector first, followed by the two larger harness plugs secured with red locking sleeves. These supply power to the taillights, infotainment amplifier, and rear-defrost grid.

Beneath the rear seat cushion, depress the latch release while lifting the front edge to access the fuel pump assembly. The wiring connector here is oval-shaped with six terminals–press the release tab downward while pulling outward to disconnect. This link handles pump activation and fuel level sensor signals. Always inspect the connector for corrosion, common in vehicles with higher mileage.

Rear door harness connections require removing the interior door panel. Unplug the mirror control connector first, located behind the triangular access cover. The main door harness plug sits along the door’s hinge pillar–disconnect by rotating the locking ring counterclockwise before pulling straight out. These wires control window motors, door locks, and side mirror adjustments.

Test continuity on each circuit with a multimeter before reconnection. Record observations of pin alignment or damage immediately to prevent intermittent faults later. Reattach components in reverse order, ensuring proper latch engagement on every connector to avoid electrical gremlins.

Step-by-Step Guide to Identifying Driver-Side Electrical Connector Parts

Start beneath the dashboard on the left side, locating the large integrated control module bundle. This 48-pin assembly houses power distribution, ground circuits, and sensor feeds–trace individual wires by color-coding: solid red for constant 12V, yellow with black stripe for switched ignition, and green for data links. Label each connection with heat-shrink tubing before detachment to prevent mix-ups during reassembly.

Move to the door jamb, exposing the kick panel to reveal the fusebox extension. Identify the 12-way connector here–its upper row carries lighting inputs (white for headlamp, brown for side markers), while the lower row handles door actuators (light blue for locks, dark blue for window motors). Verify continuity with a multimeter set to 200Ω; readings above 5Ω indicate corroded terminals requiring terminal grease application.

Follow the under-hood mainline from the firewall grommet to the driver-side fender. The thick black harness here splits into three sub-branches: the alternator excitation wire (fuscia), the cooling fan relay (orange), and the horn circuit (tan). Use pinch guards on split sections to prevent chafing, particularly where the bundle crosses the strut tower.

Inspect the steering column junction, where two distinct connectors interface. The upper six-pin connector services the turn signal, cruise control, and high-beam inputs, while the lower 10-pin manages the ignition switch and key transponder. Use dielectric silicone on the lower connector’s pins to prevent moisture intrusion–common failure point in humidity-prone climates.

Trace the floor-mounted bundle running alongside the brake pedal, noting the two-inch diameter conduit protecting the anti-lock brake and traction control sensors. The gray wire within carries the wheel-speed signal; interference here triggers false traction warnings. Secure this section with zip ties every six inches to eliminate vibration-induced shorting against the transmission tunnel.

Locate the seating memory module near the driver’s seat rail–a rectangular box with a 16-pin Deutsch connector. The leftmost pins (red/green stripe) control lumbar support, while the right cluster (purple/white stripe) handles seat positioning motors. Test actuator function by cycling memory settings; erratic movement signals frayed wires at the seat track pivot.

Examine the left A-pillar conduit, where the airbag deployment line (yellow) and curtain airbag sensor (light blue) travel. Never splice these circuits–instead, replace damaged segments entirely. The adjacent white bundle carries the rain sensor; ensure its optical window remains debris-free to prevent false wiper activation.

Finish at the firewall bulkhead connector, a 24-pin junction linking interior systems to engine bay components. The top row (all black) grounds chassis equipment, while the bottom row varies by trim: base models omit the heated seat wires (orange/pink), present in luxury packages. Confirm pin assignments using a factory service manual before any modifications.
