Step-by-Step Guide to Sketching Accurate Electrical Circuit Diagrams

Begin with a clear component inventory. List every resistor, capacitor, transistor, and integrated module before placing symbols. Verify datasheets for pinouts–even minor discrepancies in orientation can render a design unusable. Use standard labels (R1, C2, U3) consistently to avoid confusion during testing or assembly.

Choose a grid-based layout tool with snap-to alignment. Precision matters: misaligned connections cause shorts or open loops. Stick to IEEE/ANSI symbols unless client specifications demand alternatives. Horizontal signal flow from left to right, vertical power lines–simplify debugging later.

Mark voltage nodes explicitly. A 5V line intersecting a 3.3V trace requires level shifting; omitting this detail invites smoke. Add test points for probes–hidden traces waste hours during troubleshooting. Annotate critical paths with current limits (e.g., “#18 AWG max 10A”) to prevent overheating.

Avoid zigzagging traces. Straight paths reduce inductance; 45-degree angles prevent signal reflections in high-frequency designs. Separate analog and digital grounds–star grounding prevents noise coupling. Double-check every junction: floating inputs cause erratic behavior.

Include a BOM (Bill of Materials) link. Specify exact part numbers (not just “resistor 1kΩ”) to eliminate guessing during procurement. Add revision history–what changed between v1.1 and v1.2? Document why.

Key Steps for Creating Effective Electrical Schematics

Start by listing all components required for your electrical layout. Include resistors (specify resistance values in ohms), capacitors (microfarads), transistors (NPN/PNP types), integrated circuits (pin configurations), and power sources (voltage ratings). For example, a simple LED setup needs a 220Ω resistor, 9V battery, and 5mm LED with forward voltage of 2V. Skipping this step leads to errors in connections.

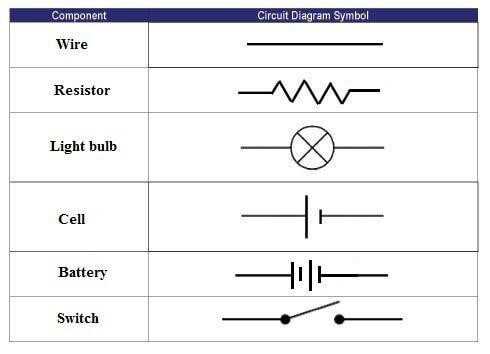

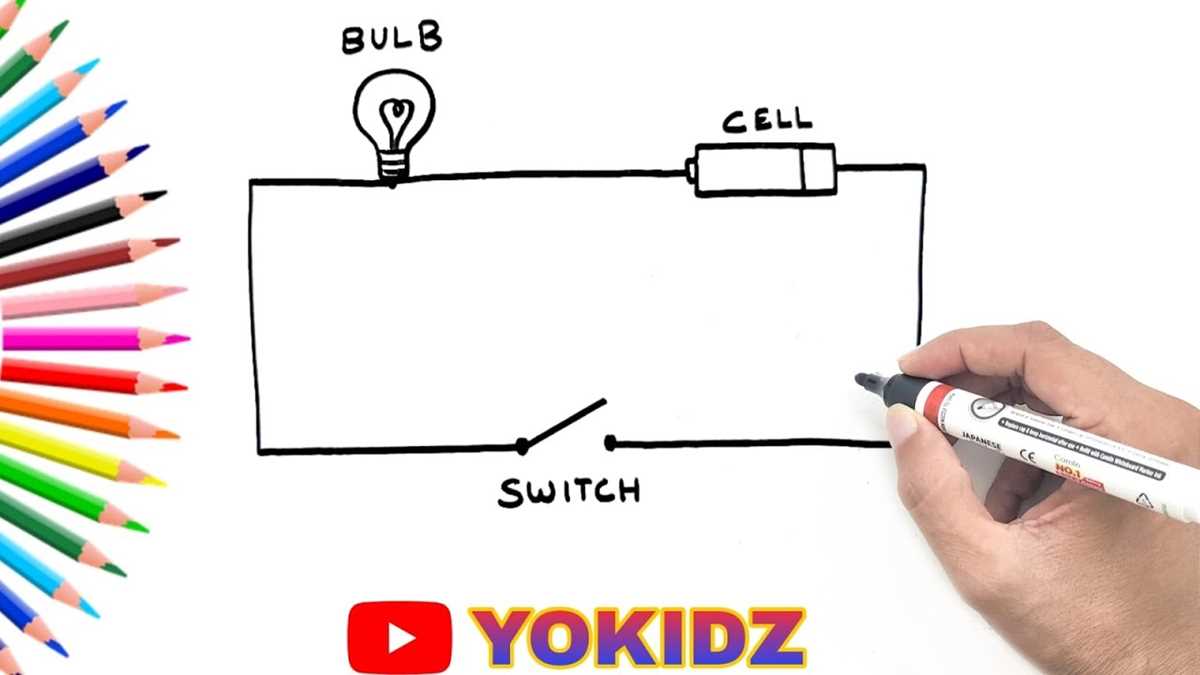

Use standardized symbols for clarity. ANSI and IEC sets differ–ANSI uses zigzag lines for resistors while IEC shows rectangles. Misinterpretation can cause confusion during assembly. Here’s a quick reference for common parts:

• Resistor: ANSI (zigzag), IEC (rectangle with “R”)
• Ground: downward triangle (ANSI/IEC)
• Battery: parallel lines (long/short for positive/negative)
• Switch: break in line with lever

Place components logically, grouping related elements. Power rails run horizontally (top for positive, bottom for ground), while signal paths flow vertically. Avoid crossing lines–use bridges (half-circle jumps) if unavoidable. A 4-channel mixer, for instance, should separate each input stage clearly before converging at the amplifier.

Label everything. Mark resistor values (e.g., “R1 10k”), capacitor polarities (positive/+ side), and signal directions (arrows). For ICs, add pin numbers (e.g., “U1 pin 8 VCC”). Omitting labels forces guesswork during soldering or troubleshooting. Tools like KiCad auto-generate part numbers, but manual verification is critical.

Tools and Techniques for Precision

Digital tools streamline revisions. Free software like Fritzing or Eagle provides libraries of components, reducing drawing time. For manual sketches, use graph paper with 5mm grids–this ensures proportional spacing. Key shortcuts:

1. Fritzing: “Grid snap” aligns components neatly.
2. Multisim: “Virtual breadboard” mode tests connections before finalizing.
3. Paper: Draft lightly with pencil, then darken lines for copying.

Verify continuity with a multimeter before finalizing. Trace each path: power → switch → load → ground. A missing ground on a 7-segment display, for example, can cause partial illumination. For complex boards, color-code nets (e.g., red for VCC, black for GND) to avoid short circuits during prototyping.

Selecting Optimal Instruments and Notation for Schematics

Begin with software that supports standardized electrical notation. KiCad offers free, open-source libraries with IEC 60617 or ANSI Y32 symbols–pick one standard and apply it consistently. CircuitLab and EasyEDA provide similar symbol sets but verify their export compatibility with Gerber files if fabrication is needed. For complex projects, prioritize tools with built-in ERC (Electrical Rules Check) to catch mismatched pin types or floating nets.

• Symbols: Use rectangles for ICs with pin numbers outside the shape, arrows for current direction in power sources, and zigzag lines for resistors (45° increments). Avoid artistic flourishes; clarity trumps aesthetics.
• Patterns:
  1. Ground: downward triangle (IEC) or three stacked lines (ANSI)
  2. Capacitors: curved line (non-polarized) or + sign (electrolytic)
  3. Transistors: circle (BJT) or straight lines (FET) with gate/base marked
• Line weight: 0.5pt for signal traces, 1pt for power rails. Distinguish buses with thicker lines or double strokes.

Legacy vs. Modern Trade-offs

Legacy templates often save time but may lack modern components like USB-C or LiPo chargers. Extend libraries manually by duplicating generic symbols and renaming pins–e.g., convert a TO-220 MOSFET footprint to a SOT-23 by adjusting pin pitch. Cross-reference datasheets for exact pin arrangements; a “Vgs” label on a FET symbol prevents confusion later. Test exported netlists against a SPICE simulator like ngspice to validate connections before prototyping.

Step-by-Step Guide to Sketching Basic Electronic Symbols

Begin with a resistor: sketch a straight horizontal line, then add three zigzag segments–keep angles sharp and consistent. Standard resistor symbols measure 8–12 mm long, with each zigzag spanning 2–3 mm. Label values directly above or below (e.g., “10kΩ”) using 3–4 mm tall uppercase letters for clarity.

For a battery, draw two parallel vertical lines 4–6 mm apart. The positive terminal (longer line) should extend 1 mm above the negative. Add a “+” sign above the longer line if polarity matters. Multi-cell batteries stack these pairs horizontally, separated by 2 mm gaps.

Component	Dimensions (mm)	Key Features
Capacitor	8–10 length, 3–4 gap	Two equal parallel lines; polarised versions include a curved plate
Diode	6–8 length, arrow 3–4 width	Triangle pointing toward a vertical line; add a second line for LEDs
Transistor (NPN)	10–12 diameter	Circle with three lines: collector (top), base (angled middle), emitter (bottom)

Inductors require a series of semicircles–start with a straight line, then arc upward four times, each 2 mm wide. Maintain consistent curvature; iron-core inductors add dashed lines above the arcs. Keep loops evenly spaced to distinguish from resistors.

Switches use a break in a straight line with a diagonal slash connecting at one end. Label contact positions (“NO” for normally open, “NC” for closed) adjacent to the symbol. Rotary switches stack multiples, each rotated 30° from the last.

Ground symbols consist of three descending lines, each 1 mm shorter than the previous. The top line spans 5 mm, the middle 4 mm, the bottom 3 mm. Chassis grounds replace lines with a single triangle pointing downward.

Integrated circuits appear as rectangles with pin counts matching the datasheet. Number pins clockwise, starting at the upper-left notch (pin 1). Keep pin spacing uniform (3 mm typical); add abbreviated function labels (“Vcc”, “GND”) inside the rectangle near relevant pins.

Precise Wire and Terminal Identification in Schematics

Assign each conductor a unique identifier matching its function–VCC for power rails, GND for ground, CLK for clock lines. Avoid vague labels like “wire1” or “connectionA” as they obscure debugging and maintenance. Instead, reference actual net names derived from the system’s pinout or datasheet.

Use consistent conventions: uppercase for global signals, lowercase for local nodes. If a wire splits, append _A, _B suffixes to keep relationships traceable–e.g., data_bus_A and data_bus_B branch from a single origin.

Label junctions where three or more lines meet to prevent ambiguity. A simple dot marks a connection; crossing lines without a dot indicate no electrical contact. Reserve TP (test point) labels for nodes requiring probes during validation.

Include signal attributes directly on the line: I2C_SDA (open-drain, pull-up), SPI_MOSI (push-pull). Distinguish differential pairs with + and – prefixes–USB_D+, USB_D-. Avoid symbols that resemble schematic primitives, like asterisks or brackets.

Color-code if the environment permits, but never rely solely on hues. Text labels must remain legible in monochrome. Common standards: red for power, black for ground, green for data, blue for clocks. Ensure annotations align parallel to the line or are offset to avoid overlapping components.

Annotating High-Frequency and Multi-Layer Boards

For RF paths, specify impedance (e.g., 50Ω) near the line. Mark transmission line ends with TERM for termination resistors. On multilayer designs, append layer numbers–VCC_2 for power on layer 2, SIG_4 for a signal routed beneath.

Cross-Referencing External Documentation

Link labels to netlists or PCB footprints by including pin numbers–U1_Pin14–or connector designations–J5_3. Maintain identical naming across schematic, layout, and firmware for automated tools to correlate nets without manual error-checking.

Avoiding Pitfalls in Schematic Arrangement

Label every component with precise reference designators–R1, C2, U3–without skipping numbers or reusing them. Inconsistent numbering leads to assembly errors; verify sequences match bill-of-materials files before finalizing board designs. Mislabeling a single resistor may require rework costing hours of debugging.

Separate high-current paths from sensitive signal lines. A power trace carrying 5A near a 3.3V analog input creates crosstalk, distorting measurements. Route critical signals on inner layers if multilayer configurations are available, shielding them between ground planes to minimize interference.

Ground loops form unintended current paths, degrading performance in audio amplifiers or ADC readings. Use star grounding for low-noise applications, connecting all grounds to a single point near the power supply rather than daisy-chaining. A split plane avoids loop-induced voltage drops across components.

Trace Widths and Spacing Constraints

Use online calculators to determine minimum trace widths for current capacity. A 10-mil trace safely carries 200mA on 1oz copper, but doubles to 40 mils for 3A. Narrower traces overheat; verify temperature rise limits before manufacturing. Spacing between traces must exceed dielectric breakdown voltages–3 mils for 50V, 10 mils for 400V.

Thermal reliefs prevent soldering difficulties on large copper planes. Without them, pads act as heat sinks, causing cold joints. Add relief patterns measuring 20-30% of pad diameter, ensuring reliable connections while maintaining thermal conductivity. Verify thermal pad connections in soldermask layers to avoid blocked vias.

Decoupling capacitors belong adjacent to IC power pins, not inches away. A 0.1µF ceramic capacitor placed 1mm from a microcontroller’s VCC pin suppresses HF noise; moving it 5cm reduces effectiveness by 80%. Apply multiple values (100pF, 0.1µF, 10µF) for broadband noise suppression across frequencies.

Test points simplify debugging but clutter layouts if misplaced. Place them on nets requiring frequent probing–MCU reset lines, SPI buses–but avoid routing bus traces through vias under DIP packages where probes can’t reach. Use surface-mount pads for small SMD components; 1mm diameter pads fit most scope probes.

Silkscreen clarity prevents assembly errors. Rotate reference designators to align with component orientation; diagonal or upside-down text slows manual placement. Restrict silkscreen to PCB edges near connectors; avoid overlapping pads or exposed copper, where ink masks soldermask defects.
